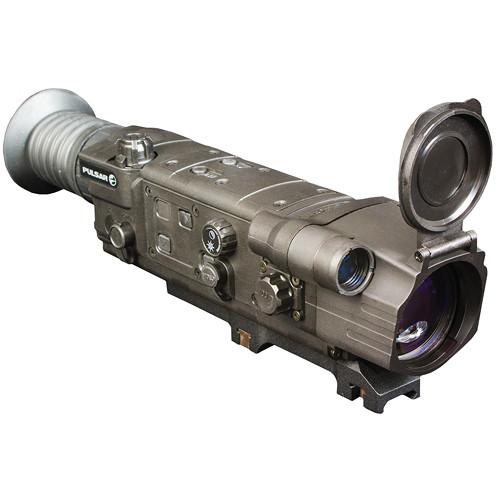

User Manual for Pulsar PL76312 N750 DIGISIGHT Riflescope with 50mm Lens Click to enlarge the picture
Contents of the user manual for the Pulsar PL76312 N750 DIGISIGHT Riflescope with
- Product category: Night Vision Riflescopes Pulsar
- Brand: Pulsar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pulsar Night Vision Riflescopes
|
User manual for the Pulsar PL76312 N750 DIGISIGHT Riflescope with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pulsar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pulsar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pulsar product will considerably shorten its lifespan!
|
Product description The PULSAR PL76312 N750 DIGISIGHT Riflescope is designed for observation and shooting in twilight and at night-time. This riflescope uses a highly sensitive CCD array (with a range of operation illumination 0.00001 to 30000 lux); the image transmitted to the high resolution display OLED (640 x 480 pixels) is contrasting, crisp, and saturated. Thanks to the OLED display, this riflescope can be used within a wide temperature range from -4 to 122°F (-20 to 50°C) .
The PL76312 Riflescope is a multifunctional device that features several essential options for modern hunting, which includes screen display information on operation status (running time, low battery indicator, active function etc.). The menu has additional functions for image settings: gradual brightness and contrast adjustment, and SumLight signal processing program. The SumLight program automatically increases CCD array sensitivity under low light conditions. The riflescope can be zeroed not only in the traditional manner but also using the new one shot zeroing method. This makes the zeroing procedure significantly faster and more convenient.This riflescope is equipped with a built-in laser / IR illuminator (780nm wavelength, safety class 1), which considerably increases viewing range. The weaver rail at the side of the body allows an auxiliary IR flashlight to be attached. The basic control functions (switching On / Off the riflescope and the IR illuminator, activation of digital zoom) can be performed with the help of the included wireless remote control. It also features a video output to conduct video recording to external devices without the use of additional adapters and camera or camcorders. If necessary, output video signal standard can be changed from PAL to NTSC.This riflescope has 1 pre-loaded reticle, but the user can also upload another optional reticle from a reticle base available on the PULSAR website (downloadable). The color of the reticle point can be switched from red to green. The riflescope is resistant to bright light exposure. It can be mounted on a wide range of hunting weapons including those of large calibers (shock resistance is guaranteed if cartridges with muzzle velocity not exceeding 6,000 J are used).This riflescope operates on 4 rechargeable batteries but can also be powered with an external power supply. External power supplies such as EPS3 or EPS5 (sold separately) prolong the operation time of the riflescope to up to 9 to 20 hours. The IR laser illuminator in this riflescope is fully compliant with US FDA Class 1 laser eye safety requirements. Note: You may see, in certain circumstances, a slightly grainy, non-uniform pattern when the IR illuminator is activated. This is not a fault; it is a by-product of ensuring that the IR illuminator is 100% eye safe. In the Box Pulsar PL76312 N750 DIGISIGHT Riflescope with 50mm Lens Wireless Remote Control 4 x AA batteries Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pulsar PL76312 N750 DIGISIGHT Riflescope with 50mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPulsar Digisight N750 Specs | Generation | Digital | | Magnification | From 4.5 to 6.75x | | Objective Lens | 50 mm, F/1.0 | | Field of View | At 100 m Distance: 5° on 4.5x / 3.25° on 7x | | Eye Relief | 67 mm | | Exit Pupil | 6 mm | | Detection Range | Maximum: 1968.5' (600 m) Maximum detection range of an object measuring 1.7 x 0.5 m in natural night conditions (0.05 lux, quarter moon). | | Diopter Adjustment | Eyepiece: - 5 to + 3 D | | Resolution | Pixel (H x V): 752 x 582
Lines/mm: ≥55
Display: 640 x 480 VGA | | Characteristics | Type of CCD array: ICX659AL | | Output Video Format | PAL / NTSC | | Viewing Size | Diagonal: 0.31" (7.88 mm) | | Operating Voltage | 6 V (included 4 AA rechargeable batteries) | | External Power Supply | 9 to 15 VDC / 3 W | | Protection Class | IP code (IEC 60529): IP44 | | Operation Time | 4 / 3.5 Operation time of 3.5 hours with 1 set of 4 AA batteries including the usage of built-in IR. | | Dimensions | 13.38 x 3.74 x 3.70" (340.00 x 95.00 x 94.00 mm) | | Weight | 2.20 lb (1 kg) |
