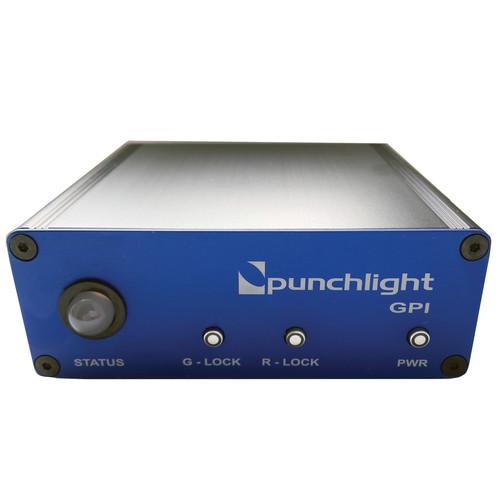

User Manual for PunchLight GPI Universal Switcher Click to enlarge the picture
Contents of the user manual for the PunchLight GPI Universal Switcher
- Product category: On-Air Lights & Clock Timers Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others On-Air Lights & Clock Timers
|
User manual for the PunchLight GPI Universal Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description The PunchLight GPI Universal Switcher Interface is a recording indicator designed for anybody working in project, dubbing, or post production studios who needs visual confirmation of when a recording begins or ends. It is ideal for musicians and sound engineers as well as film, TV, and video editors. The PunchLight GPI is a switcher interface for connecting up to three light units at once, such as the PunchLight RECORDING Display, RECORDING PlexSign, RECORDING Ring, or RECORDING Lamp (sold separately). This device connects to the GPI port on SYNC HD or SYNC I/O and works exclusively with Pro Tools HD, no drivers needed. A 12V power supply is included. - Switcher and power supply unit for the RECORDING Display, RECORDING PlexSign, RECORDING Lamp, or RECORDING Strip
- Connects to the GPI port of a SYNC HD, SYNC I/O or the Universal Slave Driver
- A two-color LED indicates recording (red) and record ready/preroll (yellow)
- Connects up to three light units in any combination
In the Box PunchLight GPI Universal Switcher D-Sub Cable 12V Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PunchLight GPI Universal Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPunchLight PLGPI0202 Specs | Compatibility | RECORDING Display, RECORDING PlexSign, RECORDING Lamp, or RECORDING Strip | | Indicators | Status
G-Lock
R-Lock
Power | | Connectors | 1 x 9-pin Sub-D, GPI input signal
3 x RJ, light outputs
1 x 12 VDC barrel, power input | | Power Supply | 12 VDC @ 1 A (2.1 A) | | Output | 12 VDC, max 900 mA per color 450 mA if both colors are used at the same time, otherwise a stronger (2.1 A) power supply is needed - max. 1 A per one color) | | Dimensions | 6.9 x 1.8 x 3.2" (17.5 x 4.5 x 8.0 cm) | | Weight | 0.44 lb (0.2 kg) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 7.0 x 4.7 x 2.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 54 owners. Add your rating and experience with the product.
