User Manual for PunchLight Relay Switchbox USB Click to enlarge the picture
Contents of the user manual for the PunchLight Relay Switchbox USB
- Product category: On-Air Lights & Clock Timers PunchLight
- Brand: PunchLight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PunchLight On-Air Lights & Clock Timers
|
User manual for the PunchLight Relay Switchbox USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PunchLight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PunchLight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PunchLight product will considerably shorten its lifespan!
|

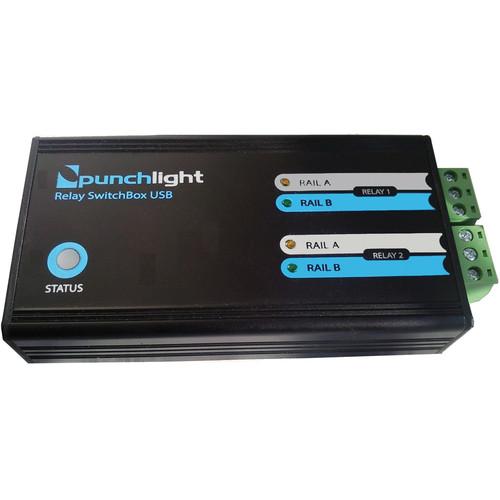

Product description The Relay Switchbox USB from PunchLight is a small, USB-powered unit with two built-in switching relays. The unit can control any signaling systems that arealready installed in your studio. You can control other devices such as speakers, a microphone, or your own light system with this box. The Relay Switchbox USB can work without a power supply, as it is connected and powered via a 5V USB port.
The Relay Switchbox USB is designed for anybody working in project, dubbing, or post production studios that needs visual confirmation of when a recording begins or ends. This simple, precise, and easy to use device is ideal for musicians and sound engineers as well as film, TV, and video editors. It is easy to install in any studio environment.
It is possible to connect an additional external light, such as the PunchLight RECORDING Display, RECORDING PlexSign, RECORDING Ring, or RECORDING Lamp, though a 12V power supply will be needed (all sold separately). The unit is compatible with most audio applications such as Pro Tools, Cubase, Logic Pro, Digital Performer, Samplitude, Reaper, Sonar, and Vegas Pro. The software automatically sends information about Recording start/stop and record "ready" to the Relay Switchbox USB. All functions are set up via the PunchLight Software Utility. - Automatically indicates recording (red) and record ready/preroll
- Two relays with terminal plate
- 12V output for an external light (Recording Display, Recording Lamp, etc.) 1
Please Note: 12V PSU required for connection to an external light close In the Box PunchLight Relay Switchbox USB Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PunchLight Relay Switchbox USB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPunchLight RSBUSB400 Specs | Supported Applications | Pro Tools, Nuendo, Cubase, Logic Pro, Logic Pro X, Digital Performer, Sonar, Vegas Pro, Reaper, Reason, Studio One | | Compatibility | Mac/PC | | Connectors | 1 x USB, control/power port
2 x Relay terminal, control
1 x Light, output
1 x DC Power, 12 VDC power input | | Indicators | Status
Recording
Ready/Pre-roll | | Cable | 6.6' (2 m) | | Output | 12 V | | Dimensions | 4.13 x 1.0 x 2.13" (105 x 24 x 54 mm) | | Weight | 0.44 lb (0.2 kg) | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 7.3 x 5.6 x 2.7" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
