User Manual for Pyle Home PCM30A 60W Power Amplifier with 25V 70V Output Click to enlarge the picture
Contents of the user manual for the Pyle Home PCM30A 60W Power Amplifier
- Product category: 70-Volt Amplifiers Pyle Home
- Brand: Pyle Home
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Home 70-Volt Amplifiers
 |
User manual for the Pyle Home PCM30A 60W Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Home product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Home user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Home product will considerably shorten its lifespan!
|

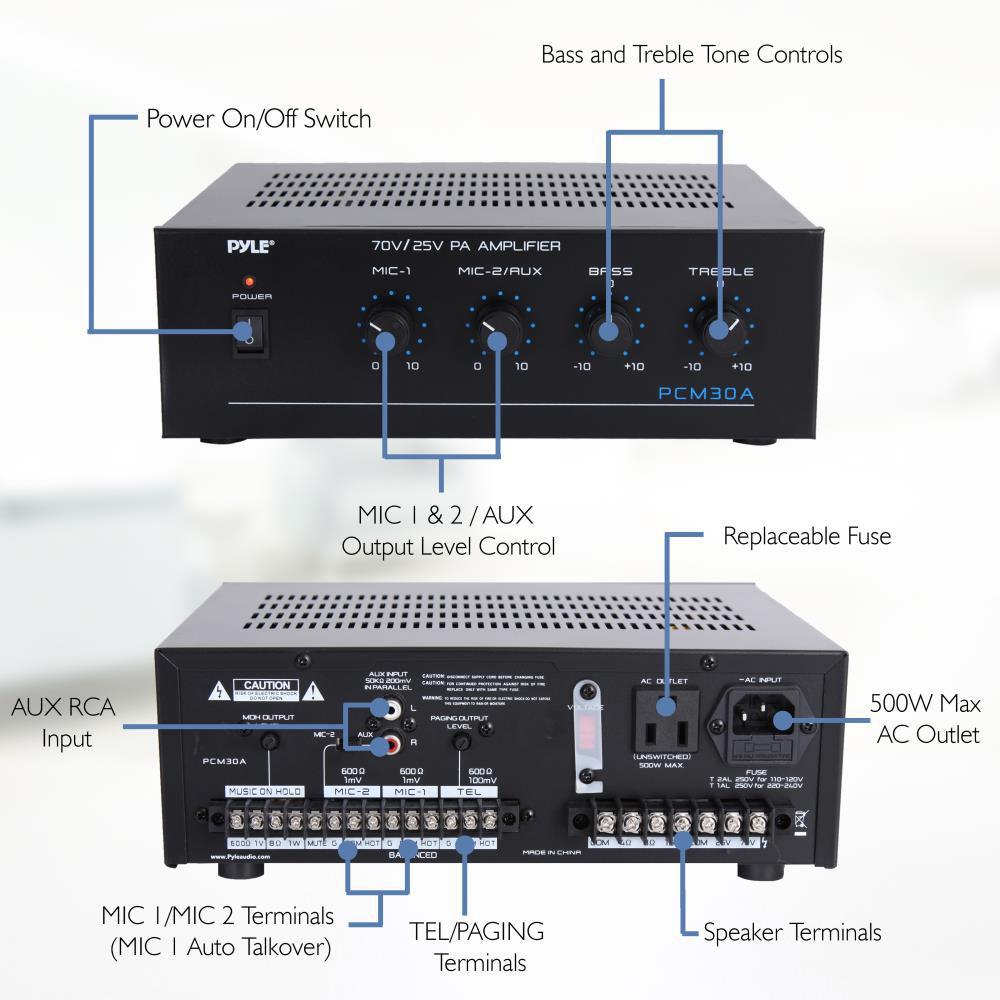

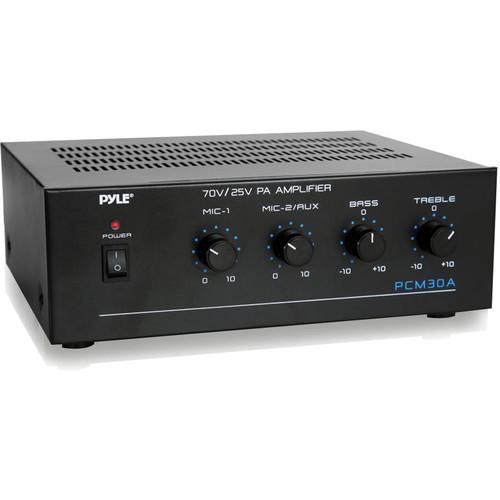

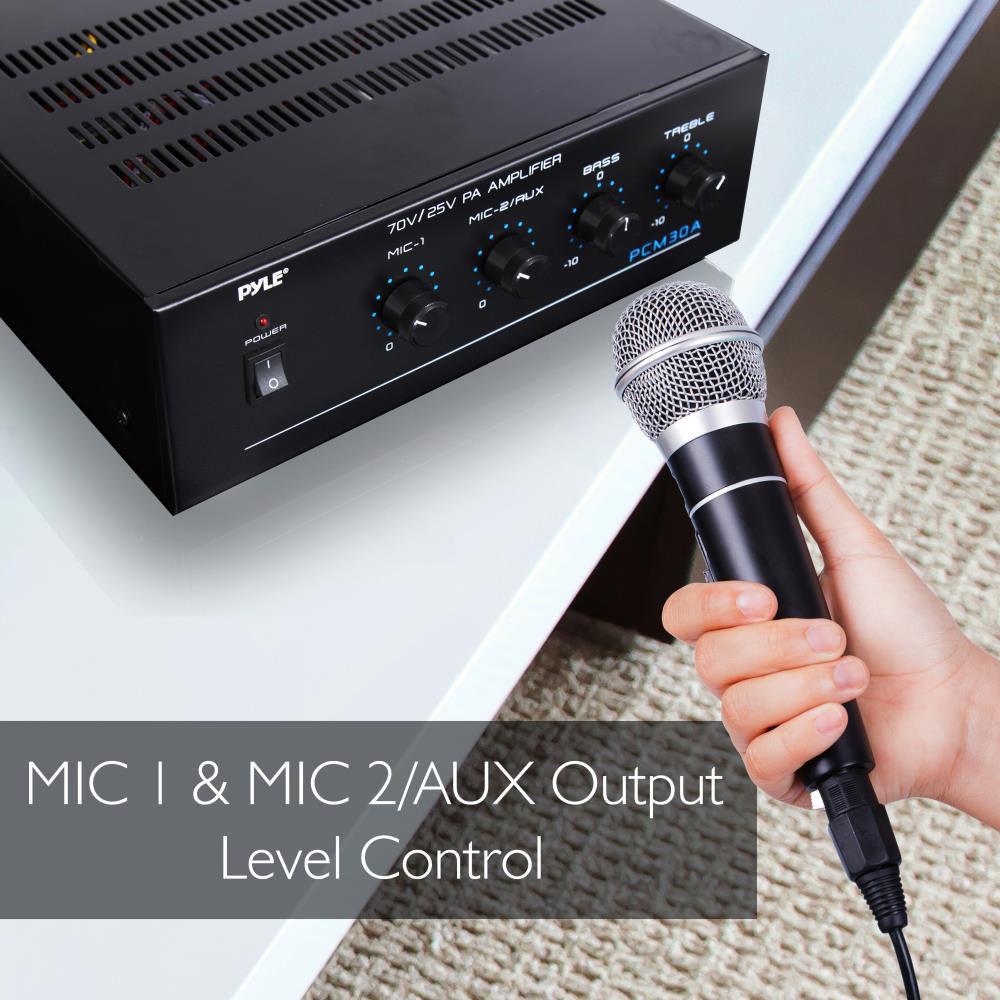

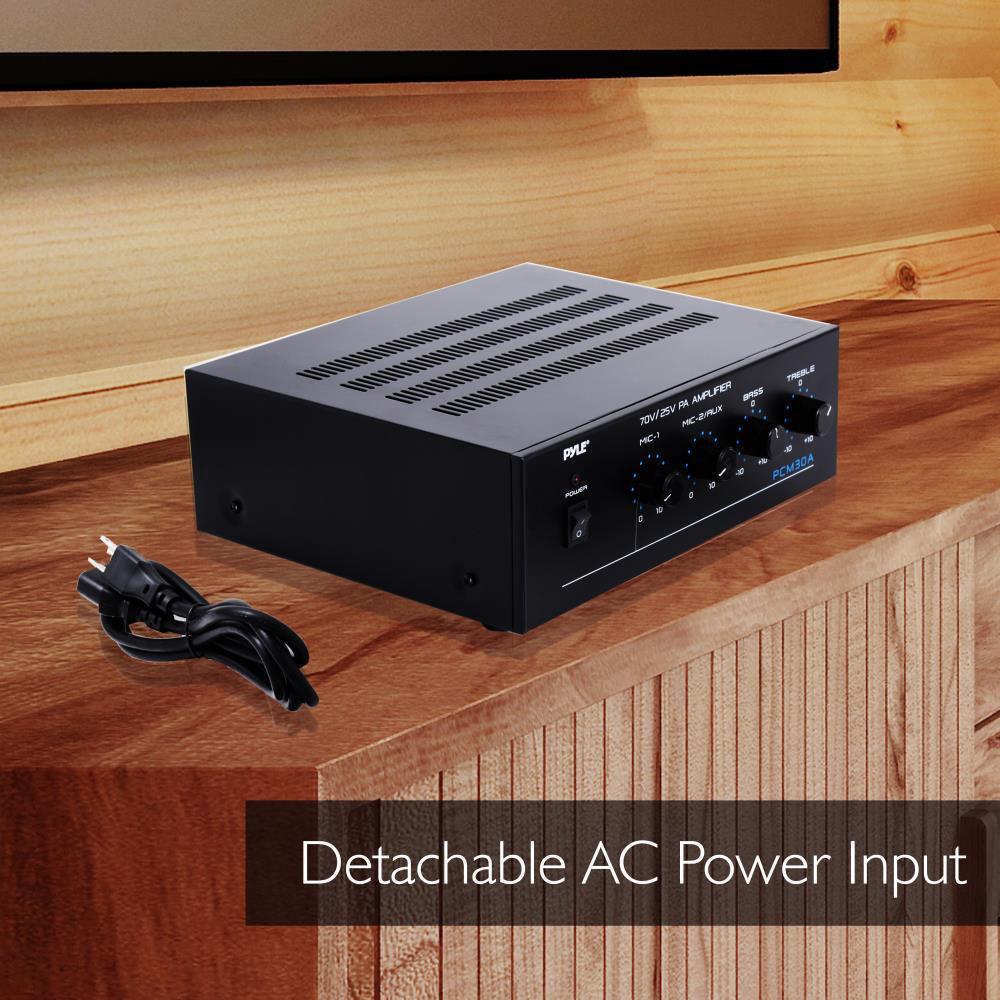

Product description Take control of your paging system with the Pyle Home PCM30A, a 60W power amplifier that easily integrates into low-impedance or constant-voltage speaker setups. With two balanced microphone inputs, a stereo RCA aux input, and automatic Mic 1 priority, the PCM30A is ideal for delivering announcements that can be clearly heard over background music. The front panel features per-input level controls and overall 2-band EQ for simple optimization of your mix. The 60W output feeds the rear-panel speaker terminals, which include connections for 4-, 8-, and 16-Ohm speakers as well as 25V and 70V speakers. The rear panel also presents level-adjustable paging outputs, and speaker/headphone monitor outputs for music-on-hold applications. Connect the power amp to a standard IEC wall outlet with the supplied power cable, and utilize the PCM30A's unswitched AC outlet to power additional gear. - Front-panel controls for mic/aux levels and 2-band EQ
- Two balanced 3-pole mic input terminals
- Stereo RCA aux input jacks
- Mic 1 priority automatically attenuates Mic 2 and Aux inputs -40 dB
- Selectable source (Mic 2 or Aux) for input 2
- Internally adjustable Mic 1 attenuation level (0 to -40 dB)
- Tel/paging output terminals with adjustable level
- Multiple speaker output terminals accommodate 4-, 8-, or 16-Ohm speakers as well as 25V or 70V systems
- Dual monitor outputs (600-Ohm / 1V for headphones, 8-Ohm / 1W for loudspeaker) with adjustable level for music-on-hold monitoring
- Unswitched 500W AC outlet
- Power on/off switch and LED indicator
- Selectable voltage standard
UPC: 068888896900 In the Box Pyle Home PCM30A 60W Power Amplifier with 25V/70V Output Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Home PCM30A 60W Power Amplifier with 25V 70V Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Home PCM30A Specs | Inputs | 2 x 3-Pole Mic Input Terminals
2 x RCA Coaxial Aux Inputs (One Stereo Pair) | | Outputs | 5 x 1-Pole Speaker Terminals (4-Ohm, 8-Ohm, 16-Ohm, 25 V, and 70 V)
2 x 1-Pole Comm Terminals for Negative Speaker Lead
2 x 2-Pole Monitor Terminals (600-Ohm / 1 V Headphones, 8-Ohm / 1 W Speaker)
1 x 3-Pole Tel/Paging Terminal | | Control Port | 1 x Mute Terminal | | Equalizer Settings | Bass:
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
