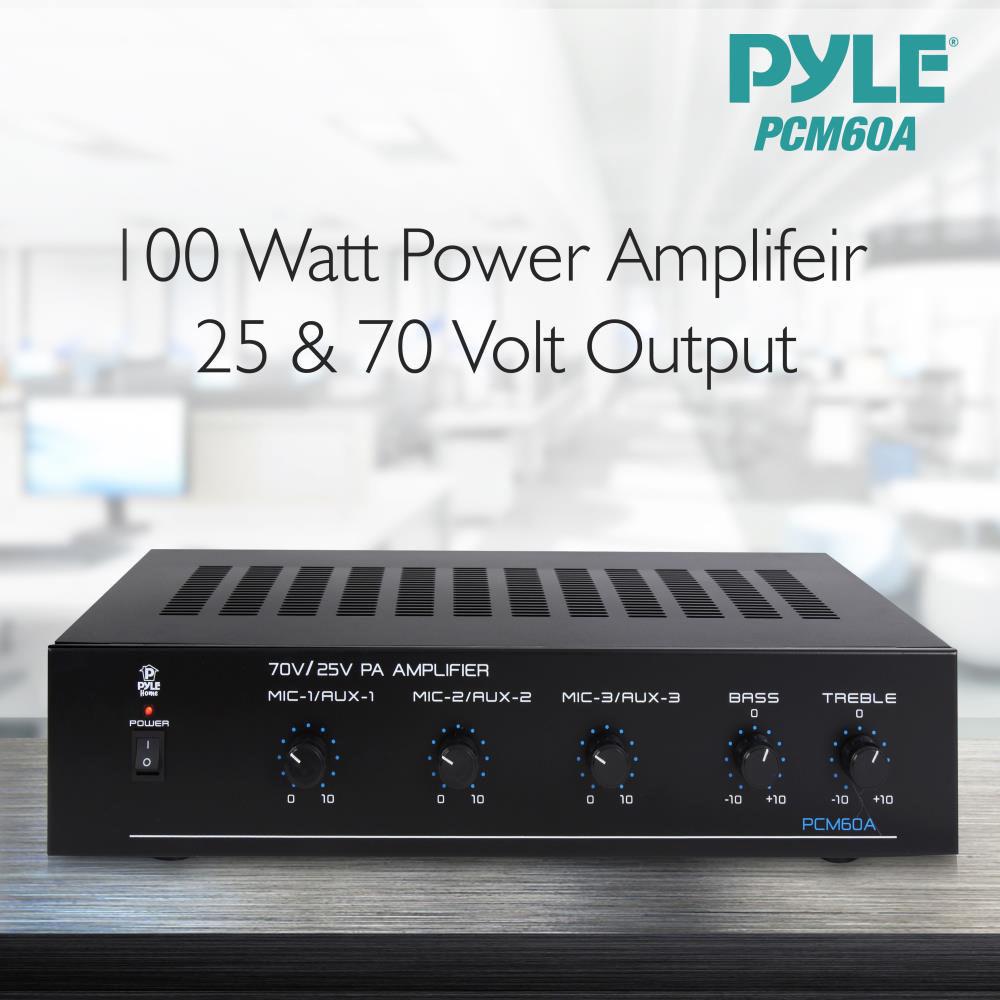

Product description Take control of your paging system with the Pyle Home PCM60A, a 100W power amplifier that easily integrates into low-impedance or constant-voltage speaker setups. With three balanced microphone inputs, three stereo RCA aux inputs, and selectable Mic 1 priority, the PCM60A is ideal for mixing multiple sources and delivering announcements that can be clearly heard over background music. The front panel features per-input level controls and overall 2-band EQ for simple optimization of your mix. Enhance the tone of your music sources via the Contour Control, which applies a gain boost at 100 Hz and 10 kHz to all three aux inputs. Patch the stereo RCA aux output to a tape deck or an audio interface for convenient recording of your mix. The 100W output feeds the rear-panel speaker terminals, which include connections for 4-, 8-, and 16-Ohm speakers as well as 25V and 70V speakers. The rear panel also presents level-adjustable paging outputs, and speaker/headphone monitor outputs for music-on-hold applications. Connect the power amp to a standard IEC wall outlet with the supplied power cable, and utilize the PCM60A's unswitched AC outlet to power additional gear. - Front-panel controls for mic/aux levels and 2-band EQ
- Three balanced 3-pole mic input terminals and one 3-pin XLR mic input jack
- Three stereo RCA aux inputs
- Switchable Contour Control mode boosts 100 Hz by 8 dB and 10 kHz by 4 dB

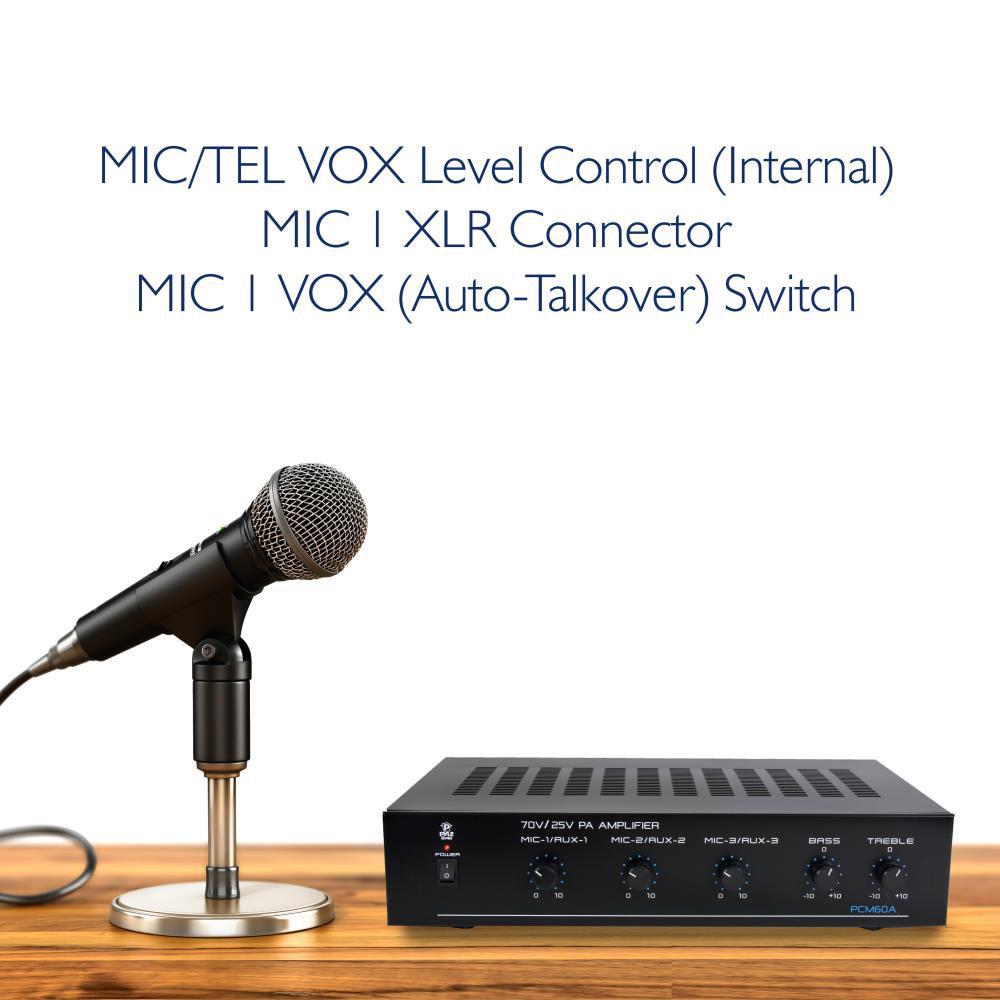

- Switchable Mic 1 priority attenuates Mic 2, Mic 3, and all Aux inputs -40 dB when signal at the first mic input is received
- Per-input mic/aux source selection
- Internally adjustable Mic 1 attenuation level (0 to -40 dB)

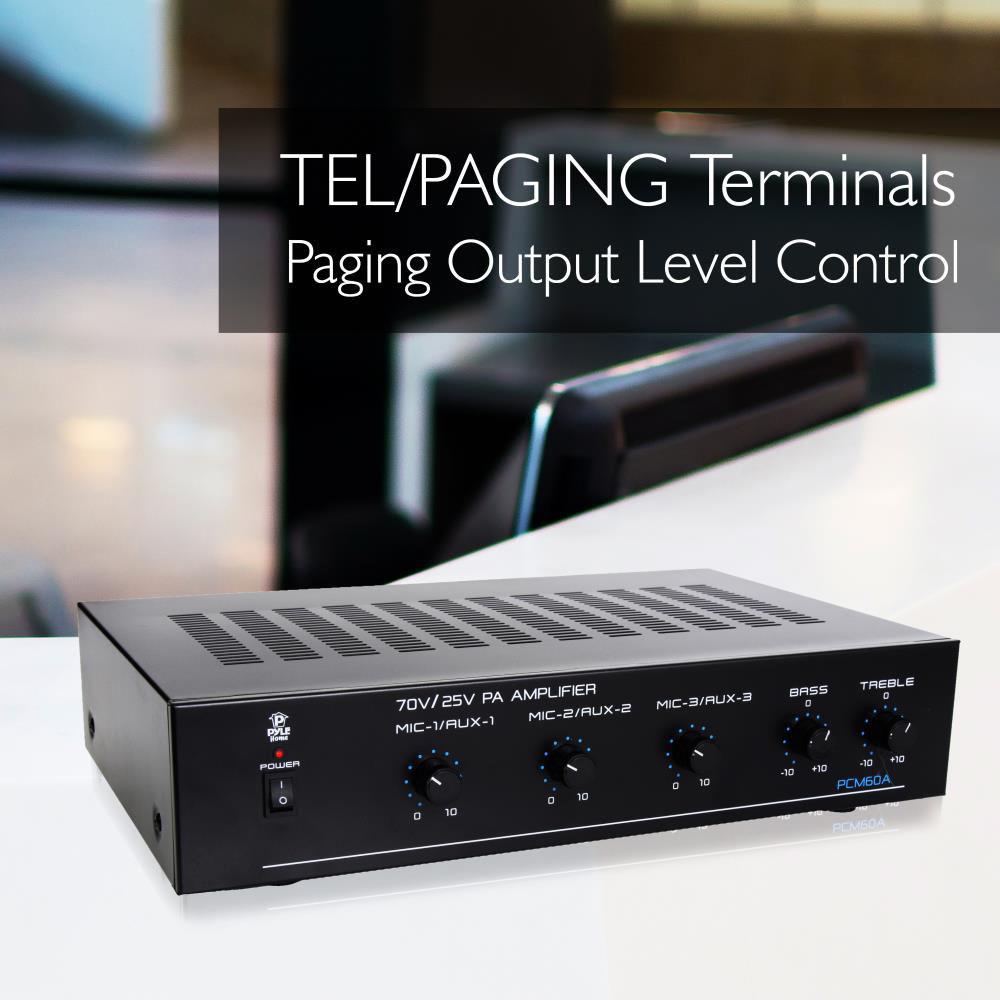

- Tel/paging output terminals with adjustable level
- Multiple speaker output terminals accommodate 4-, 8-, or 16-Ohm speakers as well as 25V or 70V systems
- Dual monitor outputs (600-Ohm / 1V for headphones, 8-Ohm / 1W for loudspeaker) with adjustable level for music-on-hold monitoring
- Stereo RCA aux output for patching the mix to a stereo audio recorder
- Unswitched 500W AC outlet
- Power on/off switch and LED indicator
- Selectable voltage standard
UPC: 068888896887 In the Box Pyle Home PCM60A 100W Power Amplifier with 25V/70V Output Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Home PCM60A 100W Power Amplifier with 25V 70V Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Home PCM60A Specs | Inputs | 1 x 3-Pin XLR Female Mic Input
3 x 3-Pole Mic Input Terminals
6 x RCA Coaxial Aux Inputs (Three Stereo Pairs) | | Outputs | 5 x 1-Pole Speaker Terminals (4-Ohm, 8-Ohm, 16-Ohm, 25 V, and 70 V)
2 x 1-Pole Comm Terminals for Negative Speaker Lead
2 x 2-Pole Monitor Terminals (600-Ohm / 1 V Headphones, 8-Ohm / 1 W Speaker)
1 x 3-Pole Tel/Paging Terminal
2 x RCA Coaxial Aux Outputs (One Stereo Pair) | | Control Port | 1 x Mute Terminal | | Equalizer Settings | Bass:
