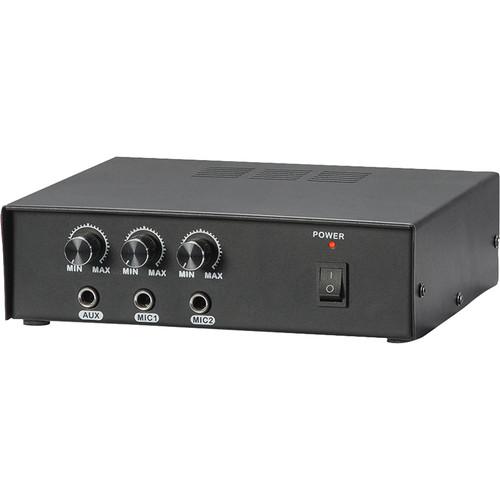

User Manual for Pyle Home PMSA20 Compact 50W Power Amplifier with Built-In Mixer Click to enlarge the picture
Contents of the user manual for the Pyle Home PMSA20 Compact 50W Power
- Product category: Mixer/Amplifiers Pyle Home
- Brand: Pyle Home
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Home Mixer/Amplifiers
|
User manual for the Pyle Home PMSA20 Compact 50W Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Home product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Home user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Home product will considerably shorten its lifespan!
|
Product description The Pyle Home PMSA20 is a compact 50W power amplifier with a built-in mixer offering simple connectivity and straightforward operation for public address applications in schools, courtrooms, and retail environments. Connect two dynamic microphones and a mono music source to the three 1/4" inputs, then utilize the front-panel level controls to adjust the balance of all inputs. When signal is detected at the first mic input, the PMSA20 automatically attenuates the level of other input signals, ensuring audibility of announcements over background music. With 50W RMS of output power and rear-panel 4-/8-Ohm speaker terminals, this power amp can drive standard, low-impedance, passive speakers. The PMSA20 features a power switch with a dedicated LED power indicator; it can be powered via connection to an AC source with the supplied power cable, or via hookup to a 12 VDC power supply (available separately). UPC: 068888898355 In the Box Pyle Home PMSA20 Compact 50W Power Amplifier with Built-In Mixer Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Home PMSA20 Compact 50W Power Amplifier with Built-In Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Home PMSA20 Specs | Inputs | 2 x 1/4" Mic Inputs
1 x 1/4" Aux Input | | Outputs | 1 x 2-Pole Speaker Terminal | | Maximum Output Power | 50 W RMS | | Output Impedance | 4 Ohms or 8 Ohms | | Input Level | Mic: -50 dB / 2.4 mV
Aux: -10 dB / 245 mV | | Input Impedance | Mic: 2 kOhms (Balanced)
Aux: 5 kOhms (Unbalanced) | | Frequency Response | Mic: 100 Hz to 20 kHz (-3 dB)
Line: 30 Hz to 20 kHz (-3 dB) | | THD | < 1% | | Signal-to-Noise Ratio | Mic: > 70 dB
Line: > 80 dB | | Power Consumption | AC: 110 V / 0.5 A
DC: 12 V / 3 A | | Power Draw | 30 W | | Power Supply | Mains: 110 VAC, 50/60 Hz
DC: 12 V | | Dimensions (W x H x D) | 6.5 x 2.2 x 7.9" / 16.5 x 5.5 x 20.0 cm | | Weight | 2.2 lb / 1 kg | | | | Package Weight | 2.71 lb | | Box Dimensions (LxWxH) | 9.25 x 8.25 x 3.25" |
