User Manual for Pyle Home PTVDLED16 15" Class HD LED TV with Built-In DVD Player Click to enlarge the picture
Contents of the user manual for the Pyle Home PTVDLED16 15" Class HD
- Product category: Televisions Pyle Home
- Brand: Pyle Home
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Home Televisions
 |
User manual for the Pyle Home PTVDLED16 15" Class HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Home product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Home user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Home product will considerably shorten its lifespan!
|

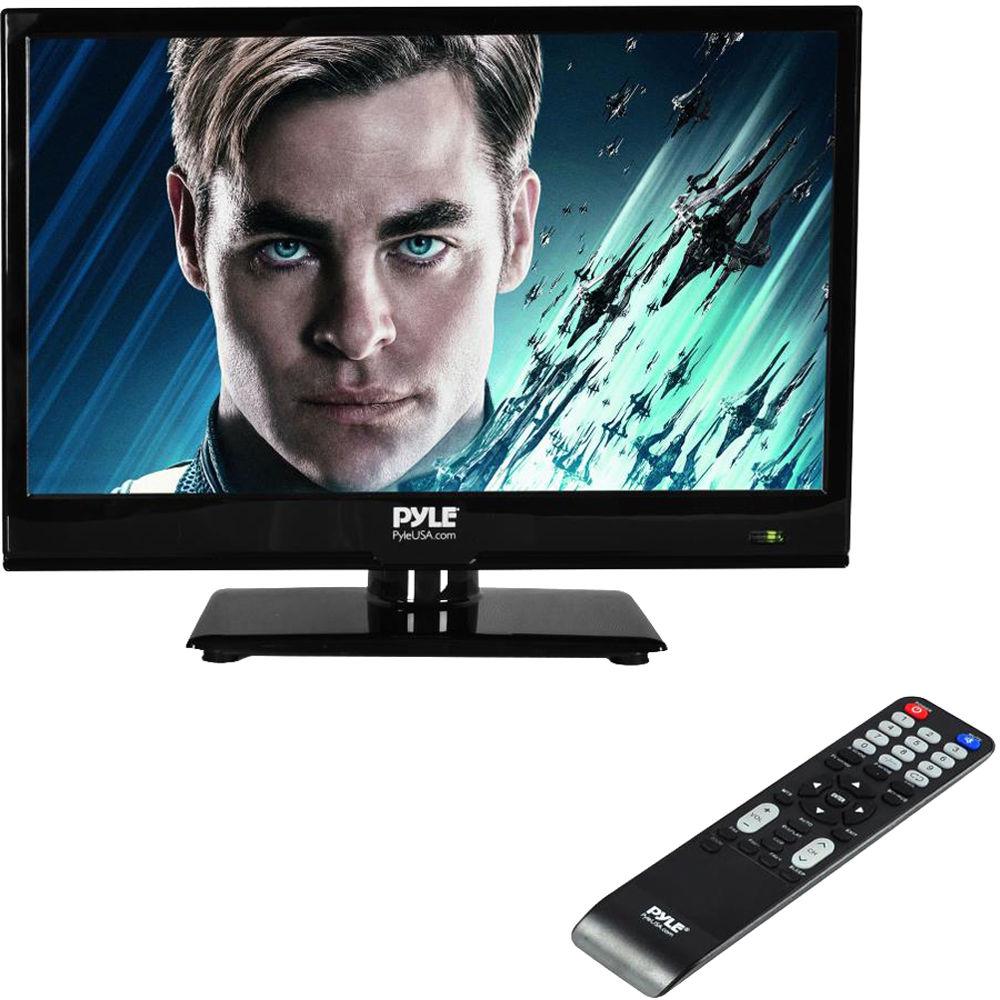

Product description The Big March TV Tournament Read More Enjoy HD content and a built-in DVD player with the Pyle Home PTVDLED16 15" Class HD LED TV. It has a 15.6" LED-backlit LCD panel for enhanced brightness, and a 60 Hz refresh rate for smooth motion. The PTVDLED16 has a DVD player built-in, allowing you to enjoy your favorite CDs and DVDs without a separate component. Its HDMI input enables you to connect digital HD devices, such as a Blu-ray player, cable/satellite box, gaming system, and more. -
- Supports resolutions up to 1080p

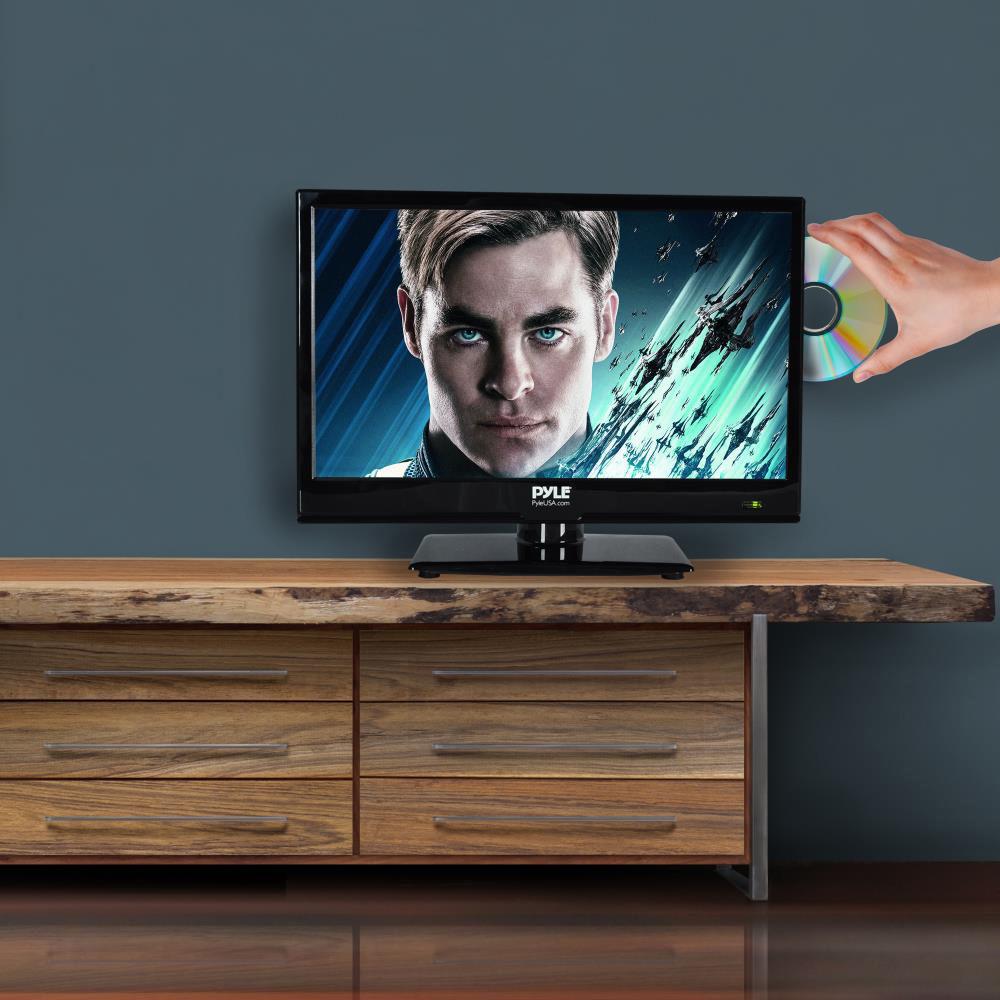

- Built-in side-loading CD/DVD player
- DVD +/-R, DVD +/-RW, CD-R, CD-RW, JPEG disc support
- Selectable multi-viewing display modes
- V-chip, closed captioning, sleep timer functions

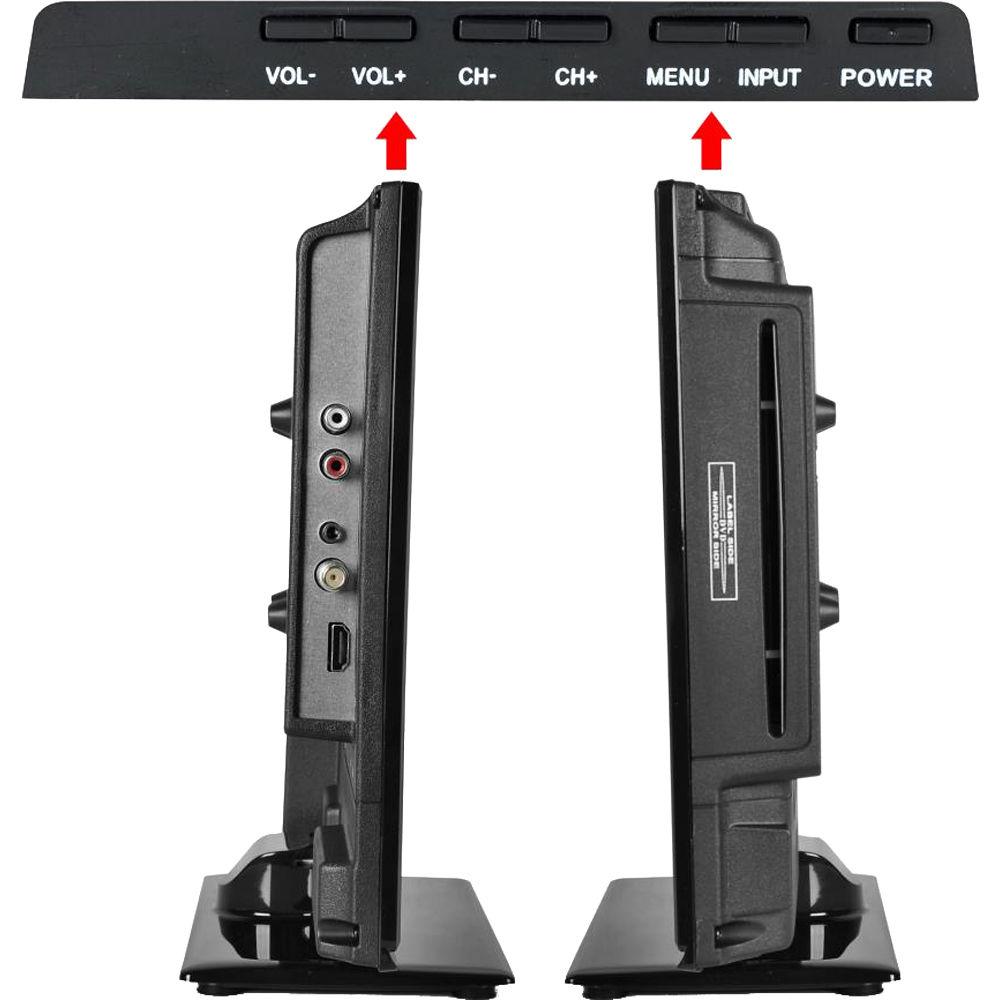

- Top-panel button controls
- 16:9, 4:3, zoom, and cinema display modes
- 4-ohm stereo speakers with <10 THD + N @ 1 kHz

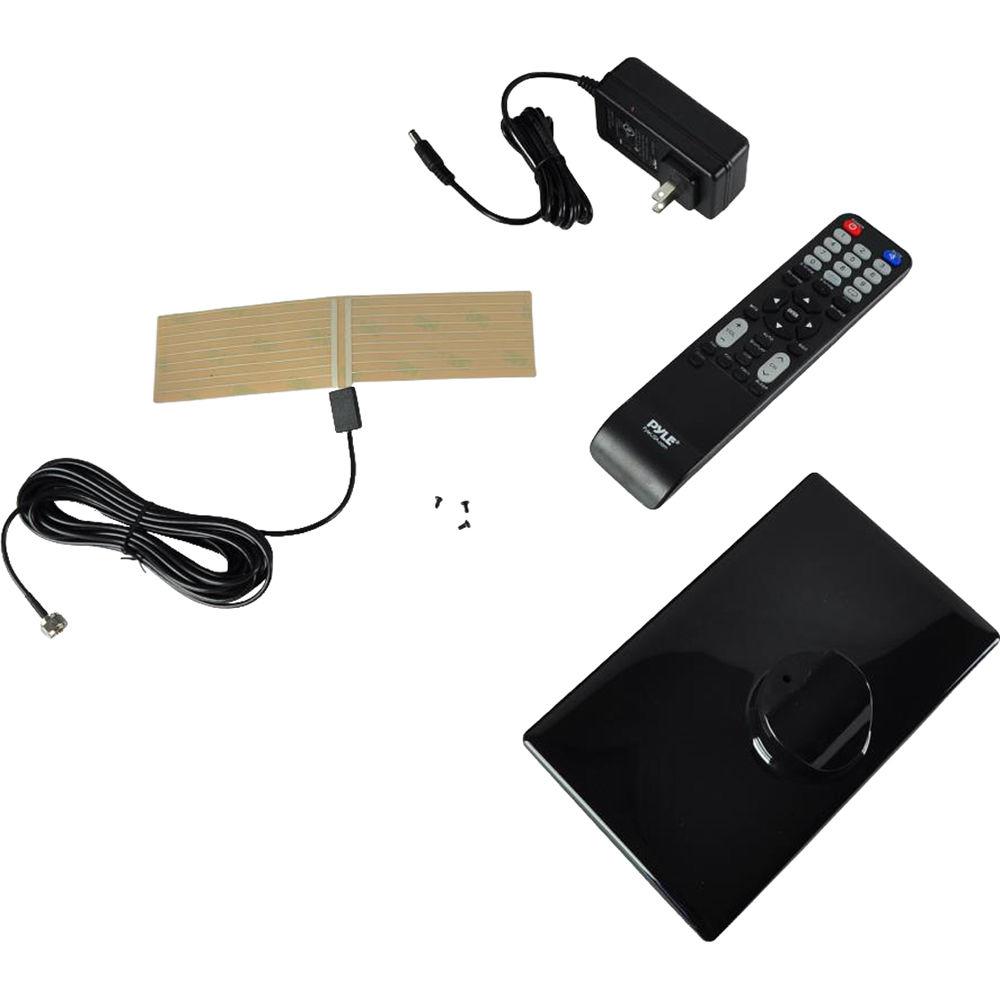

UPC: 068888769020 In the Box Pyle Home PTVDLED16 15" Class HD LED TV with Built-In DVD Player Remote Control 2 x AAA Batteries Stand Assembly Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 ewdqyyvaeaftuyyyr The B&H Television Buying Guide Lawrence Neves 01/31/2018 User Manual PDF 2.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Home PTVDLED16 15" Class HD LED TV with Built-In DVD Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

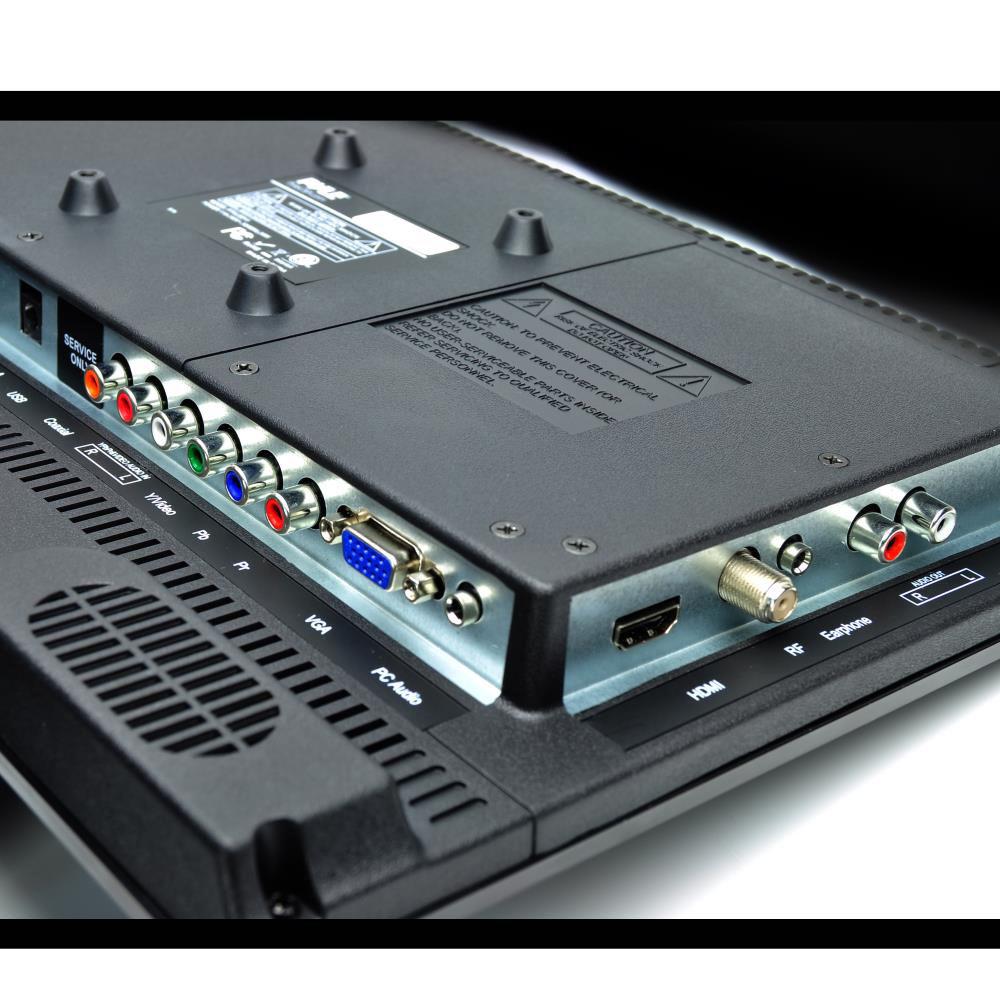

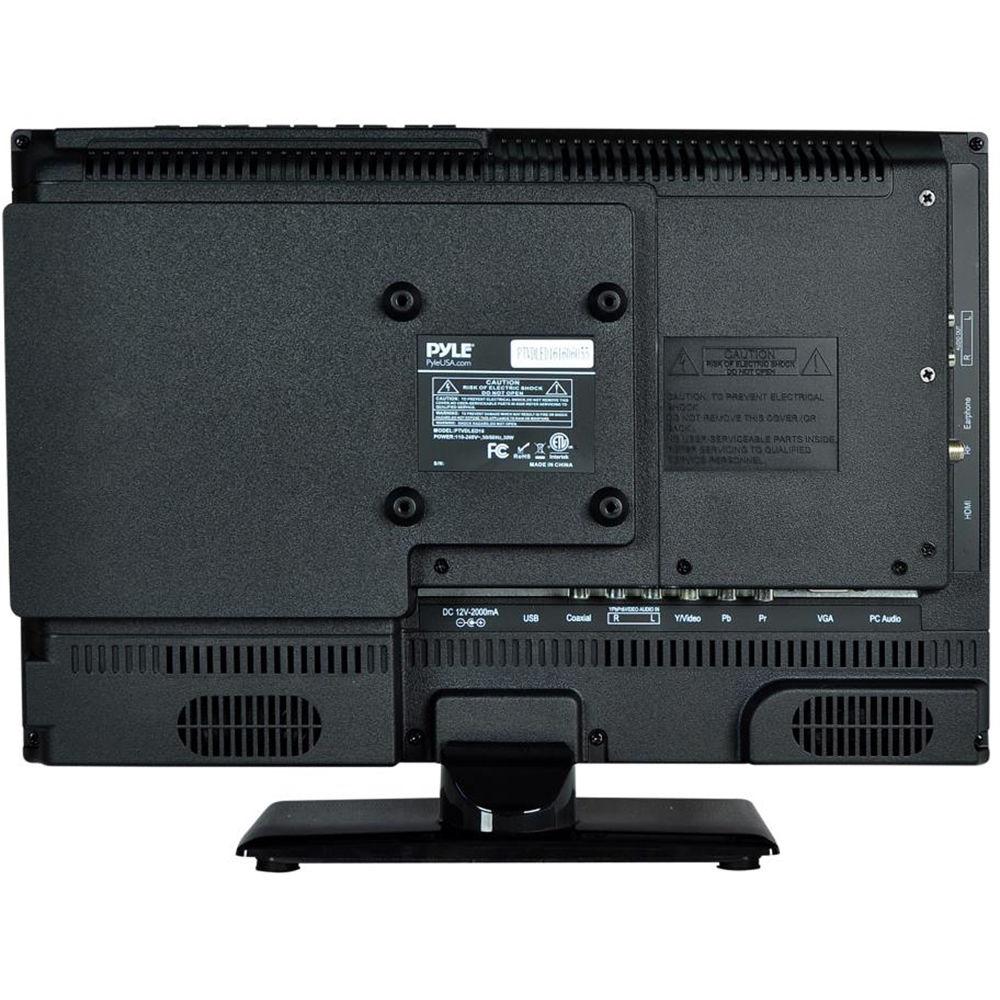

Technical parametersPyle Home PTVDLED16 Specs | | | Screen Size (Diagonal) | 15.6" | | Panel Type | LCD | | Aspect Ratio | 16:9 | | Pixel Resolution | 1366 x 768 | | Brightness | 200 cd/m² | | HDR Compatibility | None | | Contrast Ratio | 600:1 | | Dynamic Contrast Ratio | 8000:1 | | Response Time | 8 ms | | Refresh Rate | 60 Hz | | Display Colors | 262 Thousand | | Viewing Angle (H x V) | 90 x 45° | | | | Video System | NTSC | | TV Tuner | Yes - ATSC | | | | Primary Connectivity Location | Display | | Input Ports | 1 x HDMI – Audio, Video (Side)
1 x RF Antenna – Audio, Video (Side)
1 x RCA Component/Composite Combo – Video (Bottom)
1 x RCA Stereo (L/R) – Audio (Bottom)
1 x 15-Pin VGA – Video (Bottom)
1 x 1/8" / 3.5 mm – Audio (Bottom) | | Output Ports | 1 x Digital Coaxial – Audio (Bottom)
1 x RCA Stereo (L/R) – Audio (Side)
1 x 1/8" / 3.5 mm – Audio, Headphone (Side) | | USB Ports | 1 x USB (Version Unspecified) – Service (Bottom) | | Ethernet | None | | | | Sound | Stereo | | Subwoofer | None | | Power | 6 W | | | | Virtual Assistant Support | None | | Remote Control | Yes | | Wall Mounting | 75 x 75mm | | | | Power Requirements | 100-240 VAC, 50/60 Hz | | Dimensions (W x H x D) | 14.7 x 9.6 x 1.9" / 37.3 x 24.4 x 4.8 cm Without stand | | Stand Dimensions | 7.8 x 4.7" / 19.81 x 11.94 cm (W x D) | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 17.52 x 12.4 x 4.72" |
