User Manual for Pyle Home PTVLED15 15" Class HD LED TV Click to enlarge the picture
Contents of the user manual for the Pyle Home PTVLED15 15" Class HD
- Product category: Televisions Pyle Home
- Brand: Pyle Home
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Home Televisions
 |
User manual for the Pyle Home PTVLED15 15" Class HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Home product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Home user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Home product will considerably shorten its lifespan!
|

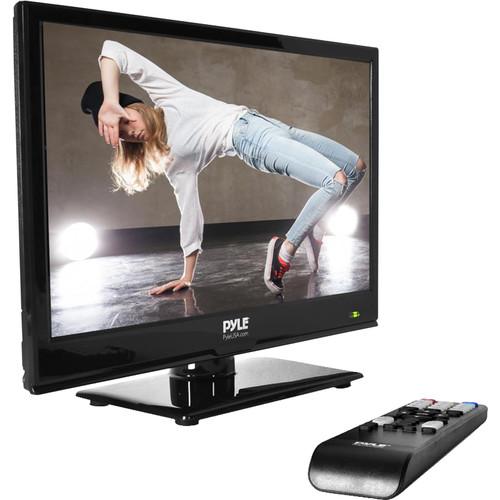

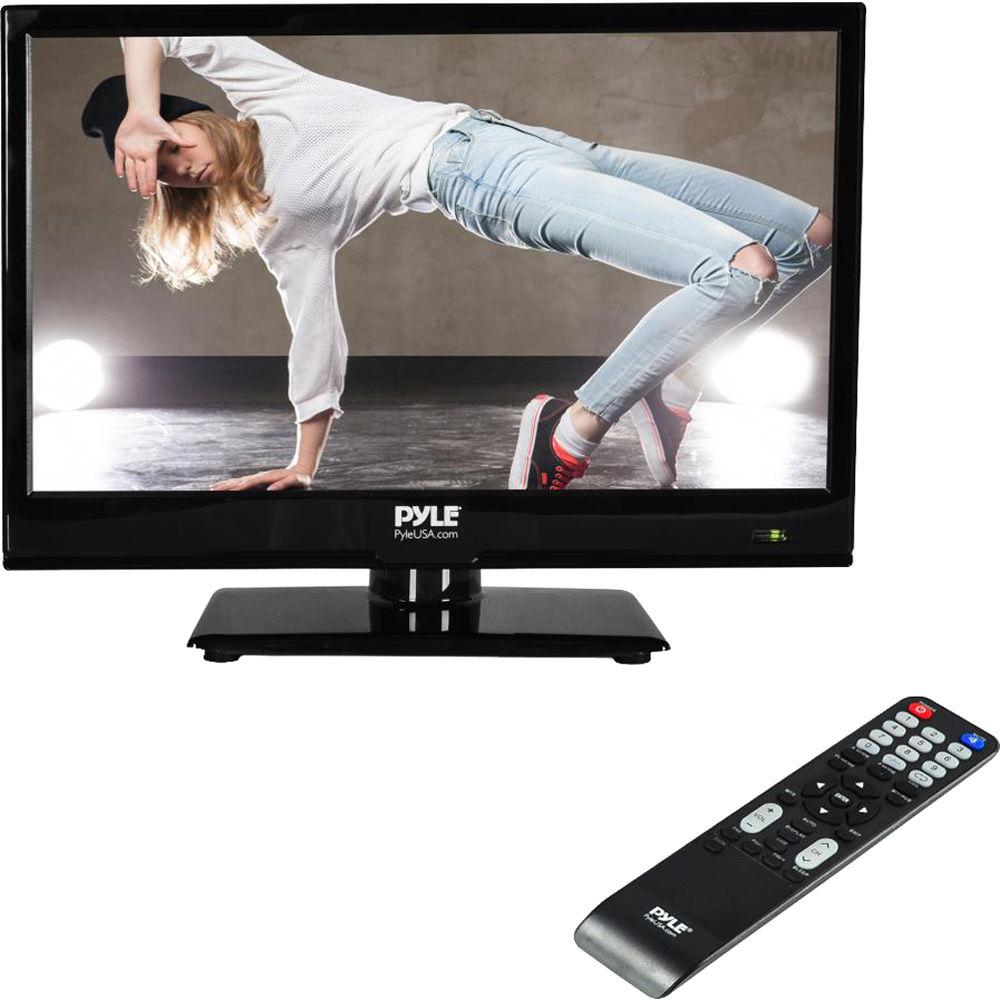

Product description The Big March TV Tournament Read More View HD content from a variety of sources with the Pyle Home PTVLED15 15" Class HD LED TV. It features a 15.6" LED-backlit LCD screen with 1366 x 768 native resolution and supports resolutions up to 1080p via its HDMI input. VGA and hybrid component/composite video connections are also onboard. A built-in tuner lets you view free over-the-air broadcast TV when you connect your antenna. As an added convenience, the PTVLED15 includes a remote control. -
- Full HD support
- Selectable multi-viewing display modes
- Built-in full-range 4 ohm speakers
- V-Chip, closed caption, and sleep timer functions

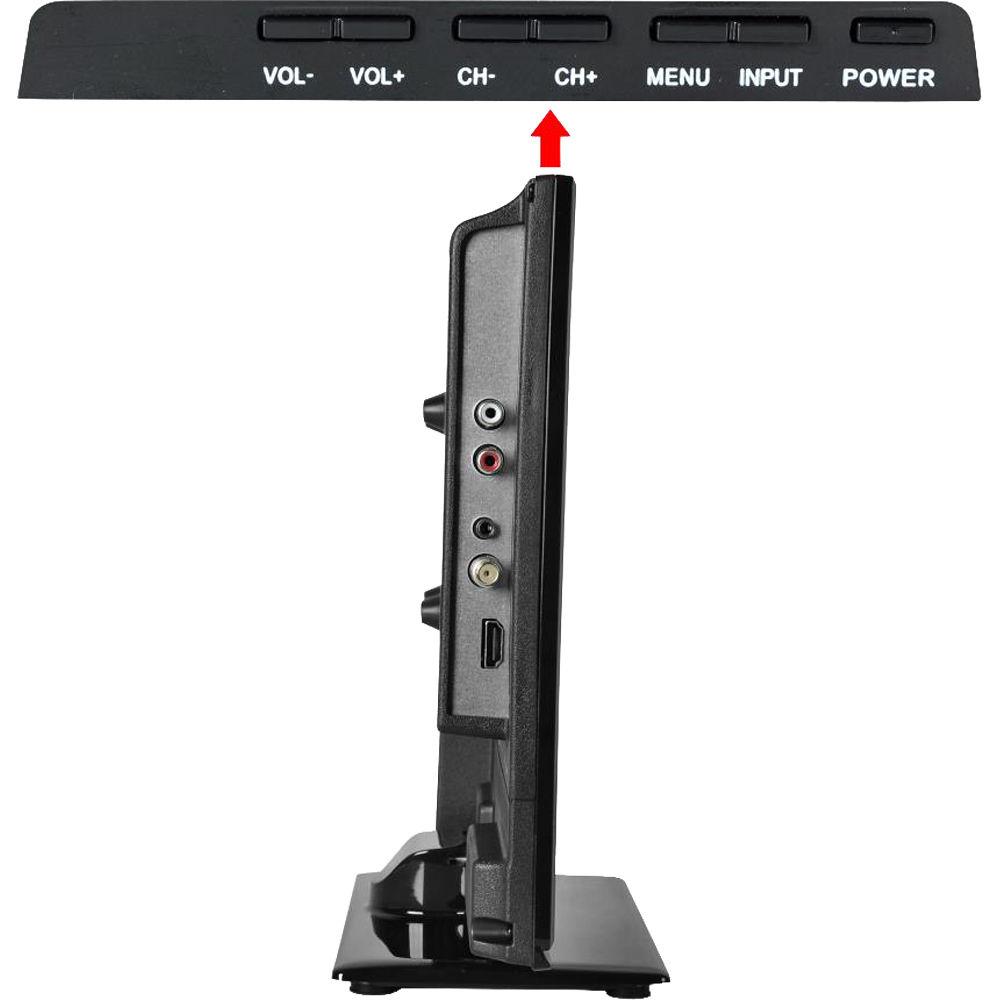

- Top-panel button controls
- LED backlight
- 16:9, 4:3, Zoom, and Cinema display modes
- THD + N <10% @ 1 kHz

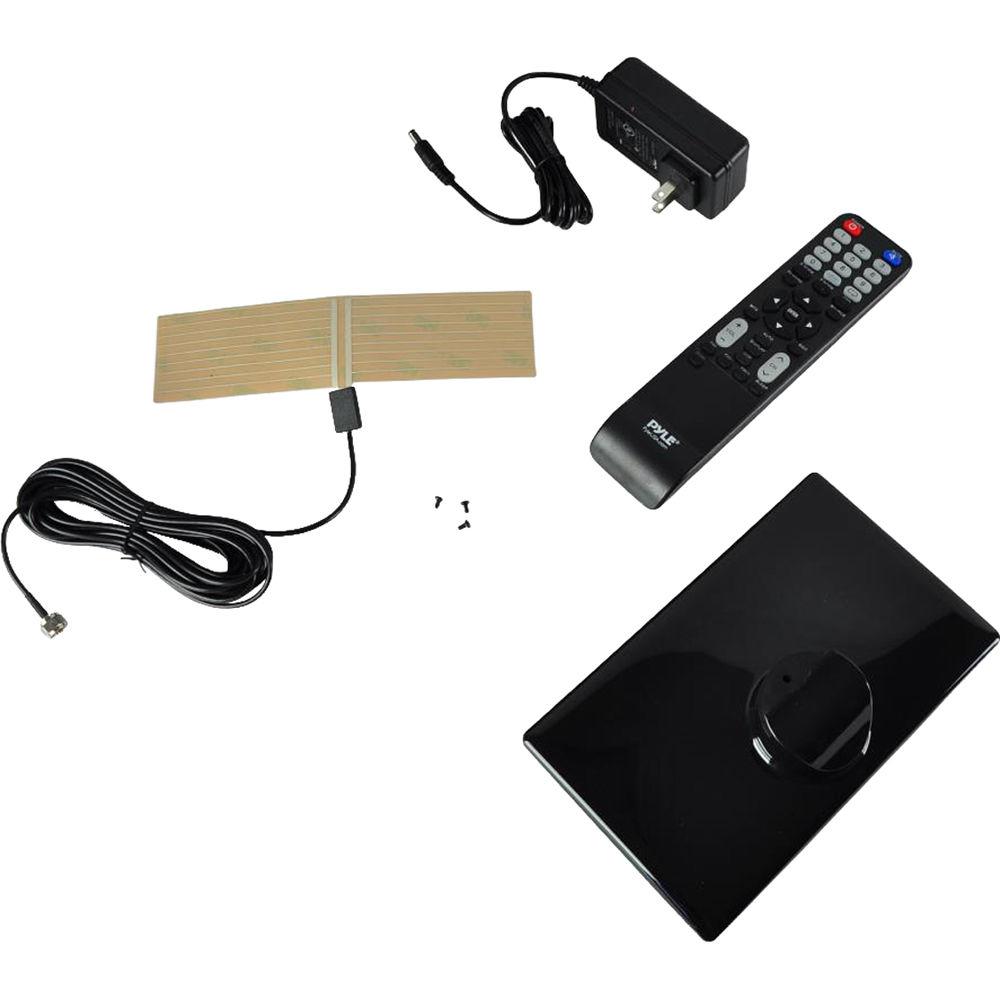

UPC: 068888769082 In the Box Pyle Home PTVLED15 15" Class HD LED TV Remote Control 2 x AAA Batteries Stand Assembly Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 User Manual PDF 2.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Home PTVLED15 15" Class HD LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

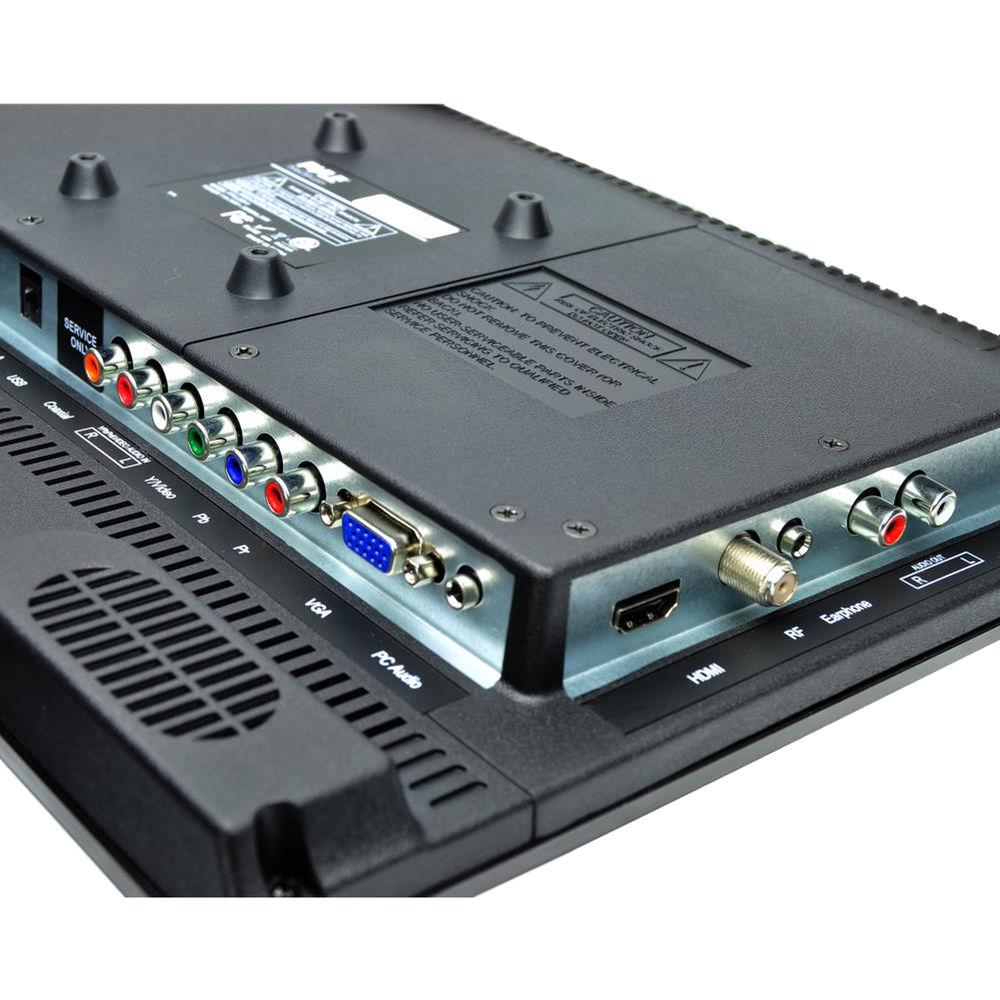

Technical parametersPyle Home PTVLED15 Specs | | | Screen Size (Diagonal) | 15.6" | | Panel Type | LCD | | Aspect Ratio | 16:9 | | Pixel Resolution | 1366 x 768 | | Brightness | 200 cd/m² | | HDR Compatibility | None | | Contrast Ratio | 600:1 | | Dynamic Contrast Ratio | 8000:1 | | Response Time | 8 ms | | Refresh Rate | 60 Hz | | Display Colors | 262 Thousand | | Viewing Angle (H x V) | 90 x 45° | | | | Video System | NTSC | | TV Tuner | Yes - ATSC | | | | Primary Connectivity Location | Display | | Input Ports | 1 x HDMI – Audio, Video (Side)
1 x RF Antenna – Audio, Video (Side)
1 x 15-Pin VGA – Video (Bottom)
1 x RCA Component/Composite Combo – Video (Bottom)
1 x RCA Stereo (L/R) – Audio (Bottom)
1 x 1/8" / 3.5 mm – Audio (Bottom) | | Output Ports | 1 x Digital Coaxial – Audio (Bottom)
1 x RCA Stereo (L/R) – Audio (Side)

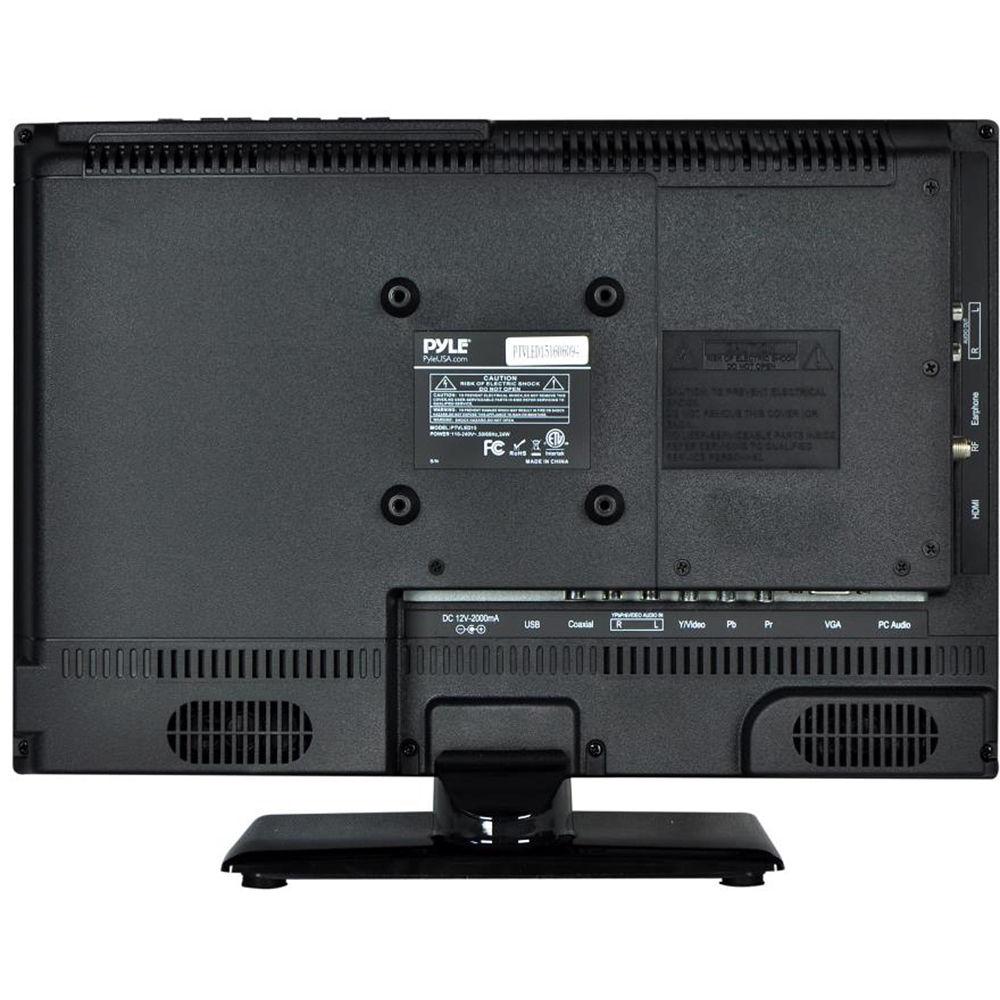

1 x 1/8" / 3.5 mm – Headphone (Side) | | USB Ports | 1 x USB (Version Unspecified) – Service (Bottom) | | Ethernet | None | | Control | None | | | | Sound | Stereo | | Subwoofer | None | | Power | 6 W | | | | Virtual Assistant Support | None | | Wi-Fi | None | | Remote Control | Yes | | Wall Mounting | 75 x 75mm | | | | Power Requirements | 100-240 VAC, 50/60 Hz | | Dimensions (W x H x D) | 14.7 x 9.6 x 1.5" / 37.3 x 24.4 x 3.8 cm Without stand | | Stand Dimensions | 7.8 x 4.7" / 19.81 x 11.94 cm (W x D) | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 17.0 x 12.25 x 4.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
