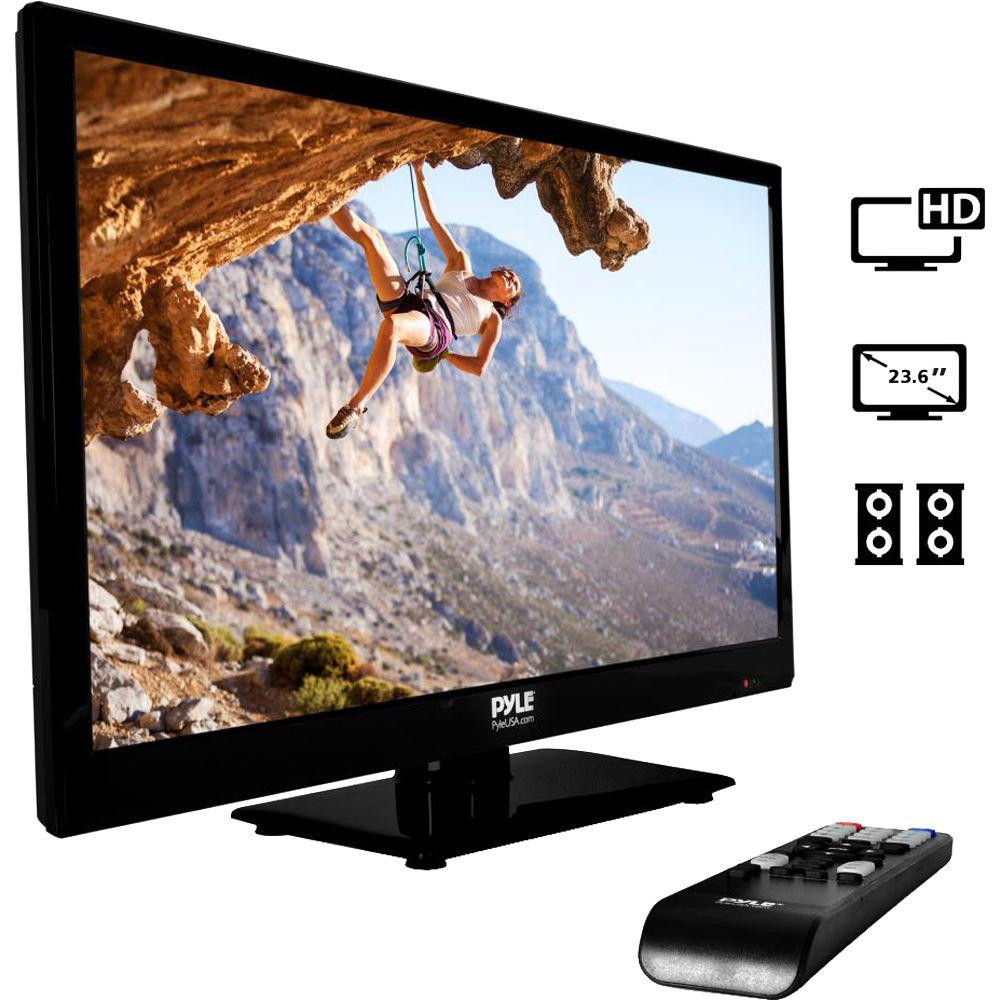

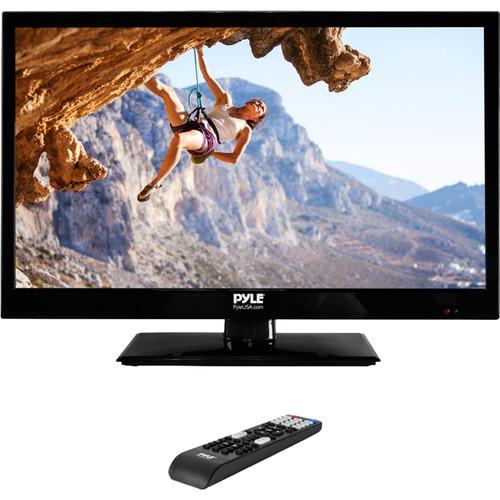

Product description The Big March TV Tournament Read More yvvcqsrrdcbzfasuaedbfybdyccwvty View HD content from a variety of sources with the Pyle Home PTVLED23 23" Class Full HD LED TV. It features a 23.6" LED-backlit LCD screen with a Full HD 1920 x 1080 native resolution. HDMI, VGA, and hybrid component/composite video connections are on-board to provide versatile connectivity. A built-in tuner lets you view free over-the-air broadcast TV when you connect your antenna. As an added convenience, the PTVLED23 includes a remote control. -
- Selectable multi-viewing display modes
- Built-in full-range 4 ohm speakers
- V-Chip, closed caption, and sleep timer functions

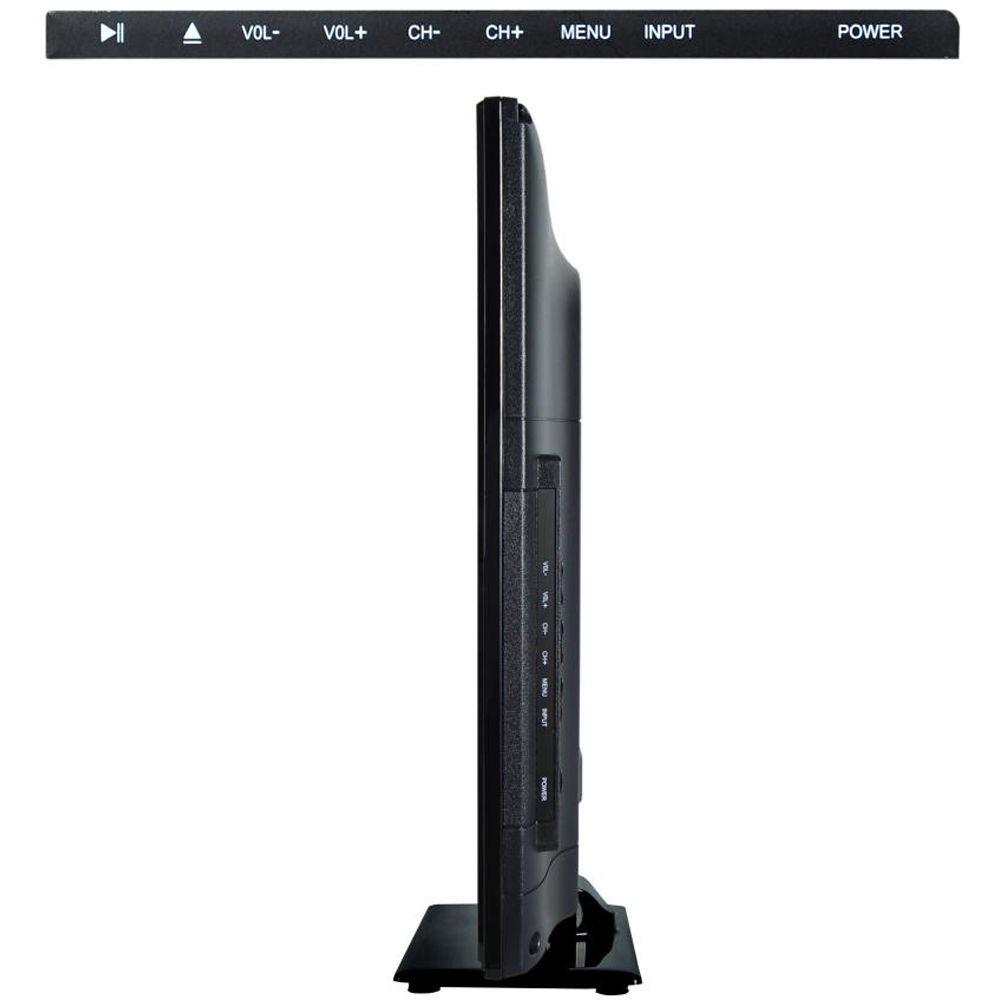

- Side-panel button controls
- 16:9, 4:3, Zoom, and Cinema display modes
- THD + N <10% @ 1 kHz

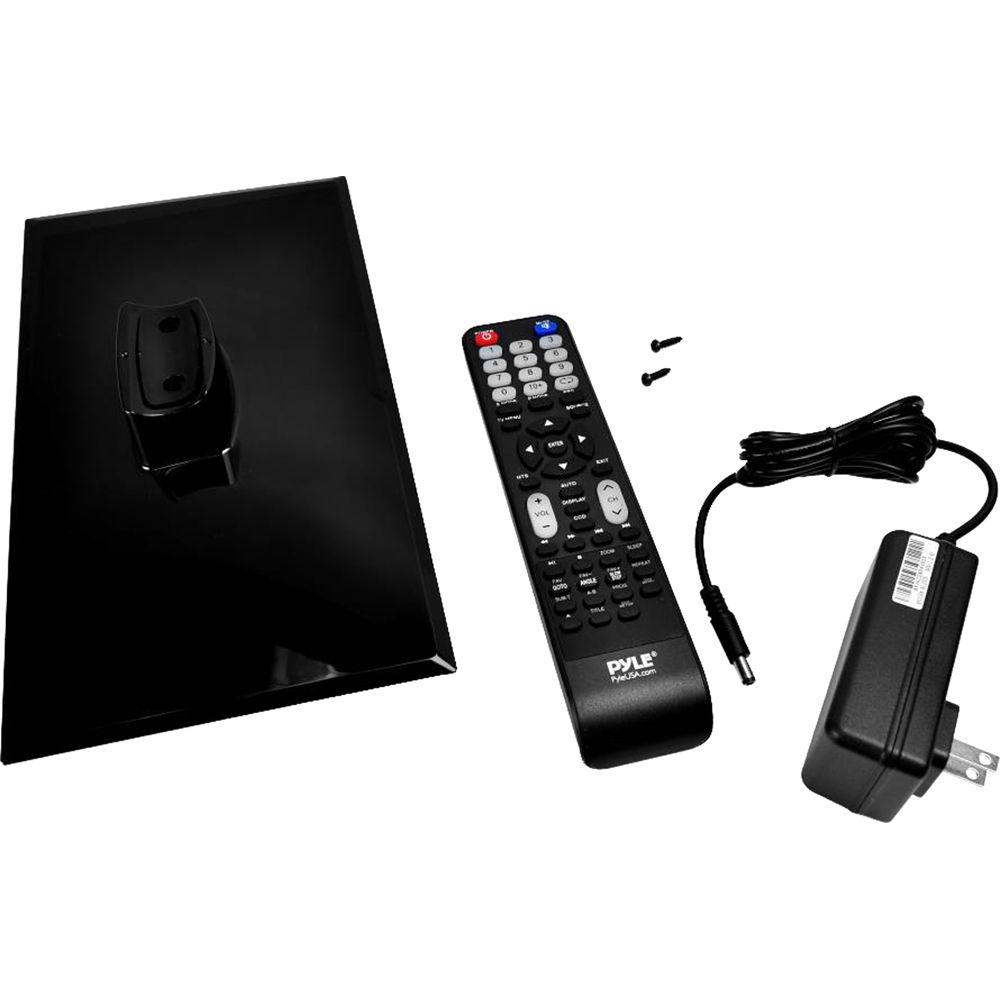

UPC: 068888769112 In the Box Pyle Home PTVLED23 23" Class Full HD LED TV Remote Control 2 x AAA Batteries Stand Assembly Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 User Manual PDF 2.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Home PTVLED23 23" Class Full HD LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

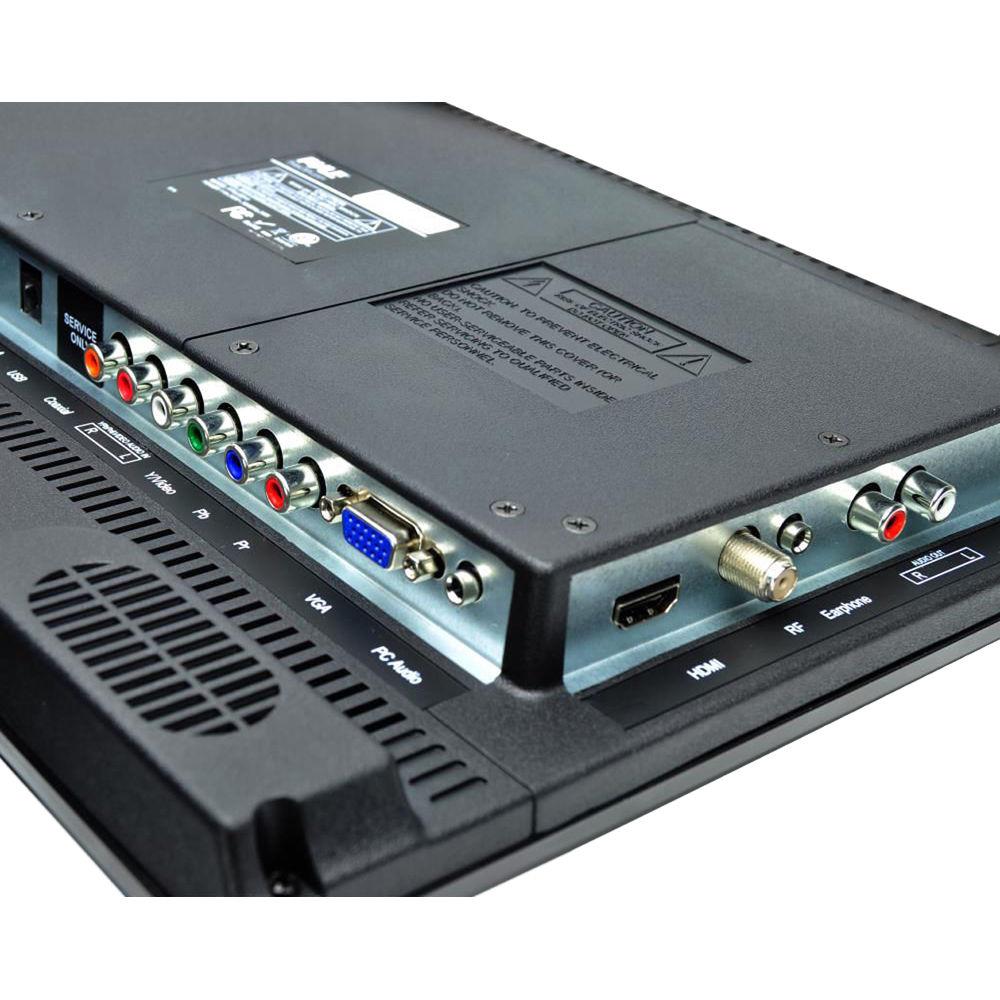

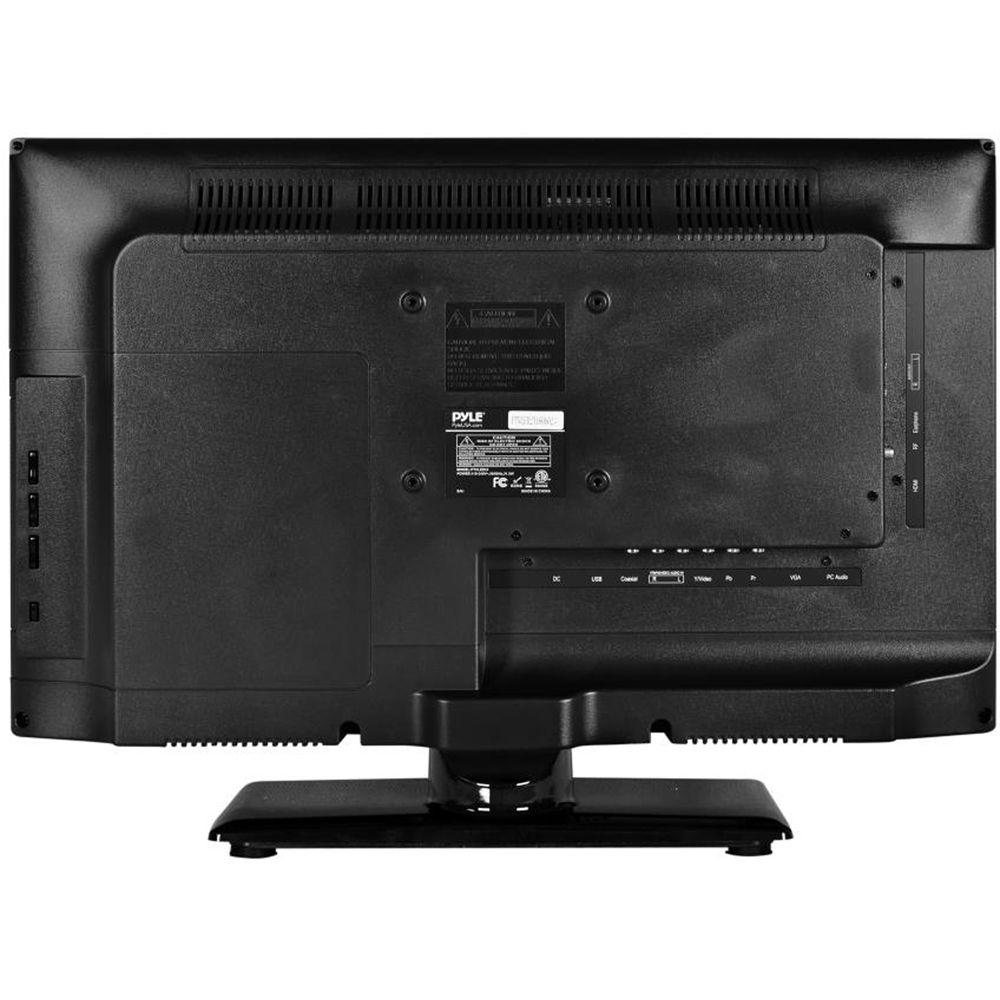

Technical parametersPyle Home PTVLED23 Specs | Screen Size (Diagonal) | 23.6" | Panel Type | LCD | Aspect Ratio | 16:9 | Pixel Resolution | 1920 x 1080 | Brightness | 250 cd/m² | HDR Compatibility | None | Contrast Ratio | 3000:1 | Dynamic Contrast Ratio | 20,000:1 | Response Time | 25 ms | Refresh Rate | 60 Hz | Display Colors | 16.7 Million | Viewing Angle (H x V) | 170 x 160° | | Video System | NTSC | TV Tuner | Yes - ATSC | | Primary Connectivity Location | Display | Input Ports | 1 x HDMI – Audio, Video (Side) 1 x RF Antenna – Audio, Video (Side) 1 x 15-Pin VGA – Video (Bottom) 1 x RCA Component/Composite Combo – Video (Bottom) 1 x RCA Stereo (L/R) – Audio (Bottom) 1 x 1/8" / 3.5 mm – Audio (Bottom) | Output Ports | 1 x Digital Coaxial – Audio (Bottom) 1 x RCA Stereo (L/R) – Audio (Side) 1 x 1/8" / 3.5 mm – Headphone (Side) | USB Ports | 1 x USB (Version Unspecified) – Service (Bottom) | Ethernet | None | Control | None | | Sound | Stereo | Subwoofer | None | Power | 6 W | | Virtual Assistant Support | None | Wi-Fi | None | Remote Control | Yes | Wall Mounting | 100 x 100mm | | Power Requirements | 100-240 VAC, 50/60 Hz | Dimensions (W x H x D) | 22.0 x 13.7 x 1.7" / 55.9 x 34.8 x 4.3 cm Without stand | Stand Dimensions | 11 x 6.3" / 27.94 x 16 cm (W x D) | | Package Weight | 10.8 lb | Box Dimensions (LxWxH) | 25.0 x 16.5 x 5.0" |
