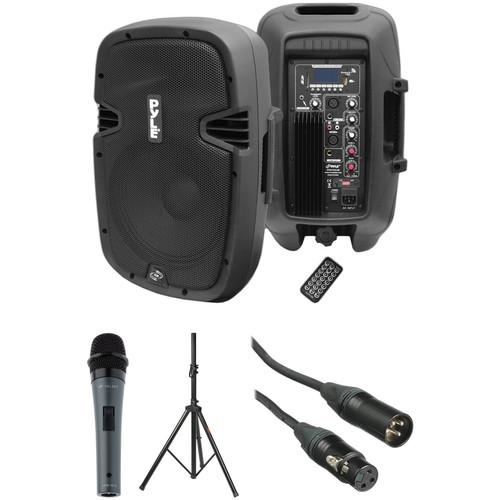

User Manual for Pyle Pro 10" 2-Way 700W Complete Mono PA System Kit

• Product category: Portable PA Systems Pyle Pro
• Brand: Pyle Pro
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Pyle Pro Portable PA Systems

Product description

• Pyle Pro PPHP1037UB 10", 700-Watt Powered 2-Way Speaker The PPHP1037UB 10" 700-Watt Powered 2-Way Speaker from Pyle Pro is a 2-way speaker capable of up to 700-watts peak and 350-watts RMS performance. It features a variety of audio input options, including Bluetooth streaming, XLR and 1/4" mic inputs, XLR and RCA line inputs, a 1/8" stereo auxiliary input for smartphones and MP3 players, and accepts digital audio from both SD cards and USB flash drives. In addition to playing back audio from those digital sources, the PPH1037UB allows you to record to the USB flash drive.

  The speaker has an integrated 3-channel mixer, allowing you to use multiple inputs simultaneously for DJ or band use. It features a 10-inch woofer and a compression driver with a 1-inch titanium diaphragm. A remote control is included. UPC: 068888744003
• Polsen HDM-16-S Handheld Dynamic Performance Microphone The HDM-16-S Handheld Dynamic Performance Microphone from Polsen is a reliable and rugged handheld microphone with an integrated on/off switch. The supercardioid polar pattern and frequency response is optimized for the human voice and can be used for live stage, vocal presentation, and studio applications. The microphone's polar pattern is designed to eliminate off-axis sound. Additionally, an on/off switch lets you quickly silence the mic when necessary. Built with rugged construction, the Polsen HDM-16-S will withstand the rigors of transport and live performances. A 16.4' XLR cable, carry pouch, and a mic clip are also included.
  Optimized for Vocals
  • The HDM-16-S microphone is optimized for live vocal performances. It has a wide frequency response with impressive sensitivity, which makes this microphone capable of capturing singers and presenters with clarity and accuracy.
  Supercardioid Polar Pattern
  • The dynamic supercardioid microphone capsule minimizes background noise, making the HDM-16-S ideal for vocals or speech, whether onstage or in the studio.
  On/Off Switch
  • Don't let your audience hear what you don't want them to hear. The on/off switch is a convenient feature that lets you quickly mute the microphone between songs or during a pause in your presentation.
  Rugged and Portable
  • Take your microphone anywhere. The heavy-duty metal construction will withstand the rigors of transport and onstage use. With the included 16-foot XLR cable, you can plug into any mixing board, sound system, or amplifier with an XLR input jack.
  UPC: 847628598447
• Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single) This single Musicians Value C3 Series CS-SS3 Steel Speaker Stand is well suited for light-duty work in bars, clubs, hotels, houses of worship, and other venues where small PA systems are typically used. The stand fits speakers with standard 35mm sockets. Its height is adjustable from 50 to 75" and a metal pin keeps the shaft safely in place during use. The CS-SS3's steel construction and 54" tripod base provide a robust and stable support for your speaker. The stand easily folds for convenient transport and storage. UPC: 784887179744
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558304

• PPHP1037UB 10", 700-Watt Powered 2-Way Speaker tvrvqdzbeurzc
• Remote Control
• Limited 1-Year Warranty

• Polsen - HDM-16-S Handheld Dynamic Performance Microphone

• Musicians Value - C3 Series CS-SS3 Steel Speaker Stand (Single)

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Pyle Pro PPHP1037UB 10", 700-Watt Powered 2-Way Speaker

  Woofer	10" (254 mm) Impedance: 8Ω Sensitivity: 96 dB Frequency Response: 40 Hz to 20 kHz Voice Coil: 2" (50 mm)
  Tweeter	Impedance: 8 Ω Sensitivity: 110 dB mW Frequency Response: 600 Hz to 20 kHz Voice Coil: 1" (25.4 mm) Diameter Material: Titanium
  Input	1x XLR Mic input 1x 1/4" Mic input 1x XLR Line input 2x RCA line input (L, R) 1x stereo 1/8" (3.5 mm) input 1x USB input 1x SD card input
  Frequency Response	30 Hz to 22 kHz
  Power Output	350 W RMS 700 W Peak
  Crossover Frequency	2.2 kHz
  Voltage	110/220, selectable
  Dimensions (WxDxH)	14.1 x 11.4 x 21.2" (358 x 289 x 538 mm)
  Weight	23 lb (10 kg)

  Box Dimensions (LxWxH)	21.811 x 14.331 x 11.811"

• Polsen HDM-16-S Handheld Dynamic Performance Microphone

  Transducer	Dynamic
  Polar Pattern	Supercardioid
  Frequency Response	50 Hz to 16 kHz
  Impedance	600 Ohms ±30% at 1 kHz
  Sensitivity	-54 dB ±3 dB (0 dB= 1 V/Pa @ 1 kHz)
  Output Connector	3-pin XLR
  Cable Length	16.4' (5 m)
  Dimensions (L x Diam)	7 x 2.1" (17.8 x 5.3 cm)
  Weight	0.7 lb (317.5 g)

  Box Dimensions (LxWxH)	8.7 x 4.9 x 2.7"

• Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single)

  Type	Speaker Stand
  Mount Size	1-3/8"
  Height Adjustment Range	50 to 75" / 1.27 to 1.9 m
  Material of Construction	Steel
  Base Spread	54" / 137 cm
  Weight	6.2 lb / 2.8 kg

  Box Dimensions (LxWxH)	40.0 x 5.0 x 5.0"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	20' / 6.1 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	8.6 x 7.0 x 0.4"
