Pyle Pro 12" 1000W Rechargeable Bluetooth

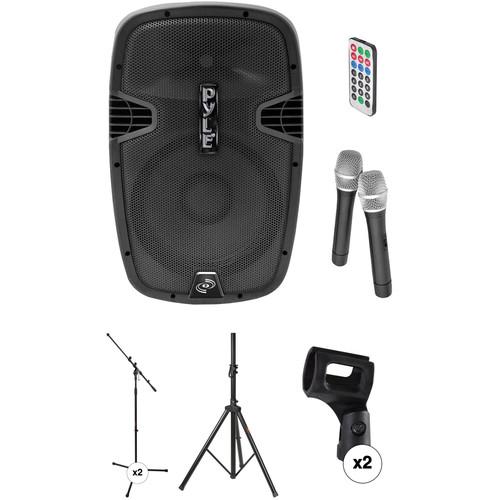

User Manual for Pyle Pro 12" 1000W Rechargeable Bluetooth PA Speaker System with Two Microphones and Stands Kit

• Product category: Portable PA Systems Pyle Pro
• Brand: Pyle Pro
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Pyle Pro Portable PA Systems

Product description

• Pyle Pro PPHP129WMU 12" 1,000-Watt Bluetooth Streaming Portable Loudspeaker System with Dual Handheld Wireless Mics The PPHP129WMU 12" 1,000-Watt Bluetooth Streaming Portable Loudspeaker System from Pyle Pro is a 2-way portable loudspeaker capable of up to 1,000-watts peak, 500-watts RMS output. It features a variety of audio input options, including Bluetooth streaming audio, a built-in FM radio, both a USB and SD slot for digital input, and XLR and 1/4" inputs for mic or line sources. Additionally, it includes 2 handheld wireless microphones.

  Designed for portability, the PPHP129WMU features a built-in rechargeable battery that provides up to 4 hours of operation on a full charge. 2 detachable rolling wheels are included for simplified transport. UPC: 068888743495
• 2 x Auray MS-5230T Tripod Microphone Stand with Telescoping Boom The Auray MS-5230T Tripod Microphone Stand with Telescoping Boom features durable, steel construction. The telescoping boom arm is adjustable from 19.3 to 33.9" in length, allowing you to angle and extend the mic placement however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and non-slip feet keep it firmly and sturdily in place. The Auray MS-5230T mic stand collapses for easy transport. UPC: 847628015593
• Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single) This single Musicians Value C3 Series CS-SS3 Steel Speaker Stand is well suited for light-duty work in bars, clubs, hotels, houses of worship, and other venues where small PA systems are typically used. The stand fits speakers with standard 35mm sockets. Its height is adjustable from 50 to 75" and a metal pin keeps the shaft safely in place during use. The CS-SS3's steel construction and 54" tripod base provide a robust and stable support for your speaker. The stand easily folds for convenient transport and storage. UPC: 784887179744
• 2 x Gator Cases Frameworks Wireless Microphone Clip The Frameworks Wireless Microphone Clip from Gator Cases holds most handheld wireless microphones. UPC: 716408533025

• PPHP129WMU 12" 1,000-Watt Bluetooth Streaming Portable Loudspeaker System with Dual Handheld Wireless Mics etrvtedsufcsrtarzquyyqtfrxce
• Wireless Remote
• 2 x Microphones
• 2 x Mic Clips
• 2 x Detachable Wheels
• Power Cord
• Limited 1-Year Warranty

• 2 x Auray - MS-5230T Tripod Microphone Stand with Telescoping Boom etrvtedsufcsrtarzquyyqtfrxce

• Musicians Value - C3 Series CS-SS3 Steel Speaker Stand (Single)

• 2 x Gator Cases - Frameworks Wireless Microphone Clip

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Pyle Pro PPHP129WMU 12" 1,000-Watt Bluetooth Streaming Portable Loudspeaker System with Dual Handheld Wireless Mics

  System	Active 2-way full range
  Woofer	12" (304 mm) Driver: 12.5 oz, 8 Ω
  Tweeter	1.34" (34 mm)
  Power	RMS: 500 W Peak: 1000 W
  Impedance	4 Ohms
  Frequency Range	55 Hz to 18 kHz
  Sensitivity	93 dB (+/-2 dB)
  Connector	2x 1/4" (6.3 mm) 2x Stereo RCA
  Input Level	Microphone: < 15 mV Line: > 250 mV
  Output Level	Line: > 250 mV
  Power	110 to 220 V, switchable 12 V input for car charging
  Dimensions (W x H x D)	13.4 x 12.2 x 22.6" (340.3 x 310 x 574 mm)
  Weight	35.9 lb (16.3 kg)

  Box Dimensions (LxWxH)	24.0 x 19.3 x 14.5"

• 2 x Auray MS-5230T Tripod Microphone Stand with Telescoping Boom

  Height	36.2 to 63" / 91.9 to 160 cm
  Base Type	Tripod
  Base Dimensions	25.6 x 25.6" / 65 x 65 cm

  Length	19.3 to 33.9" / 49 to 86 cm

  Material	Steel
  Weight	4.6 lb / 2.1 kg

  Box Dimensions (LxWxH)	33.5 x 4.0 x 4.0"

• Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single)

  Type	Speaker Stand
  Mount Size	1-3/8"
  Height Adjustment Range	50 to 75" / 1.27 to 1.9 m
  Material of Construction	Steel
  Base Spread	54" / 137 cm
  Weight	6.2 lb / 2.8 kg

  Box Dimensions (LxWxH)	40.0 x 5.0 x 5.0"

• 2 x Gator Cases Frameworks Wireless Microphone Clip

  Box Dimensions (LxWxH)	3.5 x 2.9 x 1.3"
