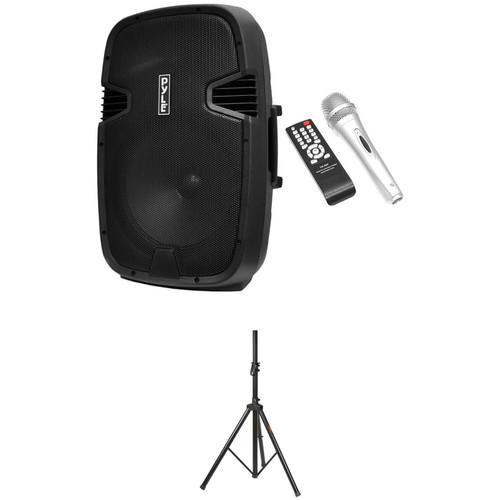

User Manual for Pyle Pro 12" Rechargeable Bluetooth PA Speaker System with Stand and Microphone Kit Click to enlarge the picture
Contents of the user manual for the Pyle Pro 12" Rechargeable Bluetooth PA
- Product category: Portable PA Systems Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Portable PA Systems
|
User manual for the Pyle Pro 12" Rechargeable Bluetooth PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Pyle Pro 12" Rechargeable Bluetooth PA Speaker System with Stand and Microphone Kit from includes a PPHP122BMU portable PA loudspeaker system, an Auray SS-4420 steel speaker stand, a wireless remote, and a wired handheld microphone with cable. Easy to set up, this kit is ideal for DJs, teachers, solo performers, or lecturers, in small- to medium-sized event spaces, school auditoriums, houses of worship, conference rooms, and more.
The PPHP122BMU speaker features a 12" woofer and delivers 800W of maximum peak power. It features a built-in FM radio for tuning in to your favorite music, an aux input to connect smartphones or MP3 players, and a 1/4" microphone input that lets you connect the included handheld microphone for speech and karaoke applications. The built-in rechargeable battery provides up to 3 hours of continuous use on a single charge. The SS-4420 stand can support speakers weighing up to 100 lb and features a telescoping center column with five height adjustments ranging from 46 to 76". The tripod legs quickly fold for easy transport. - Pyle Pro PPHP122BMU 12" 2-Way Portable Rechargeable PA Loudspeaker System with Bluetooth (800W) The PPHP122BMU 12" 2-Way Portable Rechargeable PA Loudspeaker System from Pyle Pro is a wide-coverage, two-way loudspeaker system with Bluetooth, and covers the frequency response from 20 Hz to 20 kHz. Pair it with your favorite amplifier for powerful full-range, distortion-free sound with built-in 12" subwoofer and 5" tweeter. Stream music wire-free when you pair your Bluetooth-enabled device; stream your favorite music or internet radio-station providers like Pandora or Spotify. This speaker pushes everything from pounding bass to a chirpy high-end, all in one cabinet. It comes equipped with dual 1/4" inputs jacks for microphones or guitars, and a 35mm pole-insert mount for various mounting options. The system includes a digital LCD-readout display, a handheld wired microphone, a wireless remote, an RCA-to-3.5mm connection cable, and RCA line inputs and outputs. The PA system is compact enough to be portable with detachable wheels and a heavy-duty carry handle. The molded-cabinet housing is rough and rugged, while the speakers are protected by the metal grille. The PPHP122BMU also features built-in rechargeable battery, FM Radio with auto station scan and store, 5-band music channel EQ, and USB Flash and SD Memory-Card readers.
- Portable PA loudspeaker molded-cabinet system
- Built-in Bluetooth for wireless music streaming
- Works with all Bluetooth-enabled devices
- USB Flash- and SD Memory-Card readers
- 5-Band music channel EQ with blue LEDs
- Digital display screen with FM radio
- Displays song number and play time
- Auto-Scan and Store for radio stations
- Built-in rechargeable battery with battery life up to 3 hours, non-stop play
- Retractable handles and caster wheels for easy transport
- Rugged, durable and reliable housing
UPC: 068888757416 - Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single) This single Musicians Value C3 Series CS-SS3 Steel Speaker Stand is well suited for light-duty work in bars, clubs, hotels, houses of worship, and other venues where small PA systems are typically used. The stand fits speakers with standard 35mm sockets. Its height is adjustable from 50 to 75" and a metal pin keeps the shaft safely in place during use. The CS-SS3's steel construction and 54" tripod base provide a robust and stable support for your speaker. The stand easily folds for convenient transport and storage. UPC: 784887179744
In the Box - PPHP122BMU 12" 2-Way Portable Rechargeable PA Loudspeaker System with Bluetooth (800W) yaaeddzv
- Wireless Remote
- Wired Handheld Microphone
- Connection Cable (RCA to 3.5 mm)
- Limited 1-Year Warranty
- Musicians Value - C3 Series CS-SS3 Steel Speaker Stand (Single)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro 12" Rechargeable Bluetooth PA Speaker System with Stand and Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Pyle Pro PPHP122BMU 12" 2-Way Portable Rechargeable PA Loudspeaker System with Bluetooth (800W)
| Drivers | Woofer: 12" (30.5 cm)
Tweeter: 5" (12.7 cm) | | Maximum Power Output | 800 W | | RMS Power Output | 400 W @ 4 ohms | | Frequency Response | 20 Hz - 20 kHz | | Crossover Frequency | 3.5 kHz | | Impedance | 4 ohms | | Sensitivity | 92 dB | | THD | 10% | | Connectors | 1 x 1/4" phone jack, microphone input
1 x 1/4" phone jack, guitar input
1 x RCA, left AUX input
1 x RCA, right AUX input
1 x RCA, left REC output
1 x RCA, right REC output
1 x USB, port
1 x SD, port
1 x DC power jack, 12 V power input | | Controls and Indicators | 1 x Dial, Master volume
1 x Dial, Microphone volume
1 x Microphone priority
1 x Dial, Guitar volume
1 x Dial, Echo
1 x 5-band EQ
1 x Button, Mode/Input selection
1 x Button, Repeat
1 x Button, Previous
1 x Button, Next
1 x Button, Play/Pause
2 x LED, power indicator | | Wireless Range | Over 65' (19.8 m) | | Battery | 4.5 Amp | | Battery Life | up to 3 hours, non-stop play | | Charge Time | 8 hours, average | | Voltage Selector Switch | 110 / 220 | | Magnet | 30 oz | | Tweeter | Piezo | | Card | Maximum USB/SD Size: 32 GB | | File Compatibility | MP3 | | Material | Engineered ABS | | Weight | 32.6 lb (14.8 kg) | | | | Box Dimensions (LxWxH) | 26.0 x 16.0 x 15.0" | - Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single)
| Type | Speaker Stand | | Mount Size | 1-3/8" | | Height Adjustment Range | 50 to 75" / 1.27 to 1.9 m | | Material of Construction | Steel | | Base Spread | 54" / 137 cm | | Weight | 6.2 lb / 2.8 kg | | | | Box Dimensions (LxWxH) | 40.0 x 5.0 x 5.0" |
