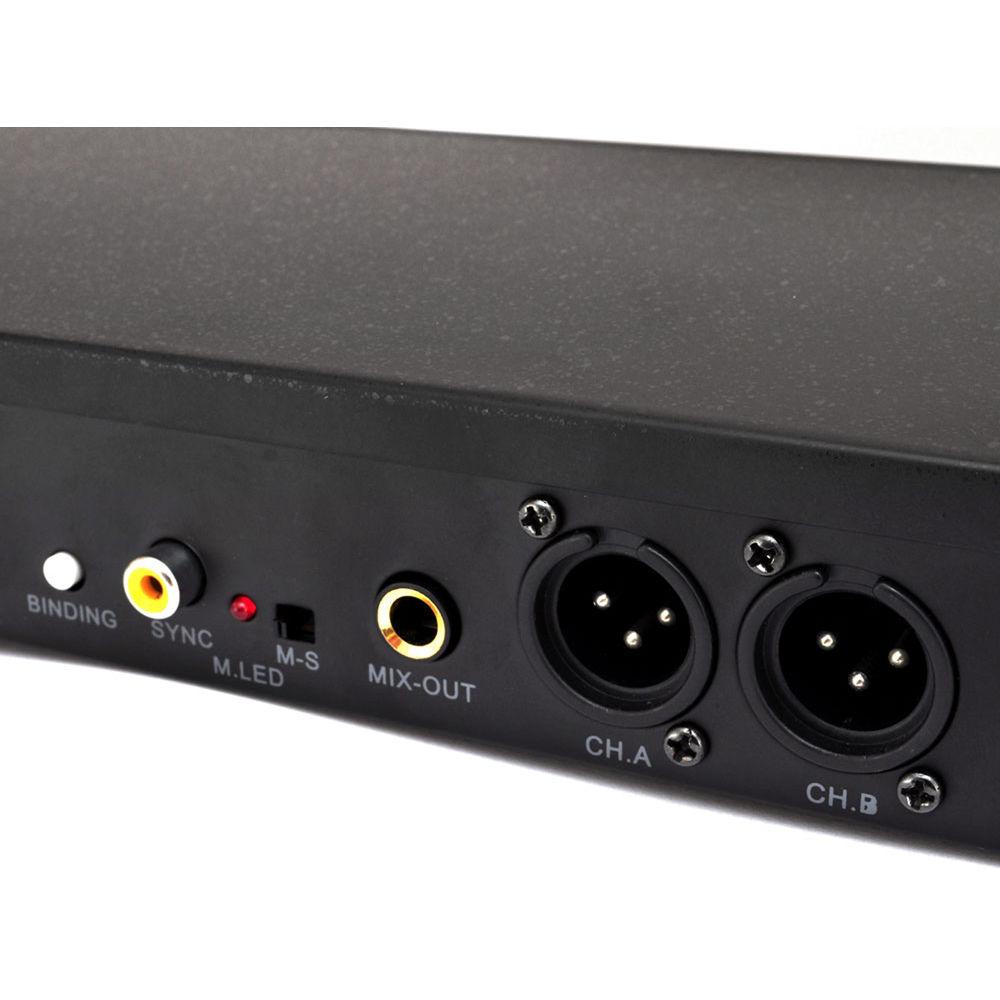

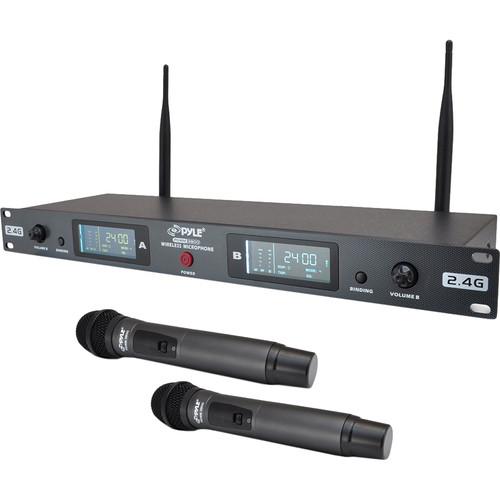

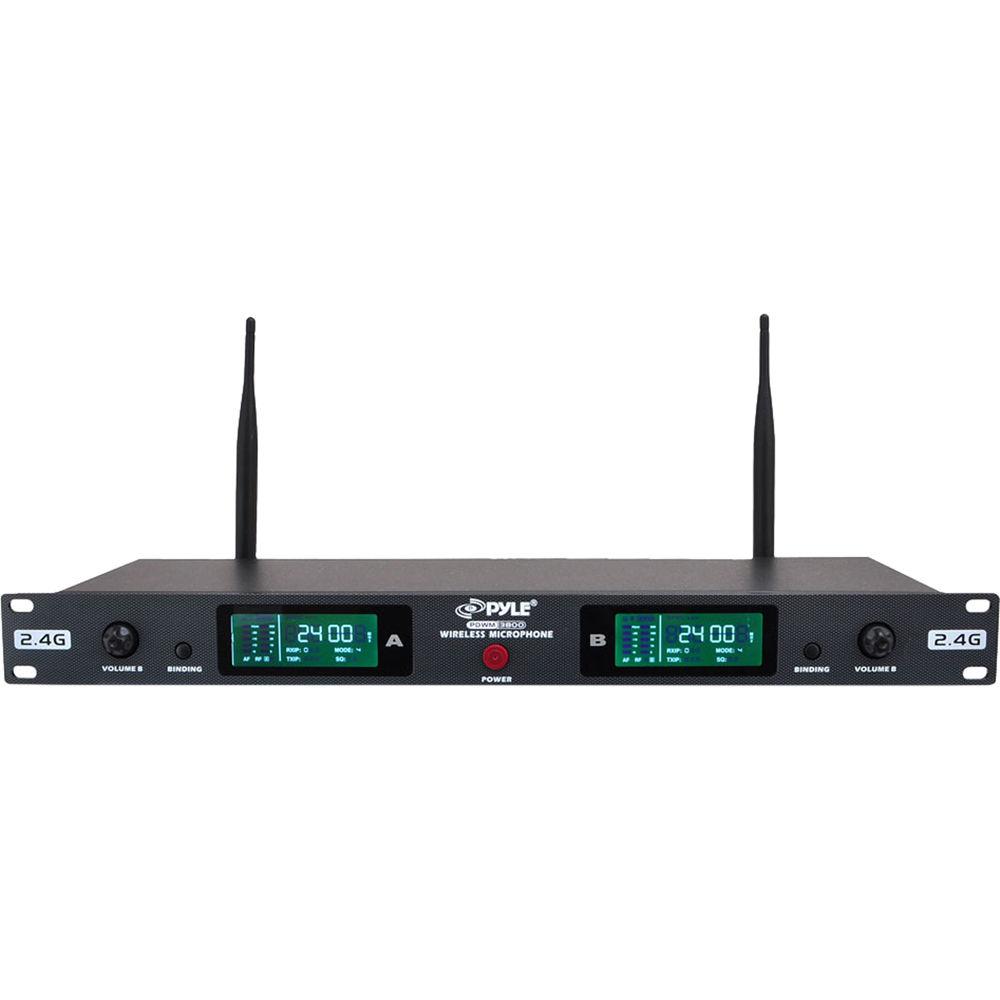

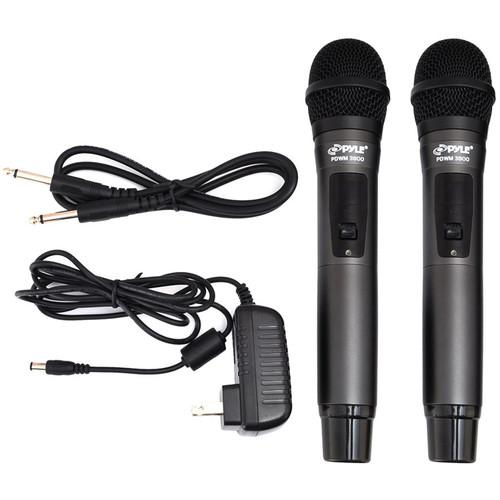

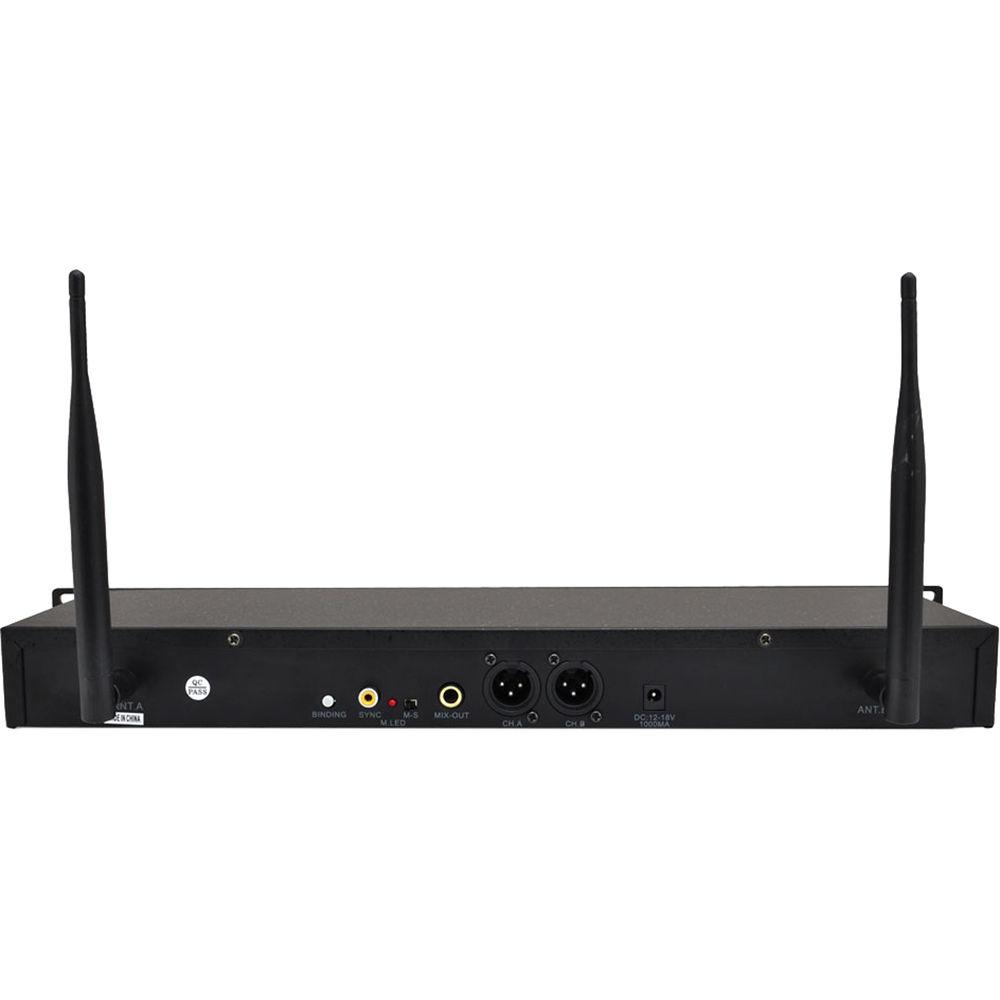

Product description The Pyle Pro 2.4 GHz Rackmount Dual Wireless Handheld Microphone System is designed for live sound reinforcement applications. The system consists of a 19" rackmountable UHF wireless receiver with dual antennas and two UHF wireless handheld microphone transmitters. The front of the receiver features a power switch, an LCD display with AF, RF, and channel indicators, as well as a separate rotary selection knob for channel A and channel B. The back of the receiver features one 1/4" mixed output and two XLR balanced outputs. The handheld microphone transmitters feature LCD displays, and the system utilizes anti-interference designs so that multiple transmitters may be used at the same time. UPC: 068888743716 In the Box Pyle Pro 2.4 GHz Rackmount Dual Wireless Handheld Microphone System 2 x Handheld UHF Microphone Transmitters Rackmount UHF Receiver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro 2.4 GHz Rackmount Dual Wireless Handheld Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PDWM3800 Specs | Outputs | 1/4" mixed output 2 x balanced XLR outputs | | Carrier Frequency | 18 to 20,000 Hz | | Spread | ADFHSS, 1330 times/second | | Transmitting Power | Maximum 18 dBm: 3 mW
10 dBm: (10 mW) | | Dynamic Range | 120 dB | | Distortion | 0.1% (20 to 20,000 Hz) | | S / N Ratio | >90 dB (20 to 20,000 Hz) | | Sensitivity | -50 dB | | Delay | 10 to 30 ms (selectable) | | Digital Connectivity | Two-way UART interface | | Baud Rate | 9600 bps | | Audio Digital | Interface: 12S output
Sampling: 44.1 kHz
Depth: 24 bit PCM | | Working Distance | 164 to 262' (50 to 80 m) | | Battery Requirement | 2 x 1.5V AA | | Power Supply | 110/220 VAC | | Dimensions (L x H) | 1 Rack Unit: 19 x 1.75" (482.6 x 44.45 mm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 5.35 lb | | Box Dimensions (LxWxH) | 20.6 x 20.6 x 2.3" |
