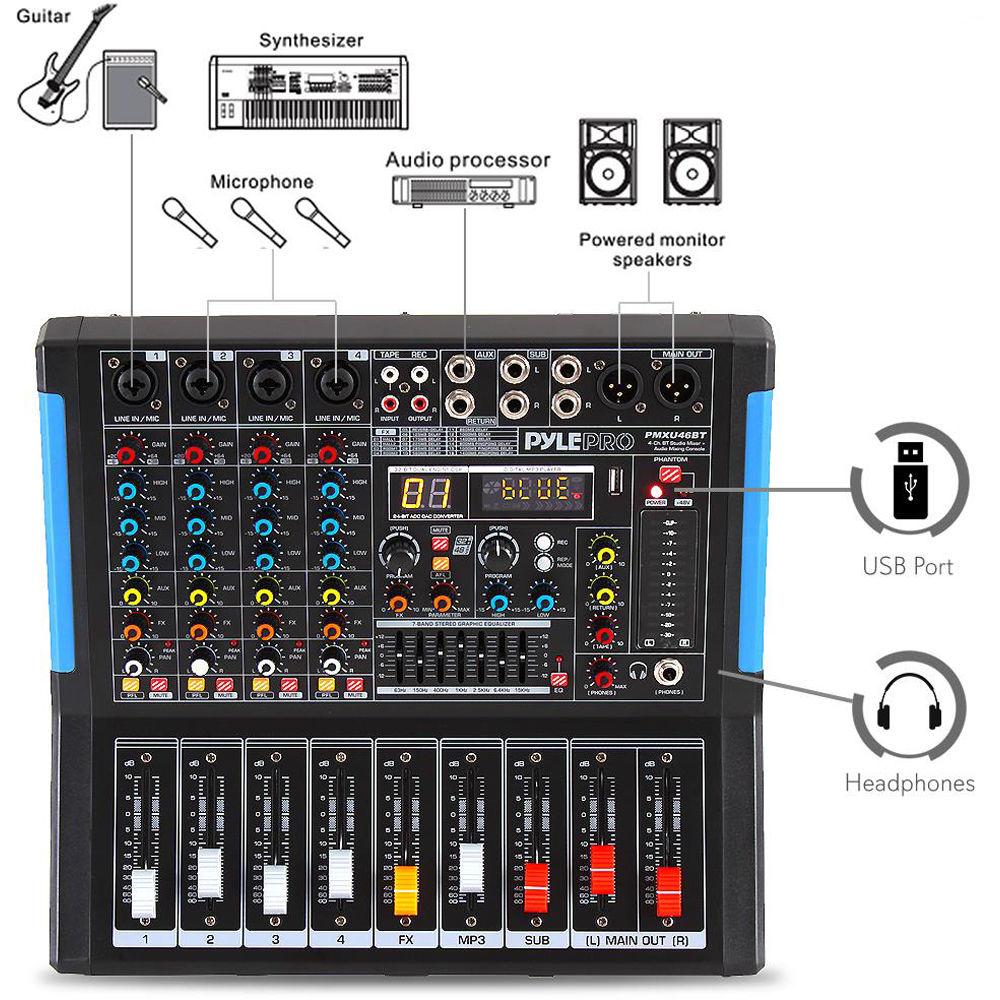

Product description The 4-Channel Bluetooth Studio Mixer, DJ Controller Audio Mixing Console System from Pyle Pro is a compact 4-channel, Bluetooth-enabled audio mixer designed to provide multichannel mixing capabilities for DJs, musicians, sound engineers, and performers in clubs, conferences, houses of worship, and live stage applications. It features four XLR-1/4" combo jack inputs and RCA input/output jacks. The microphone preamps offer selectable 48V phantom power and up to 64 dB of gain.All input channels boast a 3-band EQ with peak indicators. A per-channel FX send knob passes signal to the internal 32-bit DSP effects engine, which has 16 selectable effect presets. A mono 1/4" Aux send and return is provided in case external effects are desired.Stream music from your mobile device to the built-in Bluetooth receiver or play MP3 audio files from your flash drive via the USB Type-A port. The USB port enables audio interface functionality when connected to a computer. Hook up monitors to the 1/4" main and monitor outputs and connect a set of headphones to the 1/4" stereo headphone jack, which sports a dedicated level control. - For professional studio applications and onstage performances
- DJ and studio console mixer system
- 4-channel audio source mixing
- Built-in Bluetooth wireless receiver
- FX (analog effects) and 32-bit DSP processor
- Direct-to-computer connects and sound recording ability
- 7-band equalizer, 32-bit dual engine DSP, and 24-bit ADC and DAC converter
- FX configuration adjustment controls
- Rotary adjustment knobs and LED indicator lights

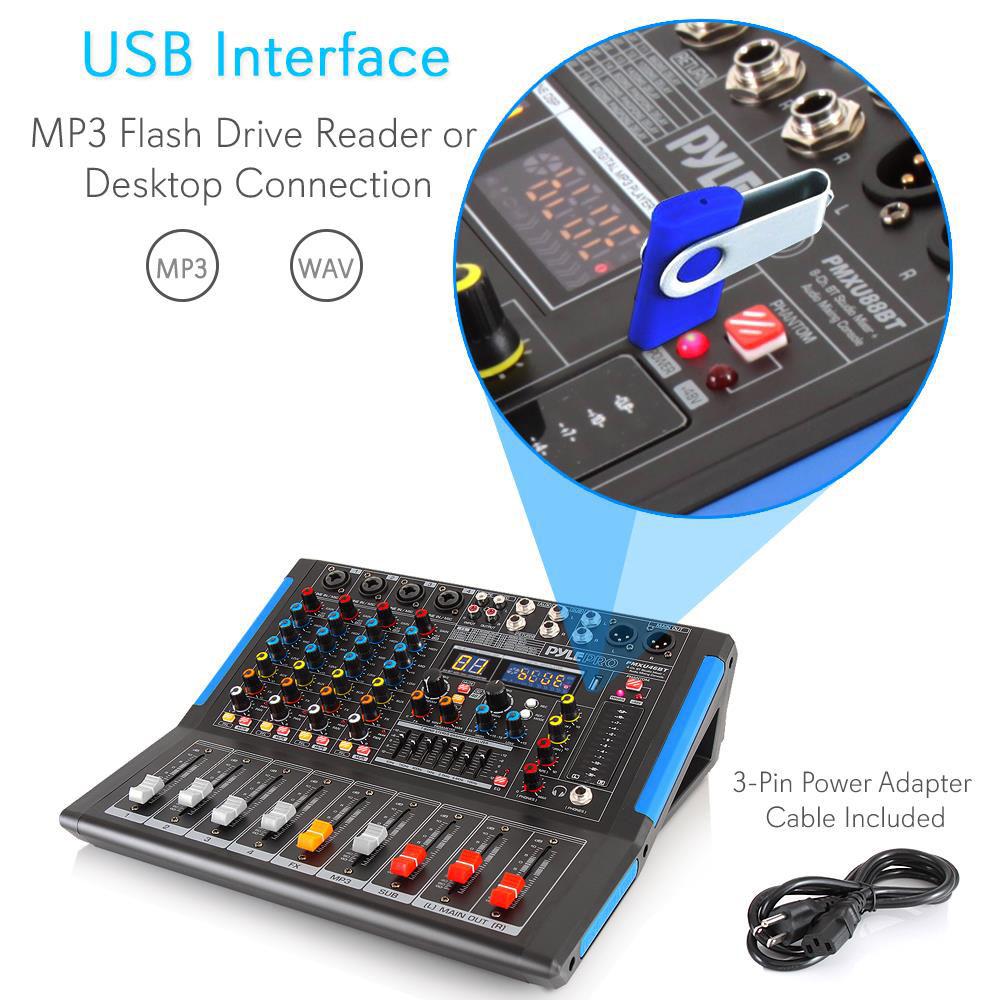

- MP3 digital audio file compatibility with USB flash drive reader
- USB port for desktop connection
- Connect and stream audio from external devices
- 2 x 1/4" L/R main outputs, 4 x XLR combo audio line / microphone inputs
1 x pair RCA L/R inputs/outputs
1/4" send + return inputs and 1/4" headphone output jack - Stereo level fader/slider
- Output signal level indication
- Bus audio control sound routing
- Pad channel source input switch
- +48V phantom power control
UPC: 842893105178 In the Box Pyle Pro 4-Channel Bluetooth Studio Mixer and DJ Controller Audio Mixing Console System AC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro 4-Channel Bluetooth Studio Mixer and DJ Controller Audio Mixing Console System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PMXU46BT Specs | Bluetooth | Version 2.0
Wireless Range: 16.4" / 41.7 cm | | Input Mixer Channels | 4 Channels (+ FX/Headphones)
1 x RCA (L/R) Pair Inputs
1/4" / 6.3mm Send + Return Input | | Mic Input | 4 x 3-Pin XLR-1/4" TRS Combo Inputs
Sensitivity: 1.5 mV
Impedance: 750 Ohms
Input Frequency Response: 20 Hz to 20 kHz ±3 dB
Input Distortion: 0.03%, 1 kHz / 150 mV Input | | Channel Gain | Adjustment: +20/+64 (-6/+38)
High Gain: +/-15 dB, 12 kHz Frequency Shelving
Mid Gain: +/-15 dB, 2.5 kHz Frequency Shelving
Low Gain: +/-15 dB, 80 kHz Frequency Shelving

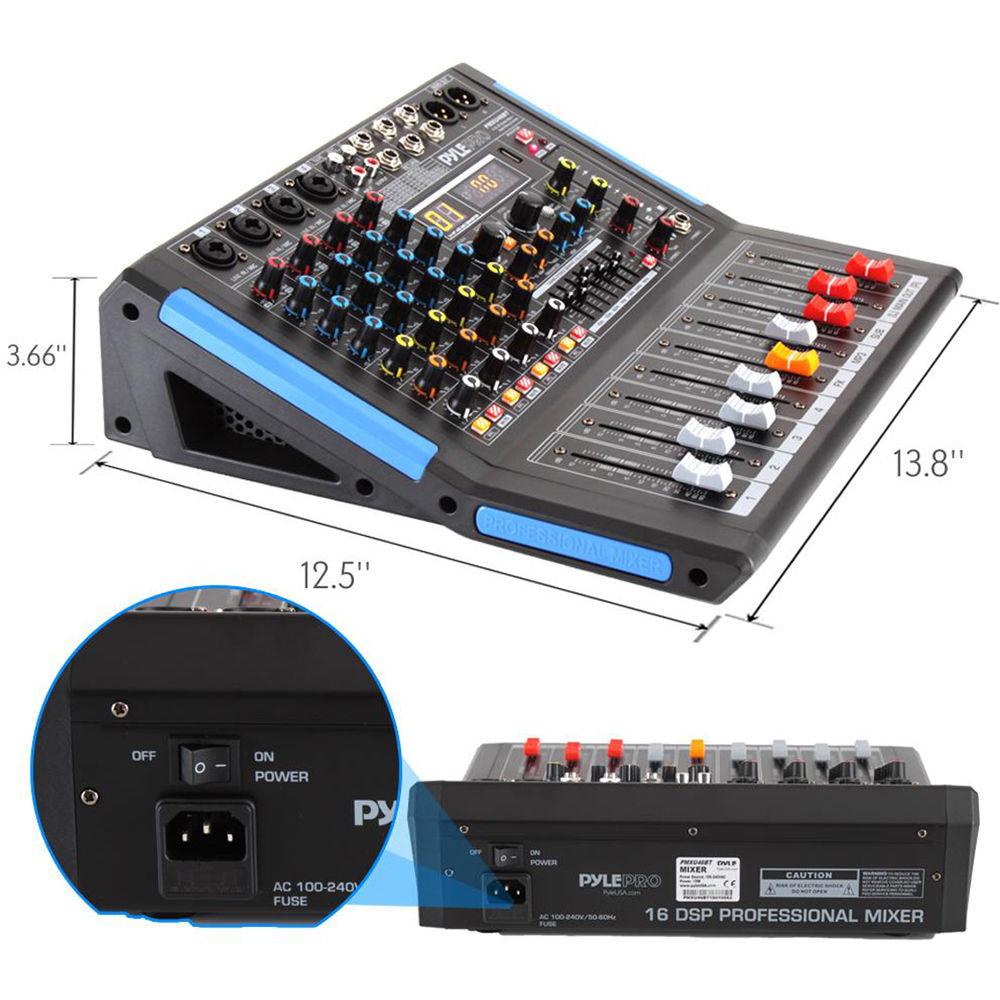

High/Mid/Low Adjustment: -15/+15 dB | | Main Outputs | 2 x 1/4" / 6.3 mm | | Level Meters | Stereo Output: 12-Segment (-30, -20, -10, -7, -4, -2, 0, +2, +4, +7, +10, and Clip) | | Pad Input Channel Adjustment | 26 dB | | Peak Level | Clip: <3 dB | | File Type | Digital File Compatibility: MP3 and WAV | | Phantom Power | +48 V | | Power Supply | 100/240 VAC (+/-15 VDC Power Adapter) | | Dimensions (L x W x H) | 13.8 x 12.5 x 3.66" / 35.1 x 31.8 x 9.30 cm | | Weight | 19.54 lb / 4.33 kg |
