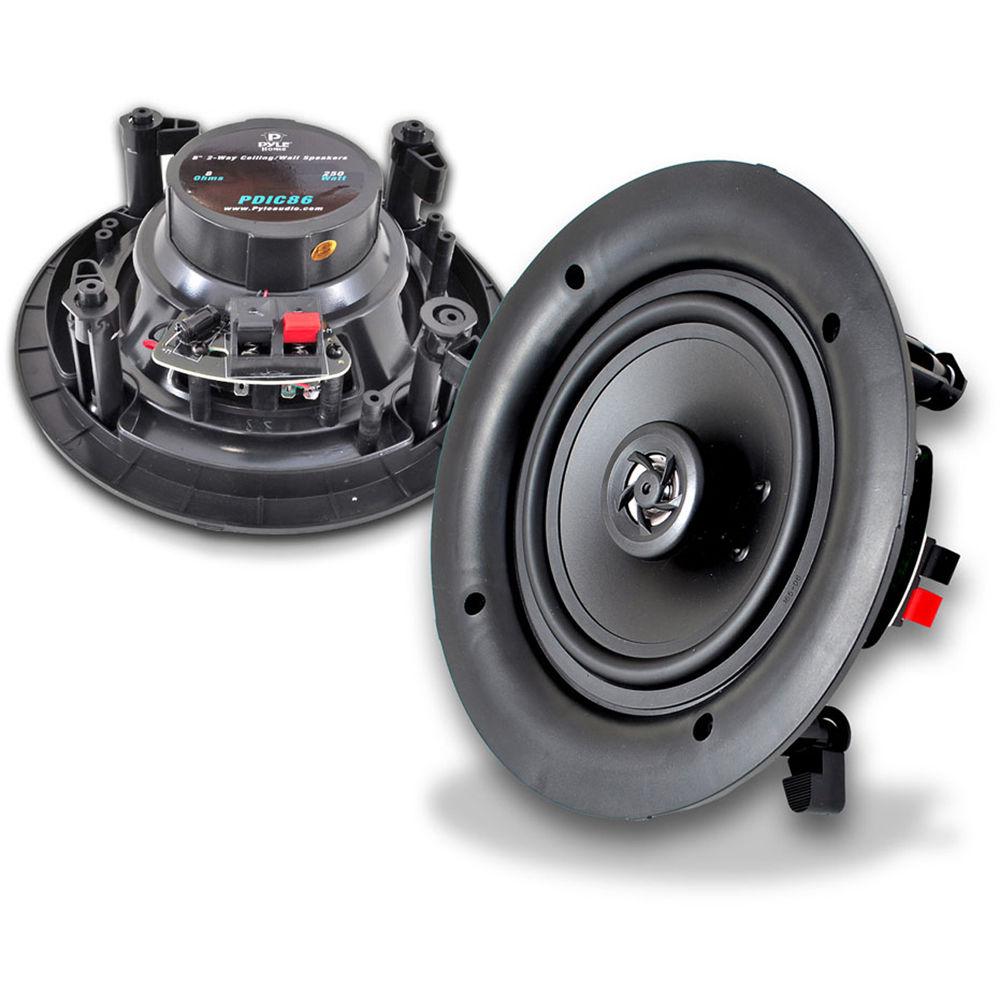

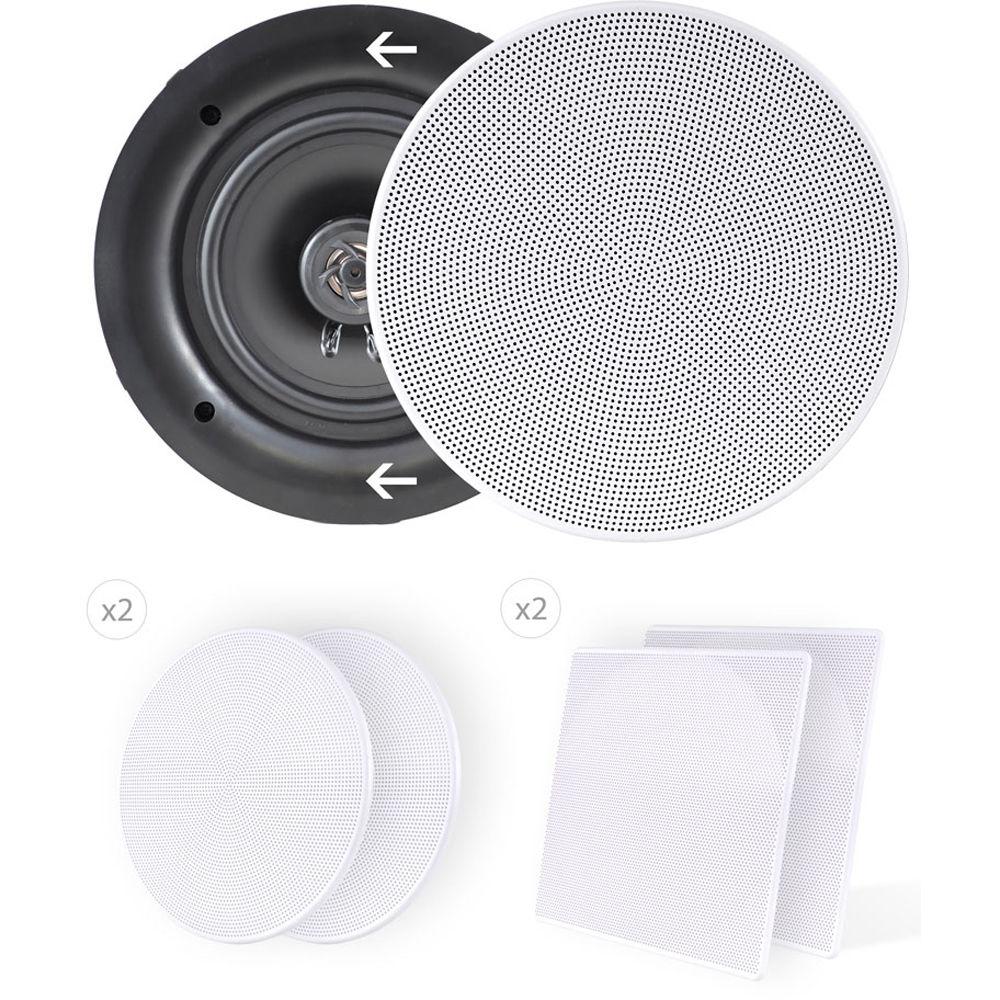

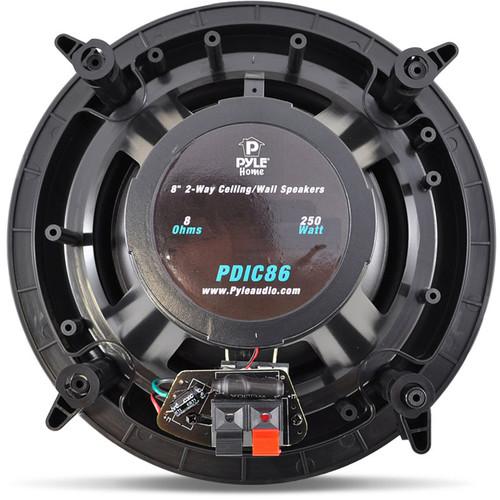

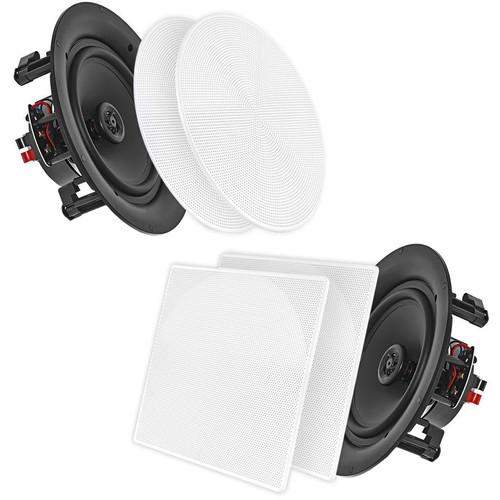

Product description The pair of white PDIC86 8.0" In-Wall/In-Ceiling 250W 2-Way Stereo Speakers from Pyle are two-way speakers that deliver stereo sound to any room in your home or office. The system comes with detachable round and square grille covers and cut-out templates for easy and quick installation. They mount flush and offer a clean look on walls or ceilings and provide a wide frequency response of 40 Hz to 20 kHz. These speakers feature environmentally friendly ABS construction. The woofer material is made of polypropylene material with rubber edges and the tweeter is made of 1/2" high-compliance polymer material. Additionally, the built-in electronic crossover network helps deliver 2-way, wide-image audio for any and every day musical applications. UPC: 068888755863 In the Box Pyle Pro 8" In-Wall/In-Ceiling 250W Flush Mount Stereo Speakers (White, Pair) Cut-Out Template Strip of Adhesive 2 x Round Grille Covers 2 x Square Grille Covers 4 x M4 x 60mm Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro 8" In-Wall In-Ceiling 250W Flush Mount Stereo Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PDIC86 Specs | Power Output | 250 W maximum peak power | | Speaker Size | Woofer: 8.0" / 20.3 cm
Tweeter: 0.5" / 1.3 cm | | Material of Construction | ABS material
Woofer: Polypropylene cone with rubber edges
Tweeter: Compliance polymer | | Impedance | 8 Ohms | | Sensitivity | 89 dB | | Frequency Response | 40 Hz to 20 kHz | | Cutout Diameter | 9.4" / 23.9 cm | | Mounting Depth | 3.6" / 9.1 cm | | Dimensions (Diam. x Depth) | 11.3 x 3.9" / 28.7 x 9.9 cm | | Weight | 9.9 lb / 4.5 kg each speaker | | | | Package Weight | 9.65 lb | | Box Dimensions (LxWxH) | 12.1 x 11.6 x 10.0" |
