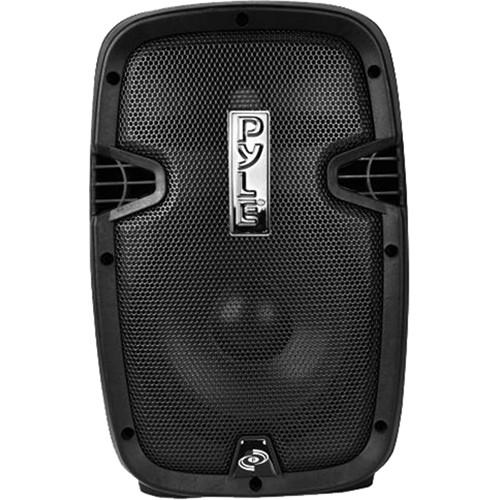

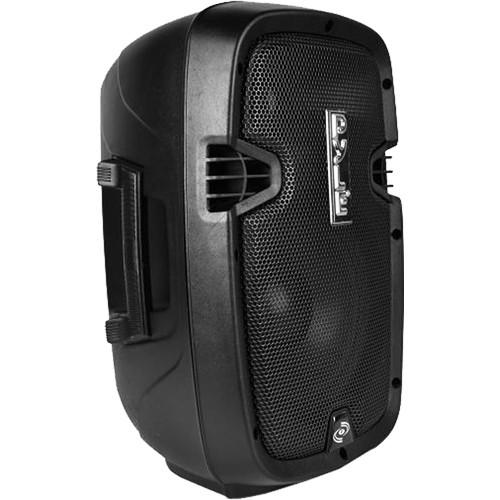

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Pyle Pro Dual High-Powered Active / Passive Speaker PA System combines an 8" active speaker with an 8" passive speaker, two speaker stands, a wired handheld microphone, a remote control, and a power cable to create a complete sound reinforcement applications for vocal and speech presentations in schools, boardrooms, meetings, conferences, houses of worship, and more.
The system features a built-in digital audio amplifier, an XLR microphone input, 1/4" speaker input and outputs, and Bluetooth 4.0. It can read USB flash drives and SD memory cards, and can stream audio from external devices like iPads, Android devices, iPhones, and tablets. The rear-panel rotary dial and button-control center has master volume, mic volume, treble, and bass adjustments to tailor your sound. Additionally, each speaker cabinet is made of heavy-duty ABS housing and comes with integrated carry handles and a built-in 1.4" speaker stand mounts. The included speaker stands elevate the speakers for optimum sound performance and provides a quick and easy setup. - System Features
-
- Dual 8" high-powered loudspeaker PA system
- Includes one active speaker, one passive speaker, two speaker stands, one wired microphone, and one wireless remote
- Rugged, durable, and reliable sound
- Bluetooth wireless music streaming ability
- Tweeter: 1" compression driver with titanium diaphragm
- Full-range 2-way audio projection
- Built-in digital audio amplifier
- XLR microphone input
- Active Speaker: 1/4" output
- Passive Speaker: 1/4" input
- Aux Input Jack: 1/8"
- Connect and stream audio from external devices
- USB flash drive and SD memory card readers
- Digital LCD display

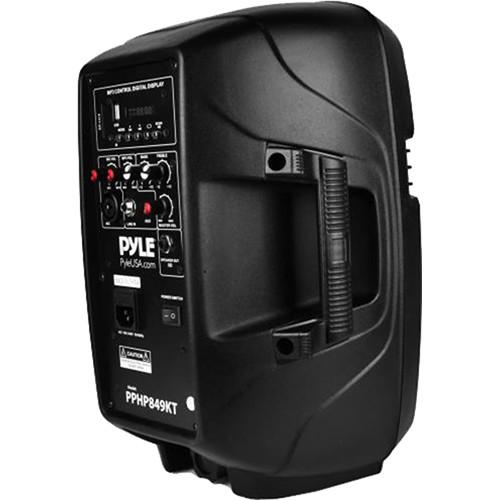

- Rear panel rotary dial and button control center
- Master volume, mic volume, and MP3 volume plus treble and bass controls
- Integrated carry handles

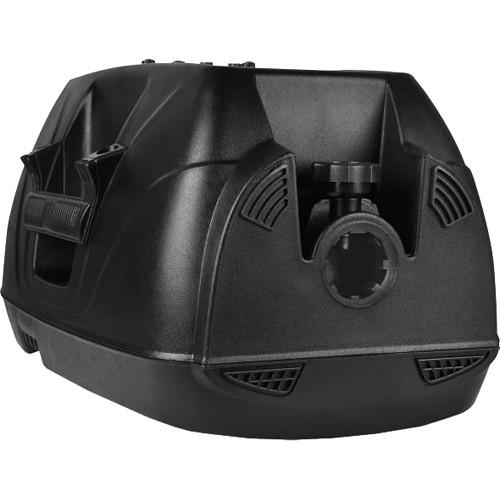

- 1.4" / 35mm speaker stand mount compatible
- Heavy-duty engineered ABS housing
- Bluetooth Wireless Streaming
-
- Instantly stream music from your Bluetooth devices
- Works with all your favorite Bluetooth devices (iPhone, Android, iPad, PC)
- Bluetooth Version: 4.0
- Bluetooth Wireless Range: 100'
- Bluetooth Network Name: 'Pyle'

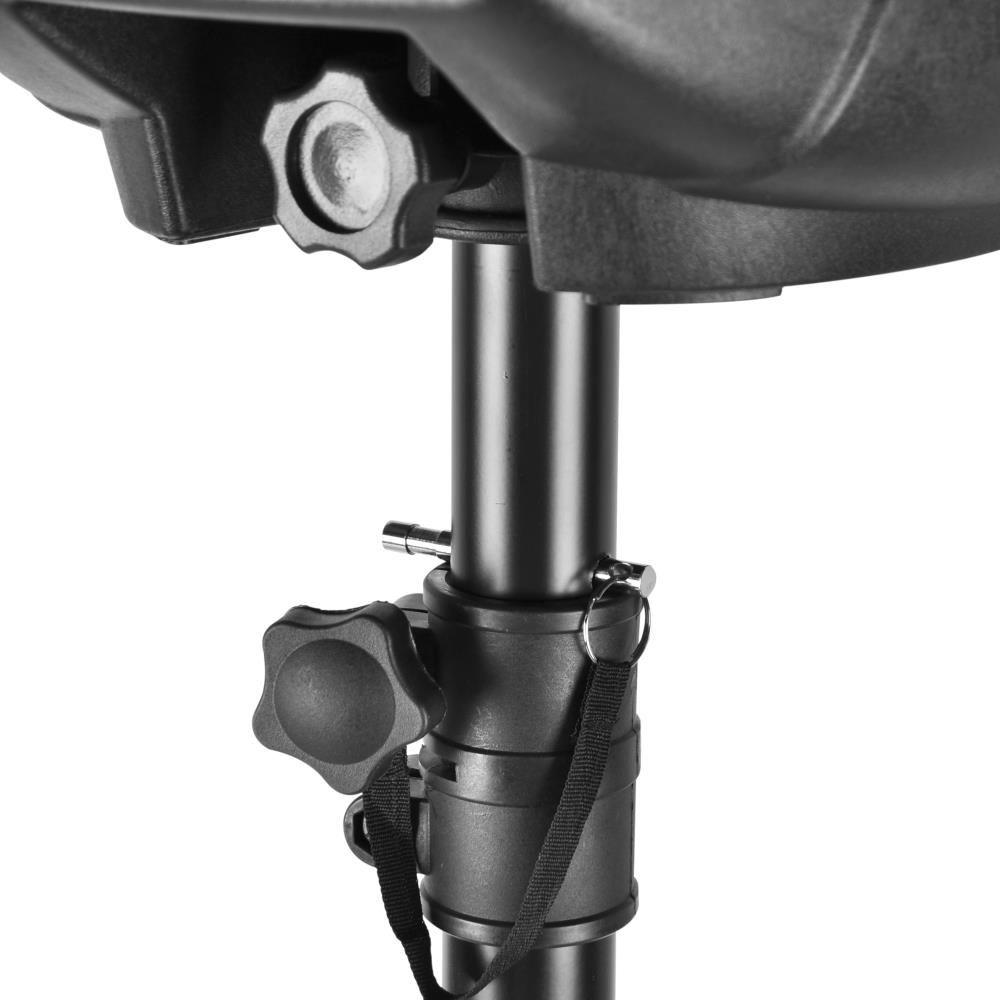

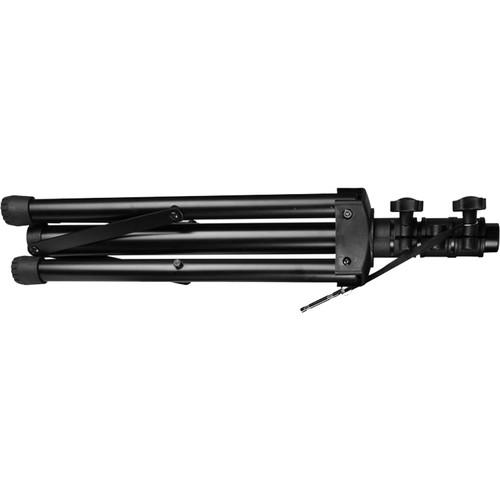

- Speaker Stands
-
- Effectively elevates speakers for optimum sound performance
- Universal speaker compatibility (1.4" / 35mm insert)
- Easy setup and quick adjustment control
- Reinforced steel support construction
- Speaker support arm extension
- Rugged and reliable
- Safety lock-in pin
- Foldable for quick storage and transport
- Rubber capped tripod feet base
- Perfect for on-stage or studio sse
- For professional or beginner applications
- Speaker height adjustable: 59.1'' to 82.7''
- Maximum load capacity: 100 lb each

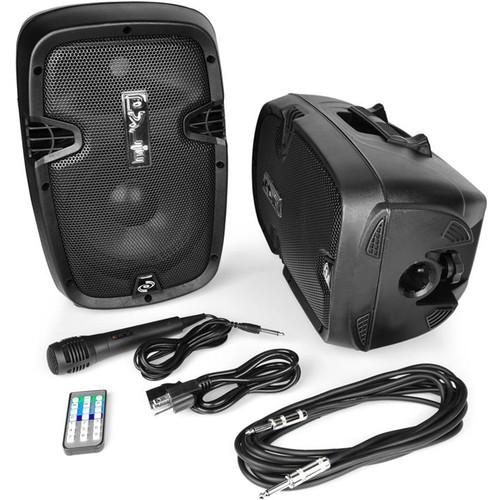

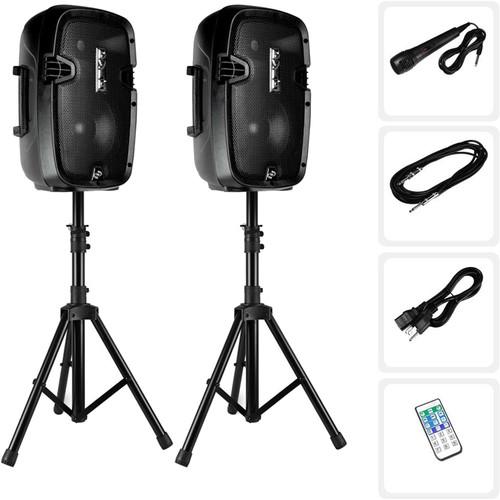

UPC: 068888769433 In the Box Pyle Pro Dual High-Powered Active / Passive Speaker PA System 8'' Active PA Speaker 8'' Passive PA Speaker 2 x Speaker Stands Wired Microphone Remote Control Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro Dual High-Powered Active Passive Speaker PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PPHP849KT Specs | Power Output | Maximum: 700 W | | Amplifier | Class-D | | Low Frequency Driver | 8.0" / 20.3 cm | | High Frequency Driver | 1.0" / 2.54 cm | | Impedance | 8 Ohms | | Total Harmonic Distortion | <1% | | Magnet | 20 oz | | Sensitivity | 92 dB (±2 dB) | | Mic Input Level | <15 mV | | AV Input/Output Level | >250 mV | | Frequency Response | 65 Hz to 18 kHz | | File Compatibility | Digital Audio: MP3, WMA | | Memory Support | 32 GB (maximum) | | Connectors | Mic Input: Combo XLR-1/4" / 6.35 mm
Line Input: 1/4" / 6.35 mm
Aux Input: 1/8" / 3.5 mm
Speaker Output: 1/4" / 6.35 mm | | Bluetooth Version | 4 (network name 'Pyle') | | Bluetooth Range | 100' / 30.5 m | | Power | 100/240 VAC | | Housing Material | ABS housing | | Dimensions (L x W x H) | 23.0 x 21.0 x 38.0" / 584.2 x 533.4 x 965.2 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 33.5 lb | | Box Dimensions (LxWxH) | 24.5 x 23.0 x 10.5" |
