User Manual for Pyle Pro HD Smart Projector with Android CPU Click to enlarge the picture
Contents of the user manual for the Pyle Pro HD Smart Projector with
- Product category: Pico Projectors Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Pico Projectors
 |
User manual for the Pyle Pro HD Smart Projector with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

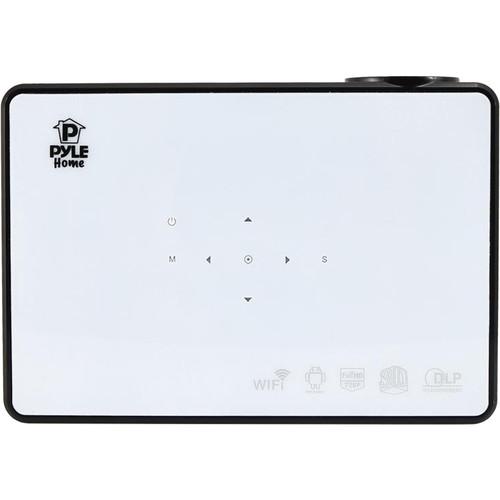

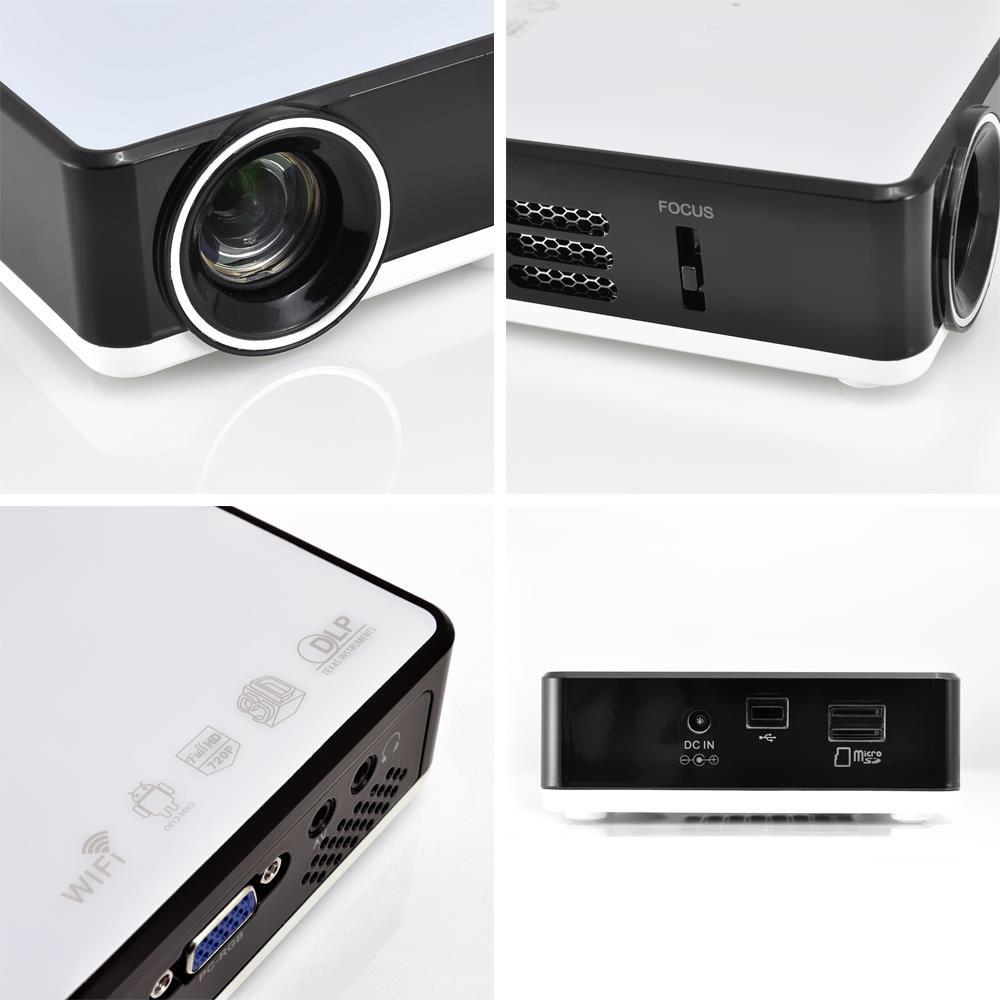

Product description The HD Smart Projector with Android CPU from Pyle Pro features an embedded computer running android OS, giving it similar functionality to a tablet, but able to project on a much bigger screen. An LED light source outputs 1200 lumens in 2D mode at full brightness and doesn't burn out the way a conventional tungsten bulb does, for a lamp life of up to 30,000 hours. A single 0.45" DLP imaging device produces a 1280 x 800 (WXGA) native resolution, 16:10 aspect ratio picture. Through scaling, the projector can also accommodate 1080p/i, 720p, NTSC, and PAL sources.

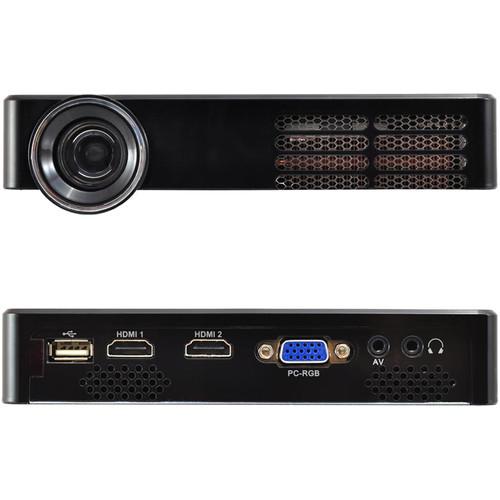

There are two HDMI inputs which support 3D for connection to computers, Blu-ray Disc players, game consoles, and more. There is also a VGA input for computers with analog graphics, which can be adapted to accept a component signal using a separately available adapter cable. For card readers or USB storage devices, there is a USB type A port that lets you view photos, play video, or access documents such as Microsoft Word and Excel files directly through the projector's operating system. For legacy camcorders, VCRs, and other analog equipment there is a mini composite A/V input and an adapter is supplied (an additional extension cable may still be required). - Embedded Android 4 OS
- With Wi-Fi connectivity for Internet access (where there is a router or access point available), this projector lets you enjoy a similar Android experience as you would get with a tablet or smartphone but in a much larger image. You can surf the Web, watch movies and listen to podcasts, play games, and more. The CPU features a 1.2 GHz processor, 512 MB of RAM, and 4GB internal memory
- Supports up to 115"-Diagonal Screen Size
- Depending on the amount of ambient light, and where the projector is placed in relation to the screen, it is possible to throw and image between 20 and 115"
- DLP-Link 3D Support
- This projector can be paired with DLP-Link compatible active 3D glasses for watching 3D content from the HDMI input or a USB storage device. Because the brightness will be reduce significantly, the 3D function should only be used in a dark setting, and the recommended image size is 40"-diagonal
- Tripod Mountable
- A standard 1/4"-20 tripod socket means you can use a regular camera tripod or camera mount with this projector
- Picture Customization
- The following picture settings are provided:
- Adjust Image Quality
- Focus
- Brightness
- Zoom (digital)
- 3D Settings
- Additional Features:
-
- Decodes 7.1-channel audio
- Two 1 W speakers built-in
- Headphone jack
UPC: 068888754446 In the Box Pyle Pro HD Smart Projector with Android CPU Remote Control HDMI Cable Compose RCA Adapter Power Adapter Power Cord Limited 1-Year Warranty Manual PDF 8.7mbattwzrestyazfvbwervtxtutvadqbfbxwzbd Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro HD Smart Projector with Android CPU in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PRJAND805 Specs | | | Display System | -Chip 0.45" DLP | | Native Chip Resolution | 1280 x 800 | | Supported Resolutions | 720 x 400
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
1400 x 1050
1680 x 1050
640 x 350 | | Max Brightness | 1200 Lumens | | Aspect Ratio | Native: 16:10
Supported: 16:9
Supported: 4:3 | | Dynamic Contrast Ratio | 10,000:1 | | DLP Link 3D | Yes | | | | Throw Distance | 9.5 - 120" / 24.13 - 304.8 cm | | Throw Ratio | 1:1 | | Projection Size | 20 - 115" / | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x Audio/Video (Input)
1 x 1/8" (3.5 mm) Mini Headphone (Output)
1 x USB 2.0 Type-A Female
1 x Micro-USB Type-B Female Mini connector; adapter supplied | | Internal Storage | 4.0GB | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Expected Lamp Life | Medium Brightness: 30,000 Hours | | Supported Languages | English
Simplified Chinese | | Temperature | Operating
32 to 104°F (0 to 40°C)
Storage
-4 to 140°F (-20 to 60°C) | | Dimensions (W x H x D) | 6.4 x 1.5 x 4.4" / 16.3 x 3.8 x 11.2 cm without foot
6.4 x 1.6 x 4.4" / 16.3 x 4.1 x 11.2 cm with foot | | Weight | 15.6 oz / 442.3 g | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 10.6 x 8.2 x 2.3" |
