User Manual for Pyle Pro Mini Blue-Series Stereo 80W Power Amplifier with Bluetooth Click to enlarge the picture
Contents of the user manual for the Pyle Pro Mini Blue-Series Stereo 80W
- Product category: Amplifiers Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Amplifiers
 |
User manual for the Pyle Pro Mini Blue-Series Stereo 80W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

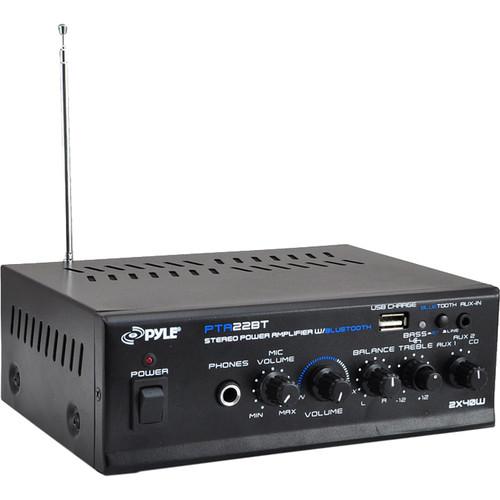

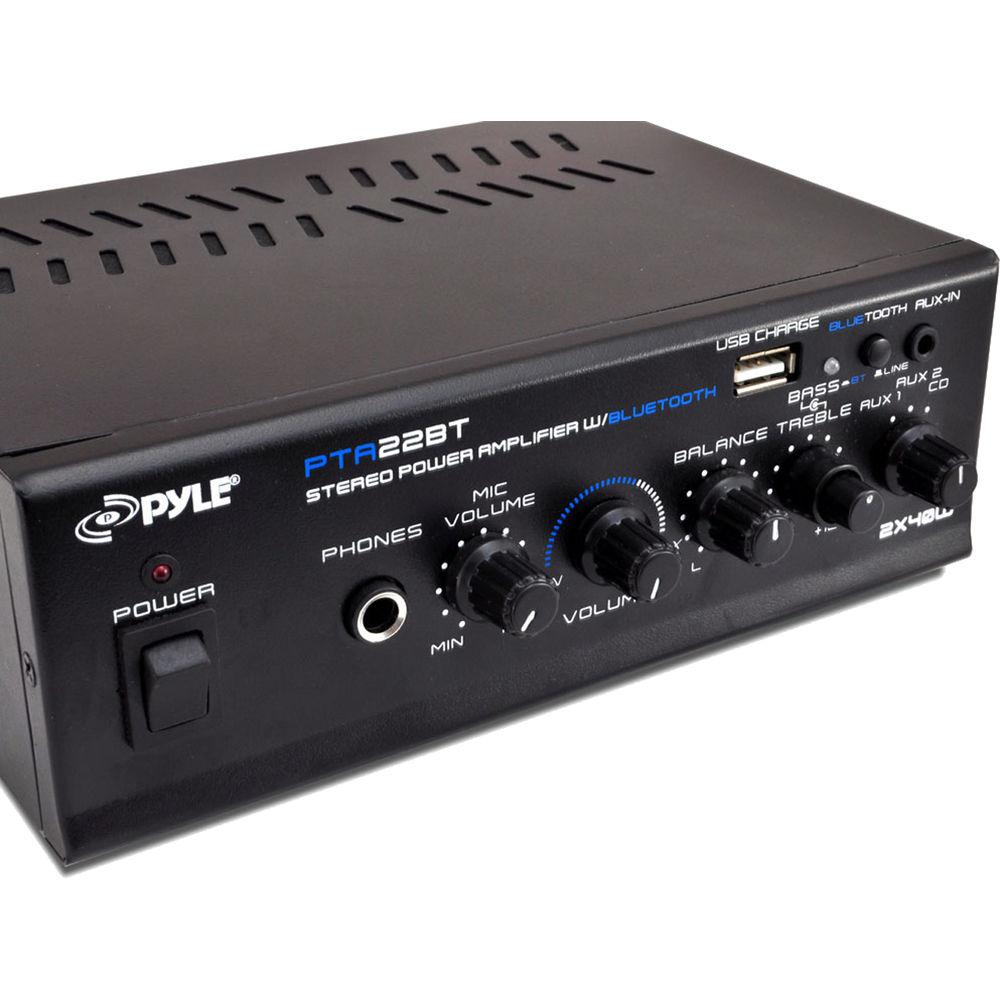

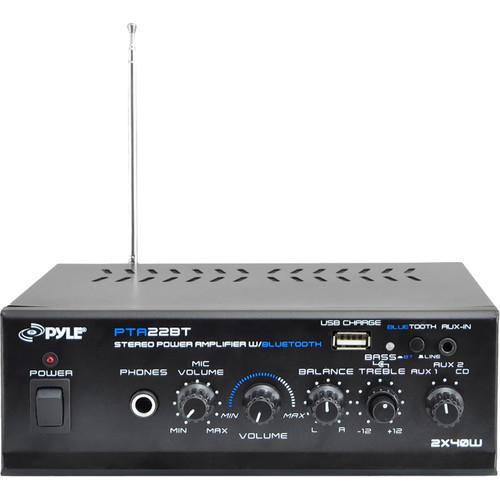

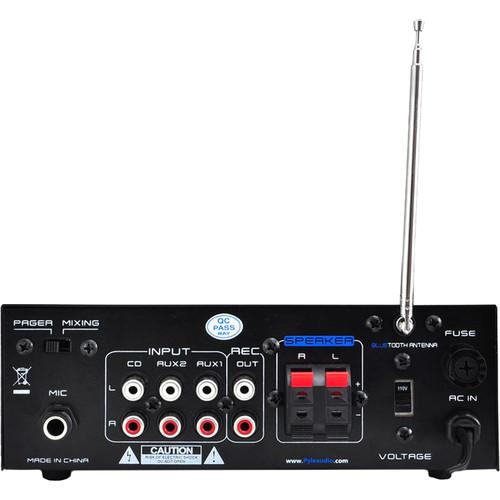

Product description Enjoy stereo sound with the Pyle Pro Mini Blue-Series Stereo 80W Power Amplifier. Its 2-channel design outputs up to 40W per channel for true stereo sound. The integrated rotary volume control will allow you to fine-tune your audio playback, and it features an 1/8" aux input on the front and three stereo RCA inputs on the back. A microphone input and independent mic volume control allows you to sing along with your music, or use the amplifier as a public address system. Integrated Bluetooth connectivity enables wireless streaming from your favorite compatible devices such as smartphones and tablets. The front-panel USB port will charge your mobile device as an added convenience. -
- Built-in Bluetooth for wireless audio streaming from your compatible source devices
- USB port for charging your mobile device
- Switchable mic pager and mixing/karaoke modes
- Page Mode allows voice transmission via mic
- Mix Mode allows both voice and music transmission
- Treble, bass, balance, master volume adjustable
- Integrated short-circuit and power surge protection
- Rotary master and microphone volume controls
- Front-facing control panel
- LED indicator lights
UPC: 068888755733 In the Box Pyle Pro Mini Blue-Series Stereo 80W Power Amplifier with Bluetooth Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro Mini Blue-Series Stereo 80W Power Amplifier with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PTA22BT Specs | Peak Power | 2 x 40 W @ 4 Ohms | | Output Power | 2 x 28.5 W @ 4 Ohms, 1 kHz, 1% THD
2 x 22.5 W @ 4 Ohms, 1 kHz, 10% THD | | Frequency Response | 20 Hz to 20 kHz @ 1 kHz, 1 W, ±3 dB, 8 Ohms | | Signal to Noise Ratio | Aux 1 / Aux 2 / CD: 75 dB @ 1 kHz, 4 Ohms
Mic: 65 dB @ 1 kHz, 4 Ohms | | Total Harmonic Distortion (THD) | 0.3% @ 1 kHz | | Input Sensitivity | Aux 1 / Aux 2 / CD: 150 mV @ 1 kHz, 4 Ohms
Mic: 1.5 mV @ 1 kHz, 4 Ohms | | Bass Boost | ±10 dB @ 100 Hz | | Treble Boost | ±10 dB @ 10 kHz | | Bluetooth | Yes | | Input | 3 x stereo RCA pairs
1 x 1/8" / 3.5 mm aux (front)
1 x 1/4" / 6.35 mm mic | | Output | 1 x stereo RCA pair
1 x 1/4" / 6.35 mm headphone (front) | | Other Connectors | 1 x USB power out (front) | | Speaker Connectors | 2 x spring clip pairs | | Power Requirements | 110 / 220 VAC, 50/60 Hz | | Dimensions | 7.48 x 2.87 x 5.31" / 19 x 7.29 x 13.49 cm | | Weight | 4.29 lb / 1.95 kg | | | | Package Weight | 4.275 lb | | Box Dimensions (LxWxH) | 9.05 x 7.7 x 4.15" |
