User Manual for Pyle Pro P3001AT 3000W Hybrid Pre-Amplifier with AM FM Tuner Click to enlarge the picture
Contents of the user manual for the Pyle Pro P3001AT 3000W Hybrid Pre-Amplifier
- Product category: Tuners & A/V Receivers Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Tuners & A/V Receivers
 |
User manual for the Pyle Pro P3001AT 3000W Hybrid Pre-Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

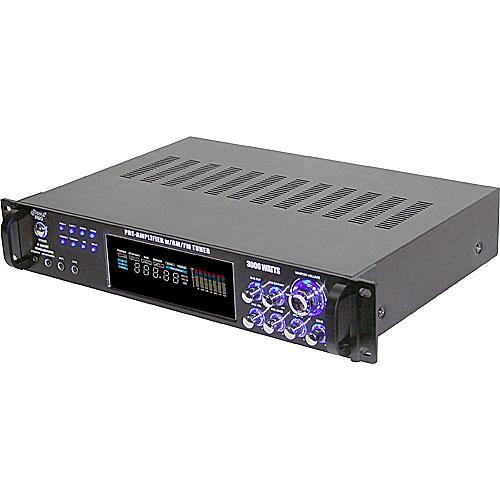

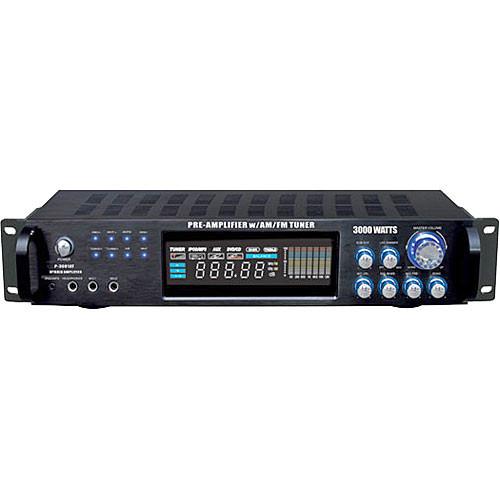

Product description Enjoy high power sound for your home theater system with Pyle Pro's P3001AT 3000W Hybrid Pre-Amplifier with AM/FM Tuner. This rack-mountable component has 3000W of peak power plus subwoofer and pre-amp outputs. Enjoy your portable media player with a front-mounted 3.5mm input or sing along to your favorite music with the integrated digital karaoke system and dual microphone jacks. - Dual microphone input jacks for digital karaoke system with separate treble, bass and echo controls
- 3.5mm front panel input for portable media player
- Dedicated pre-amp and subwoofer output for expansion
- Digital fluorescent output display meter

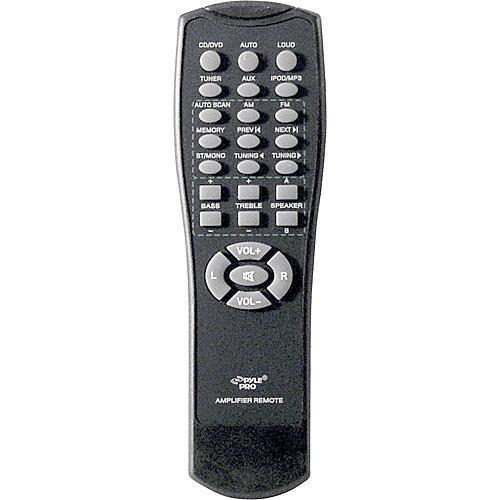

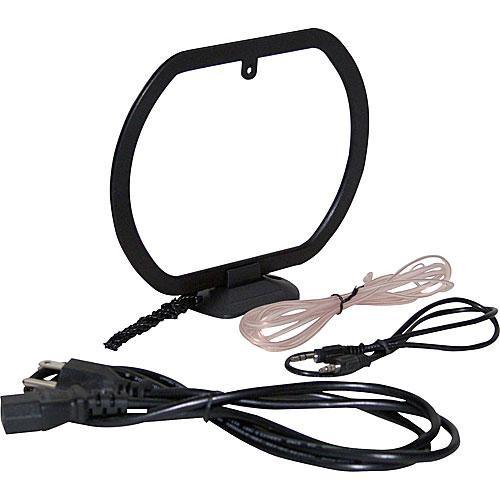

UPC: 068888886352 In the Box Pyle Pro P3001AT 3000W Hybrid Pre-Amplifier with AM/FM Tuner Remote Control 3.5mm to 3.5mm Patch Cable FM Antenna AM Antenna AC Cable 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro P3001AT 3000W Hybrid Pre-Amplifier with AM FM Tuner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro P3001AT Specs | Power Rating | 3000W peak power
800W @ 2 Ohms
550W @ 4 Ohms
300W @ 8 Ohms | | Input Sensitivity | CD/DVD/AUX: 400mV/33k Ohm

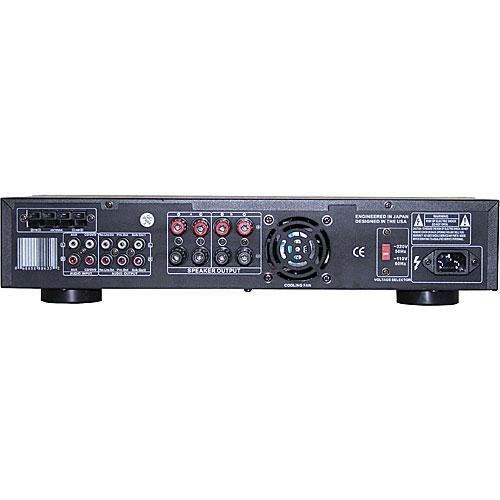

Microphone: 6mV/600 Ohm | | Frequency Response | 40-15,000Hz | | Signal-to-Noise Ratio | 76dB | | Total Harmonic Distortion (THD) | <1% | | Input Connections | 3.5mm x 1
Mic 1/4" x 2
Antenna x 2
Stereo RCA x 2 | | Output Connectors | Pre-Amp out Stereo RCA x 1
Subwoofer Out RCA x 2
Rec Out Stereo RCA x 1 | | Controls Front Panel | Power Switch/Tuning/Previous/Next/AM-FM/A+B/Menu/Input/Sub Volume/Dimmer/Master Volume/Echo/Mic Treble/Mic Bass | | Controls (Rear) | 110/220V | | Cooling | Over heat, over current protection | | Power Consumption | Not specified by the manufacturer | | Power Requirements | AC~110V/60Hz AC~220V/50Hz | | Dimensions | 19 x 3.1 x 13" (483 x 80 x 330mm) | | Weight | 15.87 lbs (7.2kg) | | Specialties | 3.5mm input
Pre-amp out
Subwoofer out | | | | Package Weight | 16.5 lb | | Box Dimensions (LxWxH) | 20.0 x 15.0 x 5.0" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
