User Manual for Pyle Pro PAD10MXU 2-Channel Mini Mixer with USB Audio Interface Click to enlarge the picture
Contents of the user manual for the Pyle Pro PAD10MXU 2-Channel Mini Mixer
- Product category: Analog Recording Mixers Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Analog Recording Mixers
 |
User manual for the Pyle Pro PAD10MXU 2-Channel Mini Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

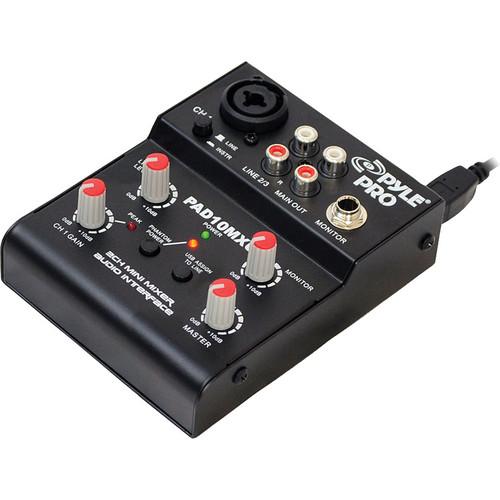

Product description The PAD10MXU 2-Channel Mini Mixer with USB Audio Interface from Pyle Pro is a compact and versatile miniature mixer, ideal for home or project studios. The mixer has an XLR/TRS combo input that can support mic or line signals, allowing you to connect your favorite microphone or instrument. The input even supplies condenser mics with phantom power. There is also a stereo RCA input, ideal for connecting CD players, MP3 players, tape decks, and similar devices.
The mixer has a stereo RCA main output for connecting to a receiver or amplifier. There is a 1/4" stereo headphone output for convenient monitoring. The USB connector lets you connect to your Mac or PC so you can work in your favorite DAW software. The mixer draws its power from the USB connection. When using the mixer without a computer, you can use the included USB AC adapter to draw power from a standard wall outlet. Convenient controls let you adjust gain, as well as master and monitor output levels. Indicator LEDs show you when the unit is on, when phantom power is enabled, and when audio signals hit a peak level. - The compact and versatile design is ideal for home or project studios
- The XLR/TRS combo input can support mic or line signals, allowing you to connect your favorite microphone or instrument. The input even supplies condenser mics with phantom power
- The stereo RCA input is ideal for connecting CD players, MP3 players, tape decks, and similar devices. The stereo RCA main output lets you connect to a receiver or amplifier
- There is a 1/4" stereo headphone output for convenient monitoring

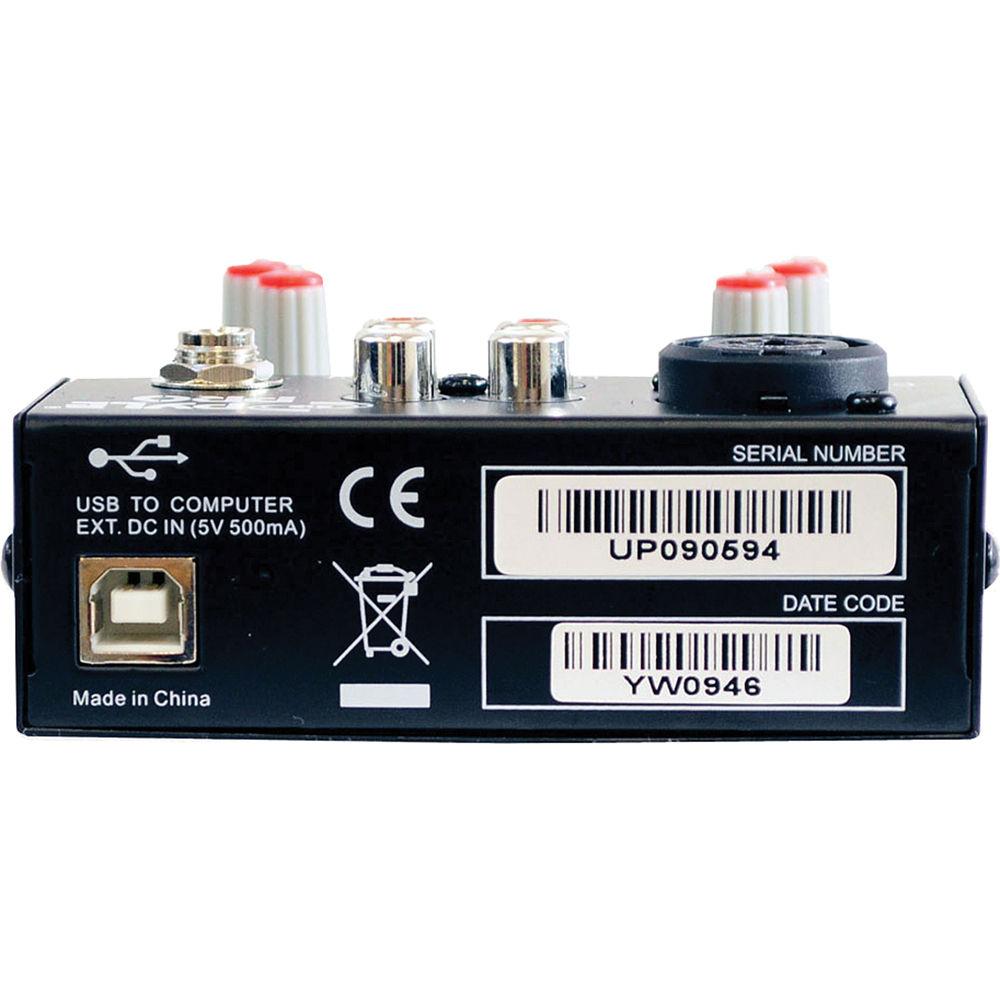

- The USB connector lets you connect to your Mac or PC so you can work in your favorite DAW software. The mixer draws its power from the USB connection. When using the mixer without a computer, you can use the included USB AC adapter to draw power from a standard wall outlet
- Convenient controls let you adjust gain, as well as master and monitor output levels
- Indicator LEDs show you when the unit is on, when phantom power is enabled, and when audio signals hit a peak level

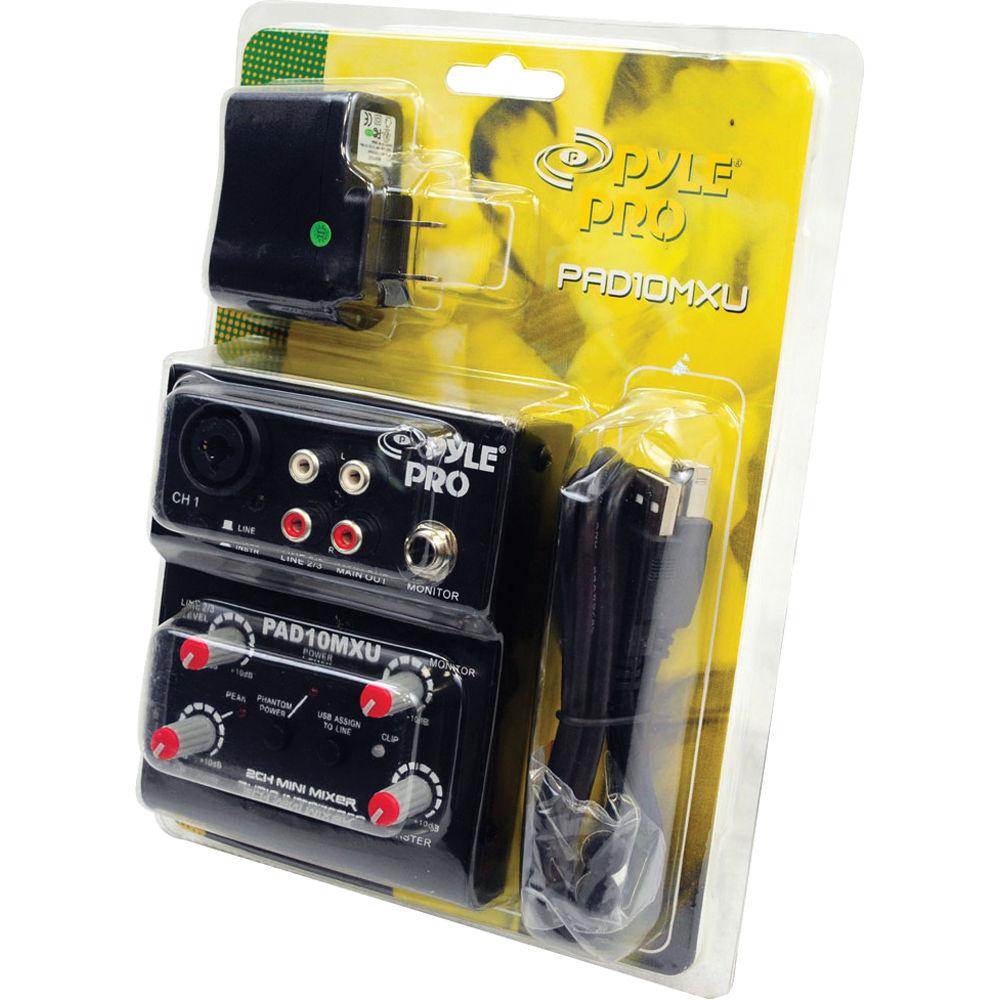

UPC: 068888900010 In the Box Pyle Pro PAD10MXU 2-Channel Mini Mixer with USB Audio Interface USB AC Adapter USB Cable 1-Year Limited Warranty User Manual PDF 200.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PAD10MXU 2-Channel Mini Mixer with USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PAD10MXU Specs | Connectors | 1 x XLR/TRS combo input
1 x Stereo RCA input
1 x Stereo RCA main output
1 x 1/4" stereo monitor output
1 x USB port | | Controls | 1 x Channel 1 gain knob
1 x Channel 2/3 level knob
1 x Master level knob
1 x Monitor level knob
1 x Channel 1 mic/line switch
1 x Phantom power switch
1 x USB/line switch | | Indicators | 1 x Power LED
1 x Phantom Power LED
1 x Peak LED
1 x Clip LED | | Frequency Response | 15Hz - 25kHz ±3dB | | THD + N | 0.01% @ +4dBu | | Gain | XLR: 0 to -50dB
TRS: -10 to 30dB | | Signal to Noise Ratio | 100dB | | Input Level | +20dB max | | USB | USB 2.0 full speed compliant
Windows 2000/XP/Vista and Mac OS X compliant
16-bit/48kHz AD/DA input and output | | Power Supply | 5VDC, USB bus powered | | Dimensions (WxDxH) | 3.86 x 4.65 x 1.26" (98 x 118 x 32mm) | | Weight | 1.1 lbs (0.45kg) | | | | Package Weight | 1.285 lb | | Box Dimensions (LxWxH) | 6.95 x 5.5 x 4.15" |
