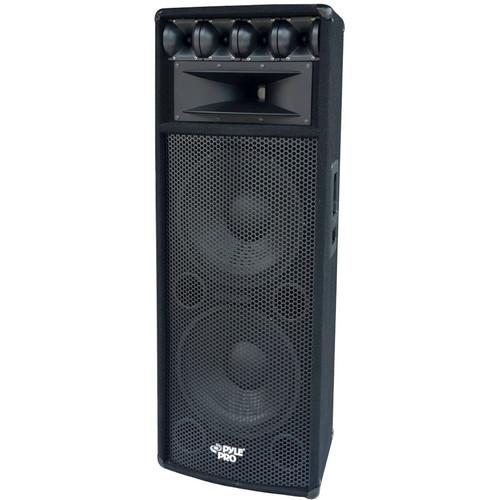

User Manual for Pyle Pro PADH212 2x12" 1600W Passive Loudspeaker Cabinet Click to enlarge the picture
Contents of the user manual for the Pyle Pro PADH212 2x12" 1600W Passive
- Product category: PA Speakers Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro PA Speakers
|
User manual for the Pyle Pro PADH212 2x12" 1600W Passive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|
Product description Pump out plenty of power to reach your audience with the Pyle Pro PADH212 passive loudspeaker cabinet. Ideal for live stage, theater, and DJ setups, the PADH212 handles up to 1600W peak (800W RMS), and produces a frequency response of 50 Hz to 20 kHz. Bass response is enhanced by the cabinet's ported design. It features a full set of drivers including two 12" woofers with 2" voice coils, a horn-loaded 1.5" titanium compression driver, and four piezo tweeters. With binding post terminals and dual 1/4" TS speaker jacks, this 8-Ohm loudspeaker cabinet offers easy connectivity with your existing power amplifier. It utilizes heavy-duty MDF construction and reinforced corners to deliver durability day in and day out. Integrated carry handles allow efficient transport between gigs. - Heavy-duty MDF construction with reinforced corners
- Handles up to 1600W peak (800W RMS)
- Two 12" woofers with 2" Kapton voice coils
- 1.5" titanium compression driver loaded in 5 x 12" horn
- Four bass ports increase low-frequency response
- Built-in crossover network ensures proper frequency distribution to the drivers
- Heavy-duty carry handles allow simplified transport
In the Box Pyle Pro PADH212 2x12" 1600W Passive Loudspeaker Cabinet Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PADH212 2x12" 1600W Passive Loudspeaker Cabinet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PADH212 Specs | Active or Passive | Passive | | Frequency Response | 50 Hz to 20 kHz | | Power Capacity | RMS: 800 W
Peak: 1600 W | | Maximum Sound Pressure Level (SPL) | Not Specified by Manufacturer | | Sensitivity | 98 dB (1 W, 1 m) | | Impedance | 8 Ohms | | Crossover | Built-In Crossover Network | | Low Frequency Driver | 2 x 12" / 30.5 cm Woofers with 2" / 5.1 cm Kapton Voice Coils | | Mid Frequency Driver | 1 x 1.5" / 3.8 cm Titanium Compression Driver Loaded in 5 x 12" / 12.7 x 30.5 cm Horn | | High Frequency Driver | 4 x Piezo Tweeters | | Enclosure Material | MDF | | Input Connections | 2 x 1/4" TS
1 x Pair of Binding Post Terminals | | Dimensions (W x D x H) | 16.0 x 15.2 x 44.2" / 40.6 x 38.6 x 112.3 cm | | Weight | Loudspeaker Cabinet: 58.3 lb / 26.4 kg
Woofer Magnet: 5 lb / 2.3 kg
Tweeter Magnet: 1.3 lb / 0.6 kg |
