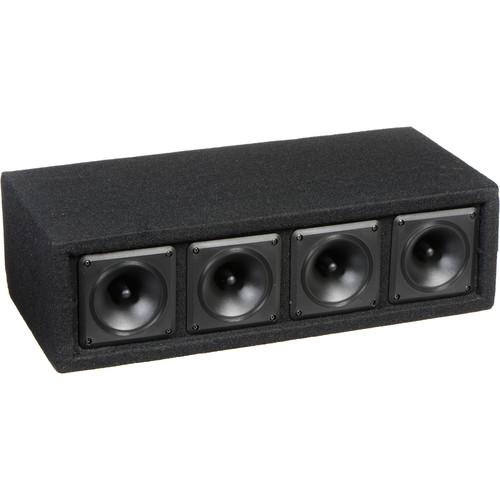

User Manual for Pyle Pro PAHT4 4-Way DJ Tweeter System Click to enlarge the picture
Contents of the user manual for the Pyle Pro PAHT4 4-Way DJ Tweeter
- Product category: PA Speakers Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro PA Speakers
|
User manual for the Pyle Pro PAHT4 4-Way DJ Tweeter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|
Product description The PAHT4 4-Way DJ Tweeter System from Pyle-Pro is a convenient way to add a treble boost to your existing speaker system. The compact housing holds a set of 4 individual 3" horn piezo tweeters, expanding your treble range up to 27kHz, fixing the problem of soft, muddy, and flat-sounding speaker systems.
The unit has a 150W RMS (300W Peak) power handling capability, providing a strong performance with low distortion. The rear panel has standard quick connect terminals for easy hookup and wide compatibility with a variety of speakers. - Lets you add a treble boost to your existing speaker system, fixing the problem of soft, muddy, and flat-sounding speaker systems
- The 4 individual 3" horn piezo tweeters expand your treble range up to 27kHz
- The unit has a 150W RMS (300W Peak) power handling capability, providing a strong performance with low distortion
- The rear panel has standard quick connect terminals for easy hookup and wide compatibility with a variety of speakers
UPC: 068888713580 In the Box Pyle Pro PAHT4 4-Way DJ Tweeter System 1-Year Limited Warranty User Manual PDF 649.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PAHT4 4-Way DJ Tweeter System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PAHT4 Specs | | | Configuration | Passive Tweeter | | Total Power Capacity | 150 W RMS
300 W Peak | | System Impedance | 8 Ohms | | | | HF Driver | 4 x 3" / 76 mm Horn-Loaded Piezo Tweeter | | | | Frequency Response | 4 kHz to 27 kHz | | Speaker Sensitivity | 97 dB | | | | Audio I/O | 1 x 1/4" Input
Binding Post | | | | Dimensions | 20.8 x 6.0 x 9.8" / 529.0 x 152.0 x 250.0 mm | | Weight | 11 lb / 5 kg | | | | Package Weight | 9.65 lb | | Box Dimensions (LxWxH) | 21.8 x 11.2 x 6.7" |
