Product description Enjoy music from your wired and Bluetooth-capable devices with the Pyle Pro PDA7BU Stereo Receiver. This 2-channel receiver produces up to 100W of RMS power per channel at 8 Ohms and is equipped with center and surround speaker terminals powered by the main amplifiers to produce multichannel stereo audio. The RCA subwoofer output lets you connect your subwoofer for added bass response. Built-in Bluetooth connectivity allows you to wirelessly stream music from compatible audio sources such as computers, smartphones, and tablets.

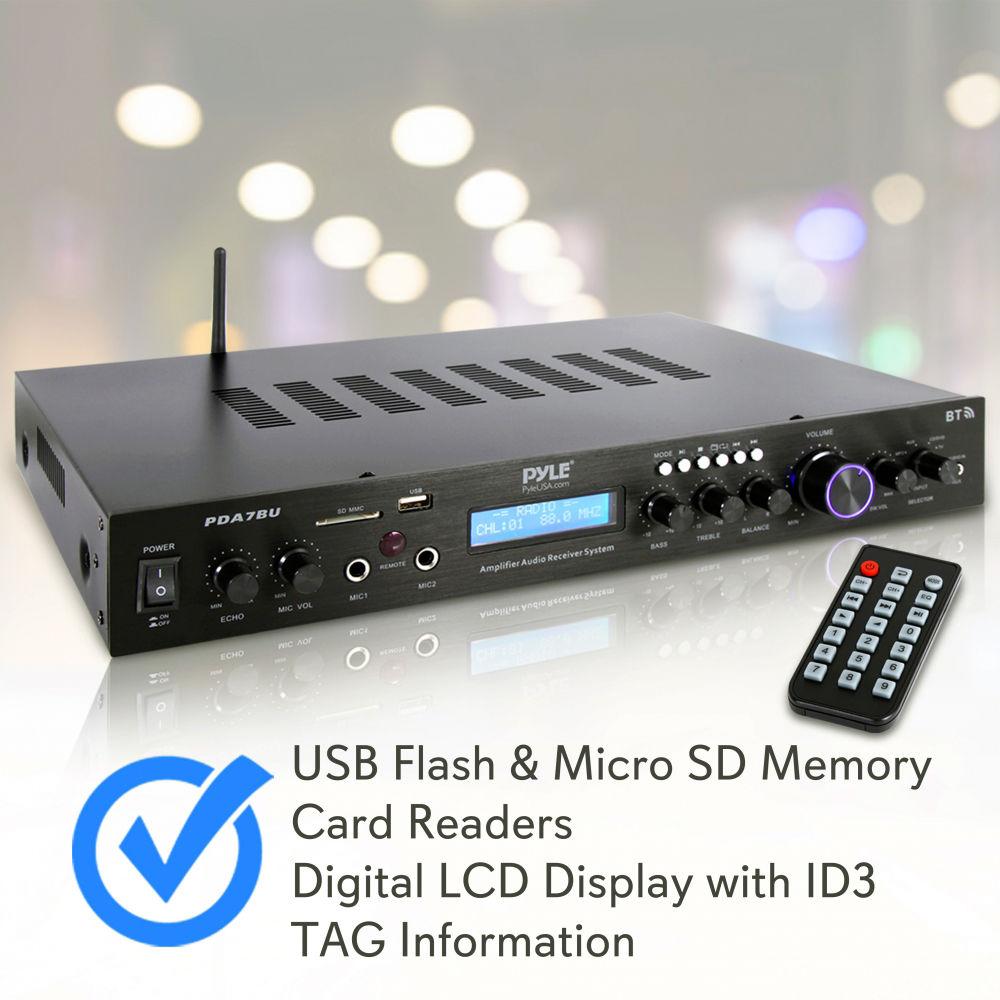

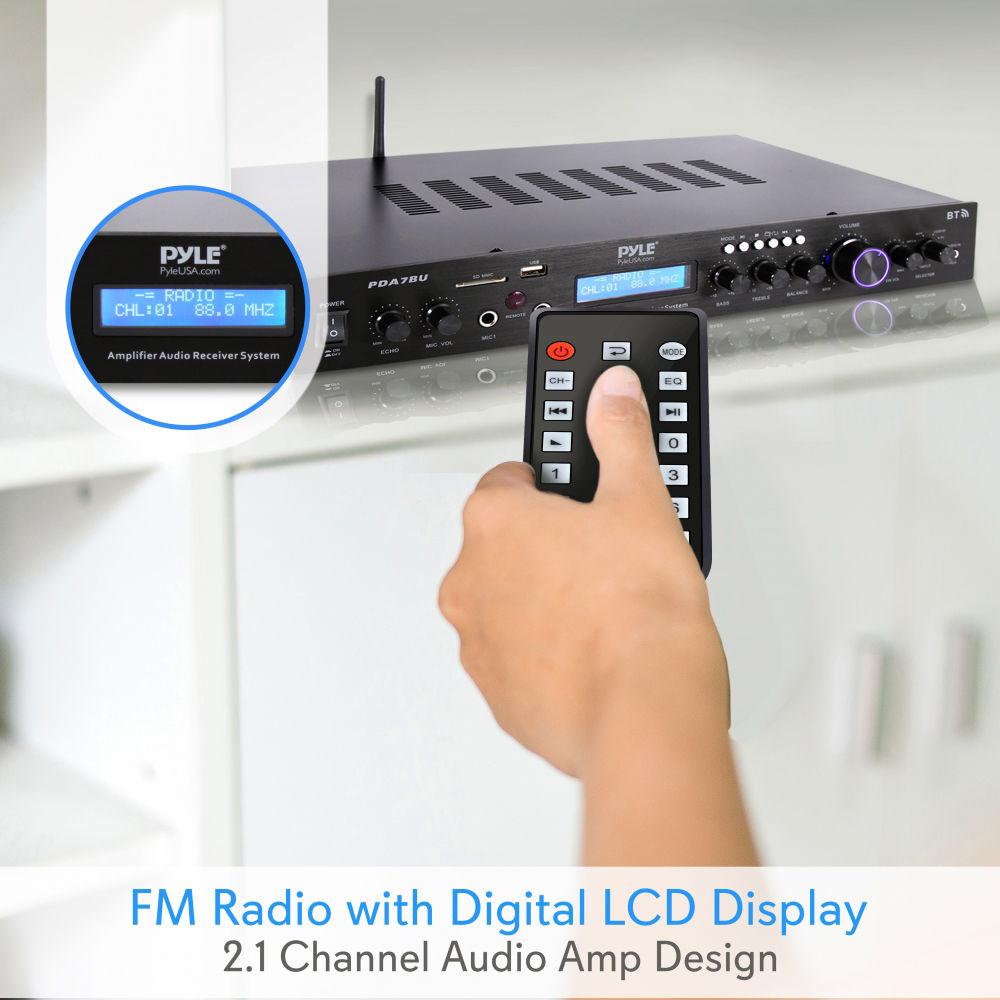

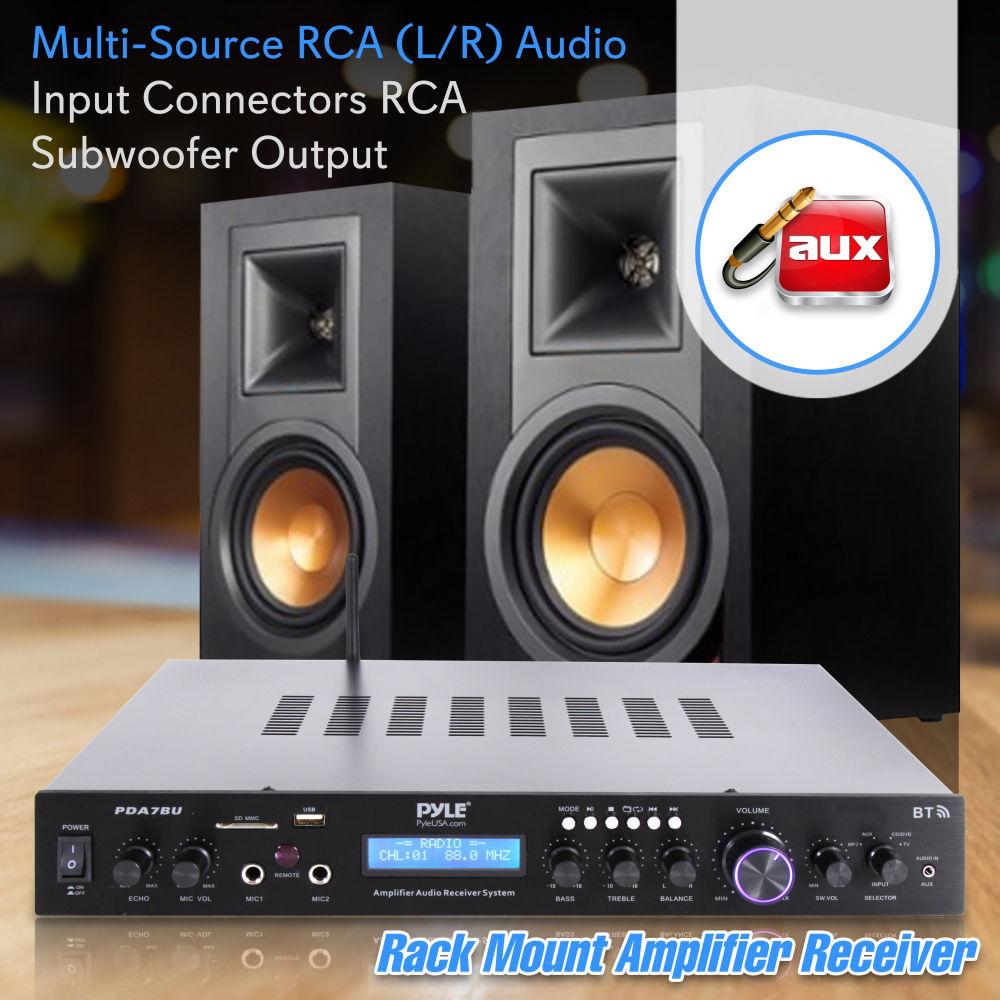

In addition to Bluetooth, the PDA7BU has a USB reader and SD card slot that each support devices up to 32GB for playback of MP3 and WMA files. Three stereo RCA inputs let you connect your wired audio sources, and two 1/4" microphone inputs are also onboard. This receiver's integrated FM tuner allows you to enjoy free over-the-air content. - Multichannel Stereo Output
- The surround left, surround right, and center speaker outputs are tied to the main left/right amplifiers, so connecting more than one pair of speakers will result in a multichannel stereo effect. The center channel, in particular, is dependent on both the left and right amplifiers for its signal and power.
- Additional Features
-
- Rack-mountable design
- Digital LCD
- ID3 tag readout displays song title
- Banana plug-compatible binding posts
- Front-panel button control center
- Independent input source selection
- Adjustable bass, treble, balance, and source volume

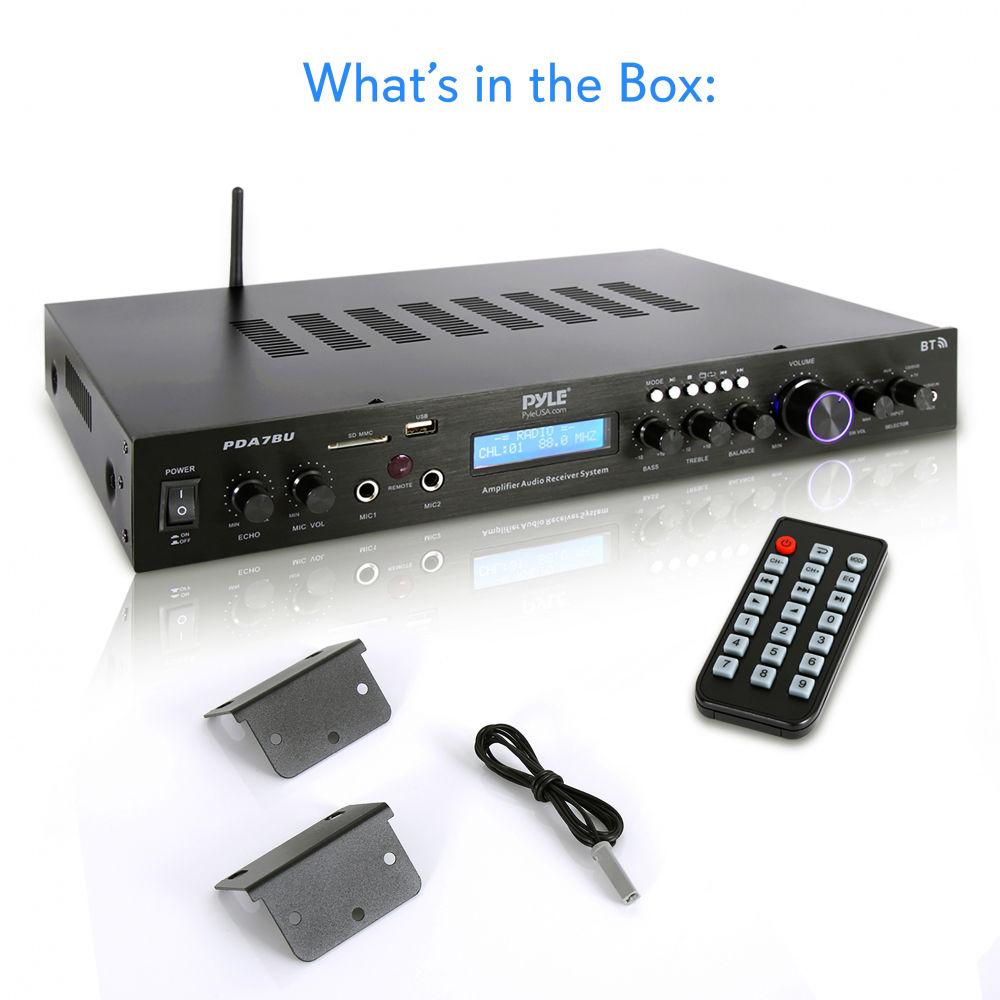

UPC: 842893101484 In the Box Pyle Pro PDA7BU Stereo Receiver with Bluetooth Remote Control FM Antenna Rackmount Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PDA7BU Stereo Receiver with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PDA7BU Specs | | | RMS Power Output | 100 W x 2 @ 8 Ohms | | Maximum Power Output | 200 W @ 4 Ohms | | Impedance | Main Speakers: 4 to 16 Ohms
Center/Surround Speakers: 8 to 16 Ohms | | Frequency Response | 20 Hz to 20 kHz, ±2 dB | | Signal-to-Noise Ratio | >85 dB | | Total Harmonic Distortion | <1% | | | | Bluetooth Version | 2.1 | | Bluetooth Range | Up to 30' / 9.1 m | | Inputs | 3 x Stereo RCA
1 x 1/8" / 3.5 mm Aux (Front)
2 x 1/4" / 6.35 mm Microphone (Front) | | Outputs | 1 x RCA Subwoofer Pre-Out | | Memory Card Slot | 1 x SDHC | | Other Connectors | 1 x USB Type-A (Front)
1 x Bluetooth Antenna
1 x FM Antenna | | Speaker Connectors | 2 x Binding Post Pairs (Left, Right)
3 x Spring Clip Pairs (Center, Surround Left, Surround Right) | | Supported File Formats | MP3, WMA | | Flash Memory Capacity | USB, SD: 32 GB | | Input Current | Rated, Speaker Loaded: 75 mA, 8 Ohms

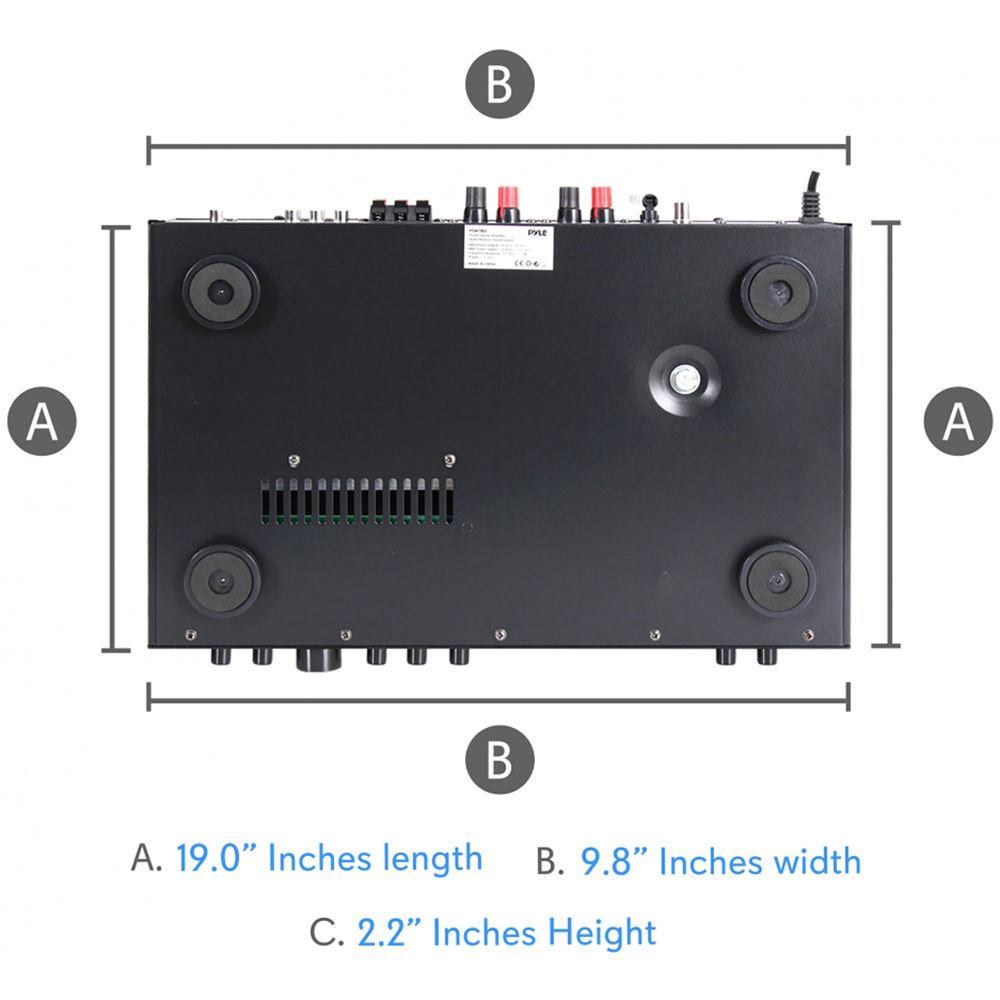

Rated, No Load: 30 mA | | Input Sensitivity | 200 mV (Max Output 6000 mV) | | | | Construction Material | Aluminum & Metal Alloy | | Power Requirements | 110/240 VAC Switchable | | Remote Control Battery Requirements | 3V Button Cell | | Power Cable Length | 4.5' / 1.37 m | | Dimensions (W x H x D) | Without Antenna: 19 x 2.2 x 9.8" / 48.26 x 5.59 x 24.89 cm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 8.15 lb | | Box Dimensions (LxWxH) | 20.0 x 17.0 x 12.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Pyle Pro PDA7BU Stereo Receiver with Bluetooth
| Subject: Pyle PDA7Bu remote programming universal | | Date: 26.12.2022 01:56:05 | Name: Levi Tapp | | If there is a programmable remote what would the codes be would you know could you tell me | | Post reply |
| Subject: Pyle PDA7BU | | Date: 02.02.2022 01:05:24 | Name: Linda Reeves | I just received this new receiver on Sunday and installed that morning. The power button on my remote control does not do anything. What exactly is its function? The other buttons, i.e. mode, volume, etc. all work but the power button does nothing. Thank you!
Linda | | Post reply |
| Subject: Remote control | | Date: 30.01.2022 21:54:19 | Name: Linda K Reeves | | Bought a new Pyle PDA7BU Amp/Receiver and remote control power button is not working but other buttons on remote work.....help! | | Post reply |
