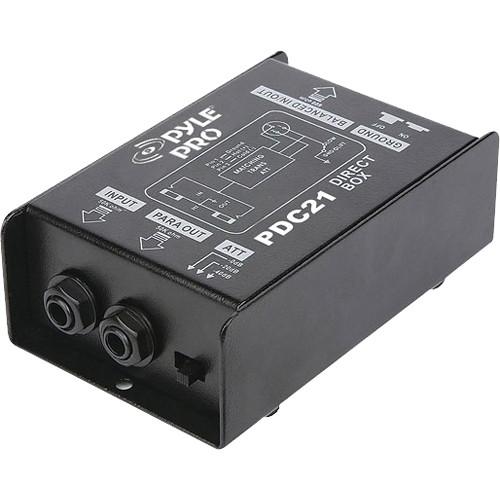

User Manual for Pyle Pro PDC21 Direct Box Click to enlarge the picture
Contents of the user manual for the Pyle Pro PDC21 Direct Box
- Product category: Direct Boxes Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Direct Boxes
|
User manual for the Pyle Pro PDC21 Direct Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|
Product description The Pyle PDC21 Direct Box is an inexpensive tool for interfacing various audio sources. Send instrument and microphone signals to consoles, while simultaneously sending signal to monitor speakers in sound reinforcement and recording applications. The PDC21 Direct Box features a 1/4" phone line input, XLR and 1/4" outputs, parallel connection, and attenuation switch. - Easy interfacing and connection between various audio gear in numerous applications
- Input attenuation: switchable (0db, -20db, -40db)
- Instrument input: 50K unbalanced 1/4" TS jack
- Parallel (Link) out: 50K unbalanced 1/4" TS jack
- 600 ohm balanced XLR output jack
UPC: 068888894784 In the Box Pyle Pro PDC21 Direct Box 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PDC21 Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PDC21 Specs | Type | Passive | | Input Connections | Instrument: 1/4" Phone Jack, Unbalanced
Parallel Link Out: 1/4" Phone Jack, Unbalanced | | Output Connectors | Balanced Output: XLR Connector | | Input Level | +8.1dBu (9V Battery)
+11.3dBu (48V Phantom) | | Frequency Response | 5Hz - 35kHz (-3dB) | | Noise | -104dBu | | Power | None | | Dimensions (WxDxH) | 4.73 x 2.95 x 1.57" (12.01 x 7.49 x 3.98cm) | | | | Package Weight | 0.97 lb | | Box Dimensions (LxWxH) | 5.55 x 3.7 x 1.95" |
Rating78% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
