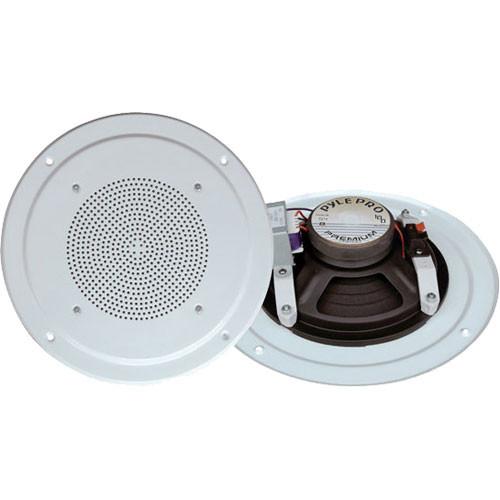

User Manual for Pyle Pro PDICS54 5" Full-Range Speaker Click to enlarge the picture
Contents of the user manual for the Pyle Pro PDICS54 5" Full-Range Speaker
- Product category: Installed Speakers Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Installed Speakers
|
User manual for the Pyle Pro PDICS54 5" Full-Range Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|
Product description The PDICS54 5" Full-Range Speaker System from Pyle-Pro offers a 5" speaker, 0.76" high temperature voice coil, and 1" tweeter cup. Frequency response is rated at 90Hz to 16KHz and peak power is rated at 100W. The unit is designed for placement in a ceiling and a cutout must be made to accommodate the dimensions of the speaker. This model also features a 100V transformer. - In-Ceiling Speakers
- Use this unit to achieve an audio installation that integrates almost seamlessly with your design environment by way of installation in a ceiling cutout.
UPC: 068888885362 In the Box Pyle Pro PDICS54 5" Full-Range Speaker Speaker One-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PDICS54 5" Full-Range Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PDICS54 Specs | | | Speaker Design | Round | | Power Rating | 100W (peak power) | | Impedance | 8 Ohms | | Frequency Response | 90Hz to 16KHz | | Sensitivity | 89dB | | Crossover | Not specified by manufacturer | | Enclosure | Not specified by manufacturer | | Shielded | Not specified by manufacturer | | | | Tweeter | 1" tweeter cup | | Midrange | None | | Woofer | 5" woofer | | | | Connector Type | Not specified by manufacturer | | Configuration | Not specified by manufacturer | | Construction | Not specified by manufacturer | | Dimensions | Diameter: 8.2"
Depth: 2.1" | | Cut-Out Size | Not specified by manufacturer | | Mounting Depth | 2.1" | | Weight | Not specified by manufacturer | | Color | White | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 8.7 x 8.7 x 2.8" |
