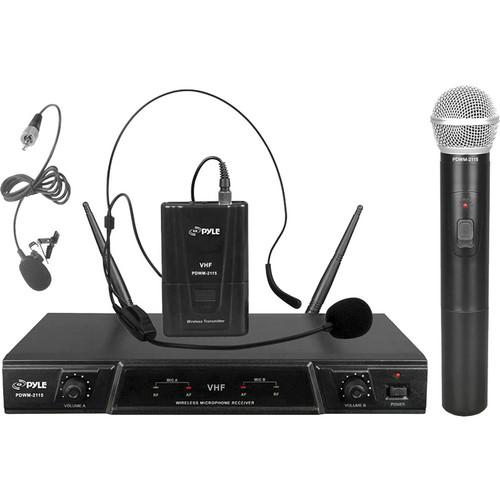

User Manual for Pyle Pro PDWM-2115 Dual-Channel VHF Wireless Handheld & Lavalier Headset Microphone System Click to enlarge the picture
Contents of the user manual for the Pyle Pro PDWM-2115 Dual-Channel VHF Wireless
- Product category: Add-On Wireless & Components Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Add-On Wireless & Components
|
User manual for the Pyle Pro PDWM-2115 Dual-Channel VHF Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|
Product description The PDWM-2115 VHF Wireless Microphone System from Pyle Pro is a 2-channel system which features a VHF narrow-band receiver with a dual-frequency design, allowing the use of two microphones at the same time. The system includes three mics: a handheld transmitter for one channel, and a beltpack transmitter with a choice of a lavalier microphone or a headset microphone for the other channel. The level of each microphone is controlled by separate volume control potentiometers on the receiver. - Dual-frequency design allows the use of two microphones at the same time
- High signal to noise ratio performance
- Broad frequency response range and low distortion
- Independent adjustable volume control
- Volume control indicators and status signals
- Independent channel antennas
- RF signal and AF signal LED indicators
- Up to 164' (50m) operating range
UPC: 068888754132 In the Box Pyle Pro PDWM-2115 Dual-Channel VHF Wireless Handheld & Lavalier/Headset Microphone System (170-260 MHz) Dual-Channel Receiver Beltpack Transmitter Handheld Microphone Transmitter Lavalier Microphone Headset Microphone 1/4" to 1/4" Cable 4 x AA Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PDWM-2115 Dual-Channel VHF Wireless Handheld & Lavalier Headset Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PDWM2115 Specs | | | Channel Frequency | 170 to 260 MHz | | Frequency Stability | ±0.002% | | Sensitivity | >70 dB | | RF Image Rejection | -75 dB | | Adjacent Channel Crosstalk | >70 dB | | Frequency Response ± 3dB | 50 Hz to 15 kHz | | THD | <1% | | Operating Range | >164' (50 m) | | Power Source | AC 120 V / 60 Hz | | Dimensions | 12.7 x 8.5 x 1.9" (32.3 x 21.6 x 4.8 cm) | | | | Carrier Frequency | 170 to 260 MHz | | Frequency Stability | ±0.002% | | RF Power Output | >13 dBm | | Harmonics | <60 dB (at higher degree) | | Modulation Degree | >30 kHz | | Modulation Pattern | FM | | Power Current | <110 mA | | Battery Type | 2 x 1.5 V AA batteries (DC 3 V) | | Dimensions | Not specified by manufacturer | | | | Operating Temperature | 50 to 122°F (10 to 50°C) | | Weight | 3.85 lb (1.74 kg) | | | | Package Weight | 3.6 lb | | Box Dimensions (LxWxH) | 14.4 x 9.6 x 4.7" |
