User Manual for Pyle Pro PDWM2140 VHF Dual-Frequency Wireless System with Handheld, Lavalier, and Headset Microphones Click to enlarge the picture
Contents of the user manual for the Pyle Pro PDWM2140 VHF Dual-Frequency Wireless
- Product category: Wireless Systems Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Wireless Systems
 |
User manual for the Pyle Pro PDWM2140 VHF Dual-Frequency Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

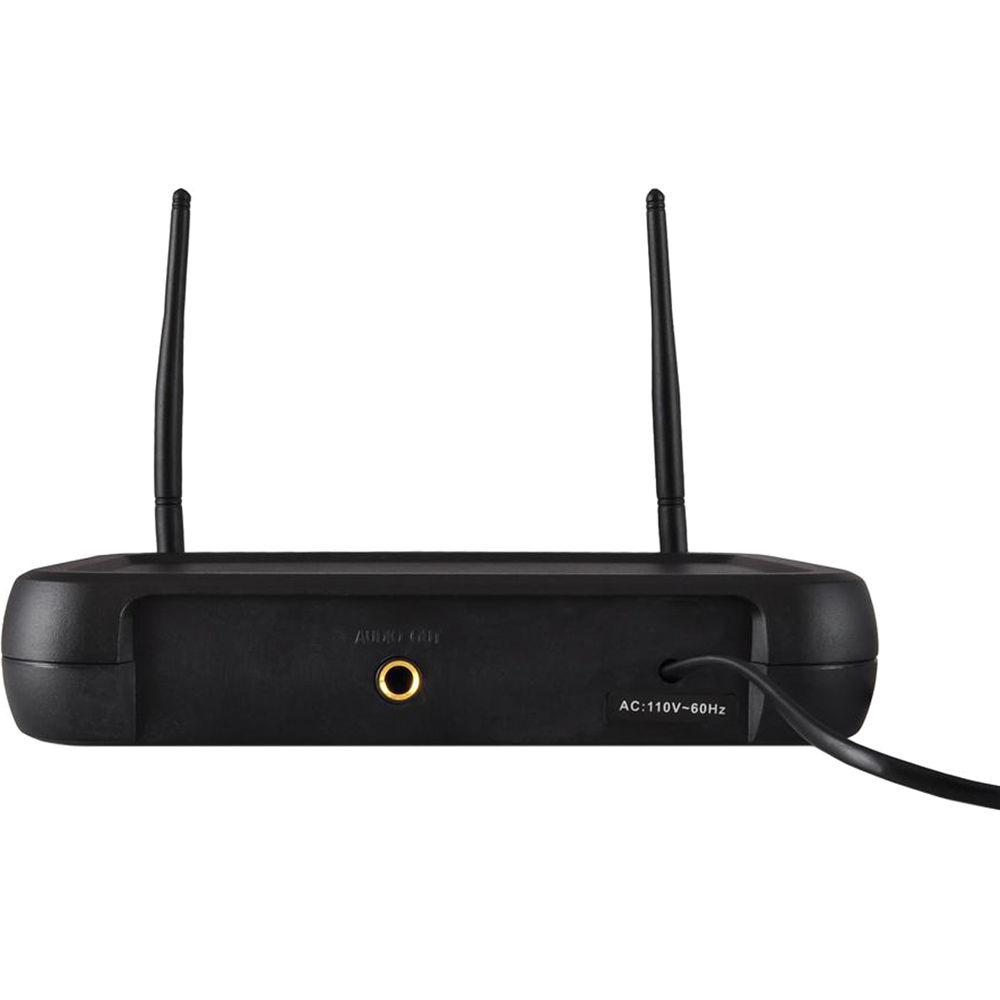

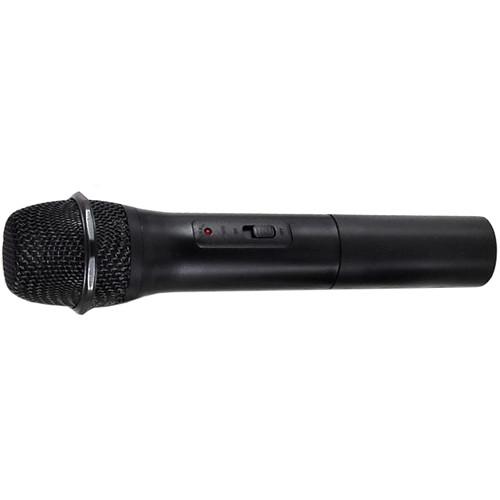

Product description The PDWM2140 from Pyle Pro is a VHF dual-frequency wireless microphone system that delivers clear, noise-free sound suitable for use in a wide variety of vocal applications such as on-stage performances, conference room speeches, and more. The system includes a handheld microphone, bodypack transmitter, lavalier microphone, headset microphone, and a VHF narrow band receiver with a carrier frequency of 174 to 216 MHz that offers a high signal-to-noise ratio, and has a broad frequency response range with low distortion. The receiver also features dual independent channel antennas, RF and AF signal LED indicators, and adjustable volume controls for each channel. Each of the two transmitters includes an on/off/mute switch. - Dual-frequency design (Channel A/B)
- High signal/noise ratio performance
- Broad frequency response range and low distortion
- Independent adjustable volume control for each channel
- Dual independent channel antennas

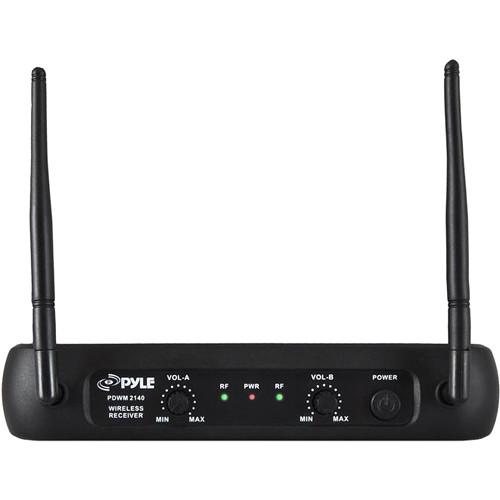

- RF signal (Radio Frequency) and AF signal (Audio Frequency) LED indicators

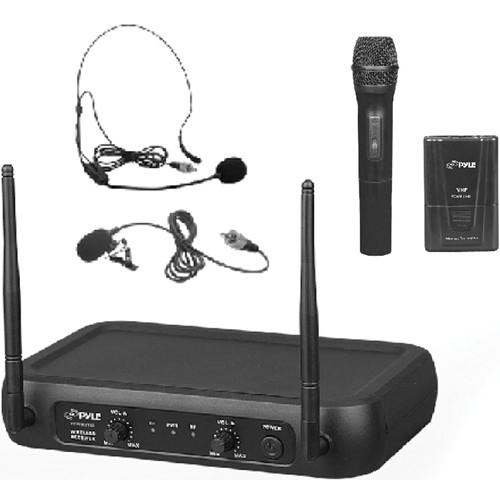

- Includes a handheld microphone, and bodypack transmitter with lavalier and headset microphones

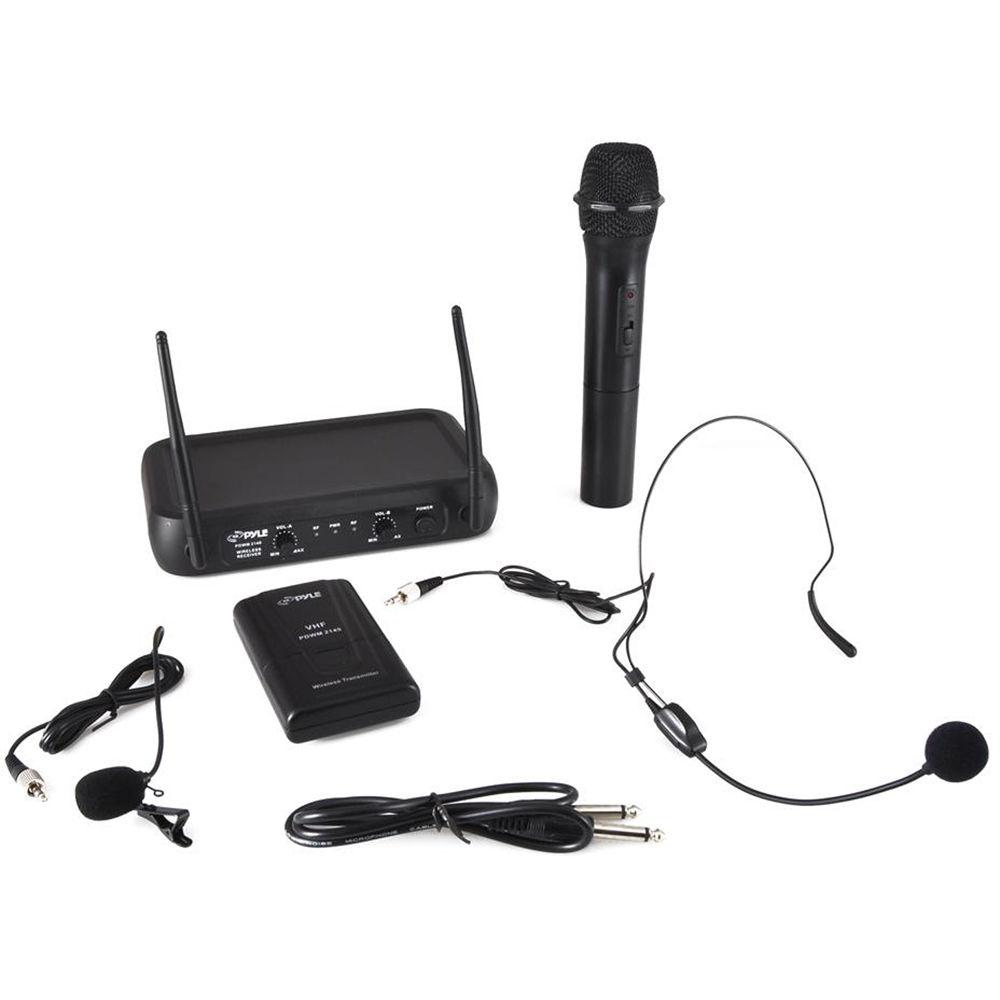

UPC: 068888758314 In the Box Pyle Pro PDWM2140 VHF Dual-Frequency Wireless System with Handheld, Lavalier, and Headset Microphones Handheld Microphone Bodypack Transmitter Lavalier Microphone Headset Microphone VHF Receiver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PDWM2140 VHF Dual-Frequency Wireless System with Handheld, Lavalier, and Headset Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PDWM2140 Specs | | | Channel Frequency | 174 to 216 MHz | | Sensitivity | -95 dBm (S/N: 12 dB) | | RF Image Rejection | -75 dB | | Audio Dynamic Range | 95 dB | | THD | <1% | | Frequency Stability | ±0.002% | | S/N Ratio | >70 dB | | RF Interference | Neighboring Channel/Interference: >70 dB | | Frequency Response | 50 Hz to 15 kHz ±3 dB | | Power | 120 VAC, 60 Hz | | Dimensions (L x W x H) | 8.07 x 5.75 x 1.64" (204.98 x 146.05 x 41.66 mm) | | | | Carrier Frequency | 174 to 216 MHz | | RF Power Output | >13 dBm | | Modulation Degree | >30 kHz | | Power Current | <110 mA | | Frequency Stability | ±0.002% | | Harmonics | Harmonic at Higher Degree: <60 dB | | Modulation Pattern | FM | | Battery Power | 2 x AA Batteries | | Dimensions | Not specified by manufacturer | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 12.7 x 10.7 x 2.7" |
