User Manual for Pyle Pro PDWM2500 Dual VHF Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the Pyle Pro PDWM2500 Dual VHF Wireless
- Product category: Wireless Systems Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Wireless Systems
|
User manual for the Pyle Pro PDWM2500 Dual VHF Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

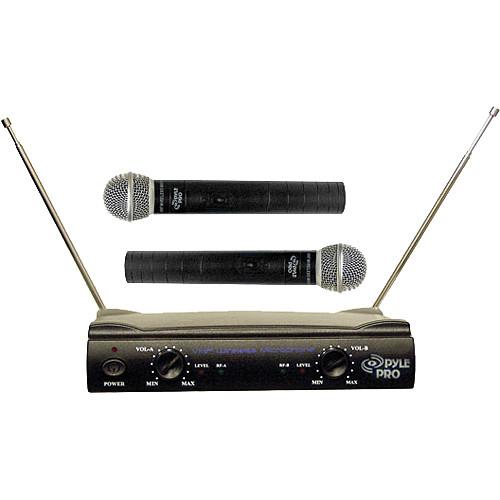

Product description The Pyle Pro PDWM2500 Professional Dual VHF Wireless Handheld Microphone System is a cost effective solution for general speech, presentations, DJs, karaoke and more. The system features a wireless receiver and 2 wireless handheld transmitter microphones capable of simultaneous operation. There are separate outputs for sending each microphone's audio signal into separate channels of a mixer or recording device, there is also a mixed stereo output as well. Additional features include individual level control, 9V battery power for the transmitters and telescoping antennas. - Professional Dual VHF System
- Dual Handheld Microphones Included
- Power and Low Battery LED Indicators
- 1/4" Individual and Mixed Output
UPC: 068888879255 In the Box Pyle Pro PDWM2500 Dual VHF Wireless Microphone System Wireless Receiver 2 x Handheld Transmitters 2 x Telescoping Antennas 2 x 9V Batteries 1/4" Phone Cable 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PDWM2500 Dual VHF Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PDWM2500 Specs | Carrier Frequency | 160MHz - 270MHz | | Oscillation Mode | Quartz controlled | | Dynamic Range | >100dB | | Frequency Stability | 30ppm | | Modulation Mode | FM | | Deviation | Max Deviation: +/- 75KHz | | THD | 0.5% | | Frequency Response | 80Hz ~ 20KHz at 3dB | | Operation Range | Up to 240' (73.15m) | | Signal-to-Noise Ratio | >60dB | | Sensitivity | Receiver: 6dB µ V at S/N>20dB | | Image Rejection | Receiver: >50dB | | De-Emphasis | Receiver: 50 µ s | | Pre-Emphasis | Transmitter: 50 µ s | | Output Level | Receiver: 1V p-p | | Output Impedance | Receiver: 600 ohms | | Transducer | Microphone: Dynamic | | Antenna | Microphone: Built-in | | RF Output | Microphone: < 10mW | | Spurious Emission | Microphone: > 40dB | | Dimensions | Receiver Dimensions: 1.5 x 7.75 x 5.30" (38.1 x 197 x 135mm) | | | | Package Weight | 3.01 lb | | Box Dimensions (LxWxH) | 16.25 x 12.05 x 3.45" |
