User Manual for Pyle Pro PDWM4350U - 4-Channel Wireless System Click to enlarge the picture
Contents of the user manual for the Pyle Pro PDWM4350U - 4-Channel Wireless
- Product category: Wireless Systems Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Wireless Systems
 |
User manual for the Pyle Pro PDWM4350U - 4-Channel Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

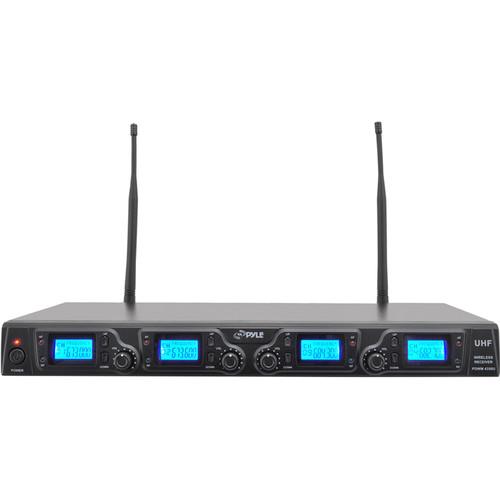

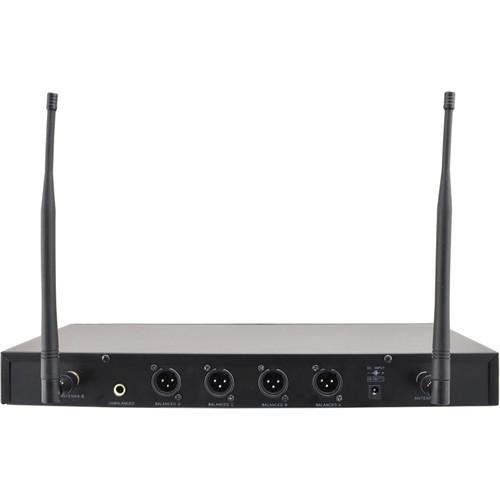

Product description The Pyle PDWM4350U is a 4 simultaneous channel wireless system designed to deliver clear, noise-free, wireless transmission and quality sound reproduction. The 4-channel UHF receiver features 4 individual balanced XLR outputs and 1 unbalanced jack. The system also includes 2 handheld mic transmitters, 2 bodypack transmitters, 2 lavalier mics, and 2 headset mics. This kit is can be used for on-stage vocal performances, conference room meetings, lectures, and more. -
- UHF band receiver system
- Quad frequency channel design (channels 1, 2, 3, 4)
- Operating range of 164' (50 m)
- Broad frequency response range & low distortion
- High signal/noise ratio performance
- RF signal & AF signal LED indicators
- LCD digital display with channel & frequency readout
- Independent channel adjustable volume controls
- Easy-to-use touch button controls
- Detachable dual antennas
- Rack mountable

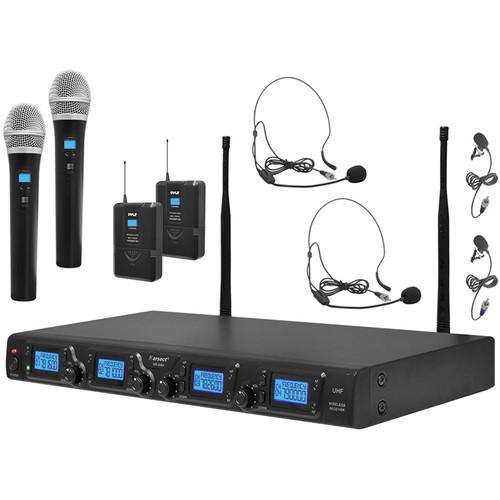

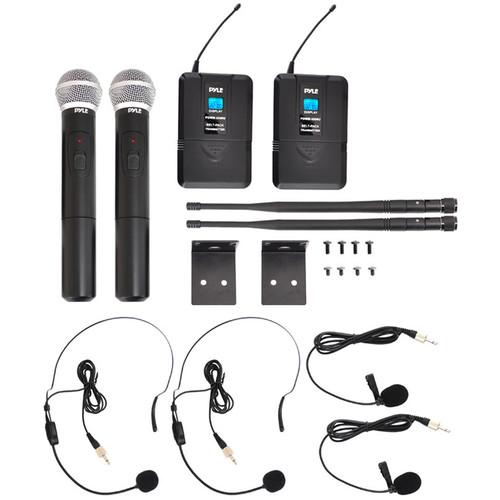

In the Box Pyle Pro PDWM4350U - 4-Channel Wireless System 2 x Handheld Mics 2 x Bodypack Transmitters 2 x Lavalier Mics 2 x Headset Mics 4-Channel Receiver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PDWM4350U - 4-Channel Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PDWM4350U Specs | | | RF Frequency Range | 673 - 698 MHz | | Image & Spurious Rejection | >70 dB | | Receiving Sensitivity | -105 dBm | | Signal to Noise Ratio | >85 dB | | Border Upon Channel Rejection | >70 dB | | THD | <0.5% | | Audio Output Level | 0 - 300 mV | | Power Requirements | 13 - 15 VDC nominal 1000 mA | | Dimensions | 15.5 x 8.1 x 2.04" (39.4 x 20.5 x 5.2 cm) | | | | Frequency Range | 673 - 698 MHz | | RF Output | 10 dBm | | Modulation Type | FM | | Maximum Deviation | ±40 kHz | | Spurious Emission | >55 dBc | | Power Requirement | 2 x 'AA' (1.5 V) | | Dimensions | 9.4 x 2 x 2" (23.8 x 5 x 5 cm) | | | | Frequency Range | 673-698 MHz | | RF Output | 10 dBm | | Modulation Type | FM | | Maximum Deviation | ±40 kHz | | Spurious Emission | >53 dBc | | Power Requirement | 2 x 'AA' (1.5 V) | | Dimensions | 4.1 x 2.6 x 1.2" (10.5 x 6.5 x 3 cm) | | Weight | 7.9 lb (3.6 kg) | | | | Package Weight | 7.3 lb | | Box Dimensions (LxWxH) | 20.7 x 12.3 x 4.7" |
Rating74% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
