User Manual for Pyle Pro PDWM4400 4-Mic VHF Wireless Rack Mount Microphone System Click to enlarge the picture
Contents of the user manual for the Pyle Pro PDWM4400 4-Mic VHF Wireless
- Product category: Wireless Systems Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Wireless Systems
 |
User manual for the Pyle Pro PDWM4400 4-Mic VHF Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

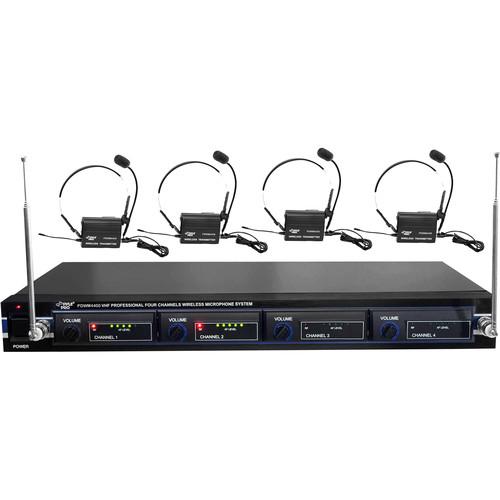

Product description The PylePro PDWM4400 4-Mic VHF Wireless Rack Mount Microphone System delivers everything necessary to achieve multi-microphone operation in virtually any scenario. The system includes a multi-channel VHF wireless receiver with 4 individual 1/4" phone outputs and mixed stereo output. Easily run all 4 transmitters simultaneously, choose between lavalier or headset microphones or any combination thereof. - Professional VHF wireless system

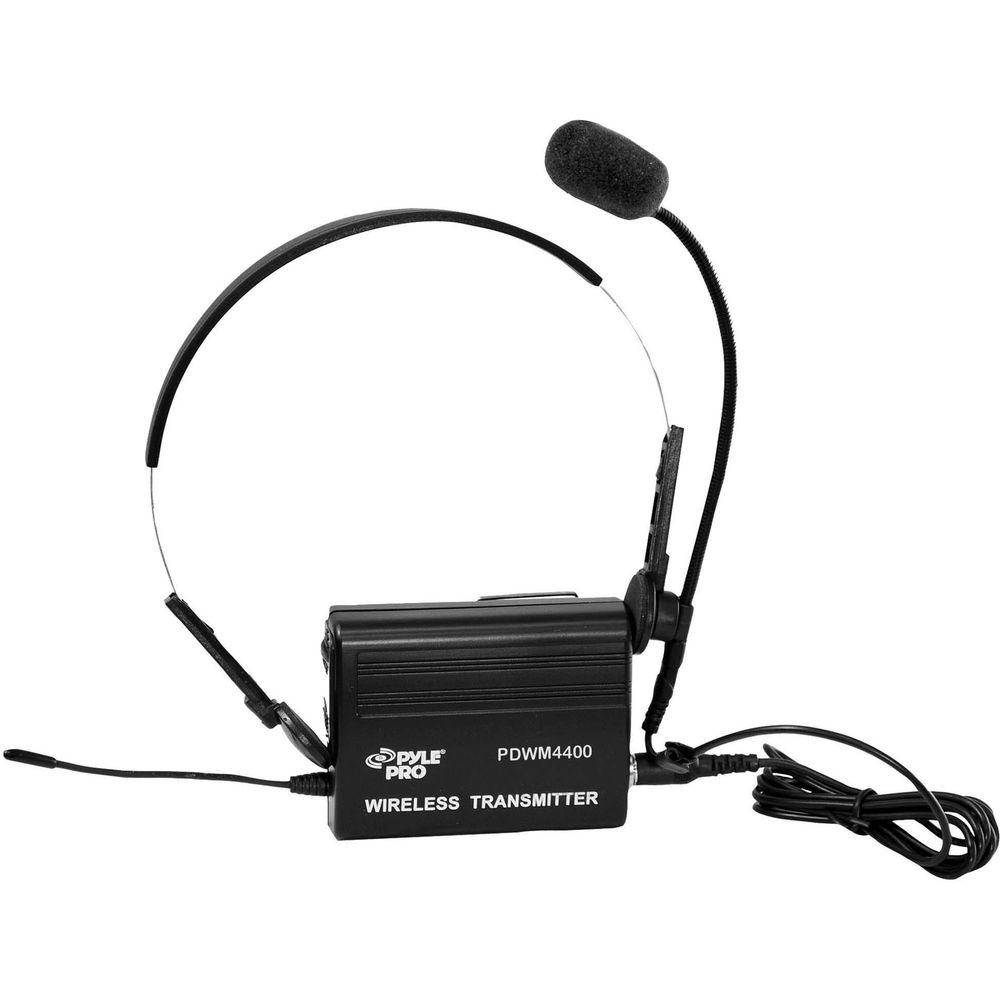

- 4 Beltpack transmitters w/ lavalier and headset mics
- Power On/Standby/Off Switch
- 4x 9V Batteries and 1/4" audio cable included
- Individual volume controls
- 1/4" Individual and mixed output
- Frequency Range: VHF 169-270MHz

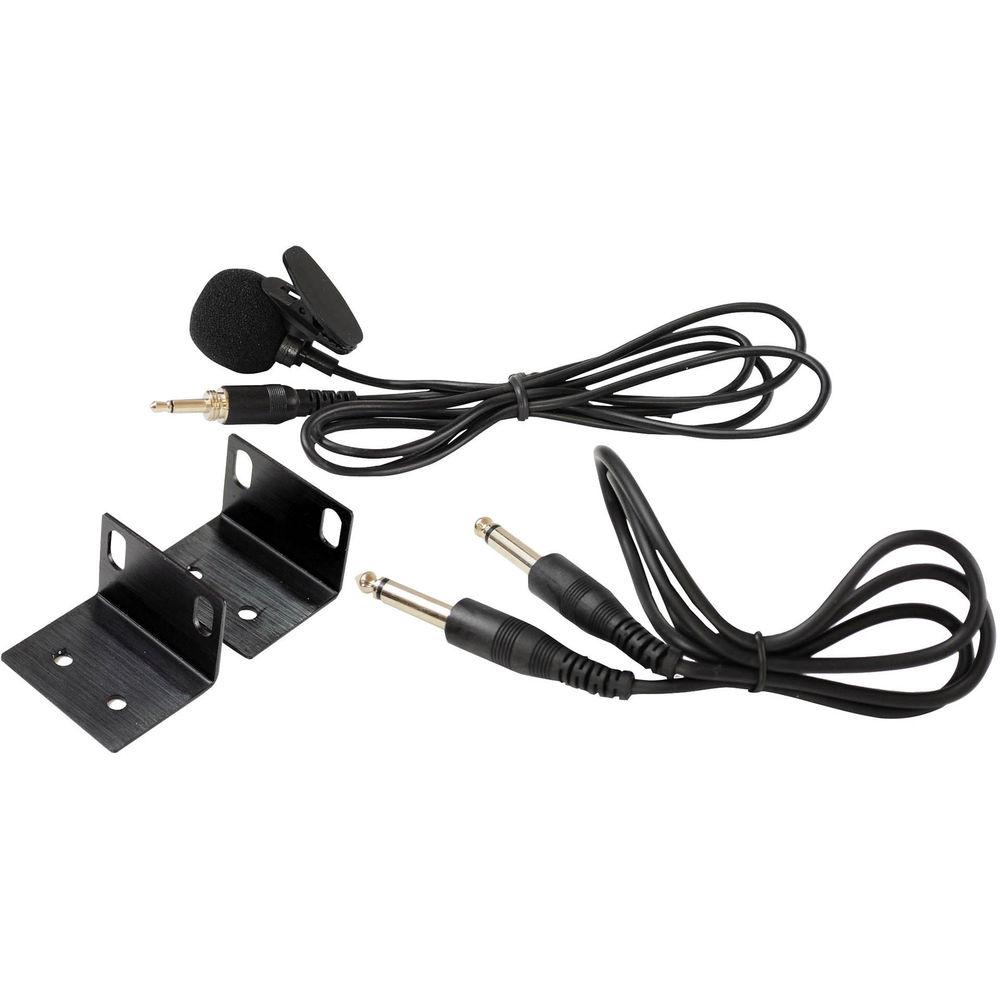

UPC: 068888881357 In the Box Pyle Pro PDWM4400 4-Mic VHF Wireless Rack Mount Microphone System 4 x 9V Batteries and 1/4'' Audio Cables 4 x Bodypack Transmitters 4 x Headset Microphones 4 x Lavalier Microphones 4-Channel VHF Receiver 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PDWM4400 4-Mic VHF Wireless Rack Mount Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PDWM4400 Specs | | | Oscillation Mode | Quartz controlled | | Carrier Frequency Range | VHF 169 - 270MHz | | Frequency Stability | +/- 0.005% | | Deviation | +/- 56kHz with level limiting | | Dynamic Range | > 100dB | | Signal-to-Noise Ratio | > / - 80dB | | THD | > / - 0.5% | | Squelch | "Pilotone & Noise lock" dual squelch circuit | | Frequency Response | 100Hz ~ 15kHz | | Operating Range | Up to 240' (73.15m) | | | | Sensitivity | 6dBµ V at S/N > 90dB | | Image Rejection | > 60dB | | Frequency Stability | > 80dB | | Audio Output | -12dB/600 ohms unbalanced and balanced | | Power | 15VDC/0.5A | | Dimensions | 16.5 x 8.2 x 1.8" (41.91 x 20.82 x 4.57cm) | | | | Transducer | Condenser Microphone(Headset mic/clip-on mic) | | Antenna | External | | RF Output | < 10mW | | Spurious Emission | < -40dB | | Battery | 9V Alkaline | | | | Package Weight | 7.85 lb | | Box Dimensions (LxWxH) | 20.7 x 12.0 x 5.6" |
