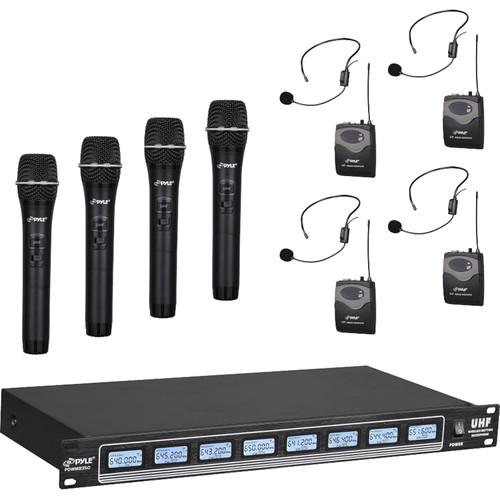

User Manual for Pyle Pro PDWM8350 8-Channel UHF Wireless Microphone System with 4 Handheld Mics 4 Beltpacks 4 Headsets Mics 4 Lavalier Mics Click to enlarge the picture
Contents of the user manual for the Pyle Pro PDWM8350 8-Channel UHF Wireless
- Product category: Wireless Systems Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Wireless Systems
 |
User manual for the Pyle Pro PDWM8350 8-Channel UHF Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

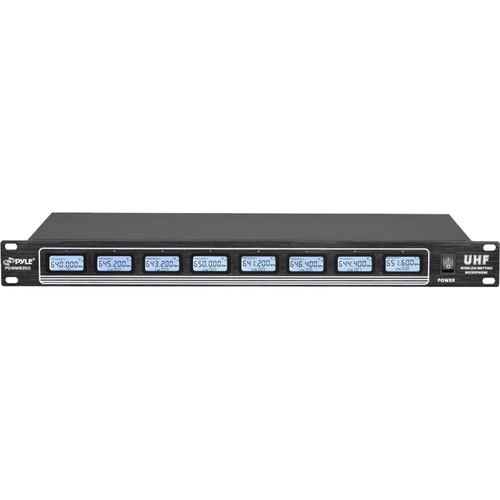

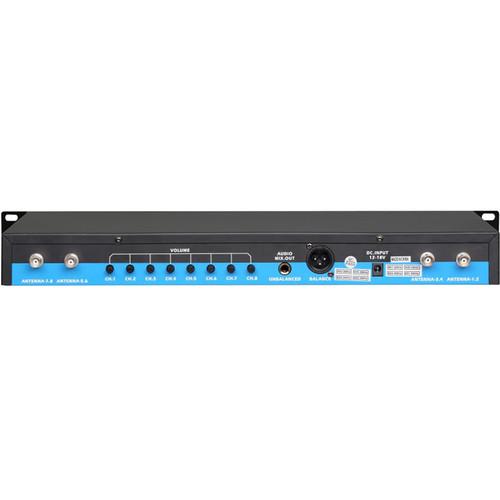

Product description The rack-mountable Pyle Pro PDWM8350 is an 8-channel, UHF wireless microphone system, which includes a receiver base, four handheld microphone transmitters, four beltpack transmitters, four headset mics, and four lavalier mics. It features a fixed-frequency design which operates in the 640 to 660 MHz frequency range, with four telescoping antennas that help provide a reception range up to 328'. Easy to set up and use, the PDWM8350 is ideal for schools, houses-of-worship, or any sound reinforcement application that requires multiple vocal microphones and headset/lavalier mics. The receiver's front panel is equipped with eight digital LCD readouts, which display the frequency and RF signal strength for each channel, while the rear panel houses eight, individually adjustable channel volume knobs, as well as balanced XLR and unbalanced 1/4" jack mix outputs for connecting the unit to a sound system. Each handheld and beltpack transmitter features an on/off switch and is powered via two AA batteries (included). - Wireless UHF audio transmission with simple & hassle-free operation - 640 to 660 MHz frequency range
- 8-channel receiver with fixed-frequency design
- Four handheld microphone transmitters
- Four beltpacks transmitters
- Four lavalier microphones
- Up to 328'/100m operation range
- Eight digital LCD display panels with frequency readout and audio transmission signal-strength indicators
- 1/4" jack unbalanced mix output
- Eight independent volume controls
- Universal rackmount compatible
- Four telescoping receiver antennas

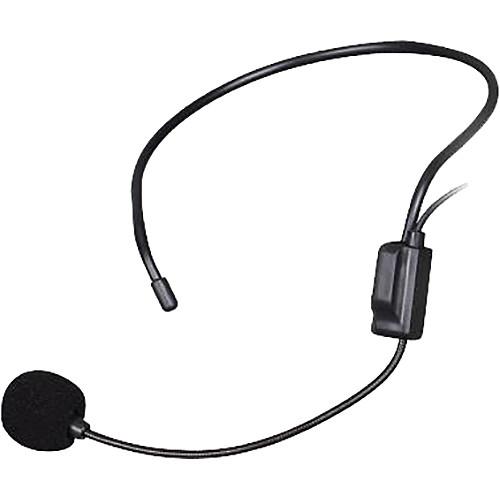

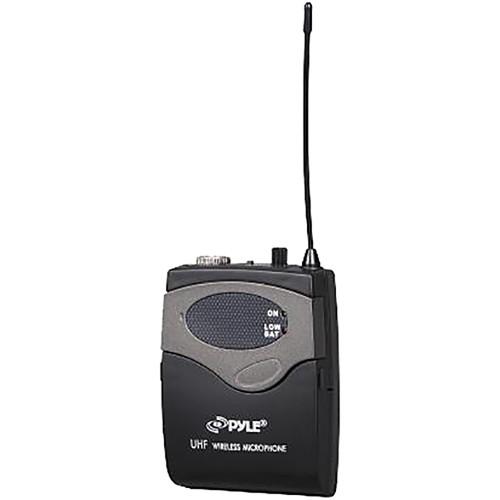

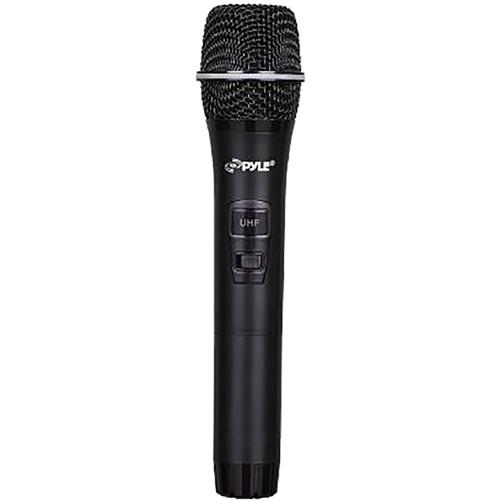

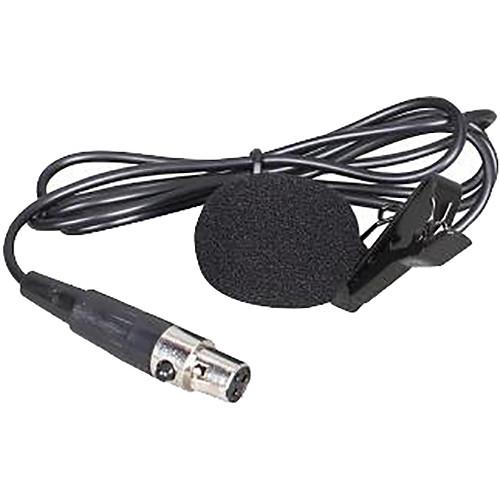

UPC: 068888772334 In the Box Pyle Pro PDWM8350 8-Channel UHF Wireless Microphone System with 4 Handheld Mics / 4 Beltpacks / 4 Headsets Mics / 4 Lavalier Mics Microphone Receiver Base 4 x Beltpack Transmitters 4 x Handheld Microphone Transmitters 4 x Headset Microphones 4 x Lavalier Microphones 1/4" Audio Connection Cable Wall Power Adapter 16 x AA Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PDWM8350 8-Channel UHF Wireless Microphone System with 4 Handheld Mics 4 Beltpacks 4 Headsets Mics 4 Lavalier Mics in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PDWM8350 Specs | | | Frequency Range | 640 to 660 MHz, UHF band | | Frequency Stability | ±0.005% | | Modulation | FM | | Frequency Response | 40 Hz to 18 kHz (3 dB) | | Total Harmonic Distortion | -0.8% | | Distance | 164 to 328' (50 to 100 m) | | Temperature | 14 to 131°F / -10 to 55°C | | | | Type | Handheld and beltpack | | Radio Output Power | >20 mW | | Frequency | Carrying: Below the minimum 40 dB | | Cartridge | Moving dynamic coil on handheld mic
Condenser on lavalier and headset mics | | Power | 2 x AA batteries
<30 mA
Life: About 5 hours | | Temperature Range | 14 to 131°F / -10 to 55°C | | | | Receiving System | Quartz crystal frequency | | Signal to Noise Ratio | ≥105 dB | | Response Time | 50 ms | | Audio Output | 0 to 0.35 V p-p, 5k | | Output Connection | 1 x XLR, balanced
1 x 1/4" / 6.3 mm jack, unbalanced | | Power Supply | 110-240 VAC
12-17 VDC power adapter | | | | Package Weight | 10.7 lb | | Box Dimensions (LxWxH) | 12.913 x 5.039 x 3.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
