User Manual for Pyle Pro PDWMKRHD20 Home Theater Karaoke Wired Microphone System Click to enlarge the picture
Contents of the user manual for the Pyle Pro PDWMKRHD20 Home Theater Karaoke
- Product category: Karaoke Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Karaoke
 |
User manual for the Pyle Pro PDWMKRHD20 Home Theater Karaoke contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

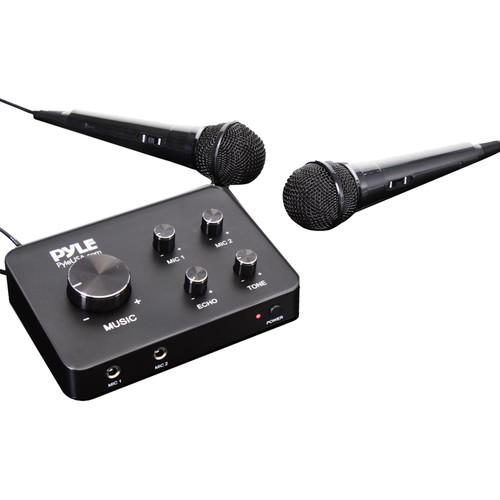

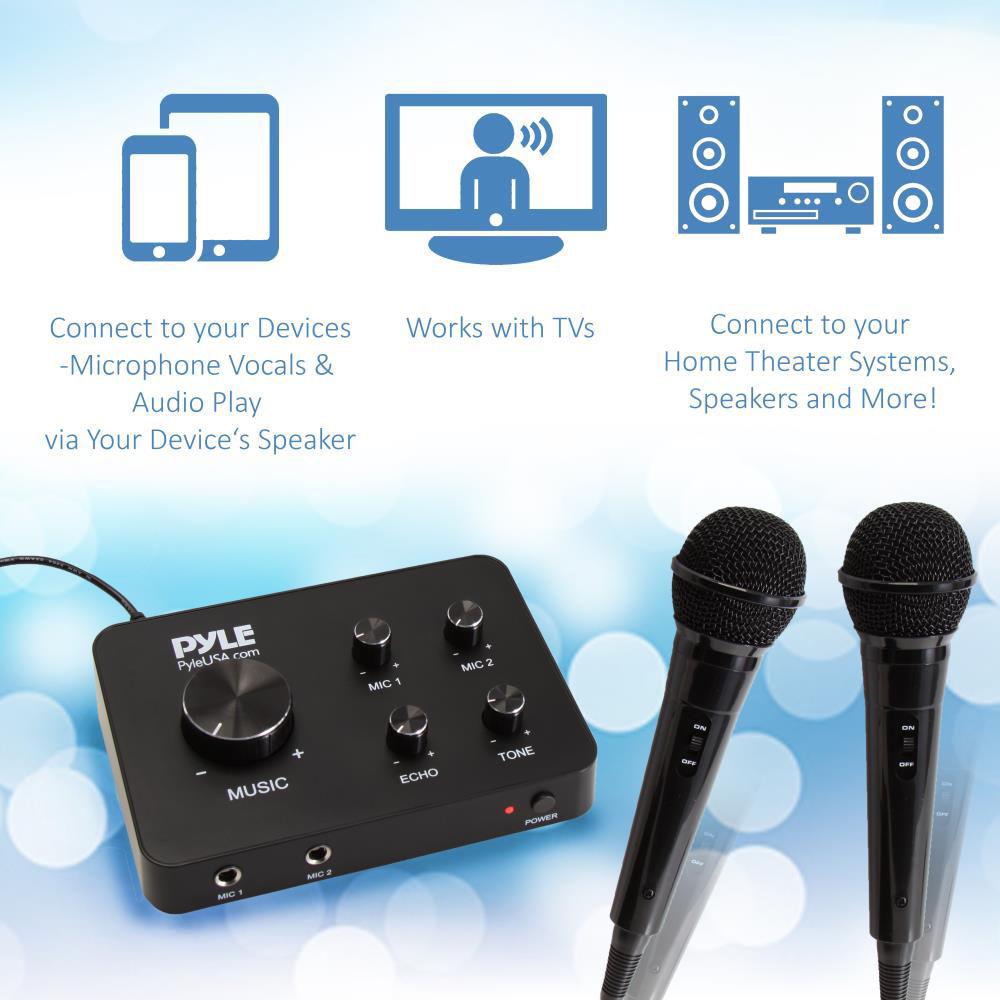

Product description The Pyle Pro PDWMKRHD20 is a home theater karaoke wired microphone system designed to provide sing-along fun for two singers at house parties, game nights, and special celebrations. It easily integrates with your TV, stereo receiver, home theater, or powered speaker setup and allows you to sing along with music through your existing speakers. It features two wired handheld dynamic microphones with attached 10' cables.The receiver base offers 3.5mm, HDMI, and 1/4" inputs for simple connection of mobile devices, DVD players and cable boxes, the included dynamic microphones, and instruments, and the built-in mixer’s menu-free operations deliver quick control of level, tone, and echo. HDMI and 3.5mm outputs enable routing to your TV or preferred stereo system.The PDWMKRHD20 ships with three audio connection cables and a 5V power adapter. - Compact system easily integrates with your TV, stereo receiver, home theater, or powered speaker setup
- Simple menu-free operations yield instant fun without complicated setup processes

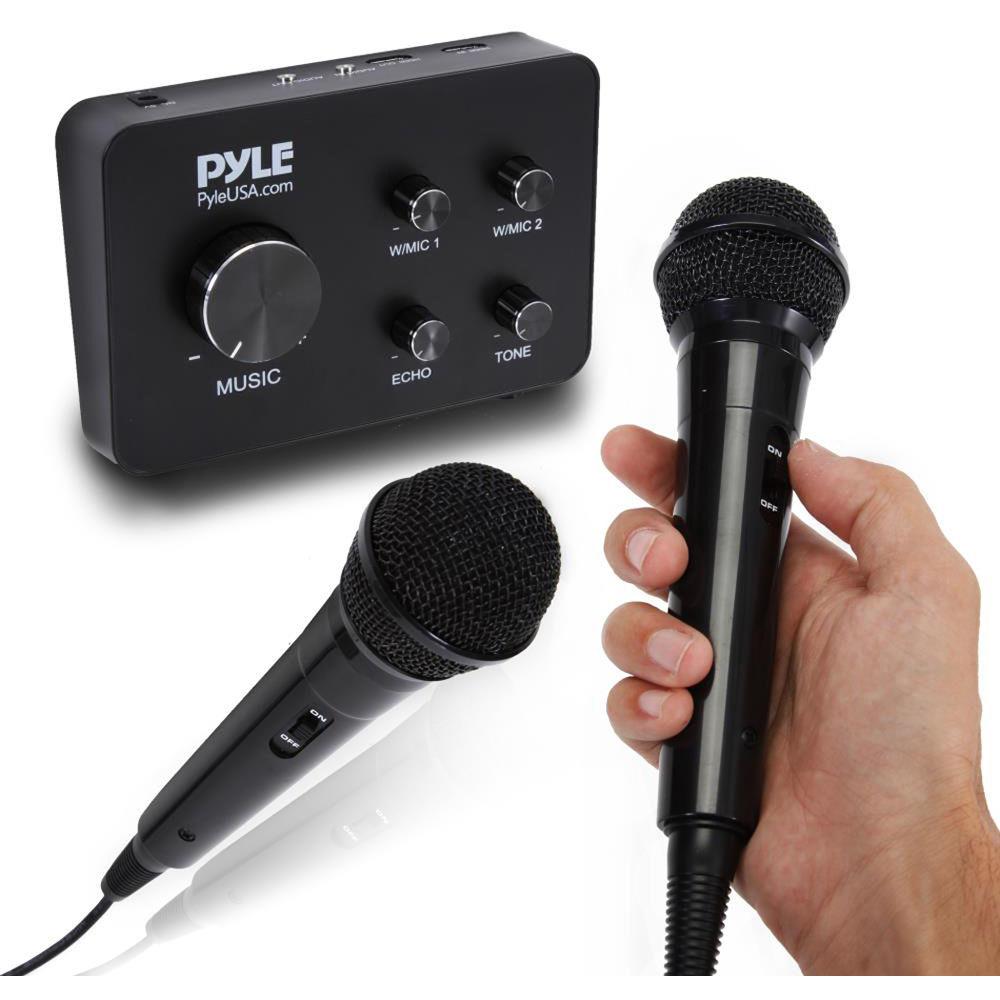

- Two wired handheld dynamic microphones with attached 10' cables
- Built-in mixer with music volume, mic levels, tone, and echo controls

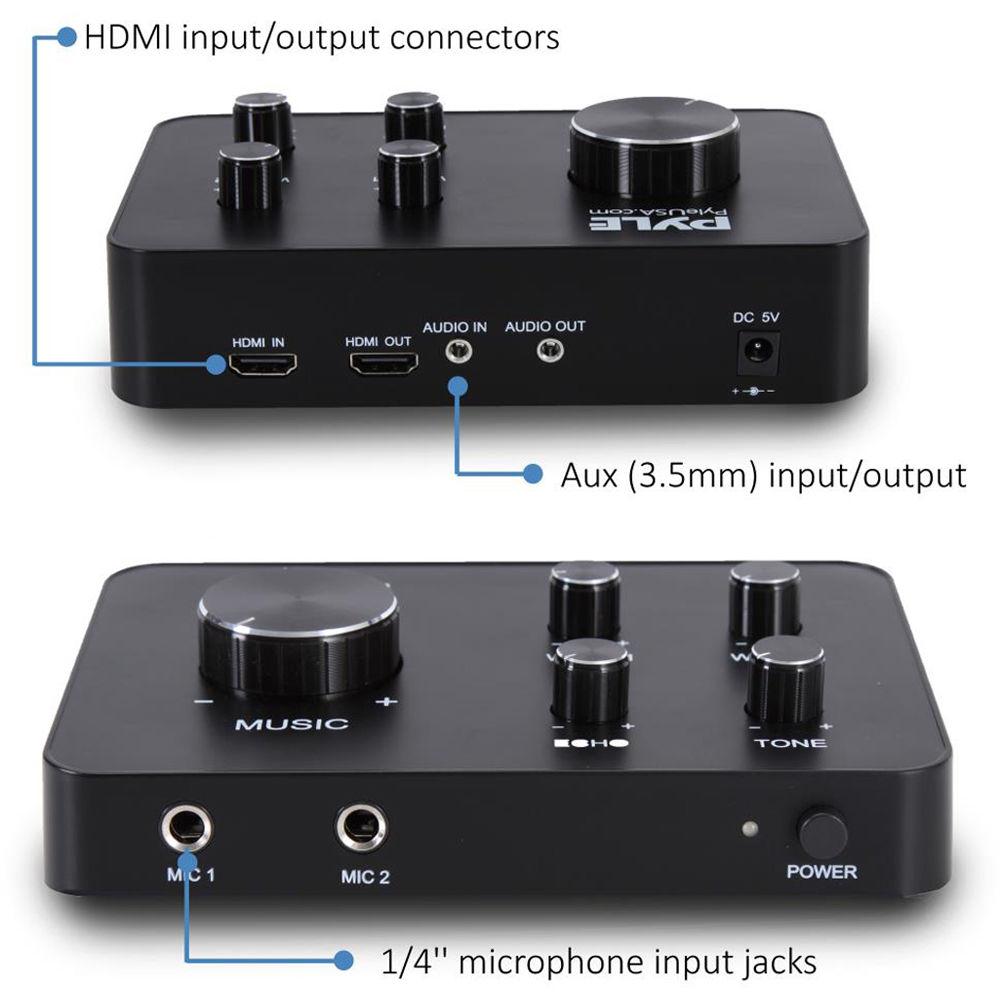

- 3.5mm, HDMI, and 1/4" inputs for mobile devices, DVD players, cable boxes, microphones, and instruments
- HDMI and 3.5mm outputs for straightforward connection to your TV or stereo system
- Includes 3.5mm stereo aux cable and two 3.5mm stereo to dual RCA adapter cables
- Includes 5V power adapter

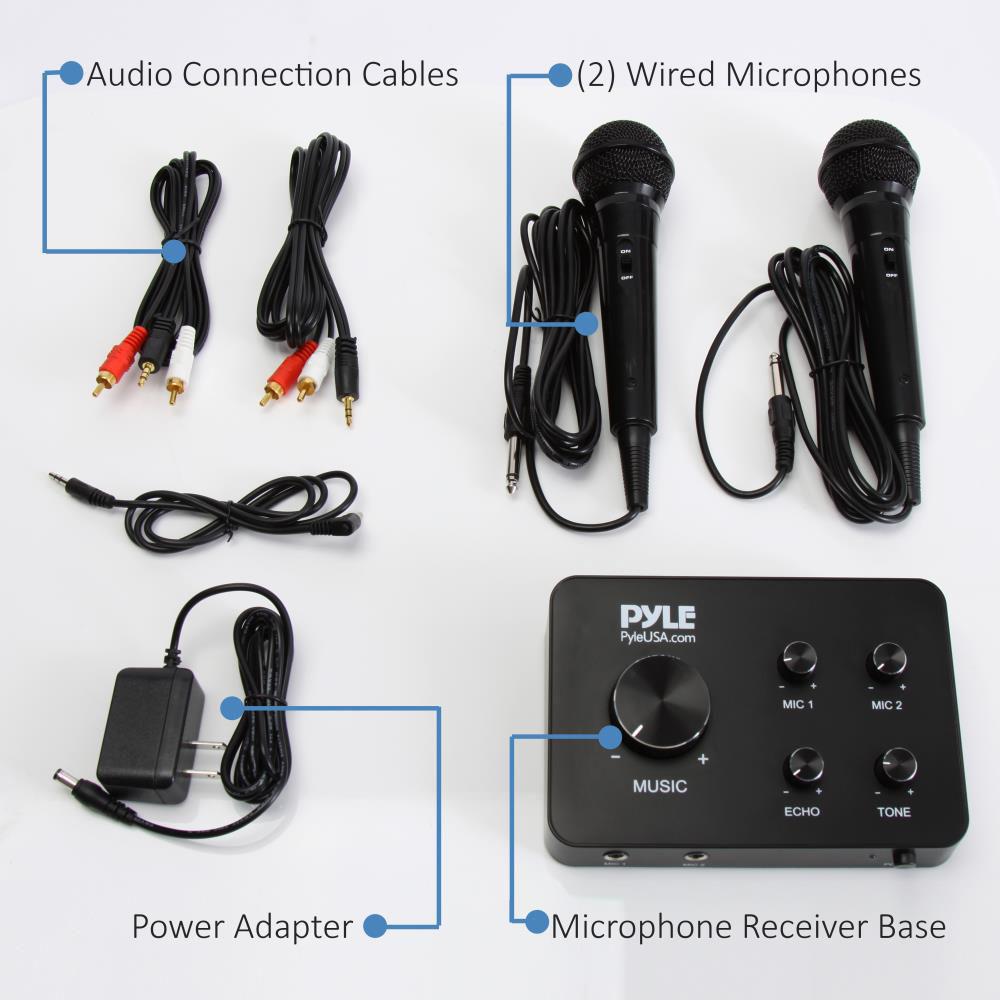

UPC: 842893100807 In the Box Pyle Pro PDWMKRHD20 Home Theater Karaoke Wired Microphone System 3.5mm Stereo Aux Cable 2 x 3.5mm Stereo to Dual RCA Cables Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PDWMKRHD20 Home Theater Karaoke Wired Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PDWMKRHD20 Specs | | | Inputs | 2 x 1/4" mic inputs
1 x 1/8" (3.5 mm) aux input
1 x HDMI | | Outputs | 1 x 1/8" (3.5 mm)
1 x HDMI | | HDMI Version | HDMI 1.4 | | Frequency Response | 30 Hz to 18 kHz (±3 dB) | | Input Impedance | Mic: 22 kOhms
Line: 10 kOhms | | Signal to Noise Ratio | 90 dB | | THD | 0.5% | | Microphone Input Gain | +26 dB maximum | | Tone Control | ±15 dB at 10 kHz | | Power Requirement | 110/220 VAC via 5 VDC power adapter | | Dimensions (L x W x H) | 6.7 x 4.5 x 1.8" / 170.2 x 114.3 x 45.7 mm | | Weight | 2.7 lb / 1.2 kg | | | | Type | Dynamic | | Directivity | Unidirectional | | Frequency Response | 60 Hz to 15 kHz | | Sensitivity | -75 dB (±3 dB) | | Impedance | 600 Ohms | | Cable Length | 10' / 3 m | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 12.7 x 11.1 x 2.7" |
