User Manual for Pyle Pro PLCMHD70 7" HDMI On-Camera Field Monitor Click to enlarge the picture
Contents of the user manual for the Pyle Pro PLCMHD70 7" HDMI On-Camera
- Product category: On Camera Monitors Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro On Camera Monitors
 |
User manual for the Pyle Pro PLCMHD70 7" HDMI On-Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

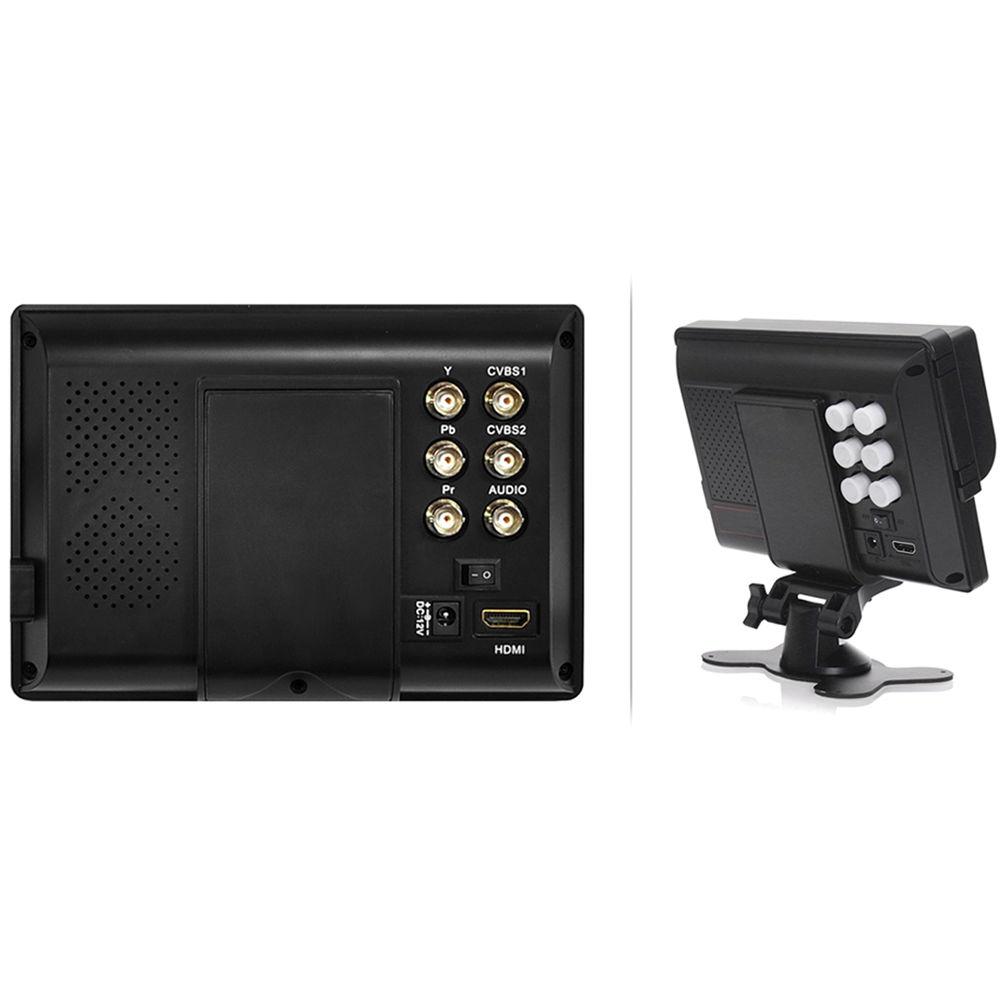

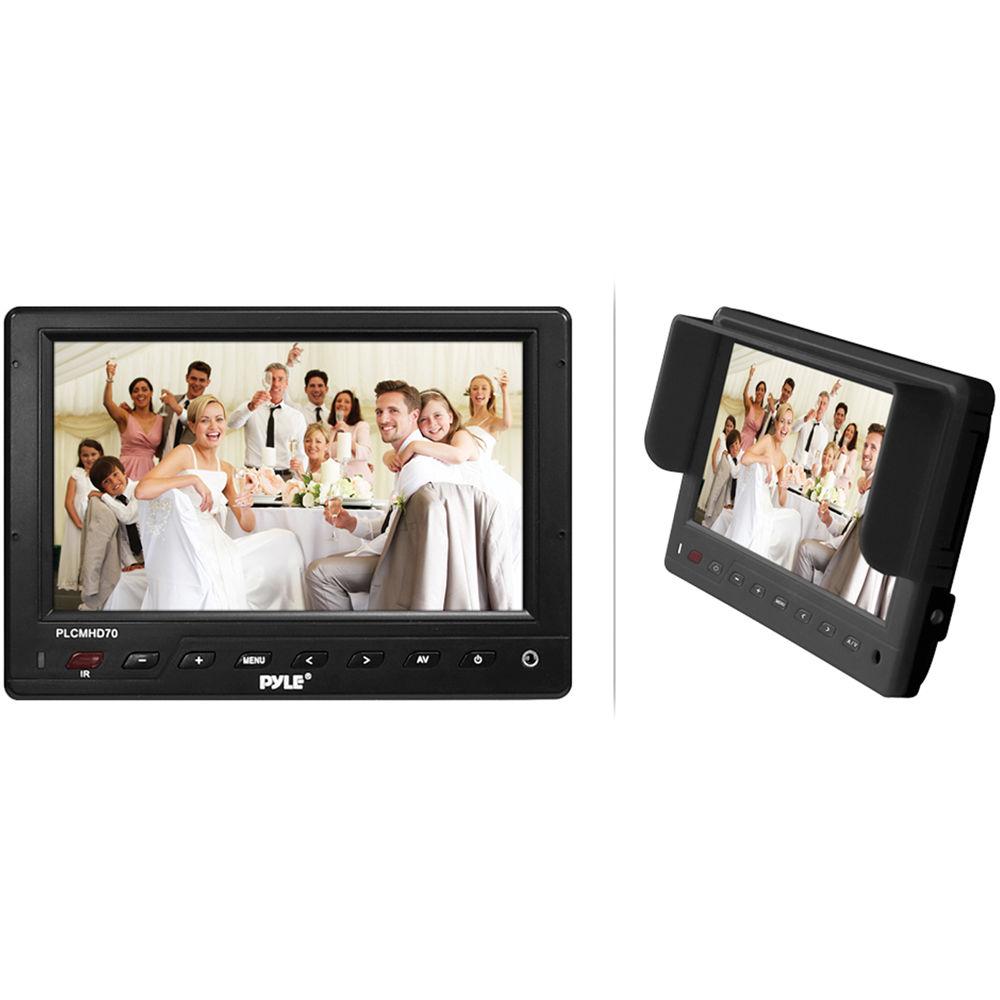

Product description The Pyle Pro PLCMHD70 7" HDMI On-Camera Field Monitor is a High Definition 7'' display and comes equipped with a remote, rechargeable battery, and ball joint shoe mount. The monitor incorporates a TFT LCD display that features 450 nit brightness and 500:1 contrast ratio for a sharp image, and it features a native resolution of 800 x 480 that supports video with resolution up to 1920 x 1080. The monitor features HDMI, component, 2 composite, and 1 audio input.
You power the monitor using the included rechargeable Li-ion battery pack, or via the 12 VDC coaxial power jack. Included with the monitor are a ball joint shoe mount, a removable sun visor, power adapter, desktop mount, and a remote control. -
- 7-inch Hi-Res TFT LCD Display
- Application for Full HD Video Cameras
- Image Adjustment: Brightness, Contrast, Saturation, Tint, Temperature
- Inputs: HDMI, YPbPr, AV1, AV2, Audio
- High Brightness/Contrast Display
- High Capacity Rechargeable Li-ion Battery

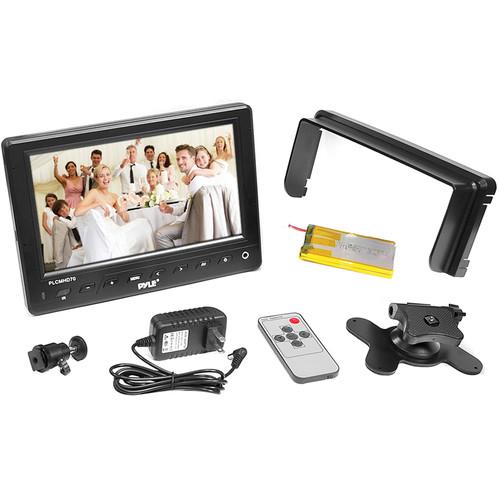

UPC: 068888755436 In the Box Pyle Pro PLCMHD70 7" HDMI On-Camera Field Monitor Snap-On Sun Visor Removable Rechargeable Battery Pack Ball Joint Shoe Mount AC Power Adapter Desk Top Stand Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PLCMHD70 7" HDMI On-Camera Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PLCMHD70 Specs | | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 800 x 480 | | Maximum Brightness | 450 cd/m2 | | | | Video | 1 x HDMI Type A Input
1 x 3BNC (Component) Input
2 x BNC (Composite) Input | | Audio | 1 x BNC Input | | Built-In Speaker | None | | Card Slot | None | | | | DC Input Power | 12 VDC | | Battery Type | None | | | | Dimensions (W x H x D) | 7.4 x 4.9 x 1.3" / 18.8 x 12.4 x 3.3 cm | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 12.4 x 7.9 x 2.9" |
