User Manual for Pyle Pro PMIDIKPD50 MIDI Keyboard System and Digital USB Controller Interface Click to enlarge the picture
Contents of the user manual for the Pyle Pro PMIDIKPD50 MIDI Keyboard System
- Product category: Keyboard Controllers Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Keyboard Controllers
 |
User manual for the Pyle Pro PMIDIKPD50 MIDI Keyboard System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

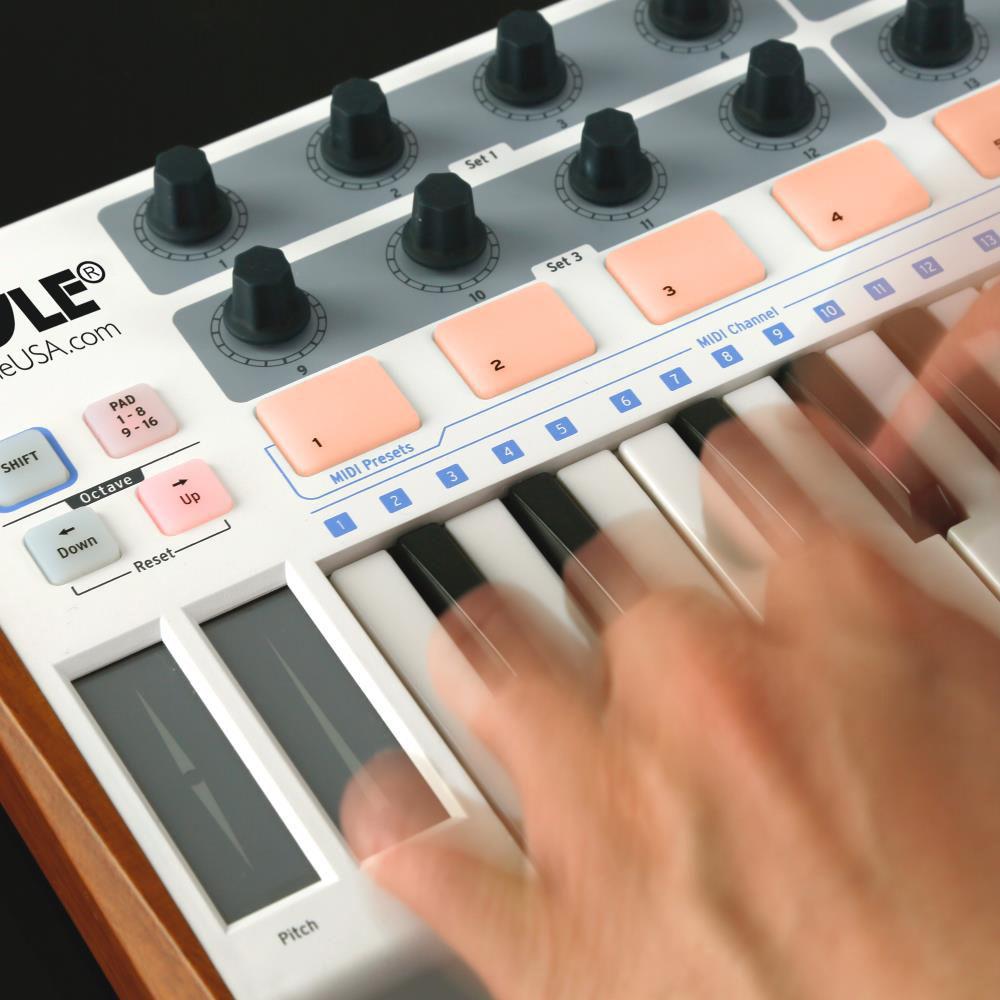

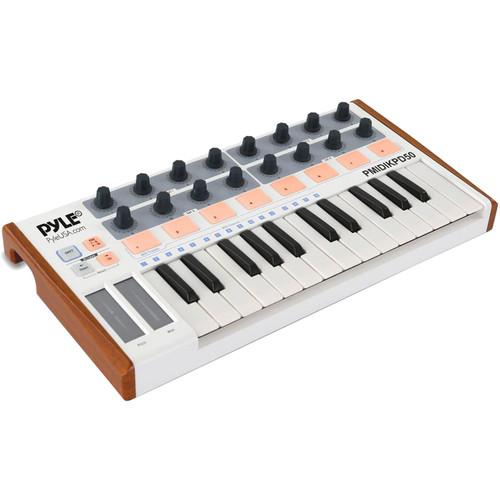

Product description The Pyle Pro PMIDIKPD50 is a 25-key keyboard that also works as a MIDI controller and interface for use with computers. This makes it useful for anyone from DJs to composers. Its 25 keys boast three different velocity modes, though it can also operate in constant-velocity mode if you want to achieve the same level no matter how hard you press the keys. In CC mode, each of these 25 keys can transmit control change messages over MIDI. 2 touch-strips are provided on the left side of the keyboard, one controlling pitch-bending, the other controlling modulation.8 trigger pads can transmit both note and control change messages, and may be beneficial for you if you’re programming drum parts in your DAW. 4 sets of encoders are on hand, each of which are assignable, and each of which transmits MIDI control change messages. Octave buttons allow you to move up and down between registers. Shift and Pad buttons allow you to perform various functions, such as saving and recalling presets, as well as selecting master MIDI channels.This MIDI keyboard connects to your computer over USB, drawing power from your host device. It’s compatible with Mac and Windows platforms, and requires no dedicated drivers to operate—simply plug it in and play. - Key Features at a Glance
-

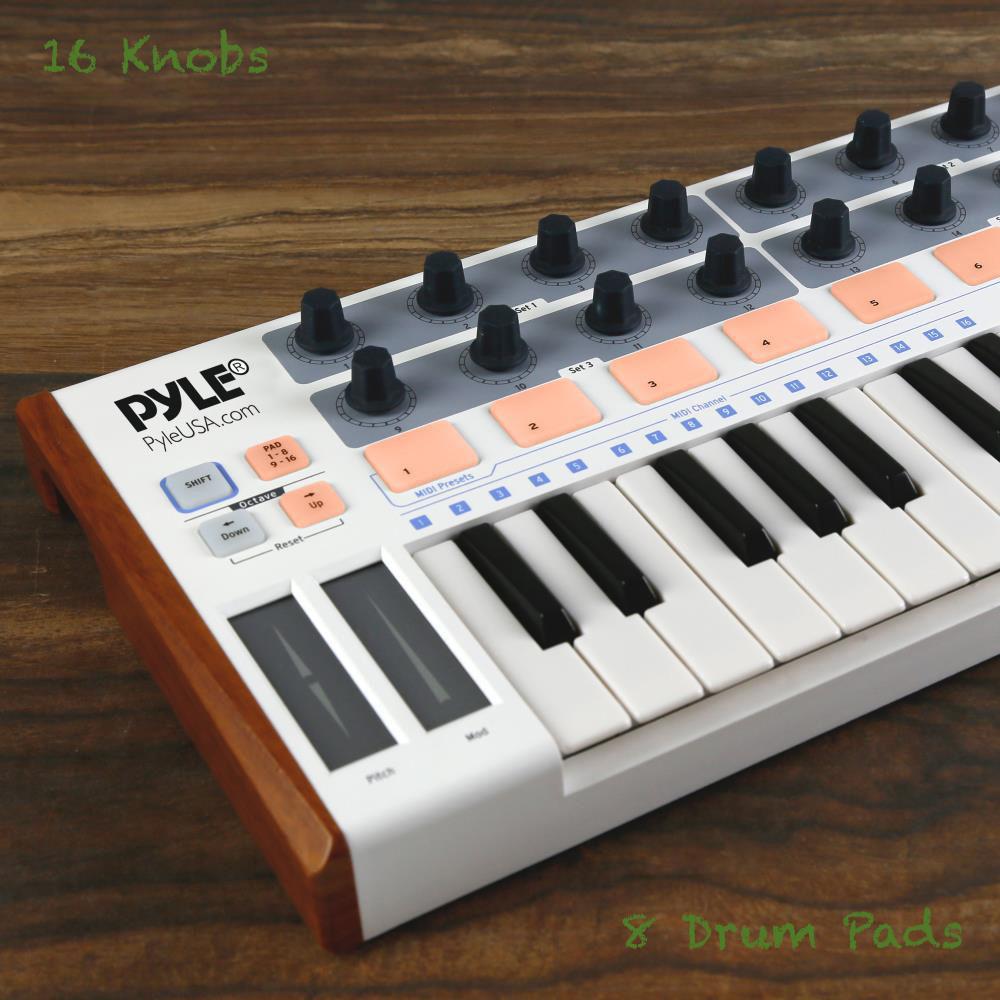

- 2 banks of 8 backlit performance pads, for 16 in total; can be assigned as pads, MIDI CC buttons, or program change switches
- 25 keys with velocity assignable to controllers, with three velocity curves and one constant velocity
- 16 assignable encoders
- Pitch and modulation touch strips
- USB interface
- Power supplied by USB
- Compatible with Windows and Mac OS X
- Drive free and hot-plug supported
- Quick plug-and-play setup
- Shift and Pad trigger buttons
- Front panel button and rotary control center
- Parameter control encoders
- Dedicated octave adjustment
- Pitch and modulation touch strip
- LED backlight pad button illumination
- Works with Mac and Windows
- Used for DJ sound mixing, music editing, digital audio processing
UPC: 068888776813 In the Box Pyle Pro PMIDIKPD50 MIDI Keyboard System and Digital USB Controller Interface USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PMIDIKPD50 MIDI Keyboard System and Digital USB Controller Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

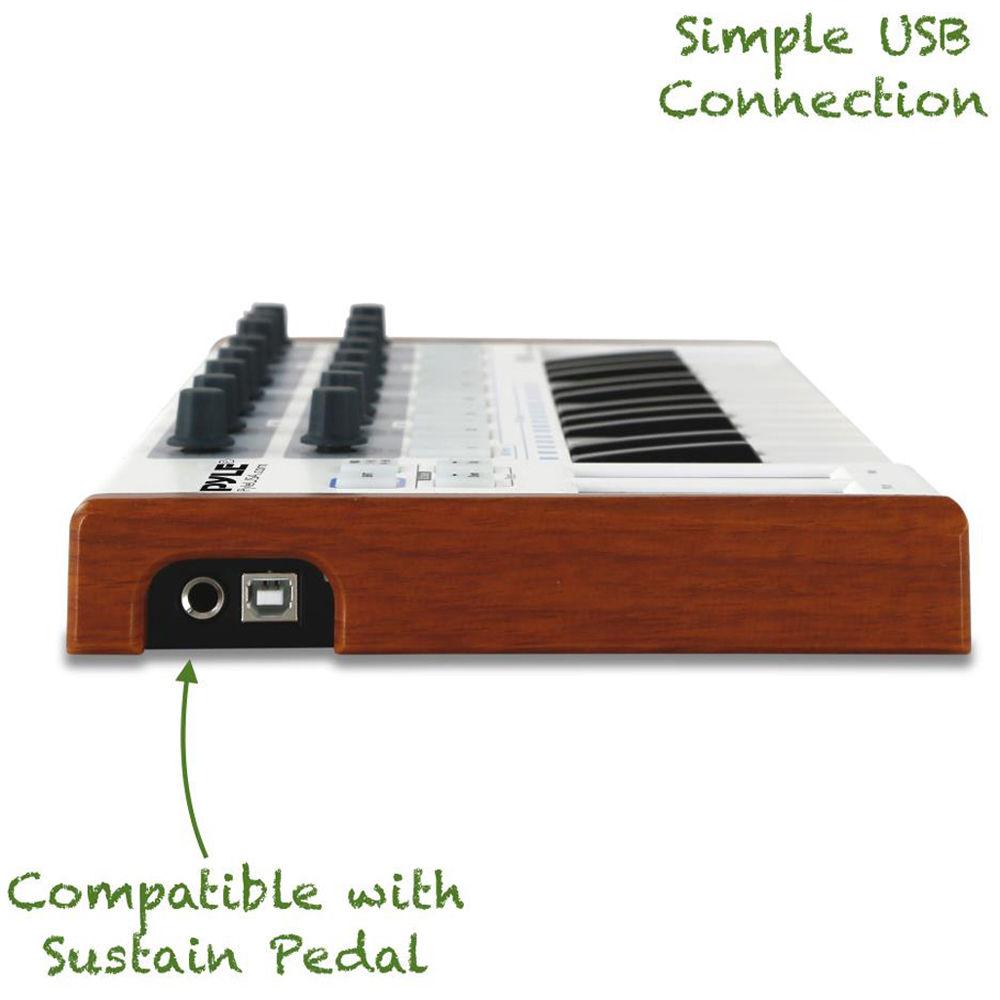

Technical parametersPyle Pro PMIDIKPD50 Specs | Connection | 1 x USB 2.0 (Type-B)
1 x 1/4" footswitch input, phone type | | Velocity | 4 Modes: 3 curve, 1 constant | | Power Supply | Bus-powered over USB | | Current Consumption | 100 mA or less | | Dimensions | 7.5 x 14.8 x 1.6" / 190.0 x 375.0 x 40.0 mm | | Weight | 35.3 oz / 1000.0 g | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 16.1 x 8.5 x 2.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
