User Manual for Pyle Pro PMX802M - 800 Watt 8-Channel Powered PA Mixer Amplifier Click to enlarge the picture
Contents of the user manual for the Pyle Pro PMX802M - 800 Watt
- Product category: Sound Reinforcement Mixers Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Sound Reinforcement Mixers
 |
User manual for the Pyle Pro PMX802M - 800 Watt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

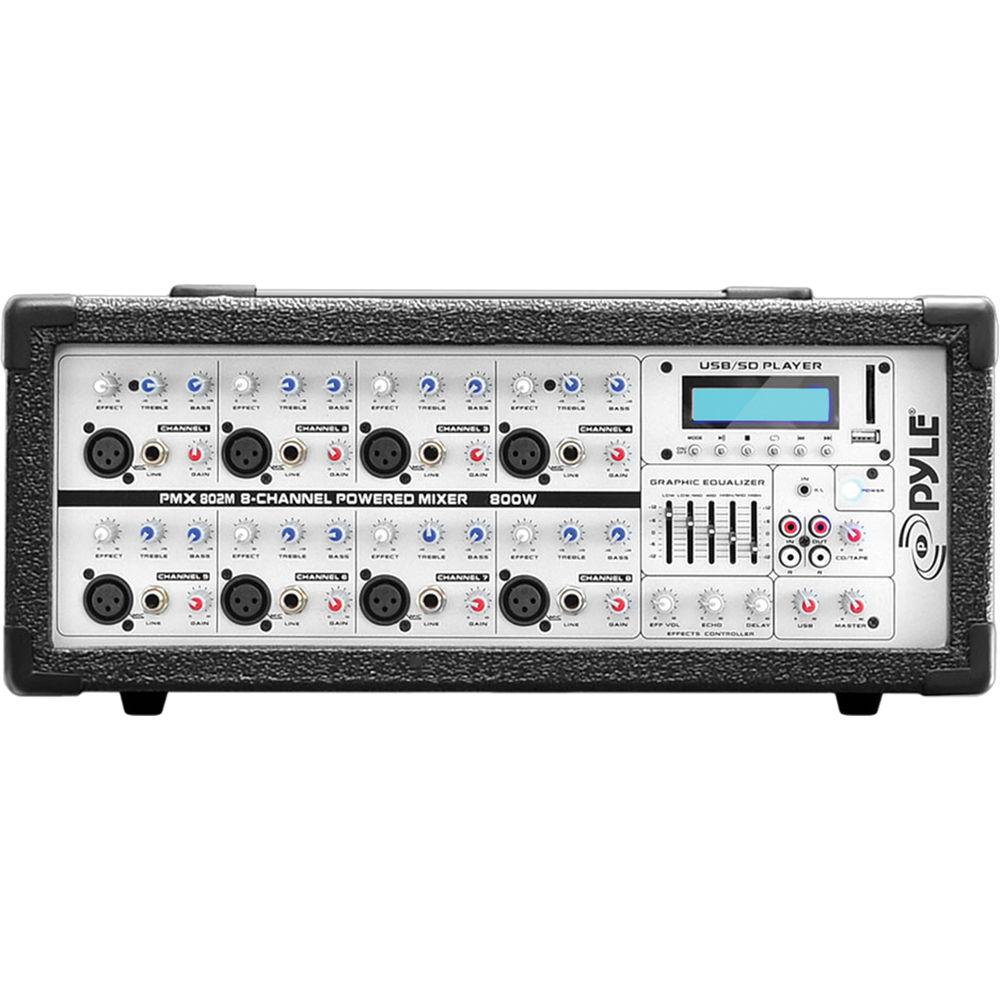

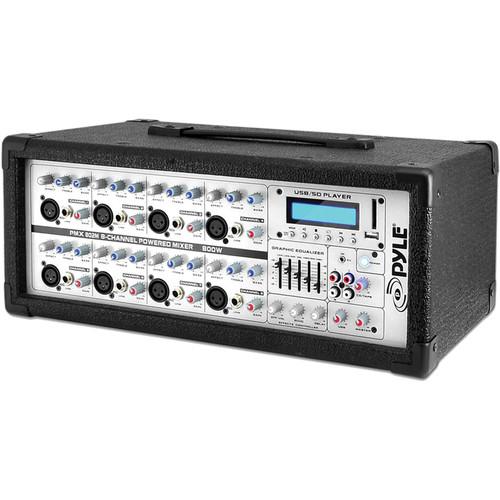

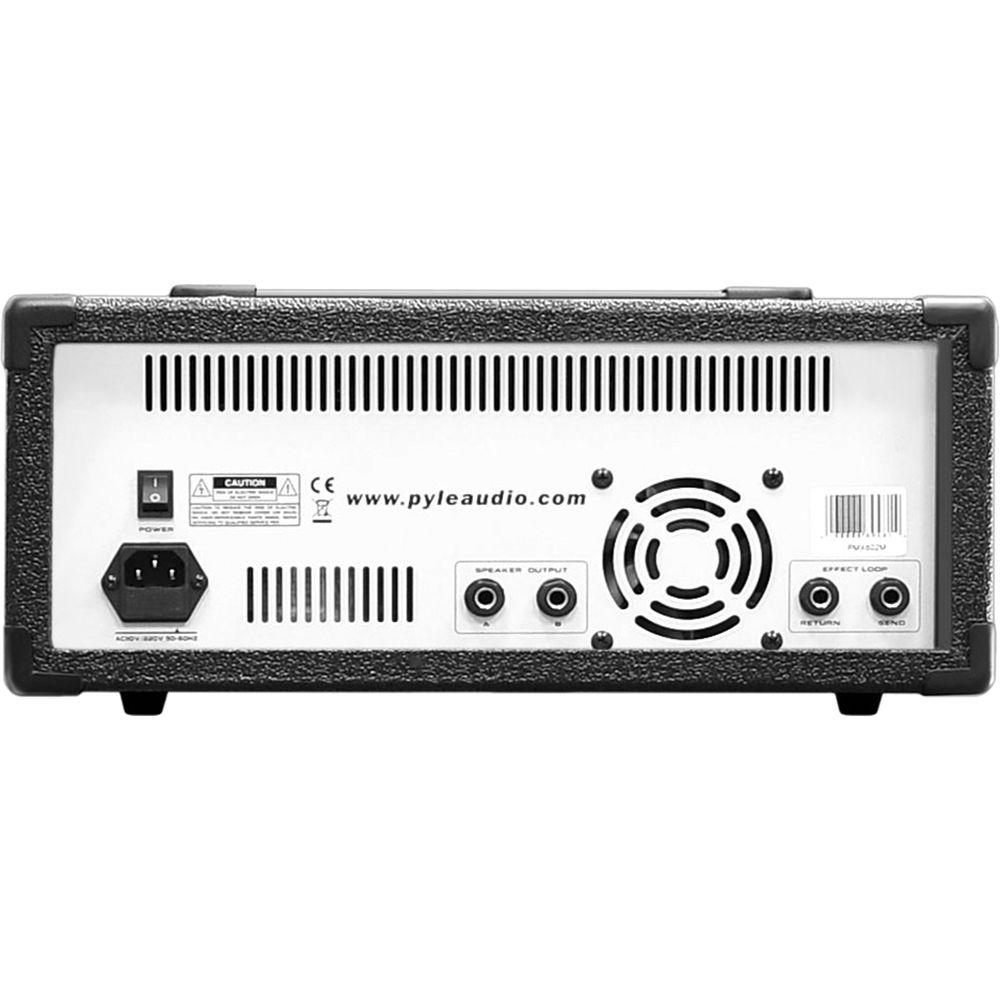

Product description The PMX802M from Pyle-Pro is the combination of a mixer and a power amplifier with a convenient USB 2.0 input. You can plug multiple sound sources into it (such as microphones, instruments, music players, hard drives, and flash drives), and the PMX802M will amplify them with its 800 watt power amplifier. With the addition of a pair of passive PA speakers, the PMX802M makes for a nice PA for musicians, small clubs, and any situation that requires a small sound system. The inclusion of the USB 2.0 input and LCD display makes it easy to play sound files from external storage devices. The rear of the PMX802M features 1/4" output jacks to connect passive PA speakers. The stereo RCA outputs can be used to connect to a recording device, or you can send your mix to another amplifier or a powered speaker. Each channel on the PMX802M has its own volume and EQ controls, and a 5-band graphic equalizer is included on the master output. A built-in effects processor is included, and each channel has its own effect level knob. The PMX802M is a budget-friendly option for anyone in need of a powered mixer with USB connectivity for their PA system. - Master output: 800 watts 4 ohms
- USB 2.0 port input for MP3 & WMA file playback with a blue LCD display
- Tone control on every channel
- Stereo RCA input and output
- Channel tone adjust (high & low +/- 15 dB)
- Aux/tape/effect feedback input
- 110/220 voltage switchable
UPC: 068888894821 In the Box Pyle Pro PMX802M - 800 Watt 8-Channel Powered PA Mixer/Amplifier Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PMX802M - 800 Watt 8-Channel Powered PA Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PMX802M Specs | Power Rating | 800 Watts, 4 Ohms | | Mic/Line Inputs | 8 | | Mains Inputs | 8 x XLR | | In-Line Inputs/Returns | 8 x 1/4" Line | | Main Output | 2 x 1/4" Speaker Outputs | | Display | Blue LCD Display | | Controls | Stop, Play, and File Navigation Controls | | Tape I/O | Stereo RCA | | AUX Sends | 1 x 1/4" Send/Return | | EQ Section | 2-Band EQ on Every Channel
5-Band Graphic EQ on Master Output | | Channel Level Control | Rotary Knobs | | Metering | 5-Segment LED Meter | | Power Requirements | 110/220 Voltage Switchable | | Dimensions | 20.28 x 12.01 x 7.87" (515.11 x 305.05 x 199.89 mm) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 21.5 lb | | Box Dimensions (LxWxH) | 22.0 x 13.8 x 10.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 90 owners. Add your rating and experience with the product.
