User Manual for Pyle Pro PMX840BT Bluetooth 8-Channel 800-Watt Powered Mixer with MP3 Click to enlarge the picture
Contents of the user manual for the Pyle Pro PMX840BT Bluetooth 8-Channel 800-Watt
- Product category: Sound Reinforcement Mixers Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Sound Reinforcement Mixers
 |
User manual for the Pyle Pro PMX840BT Bluetooth 8-Channel 800-Watt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

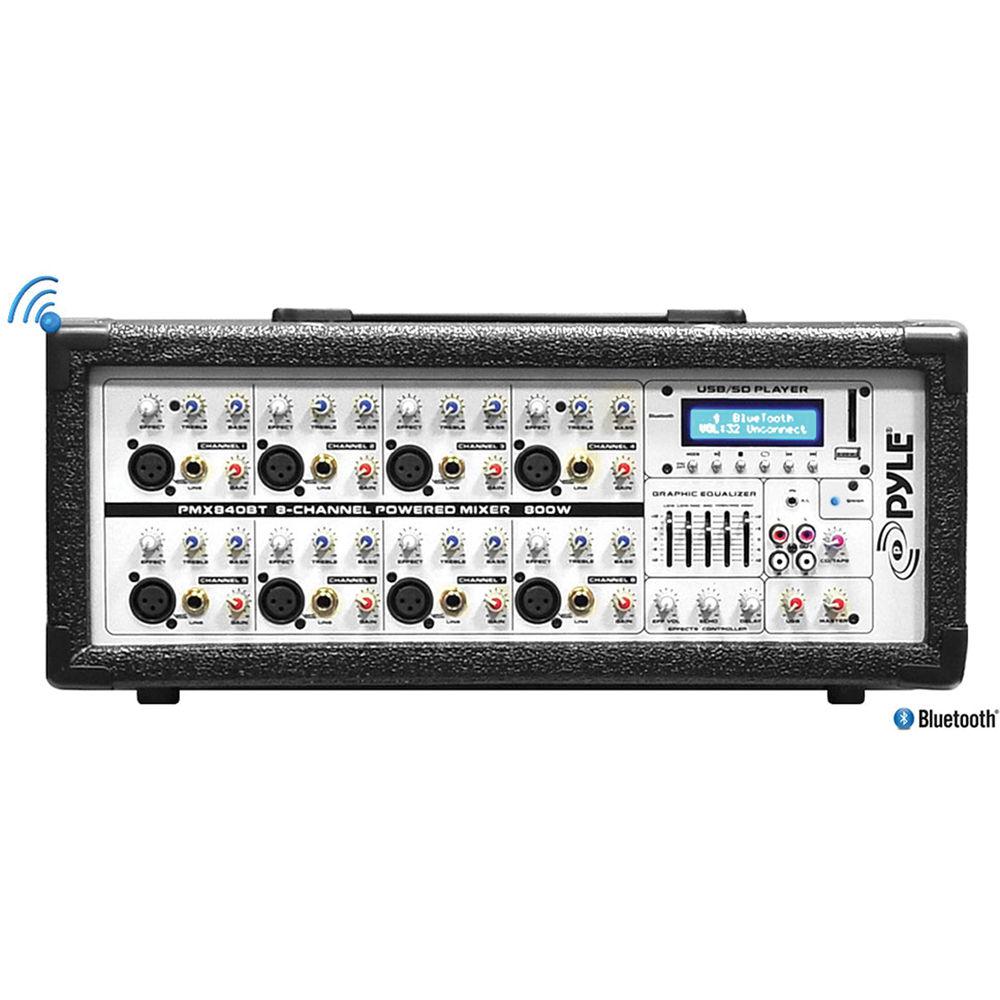

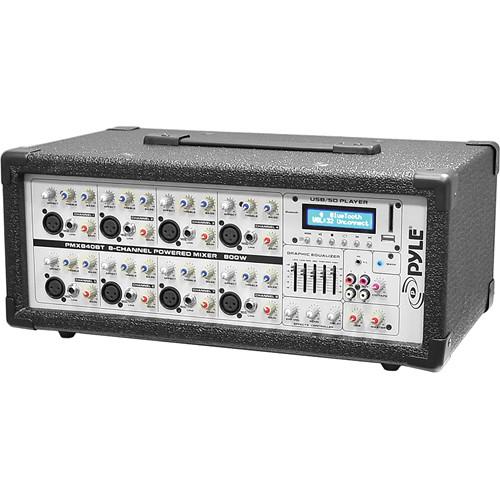

Product description The Pyle Pro PMX840BT 8-Channel 800-Watt Bluetooth Powered Mixer with MP3 Input is a powered PA mixer that has 8 mic and line channels backed by 600 watts of power. The PMX840BT works with virtually any Bluetooth enabled device. It comes equipped with a USB 2.0 flash drive, an SD memory card reader and features MP3 playback, a digital LCD display, 5-band graphic equalizer, balanced XLR mic with phantom power , 1/4" line inputs, RCA phono tape inputs and record outputs. The PMX840BT has switchable dual voltage capability that can be either 110 or 220 volts. - Bluetooth wireless music streaming
- Works with virtually any Bluetooth enable device
(iPhone, Android, Smartphone, iPad, tablet, PC, etc.) - Digital LCD display & front facing control center
- USB flash drive & SD memory card readers
- 8-XLR / 3-pin low impedance balanced microphone inputs
- 8-1/4" line / high impedance balanced inputs
- 3.5mm auxiliary external input jack
- RCA & 1/4" effects loop connectors
- Headphone output: 1/4" TRS stereo connector
- Additional RCA inputs: Tape Play (L/R), Tape Record (L/R)
- Independent channel volume, EQ (high / low +/- 15 dB) and effects controls
- Master 5-Band graphic equalizer
- EQ & master EFFX control or level, echo, & reverb controls
- Master Output: 800-Watt 4 Ω
- 110 / 220 voltage - switchable
UPC: 068888753982 In the Box Pyle Pro PMX840BT Bluetooth 8-Channel 800-Watt Powered Mixer with MP3 Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PMX840BT Bluetooth 8-Channel 800-Watt Powered Mixer with MP3 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PMX840BT Specs | Output Power | 800-Watt | | Impedance of Single Channel | 8 Ω | | Line Level Impedance | 10 K Ohms @ -10 dBv | | Mic Input | XENYX Mic Pre-Amp | | XLR Configuration | Electronically Balanced Discrete Input Circuit | | Frequency Response | <10 Hz to 150 kHz (-1 dB), <10 Hz to 200 kHz (-3 dB) | | Gain Range | +10 to +60 dB | | Maximum Input Level | +12 dBu @ +10 dB Gain | | Impedance | Approx. 2.6 k Ω Balanced | | Signal to Noise Ratio | 110 dB / 112 dB A - Weighted | | Distortion (THD) | 0.005% / 0.004% A - Weighted | | Channel EQ Control Range | High @ 10 K +/-15 dB, Low @ 60 K +/-15 dB | | Master EQ Frequency | 60 Hz, 250 Hz, 1 kHz, 4 kHz, 12 kHz
Boost/cut control: +/-12 dB | | Effects Loop & Send | ¼" TS Connectors Unbalanced
Impedance: Approx 1 k Ohm -10 dBv | | Dimensions | 20.28 x 12.01 x 7.87" (51.51 x 30.51 x 20.00 cm) | | Weight | 21.80 lb (9.89 g) | | | | Package Weight | 21.8 lb | | Box Dimensions (LxWxH) | 21.0 x 13.0 x 10.0" |
