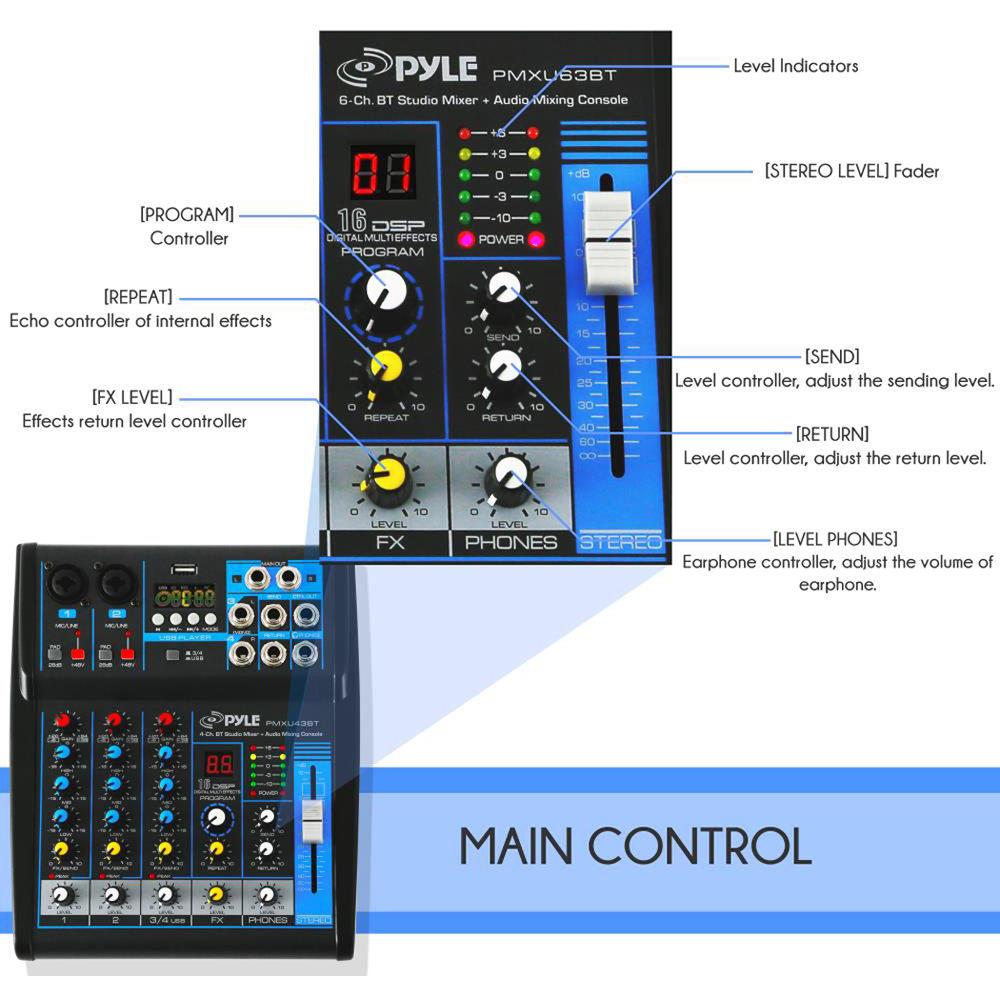

Product description The Pyle Pro PMXU43BT is a compact 4-channel, Bluetooth-enabled audio mixer designed to provide multi-channel mixing capabilities for DJs, musicians, sound engineers, and performers in clubs, conferences, houses of worship, and live stage applications. It features two XLR-1/4" combo jack inputs and one stereo pair of 1/4" jacks. The microphone preamps offer selectable 48V phantom power and up to 64 dB of gain. All input channels boast 3-band EQ and peak indicators. A per-channel send knob passes signal to the internal 16-bit DSP effects engine, which has 16 selectable effect presets. A mono 1/4" aux send and return is provided in case external effects are desired. Stream music from your mobile device to the built-in Bluetooth receiver, or play MP3 audio files from your flash drive via the USB Type-A port. Additionally, the USB port enables audio interface functionality when connected to a computer. Hook up monitors to the 1/4" main and monitor outputs and connect a set of headphones to the 1/4" stereo headphone jack, which sports a dedicated level control. - XLR-1/4" combo jack inputs

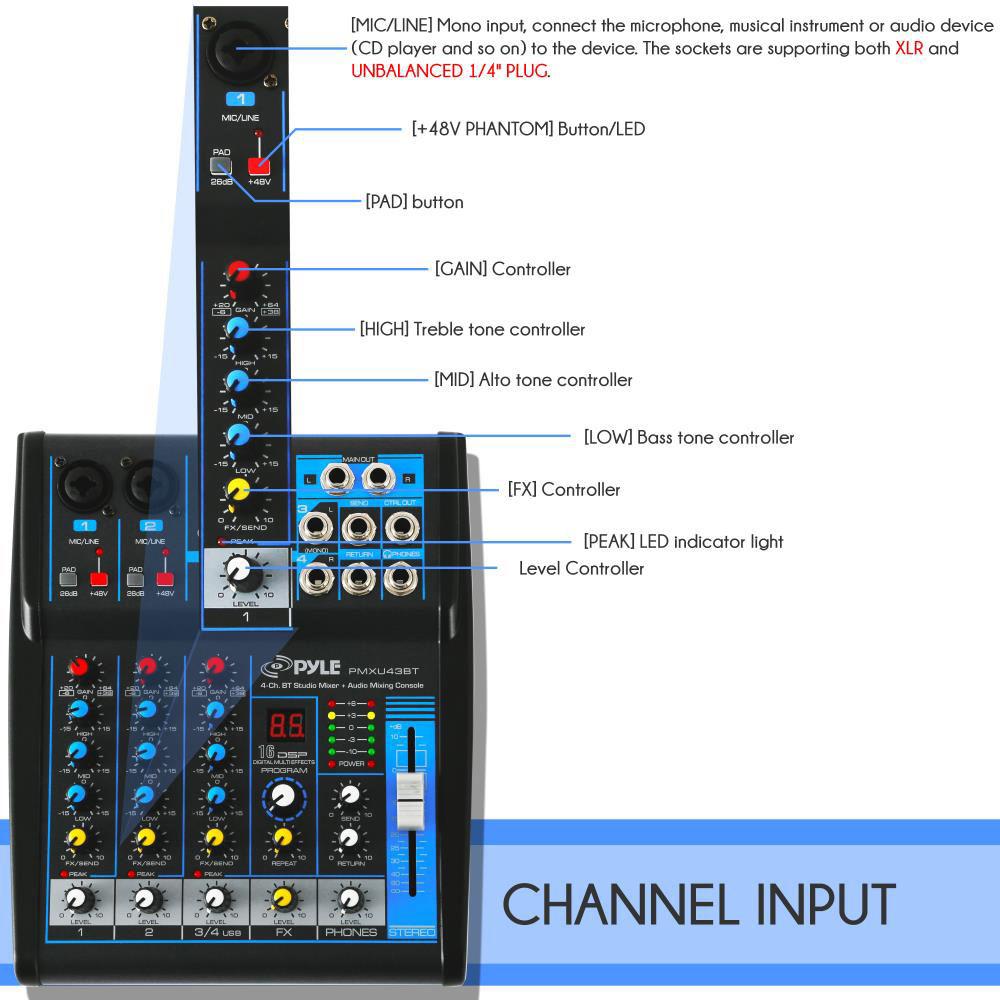

- Microphone preamps offer selectable 48V phantom power and up to 64 dB of gain
- Selectable -26 dB pad on each mic/line input channel
- Stereo line input via 1/4" jacks

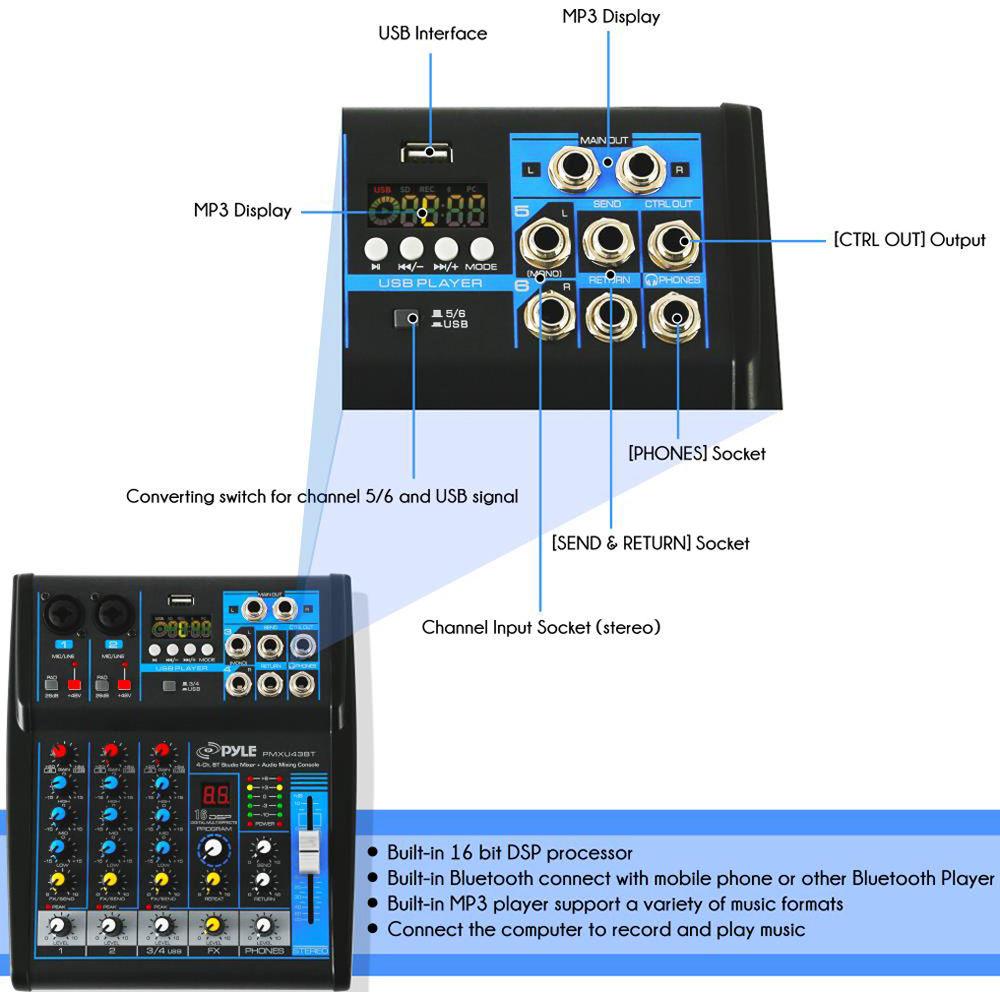

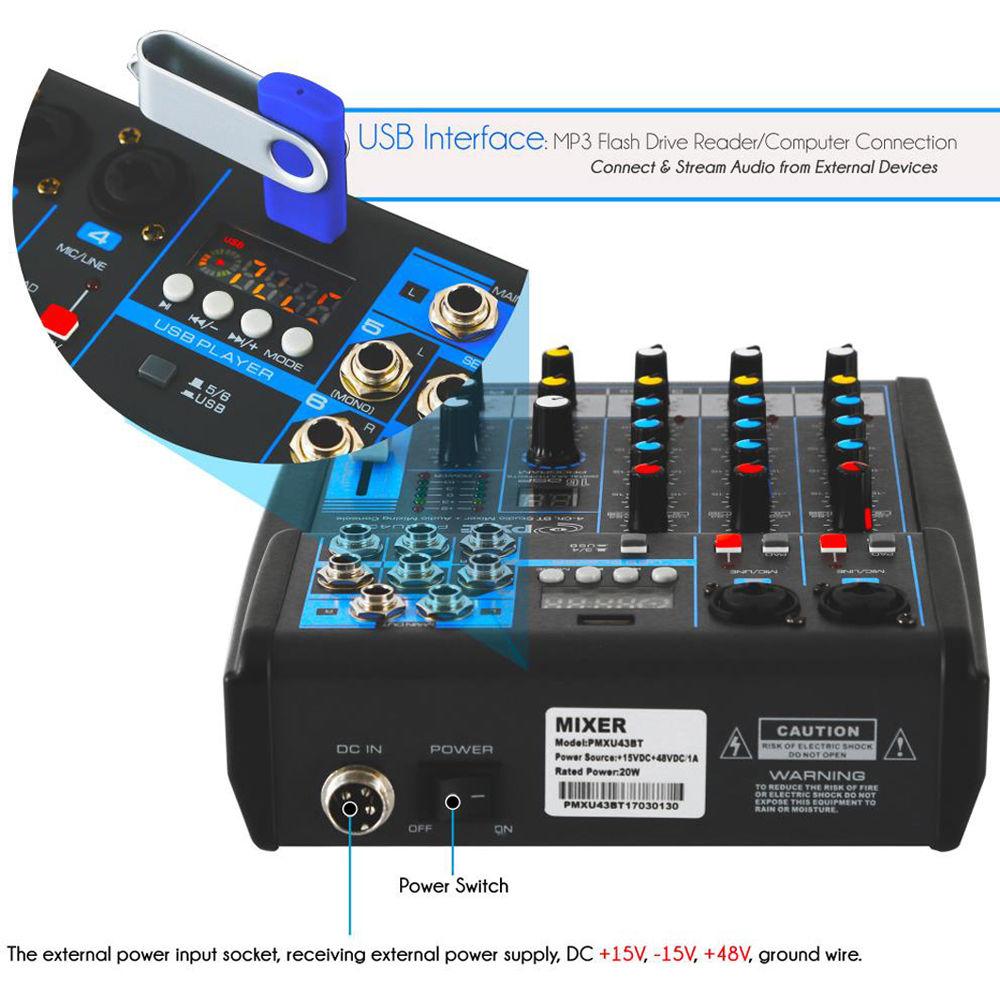

- USB Type-A port for connecting a computer or flash drive
- Play MP3 audio files via USB flash drive and on-board track controls
- Supports audio interface functionality via USB connection to a computer
- Built-in Bluetooth receiver allows music streaming from mobile devices
- 16-bit DSP effects engine with 16 presets
- Per-channel high, mid, and low EQ at 12 kHz, 2.5 kHz, and 80 Hz
- 1/4" stereo main outputs for connection to speakers, a PA, or recording device
- 1/4" CTRL OUT for mono monitoring
- 1/4" stereo headphone output with dedicated level control
- 1/4" aux send and return allows an extra mono input, additional monitor output, or hook-up of an external effects processor
- Long-throw stereo master fader
- 5-segment stereo LED meters

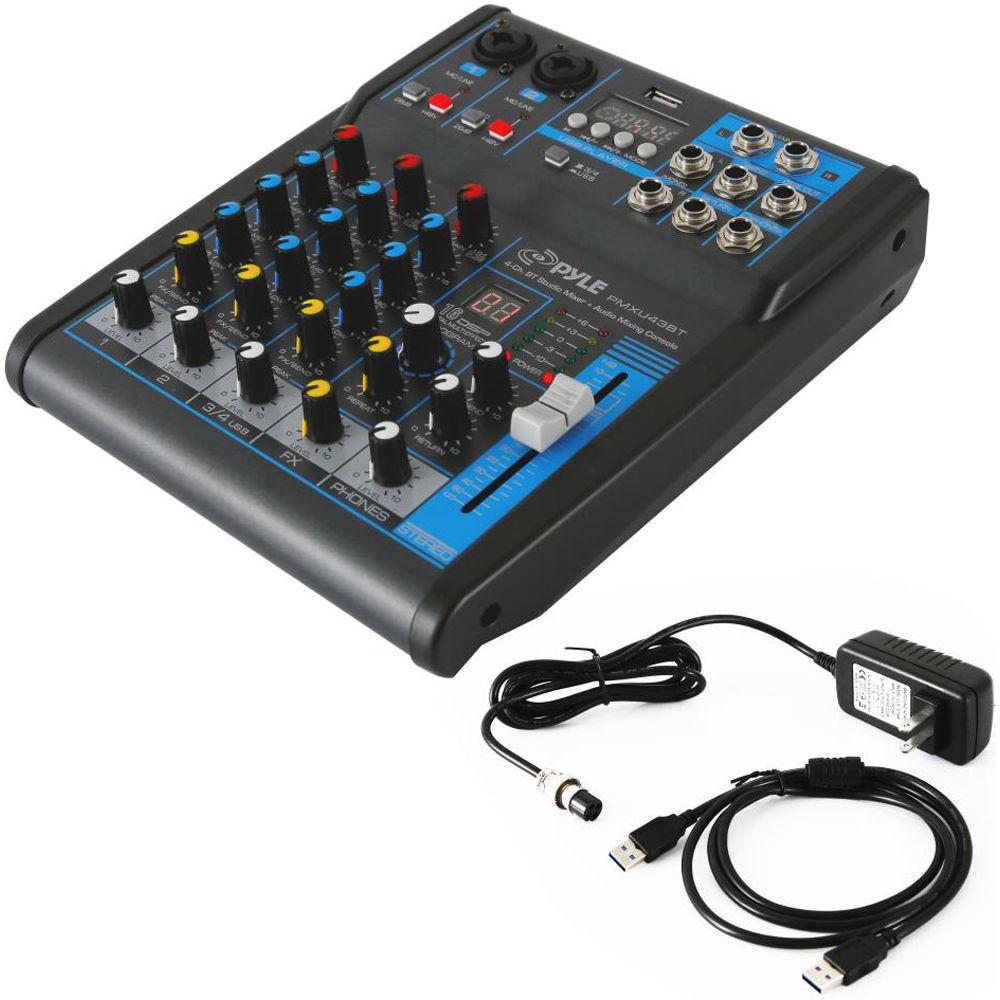

UPC: 068888775670 In the Box Pyle Pro PMXU43BT Compact 4-Channel, Bluetooth-Enabled Audio Mixer USB Cable Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PMXU43BT Compact 4-Channel, Bluetooth-Enabled Audio Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PMXU43BT Specs | Total # Of Inputs | 4 | | Mic/Line Inputs | 2 x XLR-1/4" combo jacks | | Stereo Line Inputs | 2 x 1/4" jacks (one stereo pair) | | In-Line Inputs/Returns | None | | AUX Sends | 1 x 1/4" | | AUX Returns | 1 x 1/4" | | Inserts | None | | BUS (Group) Outputs | None | | 2 Trk Master I/O | 2 x 1/4" | | ALT I/O | 1 x USB Type-A | | Monitor Outputs | 1 x 1/4" stereo headphone jack
1 x 1/4" mono monitor jack | | EQ Section | High:
