Pyle Pro PMXU63BT Compact 6-Channel, Bluetooth-Enabled

Search your instruction manual in PDF to download

User Manual for Pyle Pro PMXU63BT Compact 6-Channel, Bluetooth-Enabled Audio Mixer

Click to enlarge the picture
Pyle Pro PMXU63BT Compact 6-Channel, Bluetooth-Enabled Audio Mixer Contents of the user manual for the Pyle Pro PMXU63BT Compact 6-Channel, Bluetooth-Enabled
  • Product category: Analog Recording Mixers Pyle Pro
  • Brand: Pyle Pro
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Pyle Pro Analog Recording Mixers

Pyle Pro PMXU63BT Compact 6-Channel, Bluetooth-Enabled Audio Mixer Pyle Pro PMXU63BT Compact 6-Channel, Bluetooth-Enabled Audio Mixer Pyle Pro PMXU63BT Compact 6-Channel, Bluetooth-Enabled Audio Mixer Pyle Pro PMXU63BT Compact 6-Channel, Bluetooth-Enabled Audio Mixer Pyle Pro PMXU63BT Compact 6-Channel, Bluetooth-Enabled Audio Mixer
User manual for the Pyle Pro PMXU63BT Compact 6-Channel, Bluetooth-Enabled contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Pyle Pro product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!



Product description

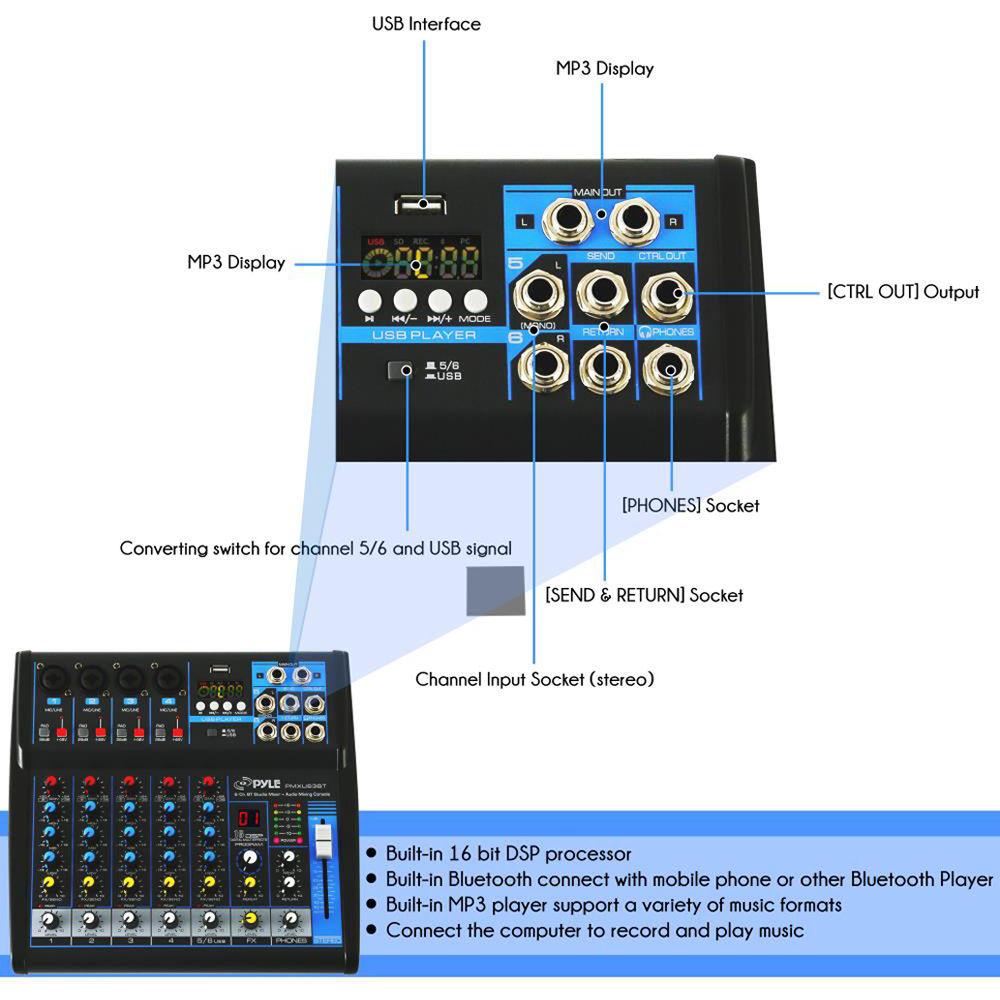

The Pyle Pro PMXU63BT is a compact 6-channel, Bluetooth-enabled audio mixer designed to provide multi-channel mixing capabilities for DJs, musicians, sound engineers, and performers in clubs, conferences, houses of worship, and live stage applications. It features four XLR-1/4" combo jack inputs and one stereo pair of 1/4" jacks. The microphone preamps offer selectable 48V phantom power and up to 64 dB of gain. All input channels boast 3-band EQ and peak indicators. A per-channel send knob passes signal to the internal 16-bit DSP effects engine, which has 16 selectable effect presets. A mono 1/4" aux send and return is provided in case external effects are desired. Stream music from your mobile device to the built-in Bluetooth receiver, or play MP3 audio files from your flash drive via the USB Type-A port. Additionally, the USB port enables audio interface functionality when connected to a computer. Hook up monitors to the 1/4" main and monitor outputs and connect a set of headphones to the 1/4" stereo headphone jack, which sports a dedicated level control.

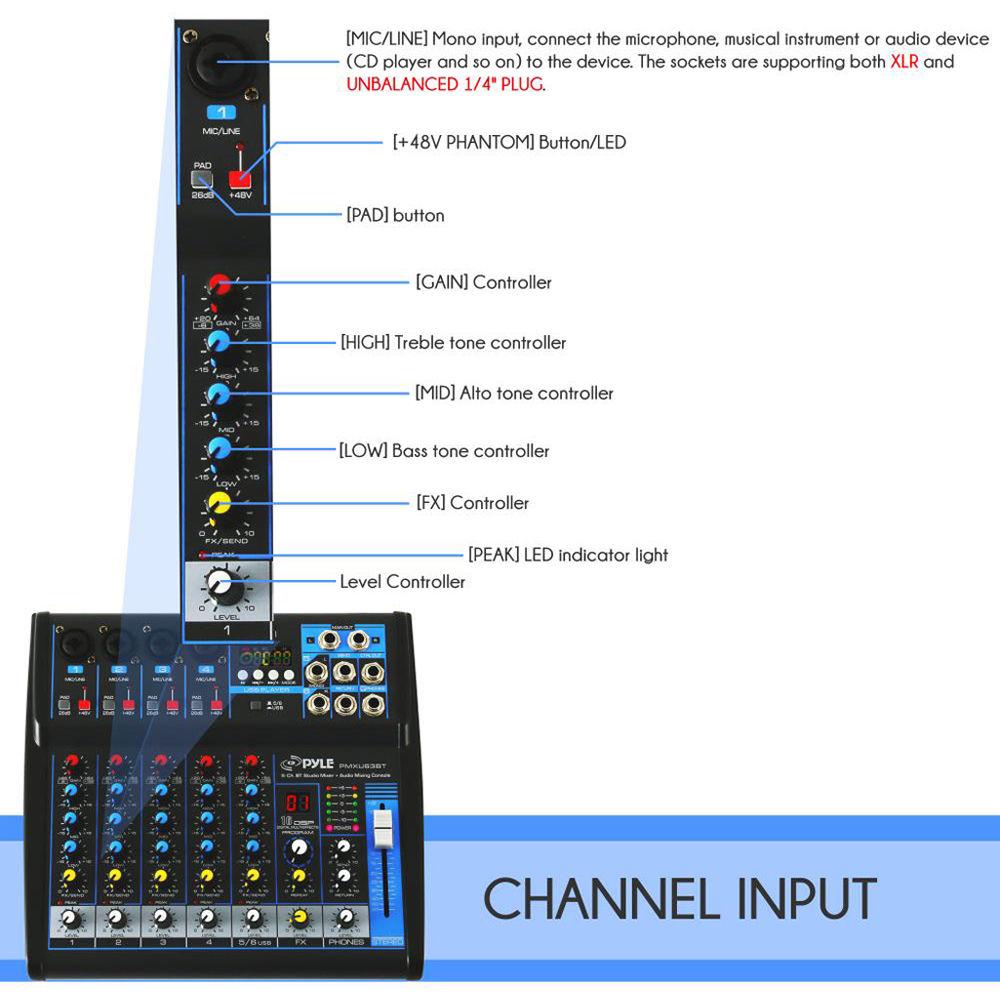

  • XLR-1/4" combo jack inputs
  • Microphone preamps offer selectable 48V phantom power and up to 64 dB of gain
  • Selectable -26 dB pad on each mic/line input channel
  • Stereo line input via 1/4" jacks

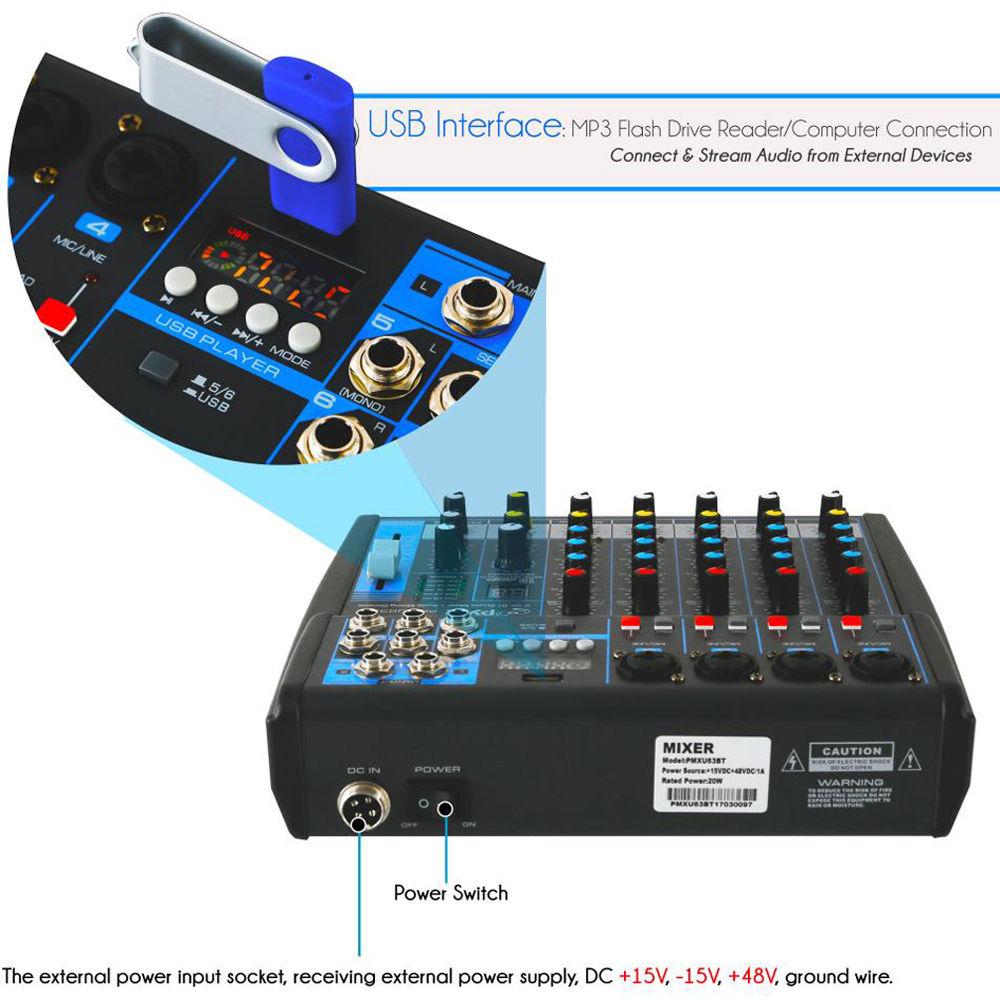

  • USB Type-A port for connecting a computer or flash drive
  • Play MP3 audio files via USB flash drive and on-board track controls
  • Supports audio interface functionality via USB connection to a computer
  • Built-in Bluetooth receiver allows music streaming from mobile devices
  • 16-bit DSP effects engine with 16 presets
  • Per-channel high, mid, and low EQ at 12 kHz, 2.5 kHz, and 80 Hz
  • 1/4" stereo main outputs for connection to speakers, a PA, or recording device
  • 1/4" CTRL OUT for mono monitoring
  • 1/4" stereo headphone output with dedicated level control
  • 1/4" aux send and return allows an extra mono input, additional monitor output, or hook-up of an external effects processor

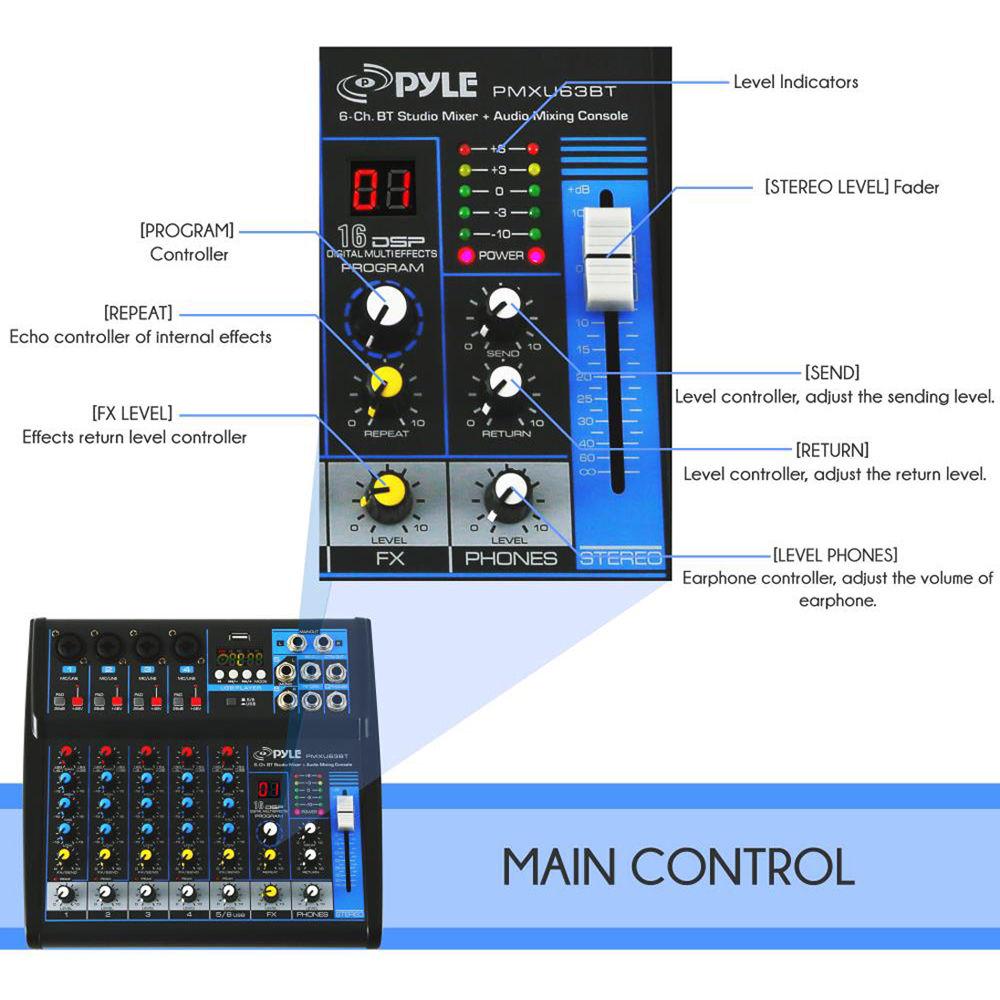

  • Long-throw stereo master fader
  • 5-segment stereo LED meters

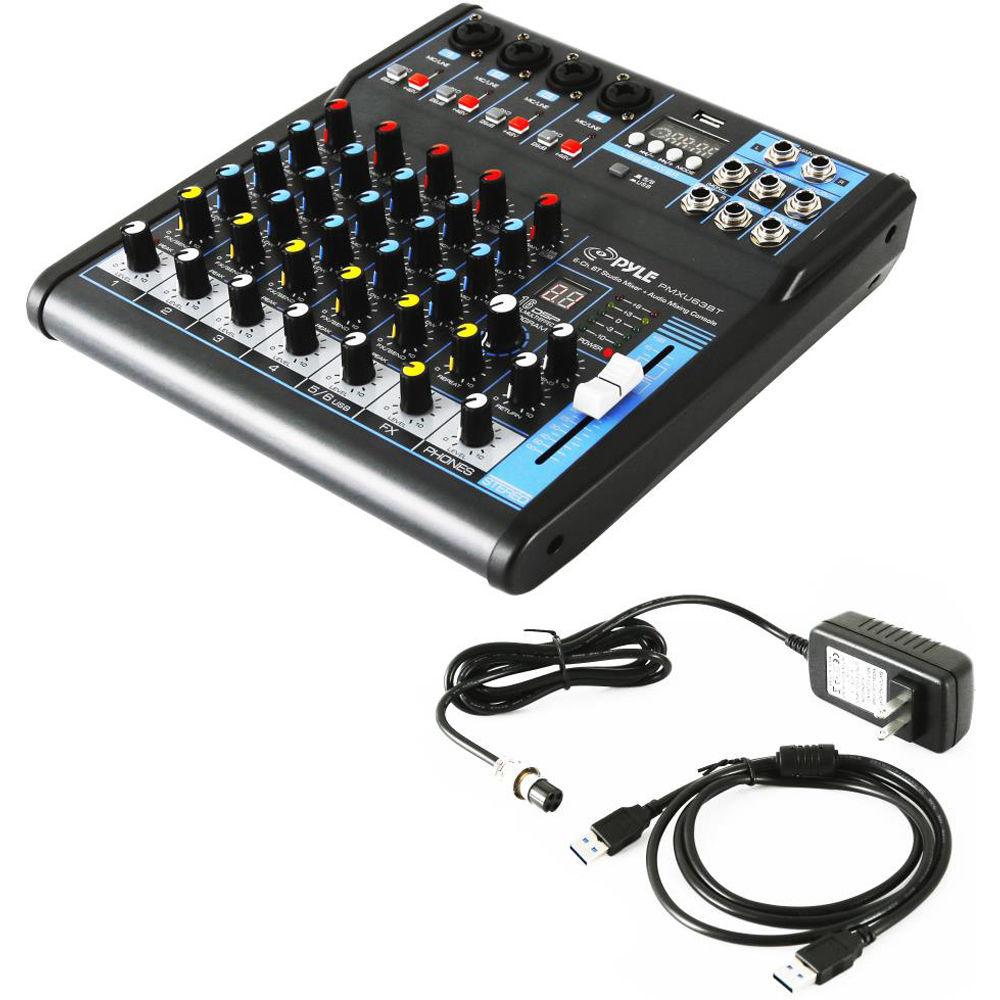

UPC: 068888775687 In the Box Pyle Pro PMXU63BT Compact 6-Channel, Bluetooth-Enabled Audio Mixer
  • USB Cable
  • Power Adapter
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Pyle Pro PMXU63BT Compact 6-Channel, Bluetooth-Enabled Audio Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Pyle Pro PMXU63BT Specs

    Total # Of Inputs 6
    Mic/Line Inputs 4 x XLR-1/4" combo jacks
    Stereo Line Inputs 2 x 1/4" jacks (one stereo pair)
    In-Line Inputs/Returns None
    AUX Sends 1 x 1/4"
    AUX Returns 1 x 1/4"
    Inserts None
    BUS (Group) Outputs None
    2 Trk Master I/O 2 x 1/4"
    ALT I/O 1 x USB Type-A
    Monitor Outputs 1 x 1/4" stereo headphone jack
    1 x 1/4" mono monitor jack
    EQ Section High:

    Rating

    100% users recommend this product to others. And what about you?
    Rating: 5.0 of 5

    This product has already been rated by 09 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Pyle Pro PMXU63BT Compact 6-Channel, Bluetooth-Enabled Audio Mixer

    Subject: Pyle PMXU63BT
    Date: 31.12.2022 22:22:40Name: Chris
    How do I set this mixer up as an audio interface? Are there drivers I need to install? When I connect via usb my buffer rate in FL Studio is terrible, and the daw and computer see the device as, ‘Speakers’
    Post reply

    Subject: is there a mute button
    Date: 12.05.2021 04:50:09Name: ERNEST HARRIS
    so I wanted to know if there is a way to mute the mic on this mixer because even when I turn the mic all the way down you it still picks up the sound from my headphones
