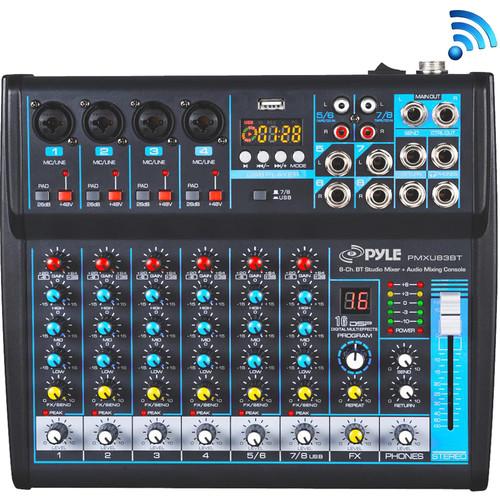

Pyle Pro PMXU83BT Compact 8-Channel, Bluetooth-Enabled

User Manual for Pyle Pro PMXU83BT Compact 8-Channel, Bluetooth-Enabled Audio Mixer

• Product category: Analog Recording Mixers Pyle Pro
• Brand: Pyle Pro
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Pyle Pro Analog Recording Mixers

Product description

• XLR-1/4" combo jack inputs

• Microphone preamps offer selectable 48V phantom power and up to 64 dB of gain

• Selectable -26 dB pad on each mic/line input channel

• Two stereo line inputs via 1/4" and RCA jacks

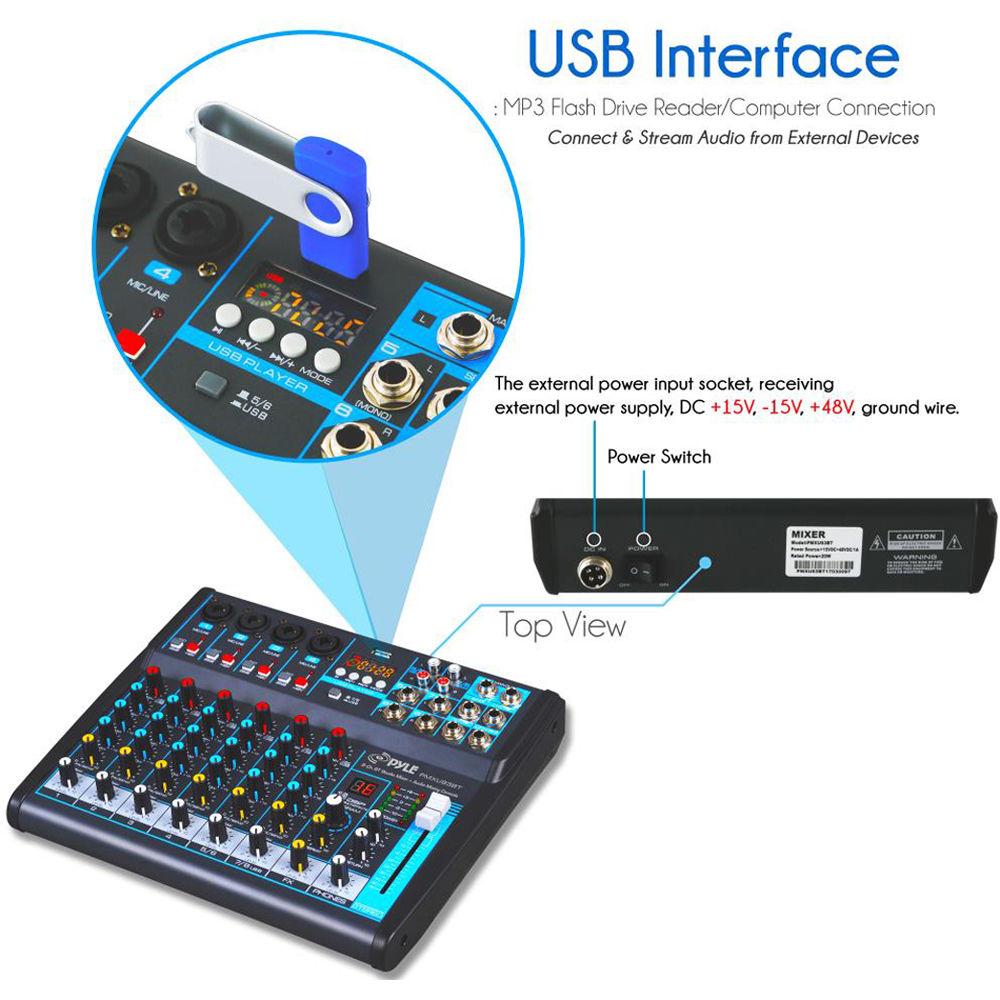

• USB Type-A port for connecting a computer or flash drive

• Play MP3 audio files via USB flash drive and on-board track controls

• Supports audio interface functionality via USB connection to a computer

• Built-in Bluetooth receiver allows music streaming from mobile devices

• 16-bit DSP effects engine with 16 presets

• Per-channel high, mid, and low EQ at 12 kHz, 2.5 kHz, and 80 Hz

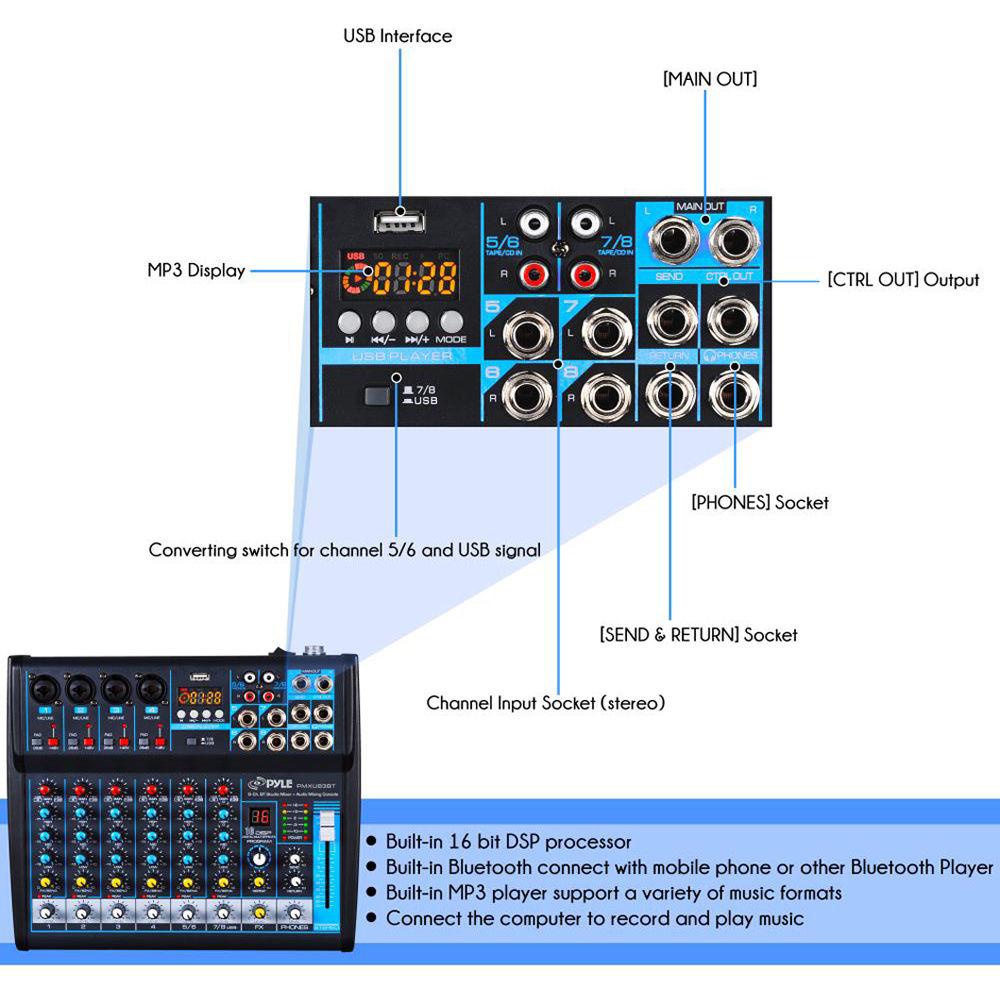

• 1/4" stereo main outputs for connection to speakers, a PA, or recording device

• 1/4" CTRL OUT for mono monitoring

• 1/4" stereo headphone output with dedicated level control

• 1/4" aux send and return allows an extra mono input, additional monitor output, or hook-up of an external effects processor

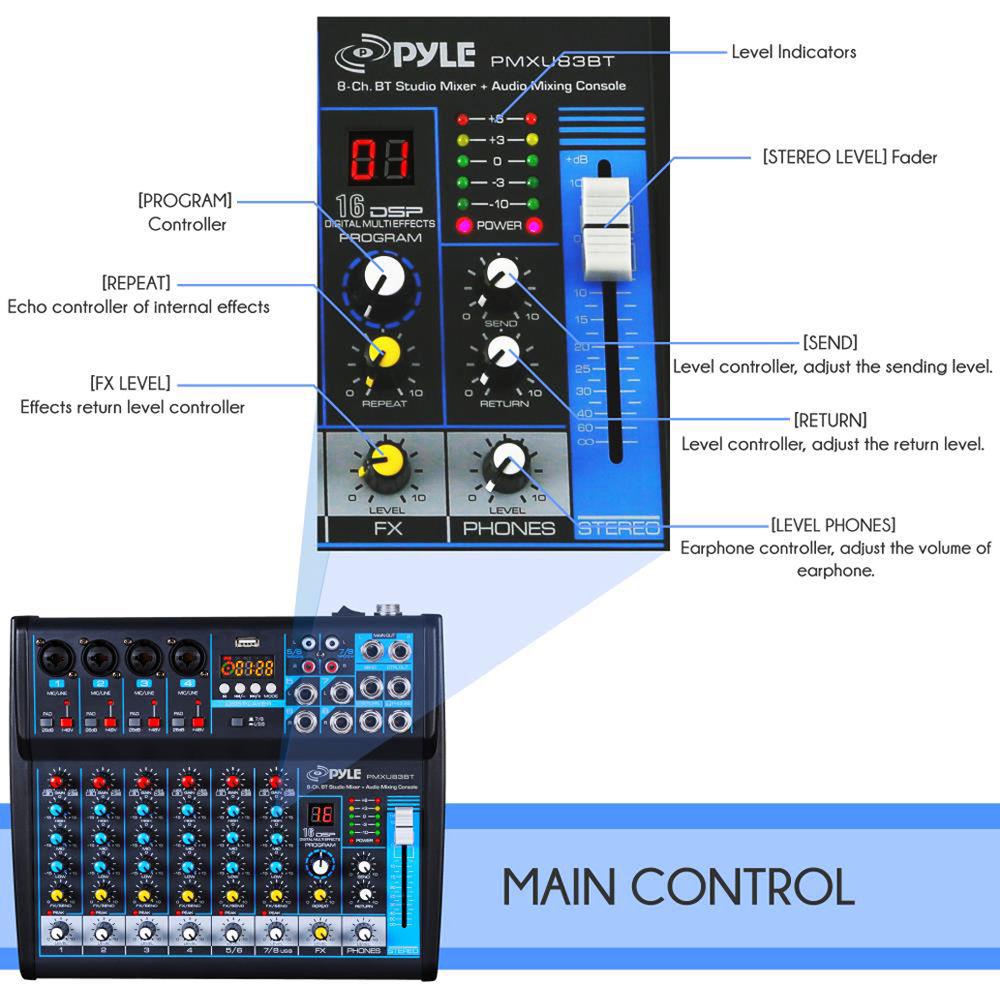

• Long-throw stereo master fader

• 5-segment stereo LED meters

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Pyle Pro PMXU83BT Specs

Total # Of Inputs	8
Mic/Line Inputs	4 x XLR-1/4" combo jacks
Stereo Line Inputs	4 x 1/4" jacks (two stereo pairs) 4 x RCA coaxial jacks (two stereo pairs)
In-Line Inputs/Returns	None
AUX Sends	1 x 1/4"
AUX Returns	1 x 1/4"
Inserts	None
BUS (Group) Outputs	None
2 Trk Master I/O	2 x 1/4"
ALT I/O	1 x USB Type-A
Monitor Outputs	1 x 1/4" stereo headphone jack 1 x 1/4" mono monitor jack
EQ Section	High: Rating 100% users recommend this product to others. And what about you? This product has already been rated by 85 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
