User Manual for Pyle Pro Portable Bluetooth Karaoke Speaker System Click to enlarge the picture
Contents of the user manual for the Pyle Pro Portable Bluetooth Karaoke Speaker
- Product category: Karaoke Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Karaoke
 |
User manual for the Pyle Pro Portable Bluetooth Karaoke Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

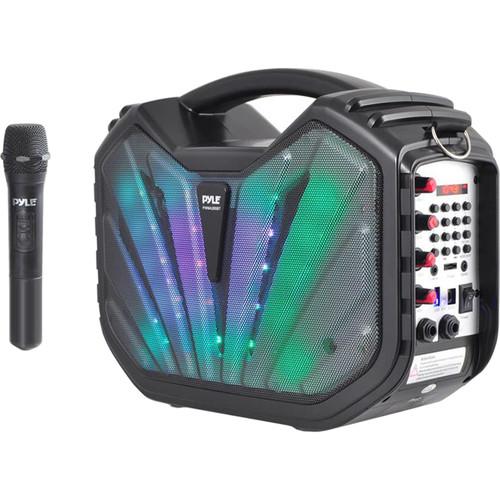

Product description The PWMA285BT Portable Bluetooth Karaoke Speaker System from Pyle Pro is a self-contained loudspeaker with flashing DJ lights and includes a built-in rechargeable battery, wireless microphone, and built-in FM radio. This compact and portable system is designed for quick set up and adds high-powered sound and visuals to your next get-together.
Bluetooth music streaming allows you to connect and stream audio from any Bluetooth compatible device including smartphones, tablets, laptops, and more. Additional music streaming options include USB Flash and micro-SD memory card readers. In addition to the included wireless microphone, the unit offers two 1/4" mic inputs with dedicated controls for treble, volume, and echo. The enclosure features an integrated handle for ease in transportation. - General Features
-
- Karaoke and music streaming speaker system
- Compact, portable and powerful
- Bluetooth wireless audio streaming
- Built-in rechargeable battery

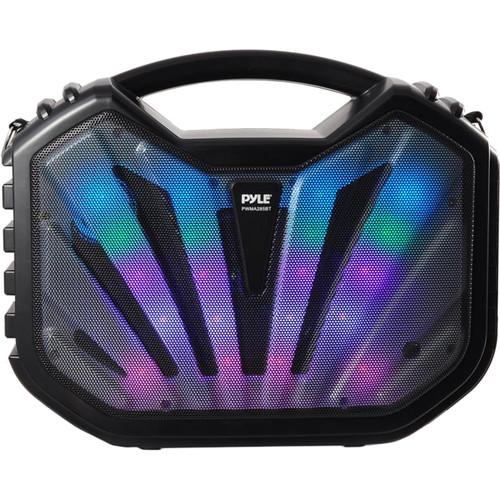

- Flashing DJ party lights
- FM radio with digital LCD display
- USB Flash & Micro SD memory card readers
- MP3 digital audio file compatibility
- Audio file recording mode
- Headphone jack
- Two 1/4" microphone inputs
- Includes wireless handheld microphone
- Aux (1/8") input
- Connect and stream from external devices
- Full range stereo sound reproduction
- Side panel button control center
- Rugged and heavy duty design
- Convenient carry handle
- Includes detachable carry strap
- Bluetooth Connectivity
-
- Built-in Bluetooth for wireless streaming
- Bluetooth Wireless Range: 65'
- Bluetooth Version: 2.0
- Audio Recording
-
- Easy one-button recording activation
- Record audio as streamed through the speaker system
- Ability to record vocals via microphone
- Records to USB Flash or Micro SD card
- Audio File Type Created: .mp3
- Easy transfer to PC and Mac

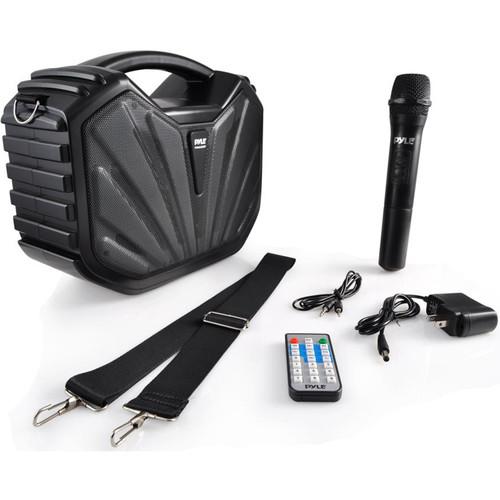

UPC: 068888764711 In the Box Pyle Pro Portable Bluetooth Karaoke Speaker System (5.25") Wireless Handheld Microphone 1/8" / 3.5 mm Audio Connection Cable Detachable Carry Strap Power Adapter Wireless Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro Portable Bluetooth Karaoke Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

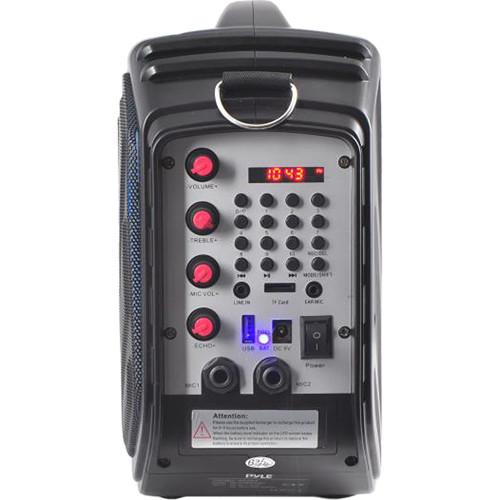

Technical parametersPyle Pro PWMA285BT Specs | Inputs and Outputs | Mic 1 & 2: 2x 1/4" / 6.35 mm
Line In: 1/8" / 3.5 mm TRS stereo input
Headphone Output: 1/8" / 3.5 mm
USB: Type A
TF Card: micro-SD
Power: 9 VDC adapter | | Bluetooth | Bluetooth Wireless Range: 65.0' / 19.8 m
Bluetooth Version: 2.0 | | Speakers | LF: 5.3" / 13.3 cm
HF: 2.0" / 5.1 cm | | Impedance | 4 Ohms | | Frequency Response | 100 Hz to 20 kHz | | Distortion | <1.0% | | Signal-to-Noise Ratio (SNR) | 80 dB | | USB / SD Card Maximum Size | 32 GB | | Power | 100/240 VAC
Adapter: 9 VDC | | Dimensions | 11.2 x 7.7 x 16.5" / 28.4 x 19.6 x 41.9 cm | | Weight | 7.6 lb / 3.4 kg | | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 14.2 x 13.0 x 7.6" |
