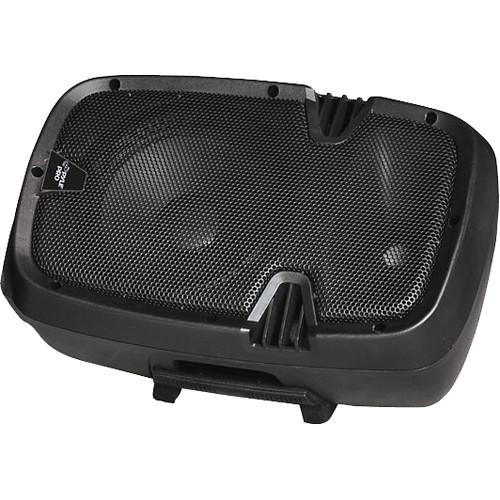

User Manual for Pyle Pro PPHP103MU Powered Two-Way PA Speaker Click to enlarge the picture
Contents of the user manual for the Pyle Pro PPHP103MU Powered Two-Way PA
- Product category: PA Speakers Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro PA Speakers
|
User manual for the Pyle Pro PPHP103MU Powered Two-Way PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|
Product description The Pyle PPHP103MU Powered Two-Way PA Speaker is an affordable, self-contained solution for presenters, mid-size auditoriums, small performances, rehearsals, solo artists, education applications, instruction and more. The PPHP103MU is a self contained, self amplified speaker providing 300 watts of power RMS and 600 watts peak.The portable speaker features inputs for microphones and line level devices, as well as USB, SD-card slot and 1/8" (3.5mm) inputs for audio playback from MP3 player devices, smartphones, SD-cards and USB input devices. There is a comprehensive LCD display positioned above transport controls. Use a microphone and line level audio device while simultaneously playing audio files from a USB device and SD-card. The enclosure features integrated handles for easy transport, and a 35mm speaker pole insert with screw mount. - Powered full-range speaker capable of 300 watts RMS and 600 watts peak
- USB port, SD-card slot and 1/8" (3.5mm) mini input for MP3 playback from portable audio players, smartphones, SD-cards and USB devices
- XLR, 1/4" phone, 1/8" (3.5mm) and RCA audio inputs
- Microphone level, line level, MP3 player level and master volume controls
- Switchable voltage between 110V and 220V
- Treble & Bass tone controls
- Comprehensive LCD display and transport controls
- Integrated 35mm speaker pole insert with screw mount
- Integrated carry handles also allow for monitor wedge positioning
UPC: 068889016529 In the Box Pyle Pro PPHP103MU Powered Two-Way PA Speaker 1 Year Warranty User Manual PDF 365.9kbeqasqzdsaberestcwyzxwqxbtyeerqtb Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PPHP103MU Powered Two-Way PA Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PPHP103MU Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 300 W RMS
600 W Peak | | | | HF Driver | 1 x 1" / 25.4 mm Compression Driver | | LF Driver | 1 x 10" / 25.4 cm Woofer | | | | Frequency Response | 45 Hz to 20 kHz | | | | Audio I/O | 2 x XLR Line/Mic Input
1 x 1/4" Mic Input
1 x Stereo RCA Line Input
1 x 1/8" / 3.5 mm TRS Aux Input
1 x XLR Output
1 x 1/4" Line Output | | | | Mounting | 1 x 1.38" / 3.5 cm Pole Socket | | Dimensions | 14.2 x 11.4 x 21.3" / 36.0 x 28.9 x 54.1 cm | | | | Package Weight | 22.35 lb | | Box Dimensions (LxWxH) | 21.6 x 14.1 x 12.0" |
