User Manual for Pyle Pro PPHP122BMU 12" 2-Way Portable Rechargeable PA Loudspeaker System with Bluetooth Click to enlarge the picture
Contents of the user manual for the Pyle Pro PPHP122BMU 12" 2-Way Portable
- Product category: Portable PA Systems Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Portable PA Systems
 |
User manual for the Pyle Pro PPHP122BMU 12" 2-Way Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

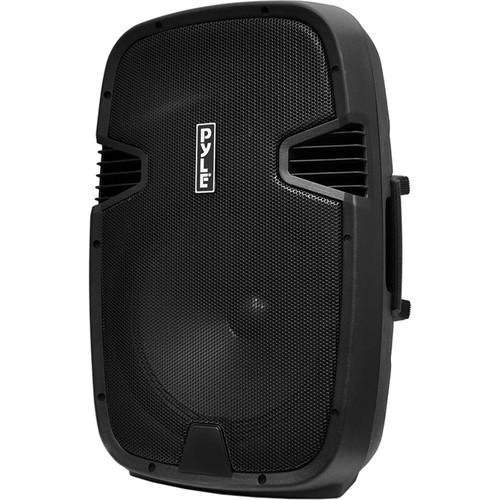

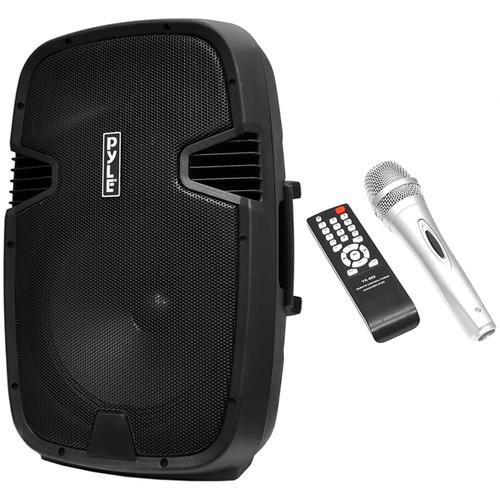

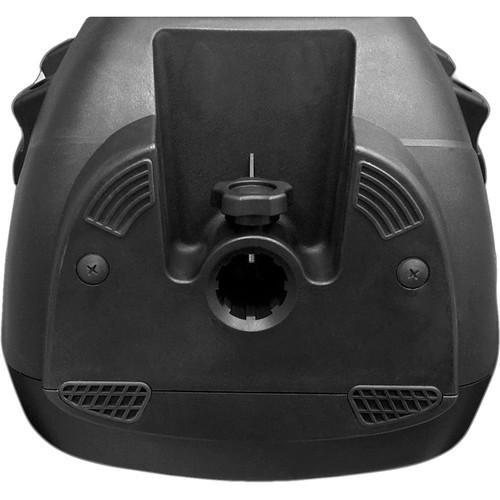

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The PPHP122BMU 12" 2-Way Portable Rechargeable PA Loudspeaker System from Pyle Pro is a wide-coverage, two-way loudspeaker system with Bluetooth, and covers the frequency response from 20 Hz to 20 kHz. Pair it with your favorite amplifier for powerful full-range, distortion-free sound with built-in 12" subwoofer and 5" tweeter. Stream music wire-free when you pair your Bluetooth-enabled device; stream your favorite music or internet radio-station providers like Pandora or Spotify. This speaker pushes everything from pounding bass to a chirpy high-end, all in one cabinet. It comes equipped with dual 1/4" inputs jacks for microphones or guitars, and a 35mm pole-insert mount for various mounting options. The system includes a digital LCD-readout display, a handheld wired microphone, a wireless remote, an RCA-to-3.5mm connection cable, and RCA line inputs and outputs. The PA system is compact enough to be portable with detachable wheels and a heavy-duty carry handle. The molded-cabinet housing is rough and rugged, while the speakers are protected by the metal grille. The PPHP122BMU also features built-in rechargeable battery, FM Radio with auto station scan and store, 5-band music channel EQ, and USB Flash and SD Memory-Card readers. - Portable PA loudspeaker molded-cabinet system
- Built-in Bluetooth for wireless music streaming
- Works with all Bluetooth-enabled devices
- USB Flash- and SD Memory-Card readers

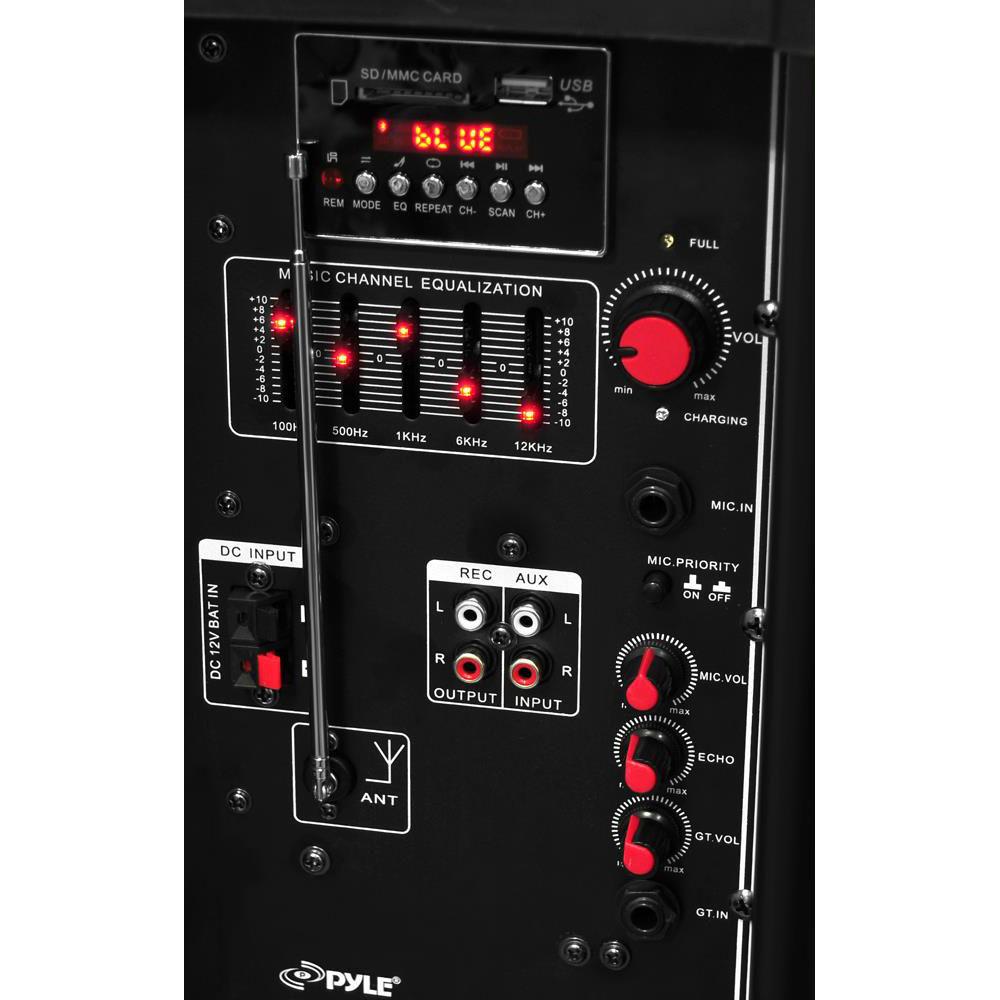

- 5-Band music channel EQ with blue LEDs
- Digital display screen with FM radio
- Displays song number and play time
- Auto-Scan and Store for radio stations
- Built-in rechargeable battery with battery life up to 3 hours, non-stop play

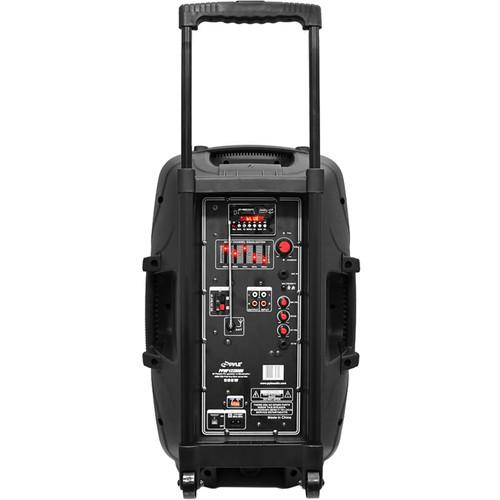

- Retractable handles and caster wheels for easy transport
- Rugged, durable and reliable housing

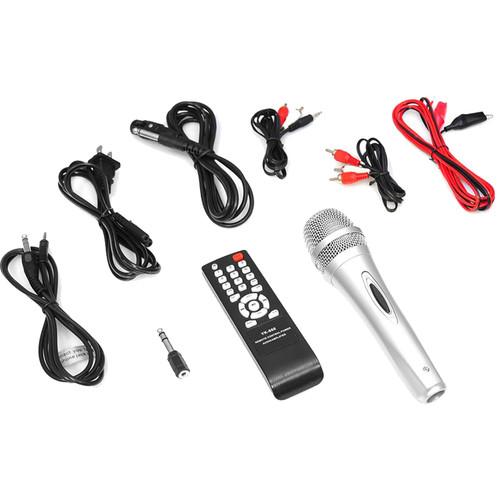

UPC: 068888757416 In the Box Pyle Pro PPHP122BMU 12" 2-Way Portable Rechargeable PA Loudspeaker System with Bluetooth (800W) Wireless Remote Wired Handheld Microphone Connection Cable (RCA to 3.5 mm) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PPHP122BMU 12" 2-Way Portable Rechargeable PA Loudspeaker System with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PPHP122BMU Specs | Drivers | Woofer: 12" (30.5 cm)
Tweeter: 5" (12.7 cm) | | Maximum Power Output | 800 W | | RMS Power Output | 400 W @ 4 ohms | | Frequency Response | 20 Hz - 20 kHz | | Crossover Frequency | 3.5 kHz | | Impedance | 4 ohms | | Sensitivity | 92 dB | | THD | 10% | | Connectors | 1 x 1/4" phone jack, microphone input
1 x 1/4" phone jack, guitar input
1 x RCA, left AUX input
1 x RCA, right AUX input
1 x RCA, left REC output
1 x RCA, right REC output
1 x USB, port
1 x SD, port
1 x DC power jack, 12 V power input | | Controls and Indicators | 1 x Dial, Master volume
1 x Dial, Microphone volume
1 x Microphone priority
1 x Dial, Guitar volume
1 x Dial, Echo
1 x 5-band EQ
1 x Button, Mode/Input selection
1 x Button, Repeat
1 x Button, Previous
1 x Button, Next
1 x Button, Play/Pause
2 x LED, power indicator | | Wireless Range | Over 65' (19.8 m) | | Battery | 4.5 Amp | | Battery Life | up to 3 hours, non-stop play | | Charge Time | 8 hours, average | | Voltage Selector Switch | 110 / 220 | | Magnet | 30 oz | | Tweeter | Piezo | | Card | Maximum USB/SD Size: 32 GB | | File Compatibility | MP3 | | Material | Engineered ABS | | Weight | 32.6 lb (14.8 kg) | | | | Package Weight | 31.0 lb | | Box Dimensions (LxWxH) | 26.0 x 16.0 x 15.0" |
