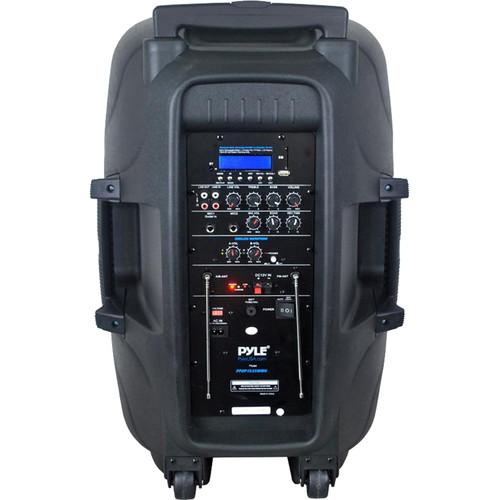

User Manual for Pyle Pro PPHP1535WMU Portable 15" 2-Way 1600W Wireless and Bluetooth-Enabled PA System Click to enlarge the picture
Contents of the user manual for the Pyle Pro PPHP1535WMU Portable 15" 2-Way
- Product category: Portable PA Systems Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Portable PA Systems
 |
User manual for the Pyle Pro PPHP1535WMU Portable 15" 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Pyle Pro PPHP1535WMU is a portable 15" 2-way 1600W wireless and Bluetooth-enabled PA system designed to provide convenient reproduction of vocals and music for DJs, musicians, announcers, singers, and performers at clubs, parties, seminars, and shows. A 15" woofer and 1.3" tweeter handle 1600W of output power and yield a frequency response of 75 Hz to 18 kHz. Built-in FM radio and an integrated Bluetooth receiver allow flexible wire-free signal routing of music. The supplied wireless handheld microphones transmit to the rear-mounted antenna, which resides just below the wireless receiver's level controls and power switch. Use the 1/4" and RCA inputs for other sources such as non-Bluetooth mobile devices, CD players, wired mics, and mono instruments. Utilize your personal music library by connecting a USB flash drive or SD card to play MP3 and WMA audio files. An integrated mixer offers easy level balancing and sound-enhancing controls including 2-band EQ, echo, and reverb time. Save your performance for posterity via the integrated MP3 recording function. The PPHP1535WMU's built-in carry handles, extendable luggage handle, and rolling wheels make transporting the system simple. Power the PA via the internal rechargeable battery or connection to AC power. It ships with detachable mic holders, a power cable, and a remote control for access to volume, track navigation, and more when you're not at the PA's rear-panel buttons. - Built-in Bluetooth receiver allows streaming music from mobile devices
- Integrated wireless receiver for use with supplied wireless handheld microphones
- 1600W of output power through a 15" woofer and 1.3" tweeter
- Mixer with level controls, 2-band EQ, echo, and reverb time
- Connect a stereo music playback device to the RCA jacks and instruments or dynamic mics to the 1/4" inputs
- USB Type-A port and SD card slot support playback of MP3 and WMA audio files via flash drives or SD memory cards up to 16GB in capacity
- RCA coaxial stereo output
- LCD shows FM radio or track playback information
- Built-in rechargeable battery
- Rear-panel charge indicator
- Includes wireless remote control for convenient operation at a distance
- 35mm hole for mounting to a speaker stand
- Built-in carry handles, extendable luggage handle, and rolling wheels enable easy transport
UPC: 068888769945 In the Box Pyle Pro PPHP1535WMU Portable 15" 2-Way 1600W Wireless and Bluetooth-Enabled PA System 2 x Wireless UHF Handheld Microphones Detachable Mic Holders Detachable Rolling Wheels Remote Control Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PPHP1535WMU Portable 15" 2-Way 1600W Wireless and Bluetooth-Enabled PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PPHP1535WMU Specs | Inputs | 2 x 1/4" inputs
2 x RCA coaxial (one stereo pair) | | Outputs | 2 x RCA coaxial (one stereo pair) | | Woofer | 15" / 381 mm | | Tweeter | 1.3" / 34 mm | | Maximum Power Output | 1600 W peak / 800 W RMS | | Frequency Response | 75 Hz to 18 kHz | | Impedance | 4 Ohms | | THD | 0.3%, 25 W | | Signal to Noise Ratio | >50 dB | | Sensitivity | 96 dB (
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Pyle Pro PPHP1535WMU Portable 15" 2-Way 1600W Wireless and Bluetooth-Enabled PA System
| Subject: battery replacement | | Date: 09.01.2024 03:21:40 | Name: Don Gutheil | My Pyle Pro 1535 WMU battery died and I have another standing by to replace it. The back is off but I can't figure out how to get the old battery out. Any ideas?
IF not, I was thinking of just leaving it there, disconnecting it and clip the wiring onto a battery carried externally. Poor 2nd choice but what else? | | Post reply |
| Subject: how to connect Pyle Pro 1535WMu Portable 15" PA Speaker to 12" Powered Subwoofer | | Date: 08.05.2023 23:12:57 | Name: DERRY SYKES | | Unable to connect my Pyle Pro 15" 1535 PA to Mr. DJ Speaker Powered Subwoofer through the RCA In/out put slots | | Post reply |
