User Manual for Pyle Pro PPHP1537UB 1,200W Powered 2-Way Speaker Click to enlarge the picture
Contents of the user manual for the Pyle Pro PPHP1537UB 1,200W Powered 2-Way
- Product category: Portable PA Systems Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Portable PA Systems
 |
User manual for the Pyle Pro PPHP1537UB 1,200W Powered 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

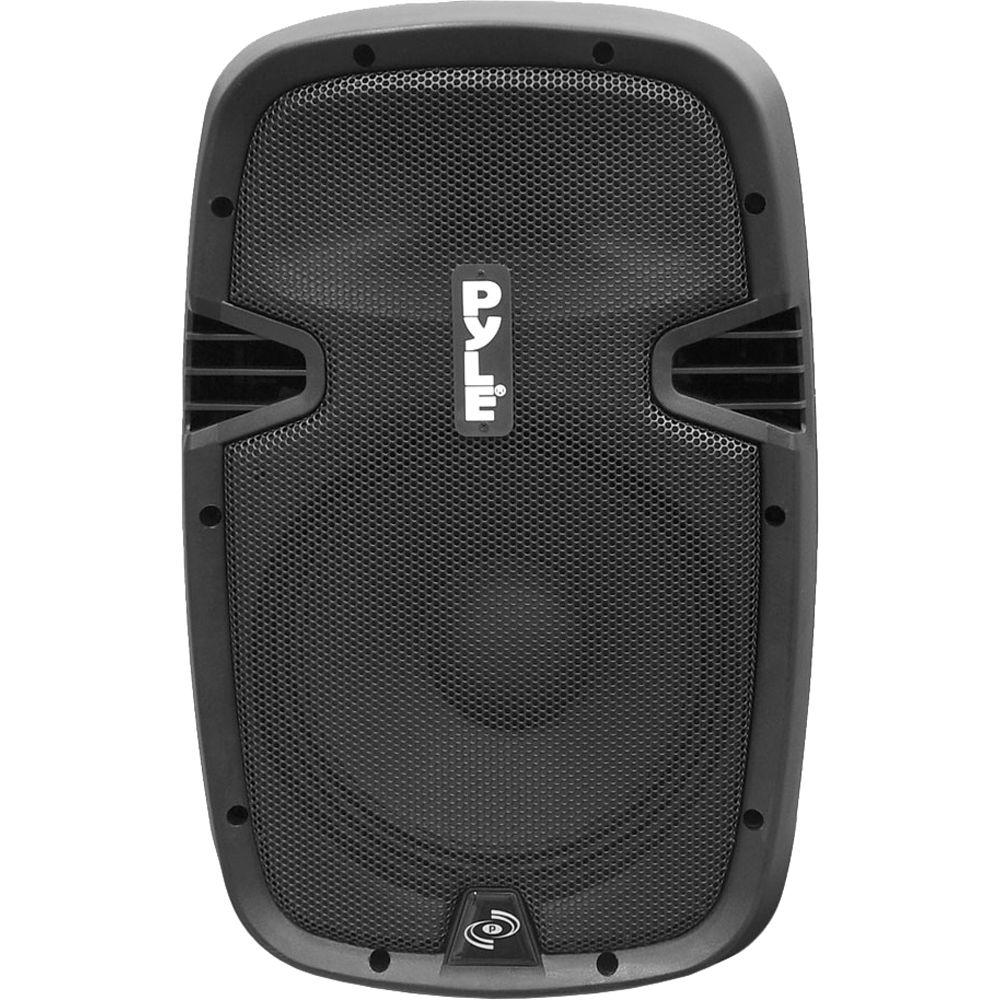

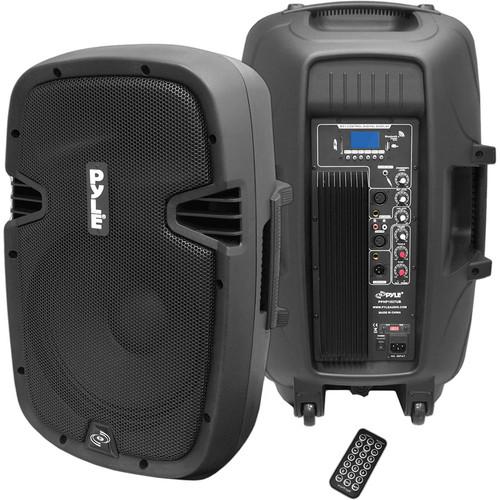

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Pyle Pro PPHP1537UB 1,200W Powered 2-Way Speaker is a wide-coverage, two-way loudspeaker that covers the complete audible audio spectrum. This speaker pushes everything from bass to high-end, all in one cabinet. It comes equipped with 1/4" inputs to accommodate voice or any electronic instrument. This speaker has a 35mm pole mount socket for mounting.

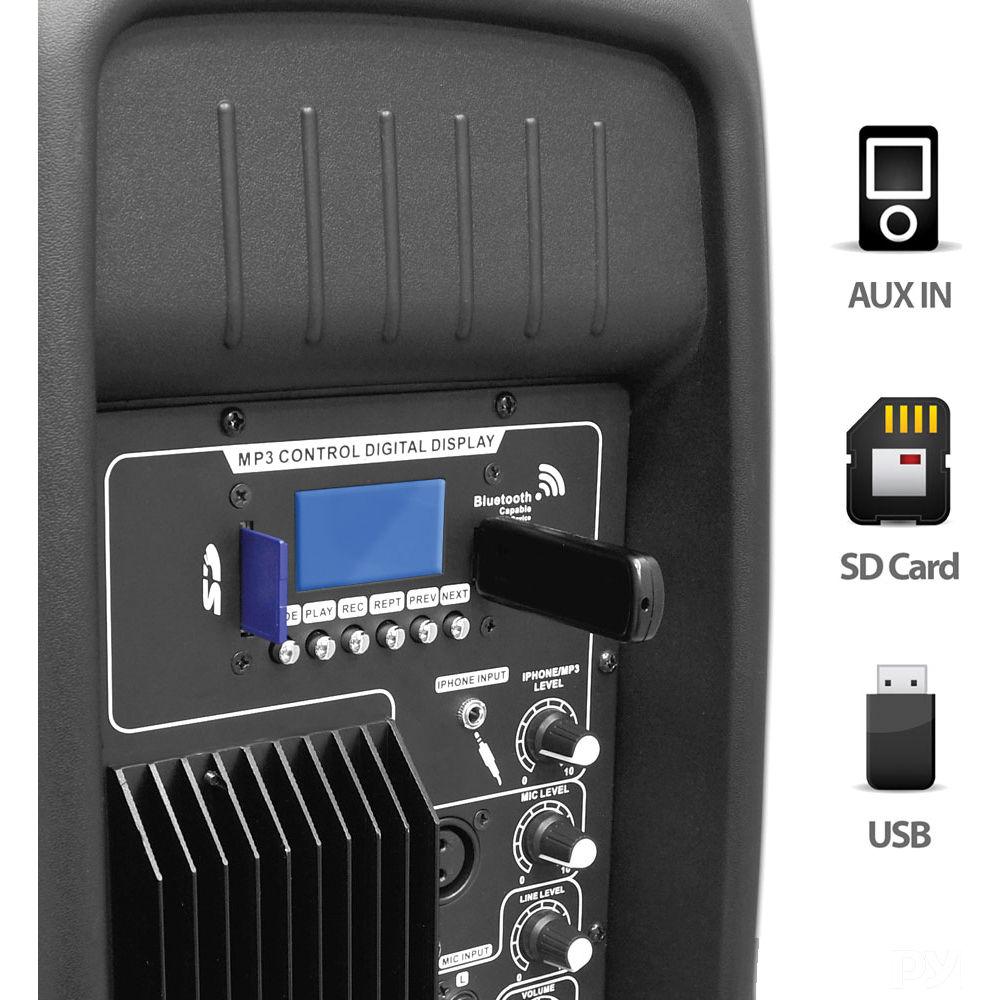

It is designed for use by bands and DJs at clubs or parties. The titanium diaphragm compression drivers and subwoofer are protected by a metal grill, so you know your sound is secure. Enjoy additional features like a 3-channel mixer, XLR and 1/4" mic inputs, and a 3.5mm aux-in compatible with all digital music players and smartphones. You can also play and record audio files via USB flash connection. A remote is included - Bluetooth music streaming ability works with Bluetooth compatible phones, MP3 players, tablets, etc.
- 15" Woofer and compression driver with 1.75" titanium diaphragm
- XLR and stereo RCA line input
- Master volume, treble, and bass controls
- 3.5mm Aux-in compatible with all digital music players
- Record your music to USB flash or SD memory card
- Play music files via USB flash or SD memory card

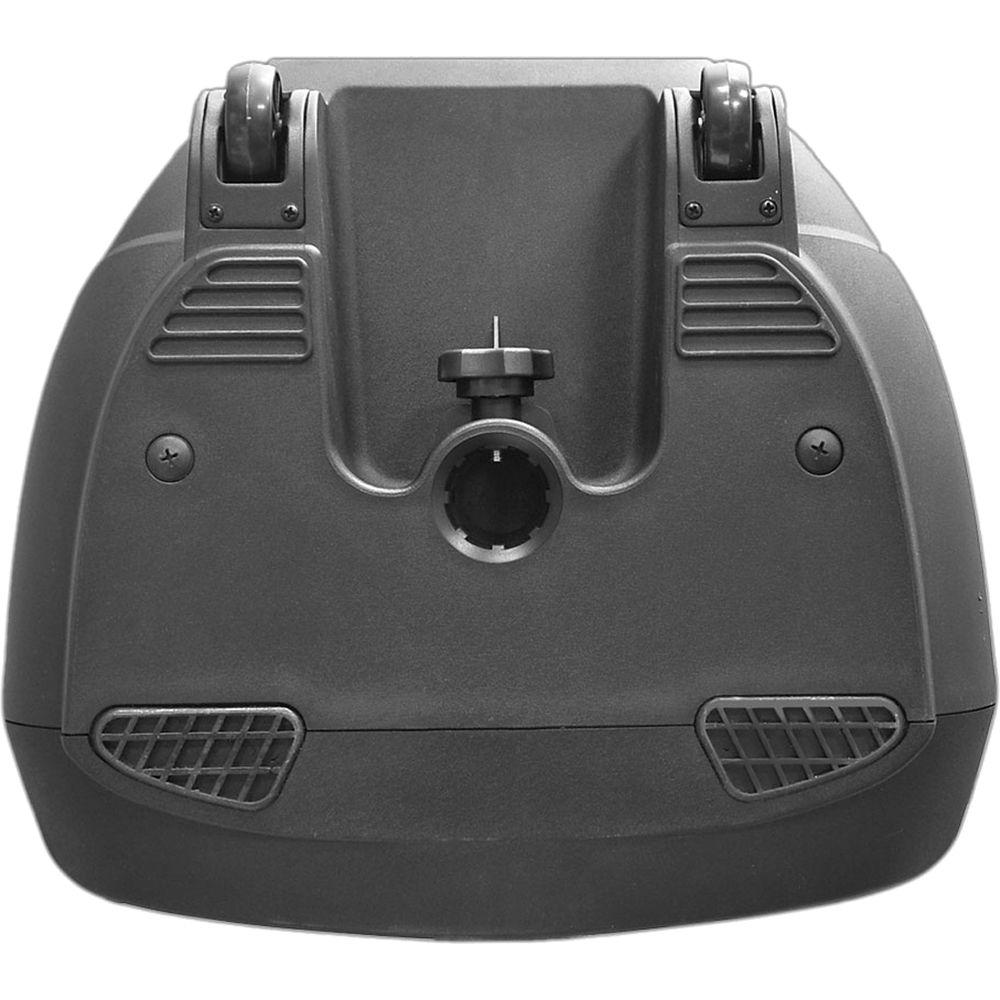

- Integrated 35mm speaker stand mount
UPC: 068888744027 In the Box Pyle Pro PPHP1537UB 1,200W Powered 2-Way Speaker Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PPHP1537UB 1,200W Powered 2-Way Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PPHP1537UB Specs | Woofer | 15" (381 mm)
Impedance: 8 Ω
Sensitivity: 98 dB
Frequency Response: 30 Hz to 22 kHz
Voice Coil: 3" (75 mm)
Magnet: 60 oz (1.7 kg) | | Tweeter | Impedance: 8 Ω
Sensitivity: 110 dB mW
Frequency Response: 600 Hz to 20 kHz
Voice Coil: 1.75" (44.5 mm)
Diameter Material: Titanium | | Power Output | RMS: 600 W
Peak: 1,200 W | | Crossover Frequency | 2.2 kHz | | Voltage | 110 to 220, selectable | | Mount | Integrated 35 mm speaker stand mount | | Dimensions (WxDxH) | 19 x 15.7 x 29.1" (48.3 x 39.9 x 73.9 cm) | | Weight | 44.5 lb (20.2 kg) | | | | Package Weight | 46.0 lb | | Box Dimensions (LxWxH) | 29.0 x 19.0 x 16.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 28 owners. Add your rating and experience with the product.
