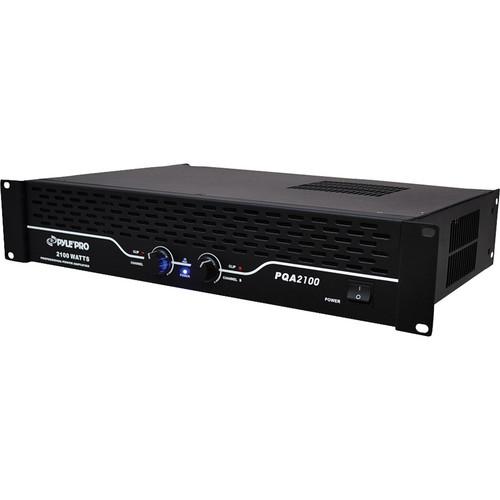

Product description The PQA2100 Rackmount Stereo Power Amplifier (230W/Channel @ 8 Ohms) from Pyle-Pro is a professional-quality power amplifier that provides versatile operation in a compact and durable design. The amplifier has a strong metal chassis that fits into any standard 19" equipment rack. It can operate in stereo, bridged mono, or parallel modes to meet a variety of needs. A high-quality ring transformer delivers clean, clear audio.

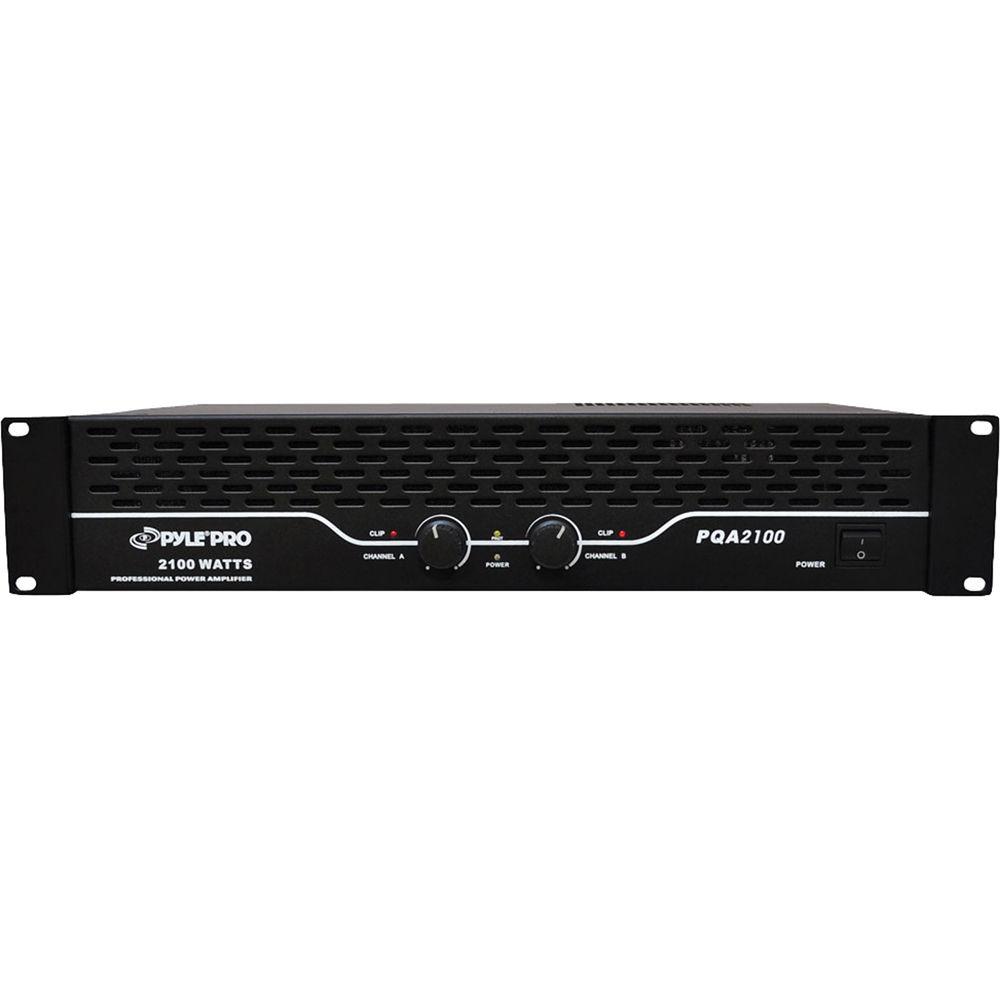

The front panel offers individual volume controls for each channel to make convenient adjustments. The rear panel has dual RCA and 1/4" inputs, plus dual Speakon, binding post, and 1/4" outputs, allowing you to connect the amplifier to a variety of sound systems and devices. The amplifier has a soft start limiter, plus a ground-lift switch to eliminate hum. Protection circuitry keeps the amplifier running smoothly, while a variable-speed fan keeps internal components cool. LED indicators let you keep tabs on operating status at-a-glance. - Strong metal chassis fits into any standard 19" equipment rack
- Operates in stereo, bridged mono, or parallel modes to meet a variety of needs
- A high-quality ring transformer delivers clean, clear audio
- A soft start limiter prevents distortion, while a ground-lift switch eliminates hum caused by ground loops
- The front panel offers individual volume controls for each channel to make convenient adjustments

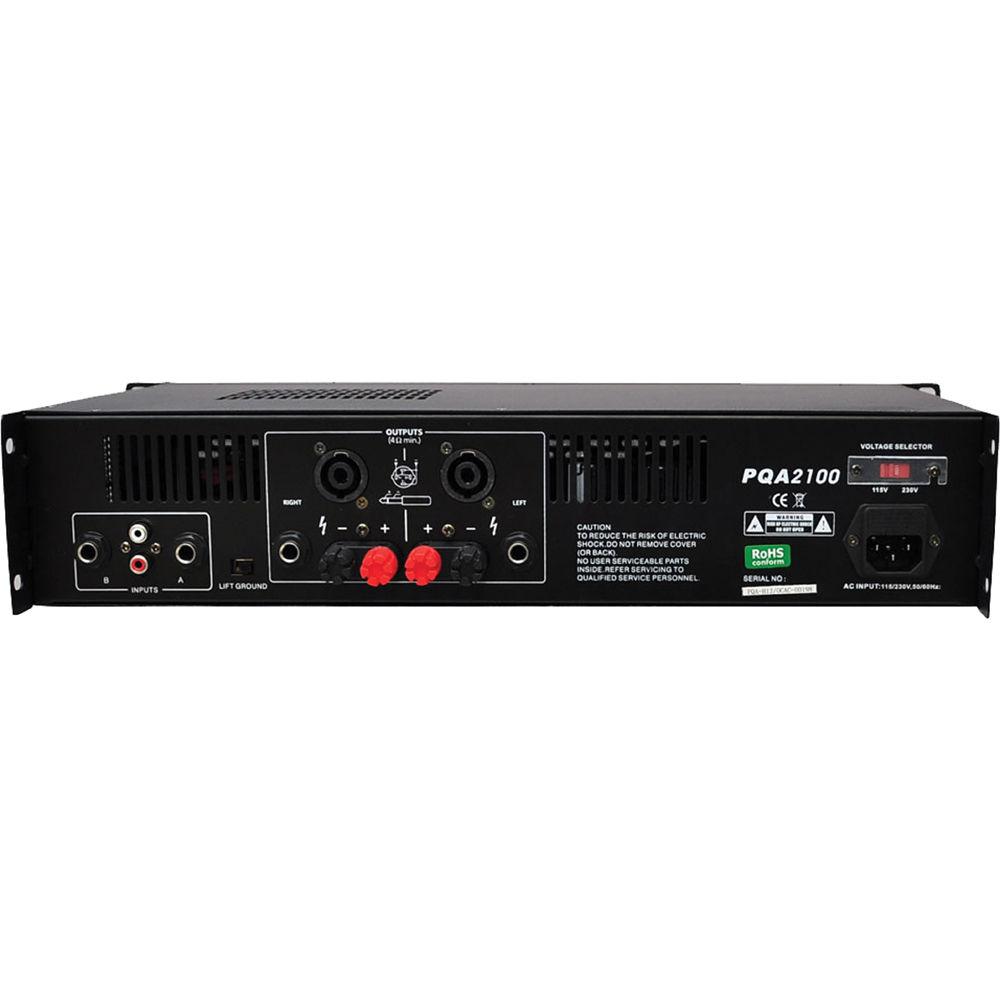

- The rear panel has dual RCA and 1/4" inputs, plus dual Speakon, binding post, and 1/4" outputs, allowing you to connect the amplifier to a variety of sound systems and devices
- Protection circuitry for short circuits, current limiting, thermal cut off, slow start, AC line fuse, DC fault, and power up/down transients is built in to keep the amplifier running smoothly
- A variable-speed fan keeps internal components cool
- LED indicators for power, clip, and protect let you keep tabs on operating status at-a-glance

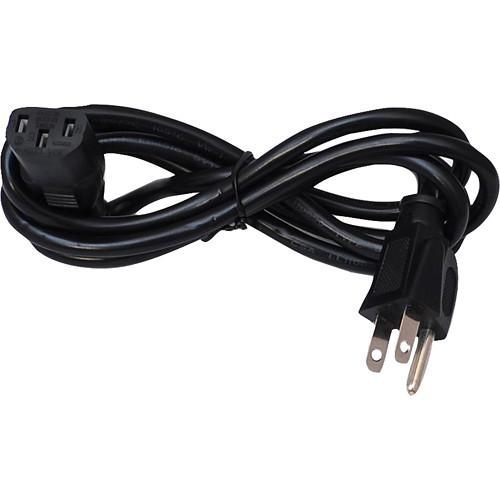

UPC: 068888993449 In the Box Pyle Pro PQA2100 Rackmount Stereo Power Amplifier (230W/Channel @ 8 Ohms) Power Cord 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PQA2100 Rackmount Stereo Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PQA2100 Specs | Power Rating | 1050W/Channel Peak, 525W/Channel RMS
230W/Channel @ 8 Ohms Stereo
460W/Channel @ 4 Ohms Stereo
920W/Channel @ 2 Ohms Bridged | | Damping Factor | > 250 | | Slew Rate | 30V/µs | | Input Level | 21dB/9V (Limiter On) | | Input Impedance | 20 kOhms, Balanced | | Crosstalk | > 70dB | | Frequency Response | 10Hz - 50kHz (-1.5dB) | | Signal-to-Noise Ratio | > 85dB | | Total Harmonic Distortion (THD) | < 0.1% | | Input Connectors | 2 x RCA Inputs
2 x 1/4" Inputs
1 x AC Power Input | | Output Connectors | 2 x Speakon Outputs
2 x 1/4" Outputs
2 x Binding Post Outputs (2 Posts Each) | | Controls | 1 x Power Switch
2 x Volume Controls
1 x Ground-Lift Switch
1 x Voltage Selector Switch | | Indicators | 1 x Green Power LED
1 x Yellow Protection LED
2 x Red Clip LEDs | | Cooling | Variable-Speed Fan | | Protection | Short Circuit, Current Limiter, Thermal Cutoff, Slow Start Limiter, AC Line Fuse, DC Fault, Power Up/Down Transients | | Power Requirements | 115-230VAC, 50/60Hz (Switchable) | | Power Consumption | < 250W (Half Power @ 8 Ohms) | | Dimensions (WxDxH) | 19 x 12.4 x 3.5" (482 x 314 x 88mm) | | Weight | 20.9 lbs (9.5kg) | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 20.1 x 14.3 x 6.0" |
