User Manual for Pyle Pro PRJD903 2000-Lumen LCD Projector Click to enlarge the picture
Contents of the user manual for the Pyle Pro PRJD903 2000-Lumen LCD Projector
- Product category: Multimedia Projectors Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Multimedia Projectors
 |
User manual for the Pyle Pro PRJD903 2000-Lumen LCD Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

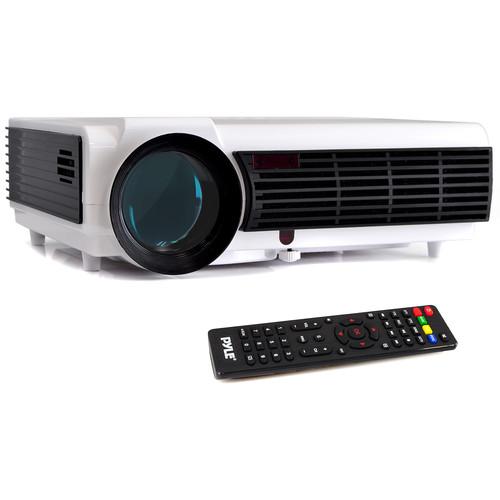

Product description Enjoy versatile multimedia playback with the Pyle Pro PRJD903 2000-Lumen LCD Projector. Its two USB ports support flash drives up to 64GB and external hard drives up to 400GB, for the playback of popular audio and video files such as MP3, WMA, MOV, MP4, and more. Its 2000 lumens of brightness will provide adequate brightness in mostly dim rooms, while its 2000:1 contrast ratio will help enhance the detail in dark areas of the image. The projector supports more traditional inputs via VGA, component video, composite video, and dual HDMI inputs. - Supports multimedia management and playback from USB flash drives up to 64GB and external hard drives up to 400GB
- USB ports support charging of mobile devices
- Supports up to Full HD 1080p video
- Picture adjustment and customization options
- Ceiling-mountable with 360° image flip function

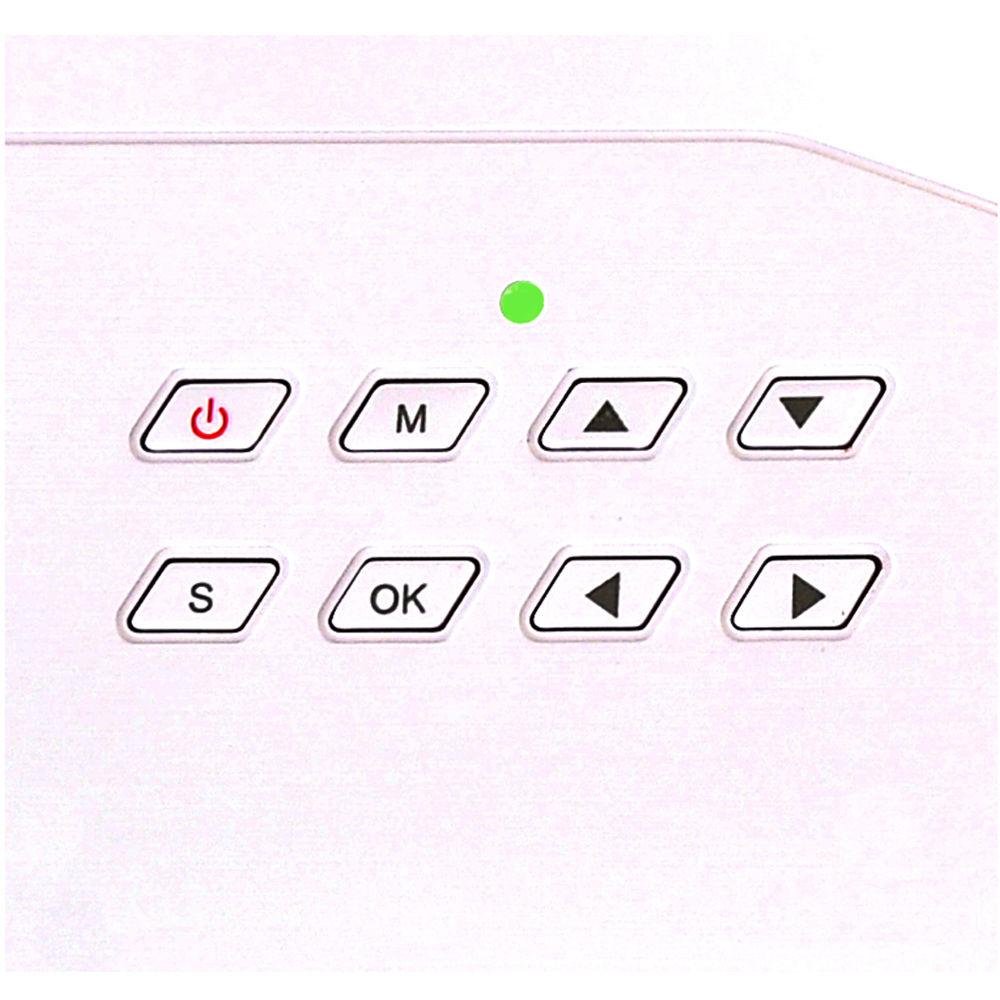

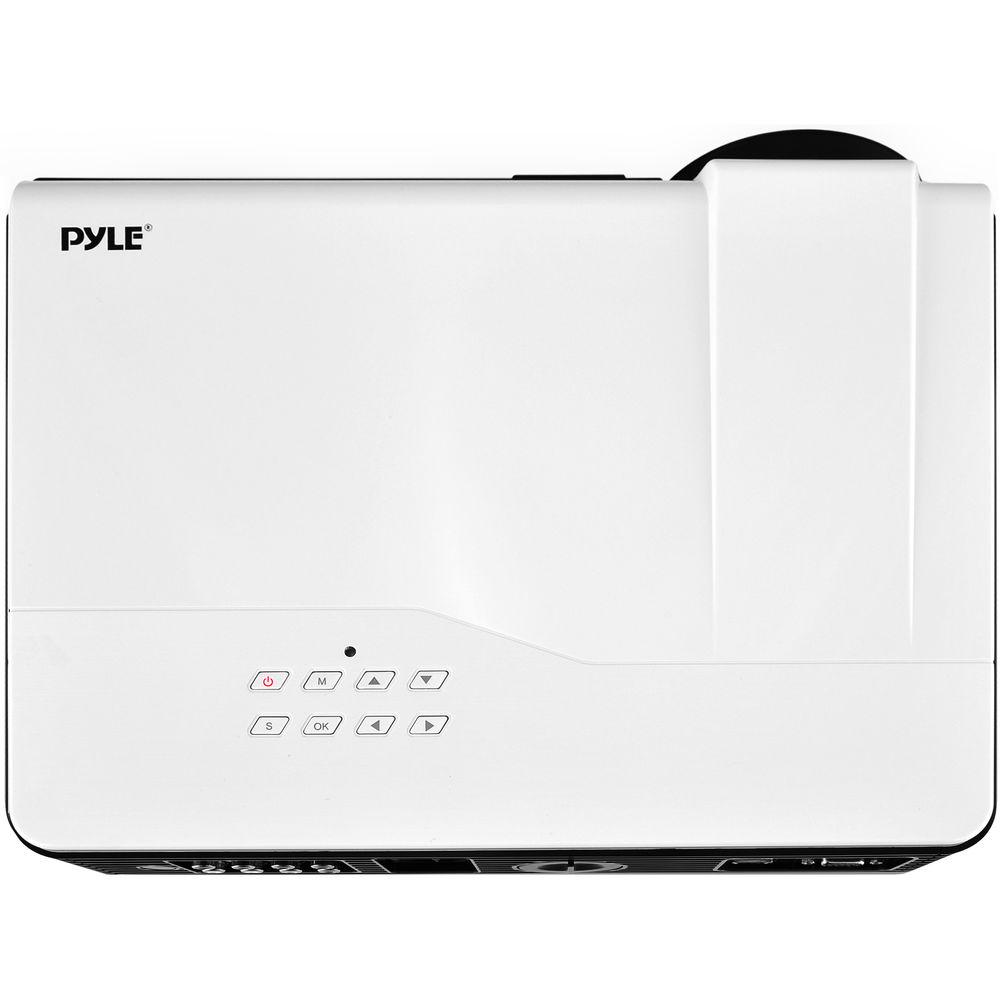

- Top-panel button controls
- Control interface designed to be user-friendly
- Dual ventilation cooling fans

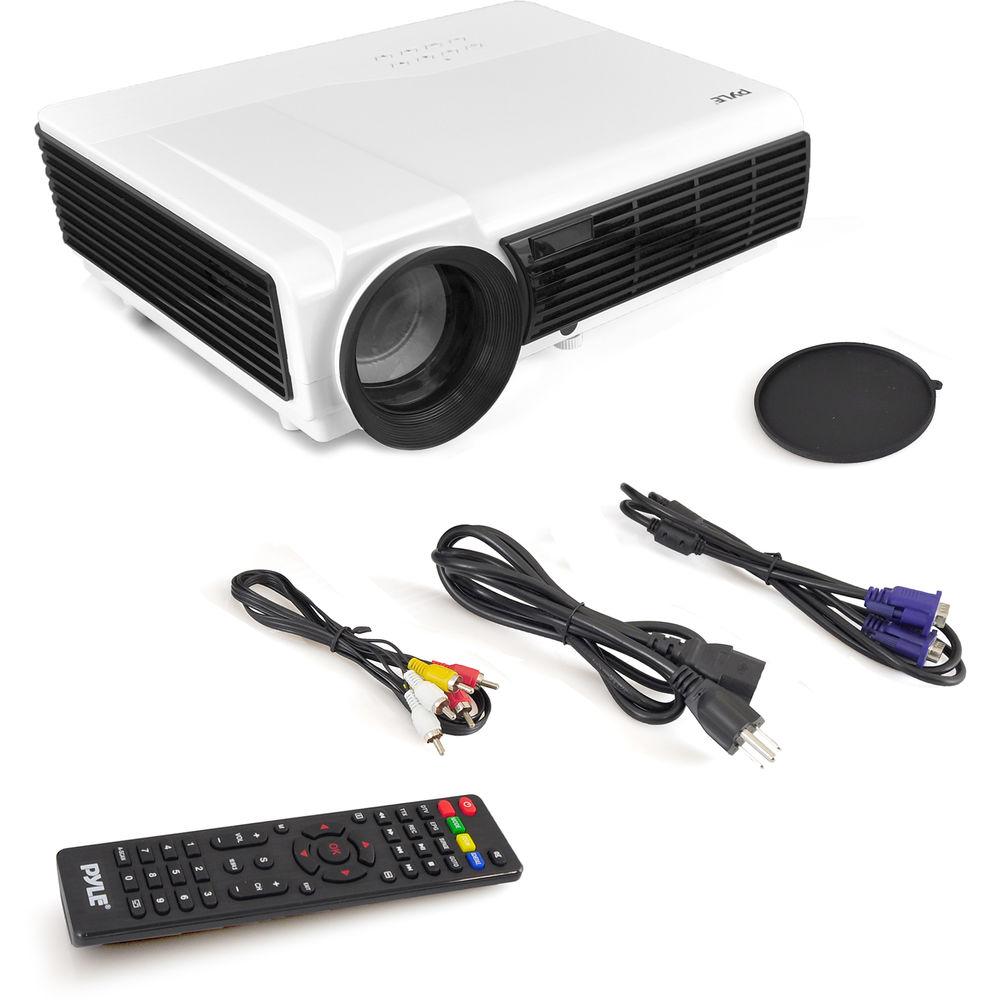

UPC: 068888759854 In the Box Pyle Pro PRJD903 2000-Lumen LCD Projector Remote Control Component Video Cable RCA A/V Connection Cable Lens Cleaner Dust Cover Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PRJD903 2000-Lumen LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PRJD903 Specs | | | Display System | LCD | | Native Chip Resolution | 854 x 540 | | Supported Resolutions | Full HD 1080p | | Max Brightness | 2000 Lumens | | Aspect Ratio | Supported: 16:9

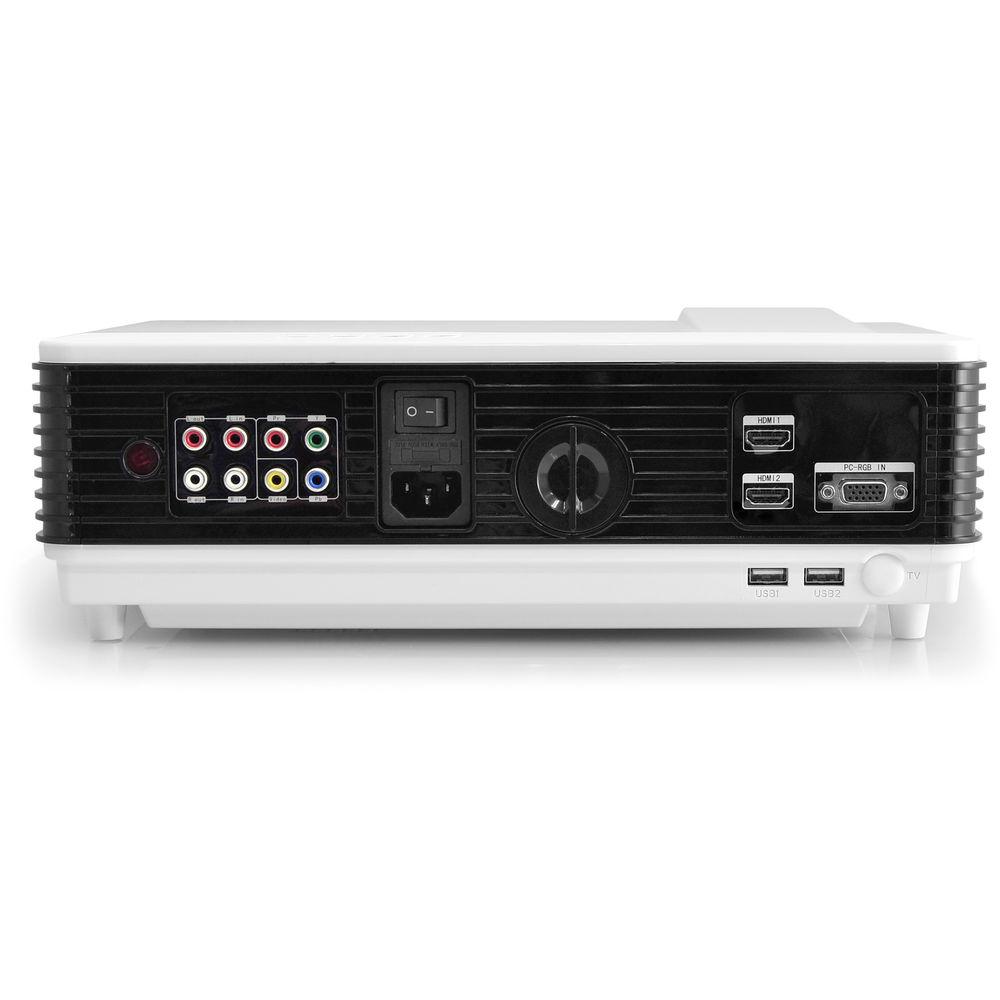

Supported: 4:3 | | Contrast Ratio | 2000:1 | | Color Depth | 8-Bit (16.78 Million Colors) | | | | Focus | Manual | | Lens | f/3.8 (f = 190 mm) | | Projection Size | 60 - 120" / 152.40 - 304.80 cm | | | | Keystone Correction | : ± 15° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 4W | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
2 x USB Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x Component (3RCA) Video (Input)
1 x Composite (RCA) Audio/Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x RCA Stereo (L/R) Audio (Output) | | Wireless LAN / Wi-Fi | None | | | | Light Source | LED | | Color Temperature | 9300K | | Lamp Power | 100 W | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Supported Audio File Types | MP3, WMA | | Supported Video File Types | AVI, MOV, MP4, MPEG | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Dimensions (W x H x D) | 12.8 x 4.0 x 9.6" / 32.5 x 10.2 x 24.4 cm | | Weight | 8.82 lb / 4.00 kg | | | | Package Weight | 8.15 lb | | Box Dimensions (LxWxH) | 15.354 x 13.15 x 7.165" |
