User Manual for Pyle Pro PRJG45 Mini LED Projector Click to enlarge the picture
Contents of the user manual for the Pyle Pro PRJG45 Mini LED Projector
- Product category: Pico Projectors Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Pico Projectors
 |
User manual for the Pyle Pro PRJG45 Mini LED Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

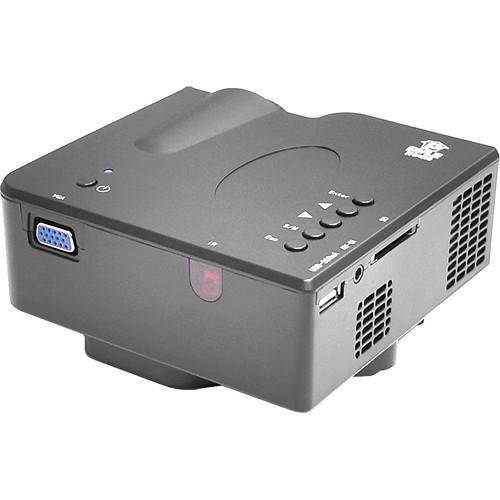

Product description Weighing one pound and DC-powerable, the PRJG45 Mini LED Projector from Pyle Pro is designed so you can give presentations or be entertained on the go. It features a 40 lumens LED lamp that consumes 41 watts of power and can support image sizes up to 67" diagonal. A 320 x 240 native resolution yields a 4:3 native aspect ratio, plus the projector can accommodate 16:9 sources by scaling the image.
For connection to computers, media players, AV switchers, game consoles, DVRs, and more, there is an HDMI input, a VGA input, and a 3.5mm mini AV input with RCA adapter cable included. There is also a USB port for giving presentations and playing media including video, photos, and music from a flash drive or other USB storage device, and there is a built-in SD memory card reader that can play the same file types. The projector can be operated using top-panel buttons or the included remote control. - Project From SD Cards or USB Drives
- With the PRJG45 you don't need a computer or other external video source. A number of still image, video, and audio formats can be played directly from an SD memory card or from a USB storage device such as a flash drive. Supported file types include, MOV, MP4, AVI, WMV, WMA, MP3, JPG, and more
- Supports up to 67" Screen Size
- At 40 lumens brightness, this projector is recommended for displaying image sizes up to 67". The image size that can be achieved will depend on the distance from the projector to the screen, wall, or other projection surface and the amount of ambient light the room
- 4:3 Native Aspect Ratio
- This projector features a 4:3 aspect ratio picture optimal for SD video, PowerPoint presentations, and many still images formats. The wider 16:9 HDTV aspect ratio can still be displayed. This is achieved either by cropping the sides of the image, "letterboxing" (adding black bars top and bottom), or applying an anamorphic squeeze, which stretches the picture vertically so that it fits
- Power in the Car
- The 12 VDC input means you can use DC sources such as a car cigarette port or battery pack. An AC adapter is included, while car adapters and batteries a both available separately

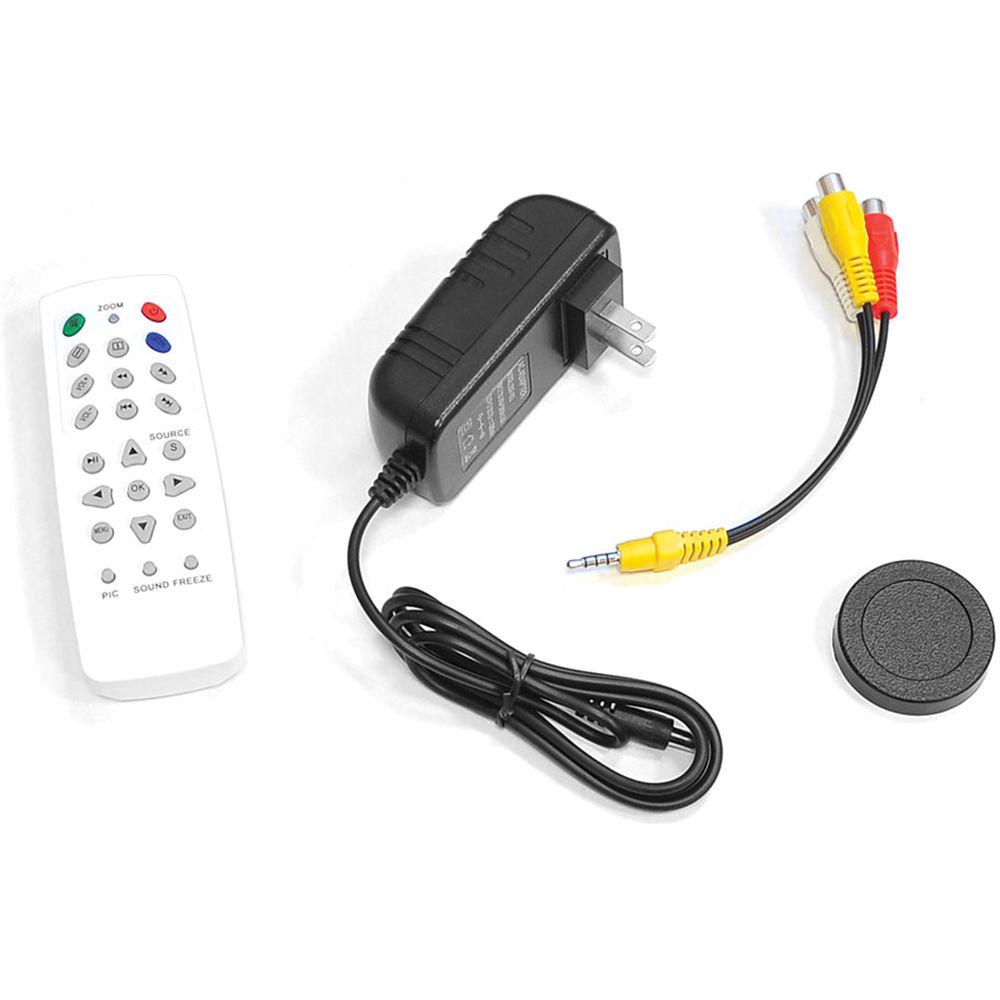

UPC: 068888754453 In the Box Pyle Pro PRJG45 Mini LED Projector Remote Control Lens Cap Mini AV to RCA Video and Stereo Audio Breakout Cable Power Supply Limited 1-Year Warranty Manual PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PRJG45 Mini LED Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PRJG45 Specs | | | Display System | LCD | | Native Chip Resolution | 320 x 240 | | Max Brightness | 40 Lumens | | Aspect Ratio | Native: 4:3
Supported: 16:9 | | Contrast Ratio | 300:1 | | Color Depth | 8-Bit (16.78 Million Colors) | | | | Focus | Manual | | Optical Zoom | None | | Throw Distance | 3.3 - 10' / 1.006 - 3.048 m | | Projection Size | 17 - 67" / 43.18 - 170.18 cm | | | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 1W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio/Video (Input)
1 x USB 2.0 Type-A Female (Input)
1 x 1/8" (3.5 mm) Mini Headphone (Output) USB supports storage devices up to 400 GB in capacity | | Memory Card Slot | 1 x SD (Unspecified Type) | | | | Light Source | LED | | Supported Audio File Types | MP3, RM, WMA | | Supported Document File Types | DAT | | Supported Photo File Types | BMP, JPEG, PNG | | Supported Video File Types | AVI, DivX, H.264, MOV, MP4, MPEG, RMVB, VC-1, WMV | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 41 W | | Dimensions (W x H x D) | 5.0 x 2.2 x 5.0" / 12.7 x 5.6 x 12.7 cm | | Weight | 1.0 lb / 453.6 g | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 9.0 x 6.6 x 4.2" |
Rating64% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
