User Manual for Pyle Pro PRJG65 150-Lumen HVGA LED Pico Projector Click to enlarge the picture
Contents of the user manual for the Pyle Pro PRJG65 150-Lumen HVGA LED
- Product category: Pico Projectors Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Pico Projectors
 |
User manual for the Pyle Pro PRJG65 150-Lumen HVGA LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

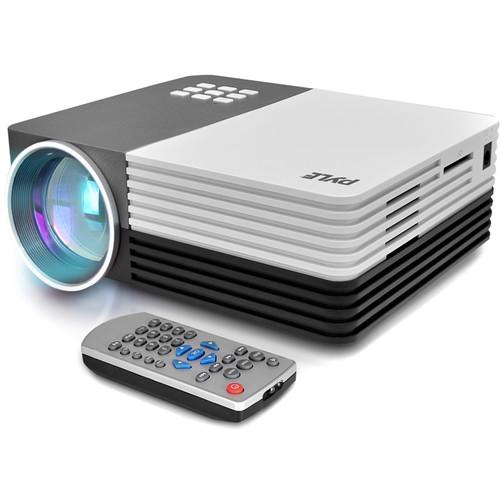

Product description The Pyle PRJG65 150-Lumen HVGA LED Pico Projector is a versatile multimedia projector with multiple connectivity options. Connect it to HDMI, AV, or VGA devices, such as a laptop, gaming console, or DVD player. You can even playback digital media files via the built-in USB port and SD card slot. Plug in a USB flash device or insert an SD card to play AVI, MPG, MOV, MP3, WMA, and other file types.
Whether you project onto a projector screen or a wall, the PRJG65 can project images up to 120" in size. Supporting up to Full HD 1080p content and a 16:9 aspect ratio, the PRJG65 can be used in both presentation and home entertainment situations. Pitch your latest proposal, or kick back to your favorite movies or TV shows. - Compact Size/Setup Anywhere
- Being a pico projector, the compact PRJG65 is not only easy to take with you, but it's also easy to set up almost anywhere. Throw it in a backpack and set it up on a flat surface, or mount it to the ceiling upside-down.
- Headphones or Speaker
- Whether you're projecting a movie, playing a game, or just listening to music, you can let the whole room enjoy with the built-in stereo speakers. If you need a more private experience, plug in a pair of headphones to the built-in 3.5mm jack.
- Additional Features
- 360-degree image flip ability

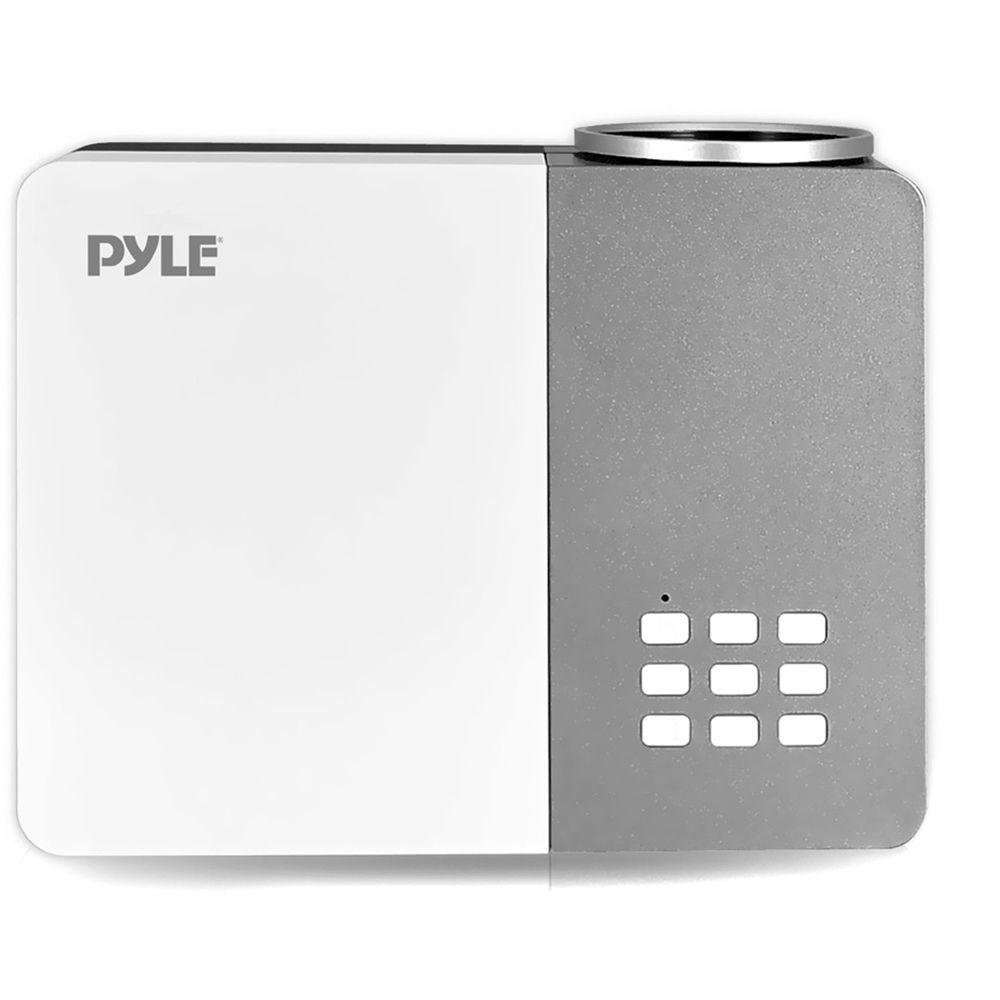

Top panel control center
Long-lasting LED lamp
Charge your smartphone via USB (when PRJG65 is attached to AC power)
Can also be powered via 2A USB power bank
Picture adjustment and customization options
Cooling fans with ventilation
Multi-language support
Manual focus lens

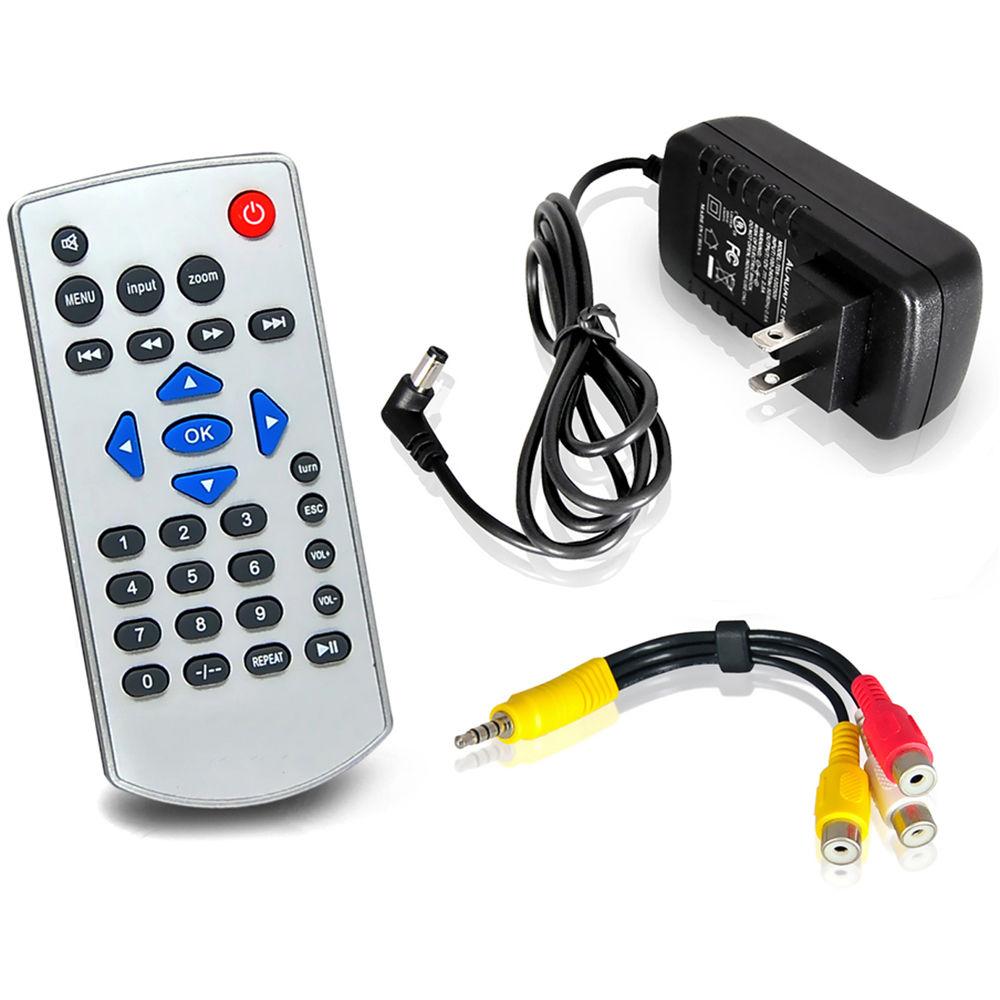

Compatible with Mac or Windows PCs UPC: 068888762076 In the Box Pyle Pro PRJG65 150-Lumen HVGA LED Pico Projector AC Wall Adapter Remote Control AV-to-3.5mm Connection Cable Limited 1-Year Warranty Manual PDF 4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PRJG65 150-Lumen HVGA LED Pico Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PRJG65 Specs | | | Display System | Polysilicon TFT LCD | | Native Chip Resolution | 480 x 320 (HVGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 150 Lumens | | Aspect Ratio | Native: 3:2
Supported: 16:9

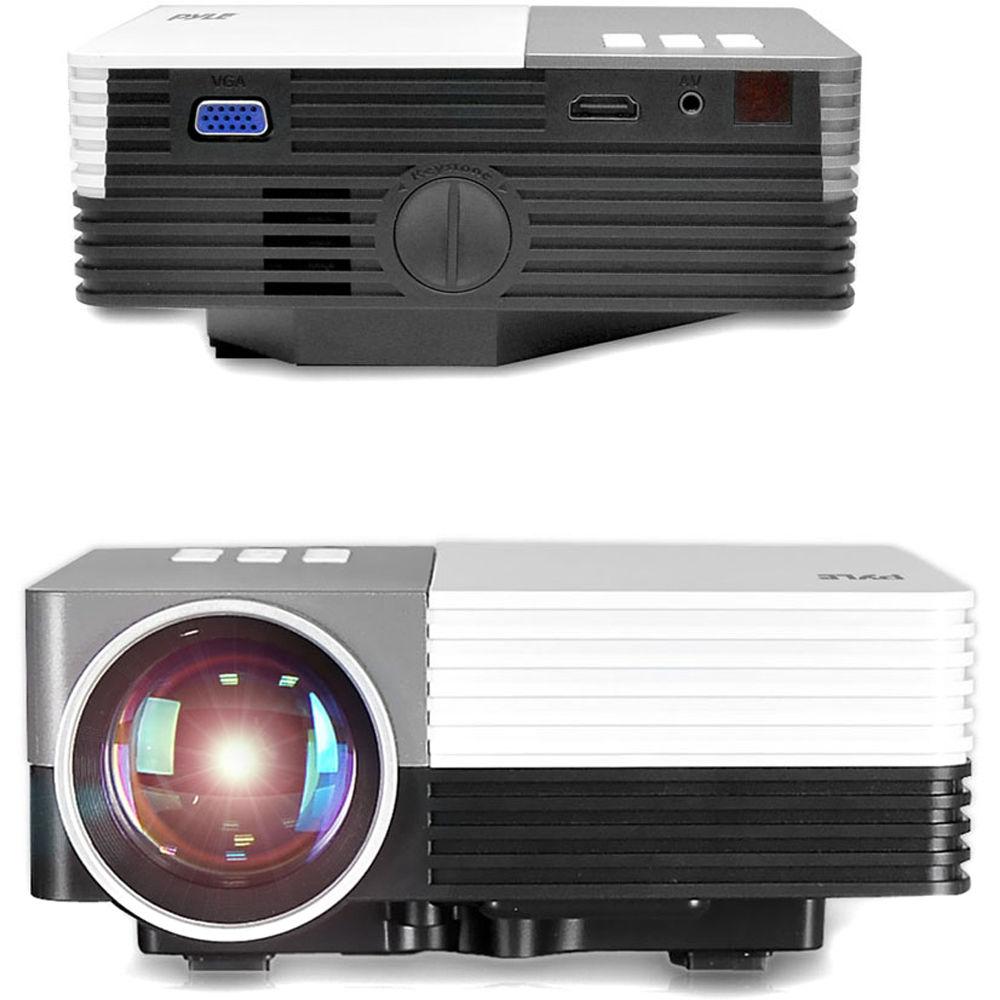

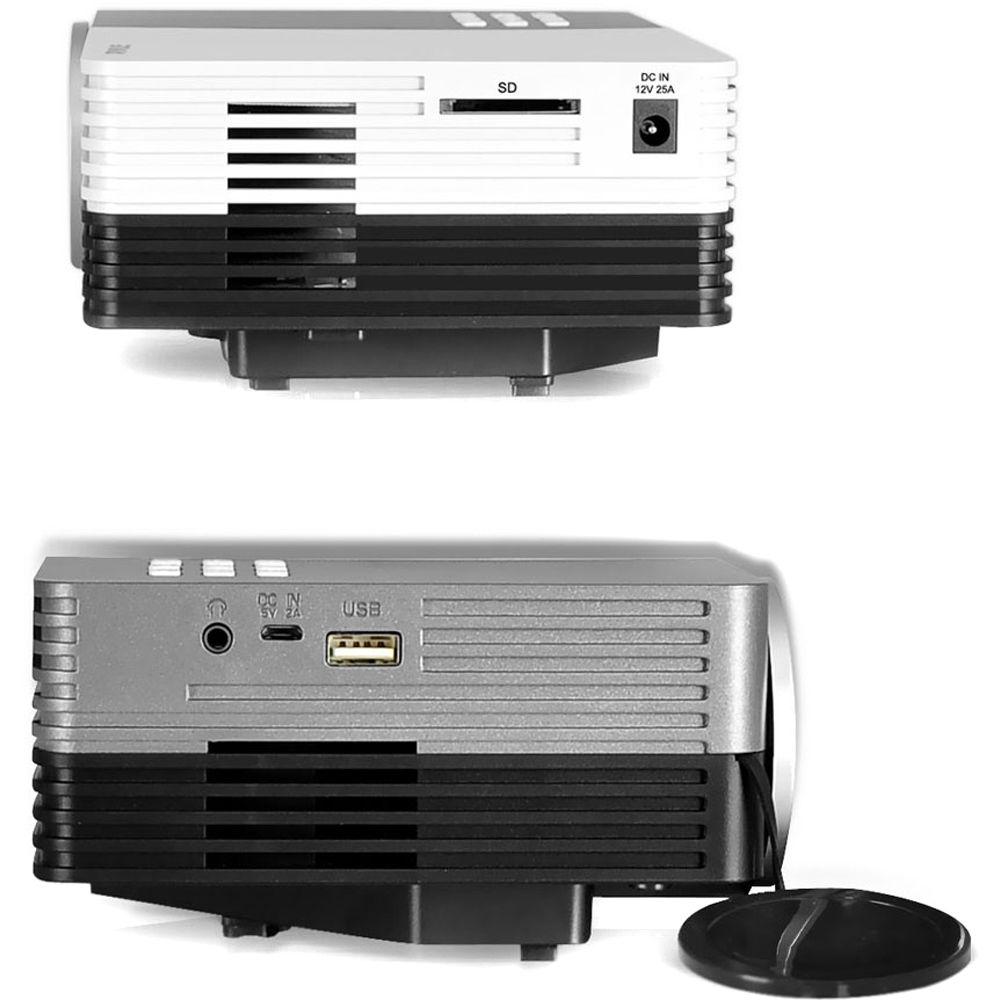

Supported: 4:3 | | Contrast Ratio | 500:1 | | | | Focus | Manual | | Throw Distance | 3.609 - 10.827' / 1.1 - 3.3 m | | Projection Size | 30 - 120" / 76.20 - 304.80 cm | | | | Keystone Correction | Manual: ± 15° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 4W | | | | Inputs/Outputs | 1 x HDMI (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15) Video Input
1 x Composite (1/8" (3.5 mm) Mini) Audio, Video Input
1 x USB 2.0 (USB Type-A) Data Input/Output
1 x 1/8" (3.5 mm) Mini Headphone Output
1 x Micro-USB Power Input | | Memory Card Slot | 1 x SDHC | | | | Light Source | LED | | Expected Lamp Life | Medium Brightness: 30,000 Hours | | Supported Audio File Types | MP3, WMA | | Supported Video File Types | AVI, MKV, MOV | | AC Input Power | 110 to 220 VAC, 50 / 60 Hz | | DC Power Requirements | 12 VDC | | Power Consumption | Medium Brightness: 30 W | | Dimensions (W x H x D) | 5.6 x 2.8 x 6.7" / 14.2 x 7.1 x 17.0 cm | | Weight | 2.57 lb / 1.17 kg | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 10.236 x 7.087 x 3.937" |
