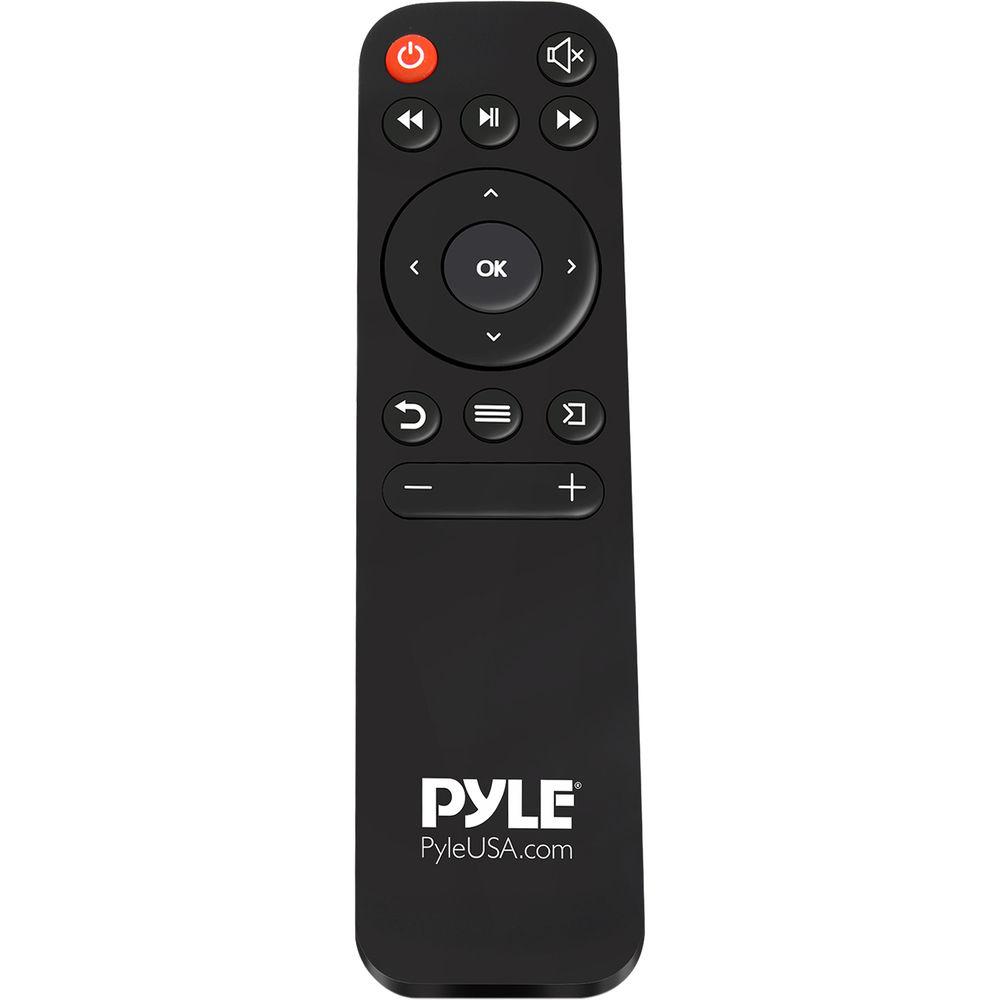

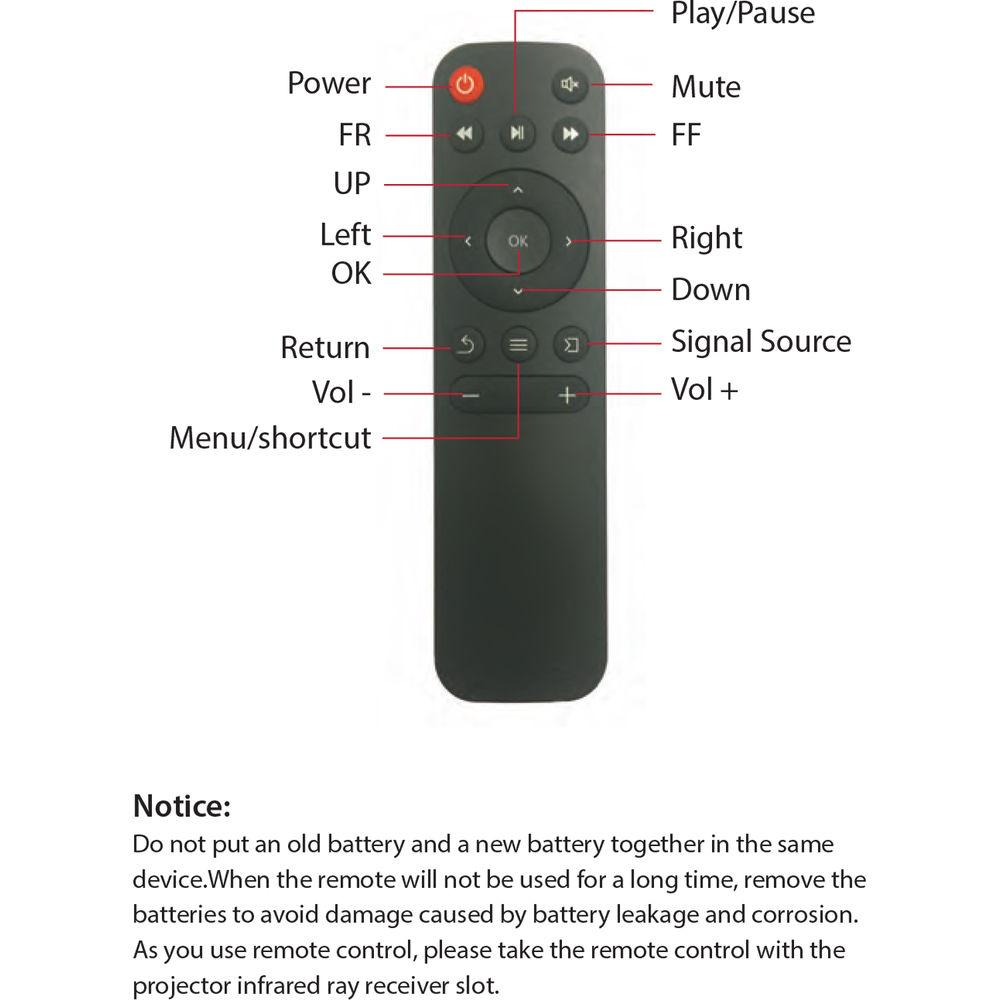

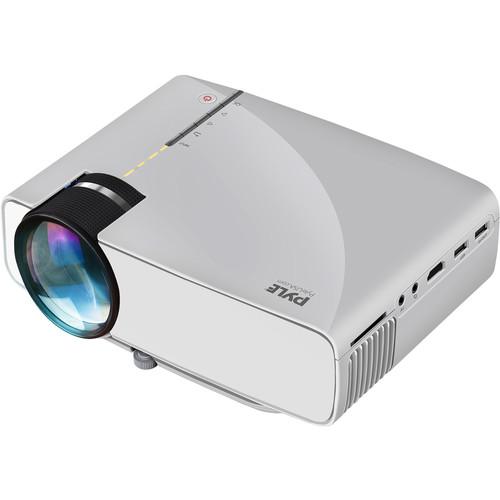

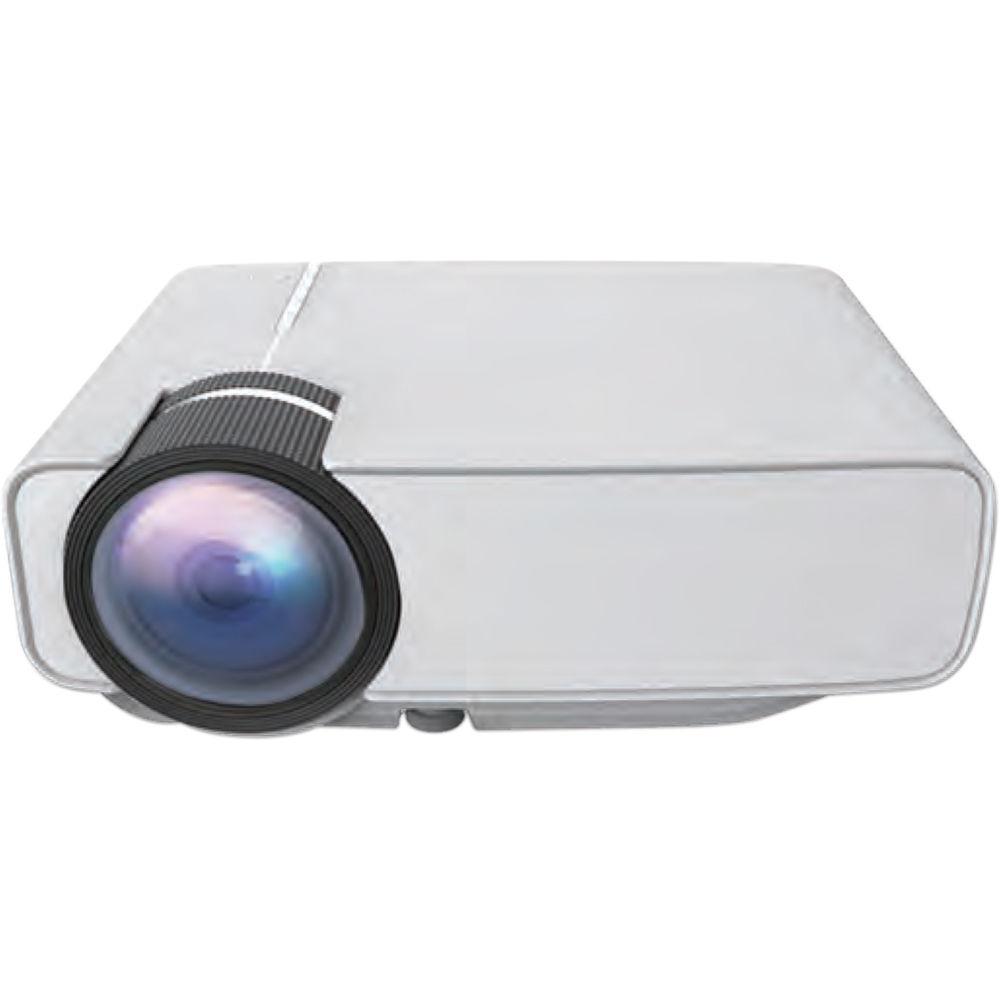

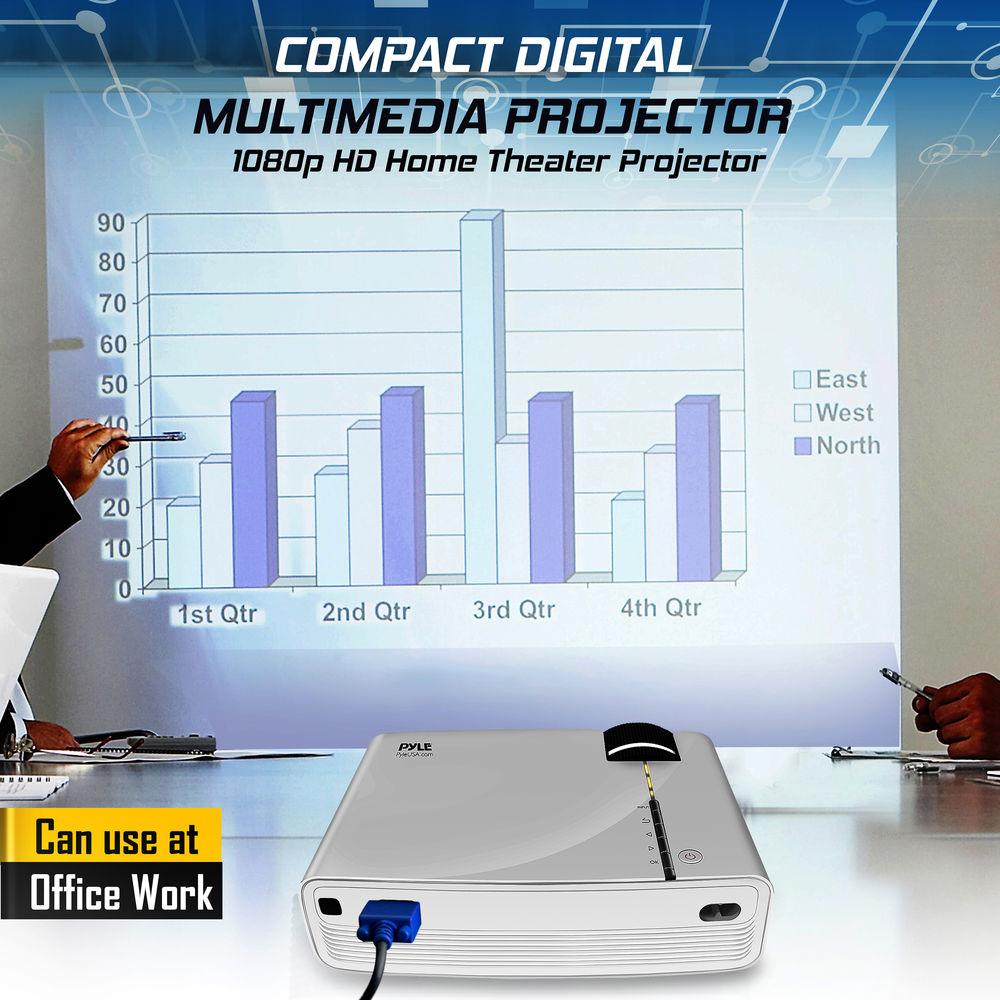

Product description Display various types of multimedia files with the Pyle Pro PRJG74 1200-Lumen WVGA LCD Projector. It features a USB port and an SD card slot that can read a selection of video, photo, audio, and data file types for versatile presentation use. Its 1200 lumens of brightness will help it overcome some ambient light, while its 1000:1 contrast ratio will help enhance detail in dark images. In addition to USB, it features VGA, 1/8" A/V, and HDMI inputs to support more traditional source devices. An IR remote and RCA composite-to-1/8" A/V cable are included for added convenience. -
- WVGA 800 x 480 native resolution with support for up to Full HD signals
- Control interface designed to be user-friendly
- Compatible with multiple file types via USB or SD card
- USB power output for device charging

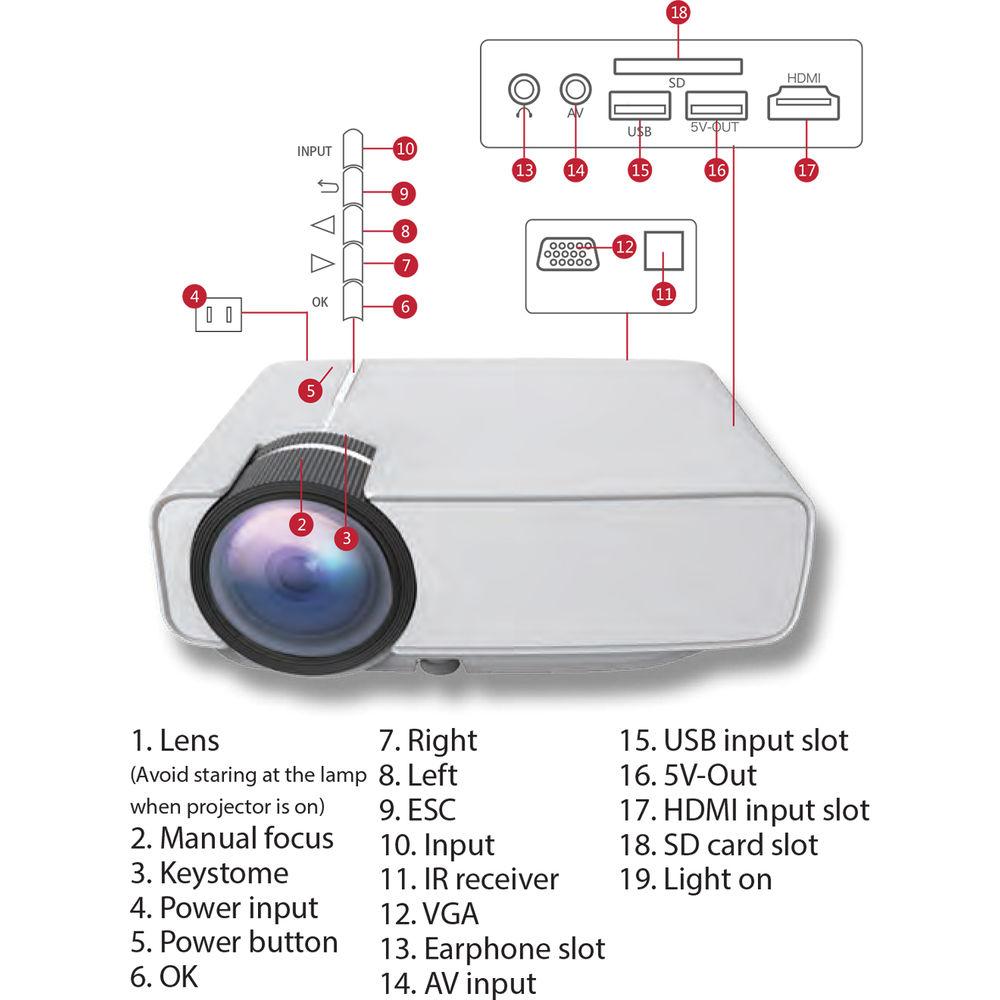

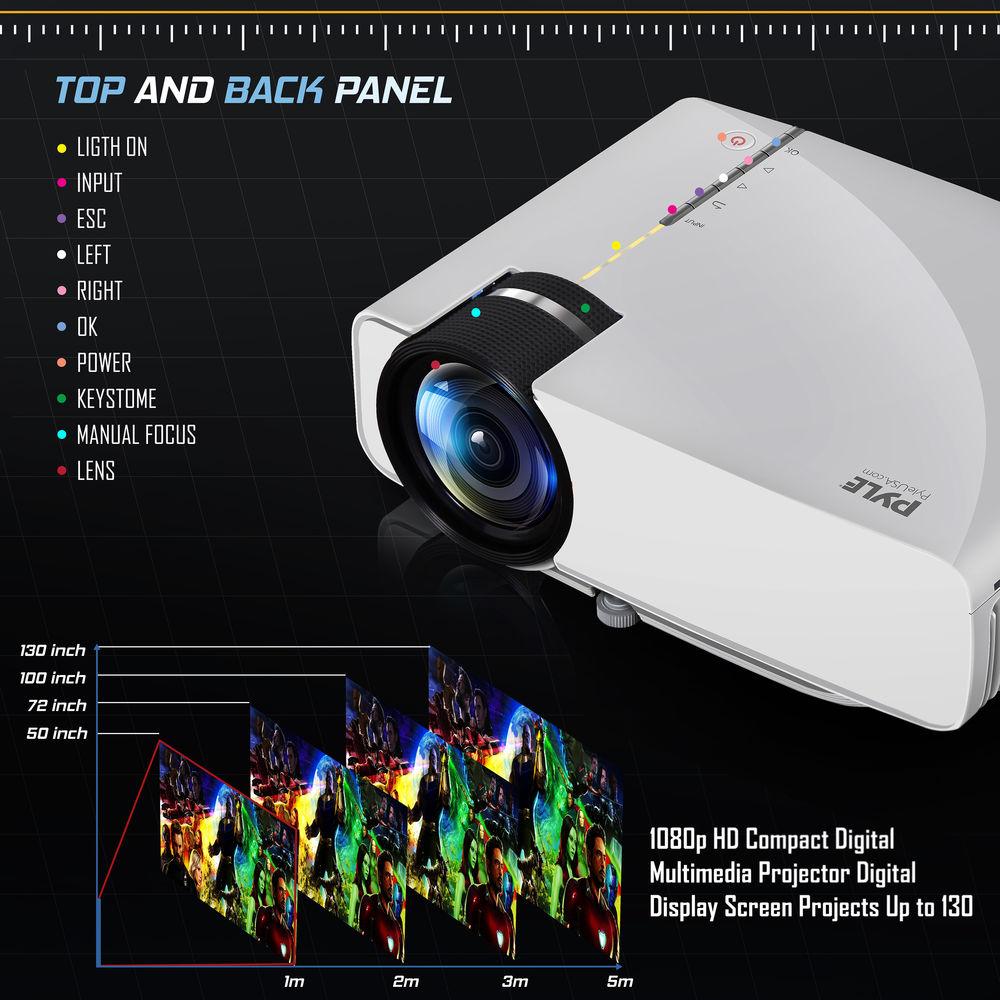

- Top-panel button control center

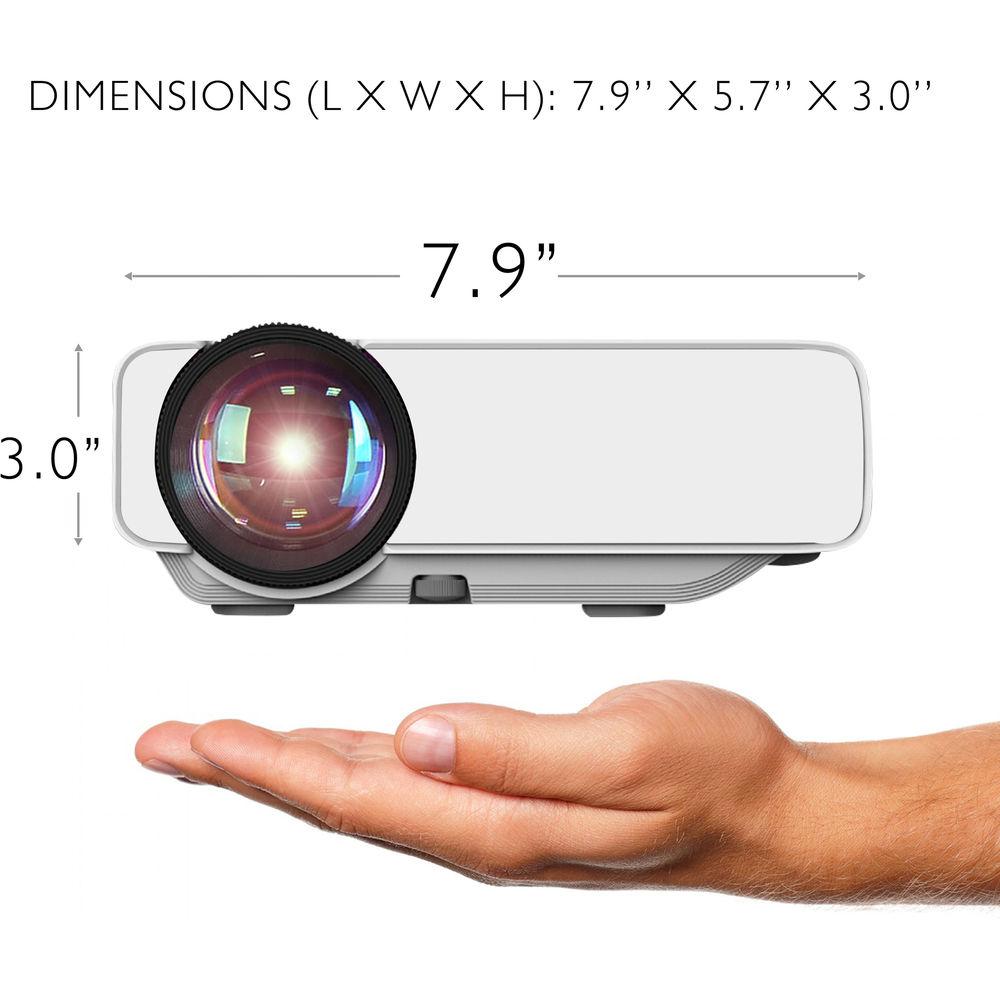

- Lightweight (1.96 lb), compact (7.9 x 3 x 5.7") design
- Built-in stereo speakers
- 60 Hz refresh rate
- Supports up to 23 languages
UPC: 842893100340 In the Box Pyle Pro PRJG74 1200-Lumen WVGA LCD Projector Remote Control RCA to 1/8" A/V Cable Power Cable Limited 1-Year Warranty User Manual PDF 384.3kbwatuewqzfatcwbatrccdrx Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PRJG74 1200-Lumen WVGA LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PRJG74 Specs | | | Display System | Polysilicon TFT LCD | | Native Chip Resolution | 800 x 480 (WVGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 1200 Lumens | | Aspect Ratio | Native: 15:9
Supported: 16:9

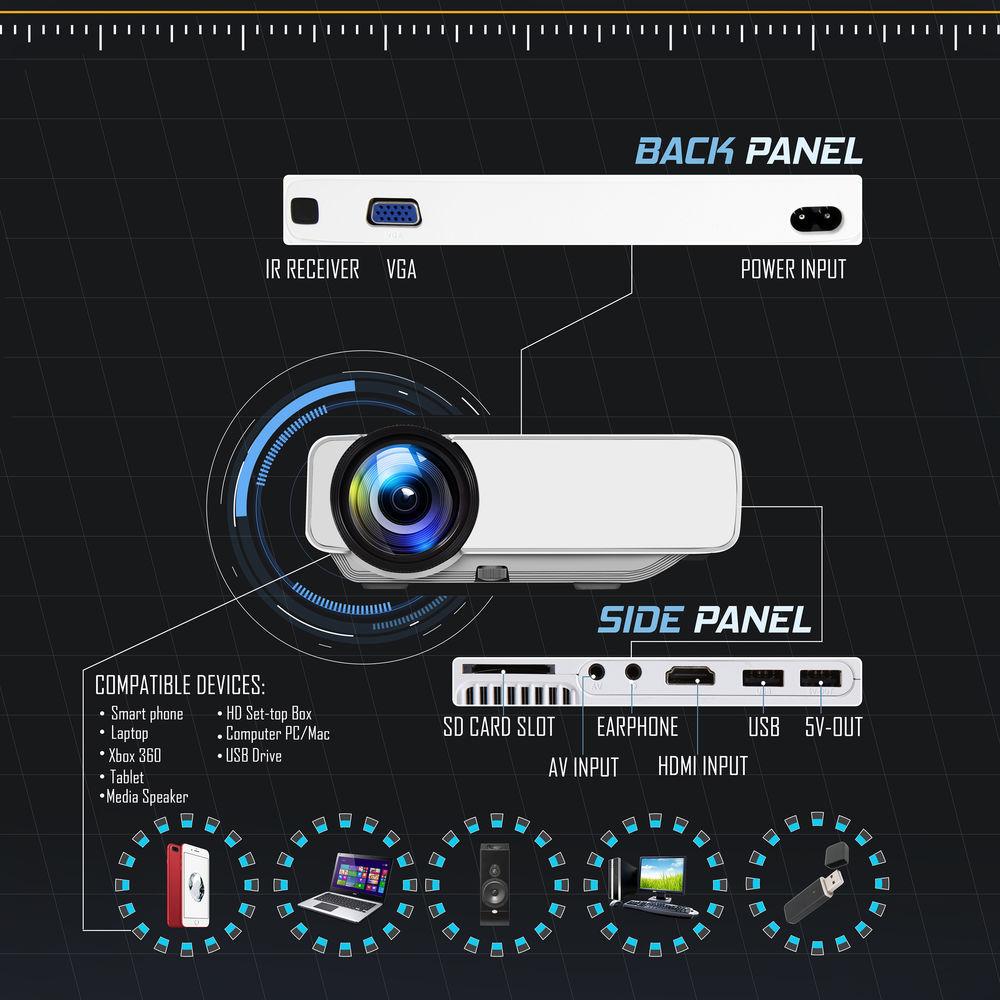

Supported: 4:3 | | Contrast Ratio | 1000:1 | | Color Depth | 8-Bit (16.78 Million Colors) | | | | Focus | Manual | | Optical Zoom | None | | Throw Distance | 4.921 - 13.123' / 150 - 400 cm | | Throw Ratio | 1.4:1 | | Projection Size | 50 - 130" / 127.00 - 330.20 cm | | | | Keystone Correction | : ± 15° | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 2W | | | | Inputs/Outputs | 1 x HDMI (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15) Video Input
1 x USB 2.0 (USB Type-A) Audio, Data, Video Input
1 x USB 2.0 (USB Type-A) Power Output
1 x Composite (1/8" (3.5 mm) Mini) Audio, Video Input
1 x 1/8" (3.5 mm) Mini Audio Output | | Memory Card Slot | 1 x SD (Unspecified Type) | | Wireless LAN / Wi-Fi | None | | | | Light Source | LED | | Expected Lamp Life | Low Brightness: 30,000 Hours | | Supported Audio File Types | MP3, WMA | | Supported Document File Types | TXT | | Supported Video File Types | AVI, MOV, MPG | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 50 W | | Dimensions (W x H x D) | 7.9 x 3.0 x 5.7" / 20.1 x 7.6 x 14.5 cm | | Weight | 1.96 lb / .89 kg | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 11.9 x 7.95 x 4.65" |
