User Manual for Pyle Pro PRJLEDLP205 3000-Lumen XGA DLP Projector Click to enlarge the picture
Contents of the user manual for the Pyle Pro PRJLEDLP205 3000-Lumen XGA DLP
- Product category: Multimedia Projectors Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Multimedia Projectors
 |
User manual for the Pyle Pro PRJLEDLP205 3000-Lumen XGA DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

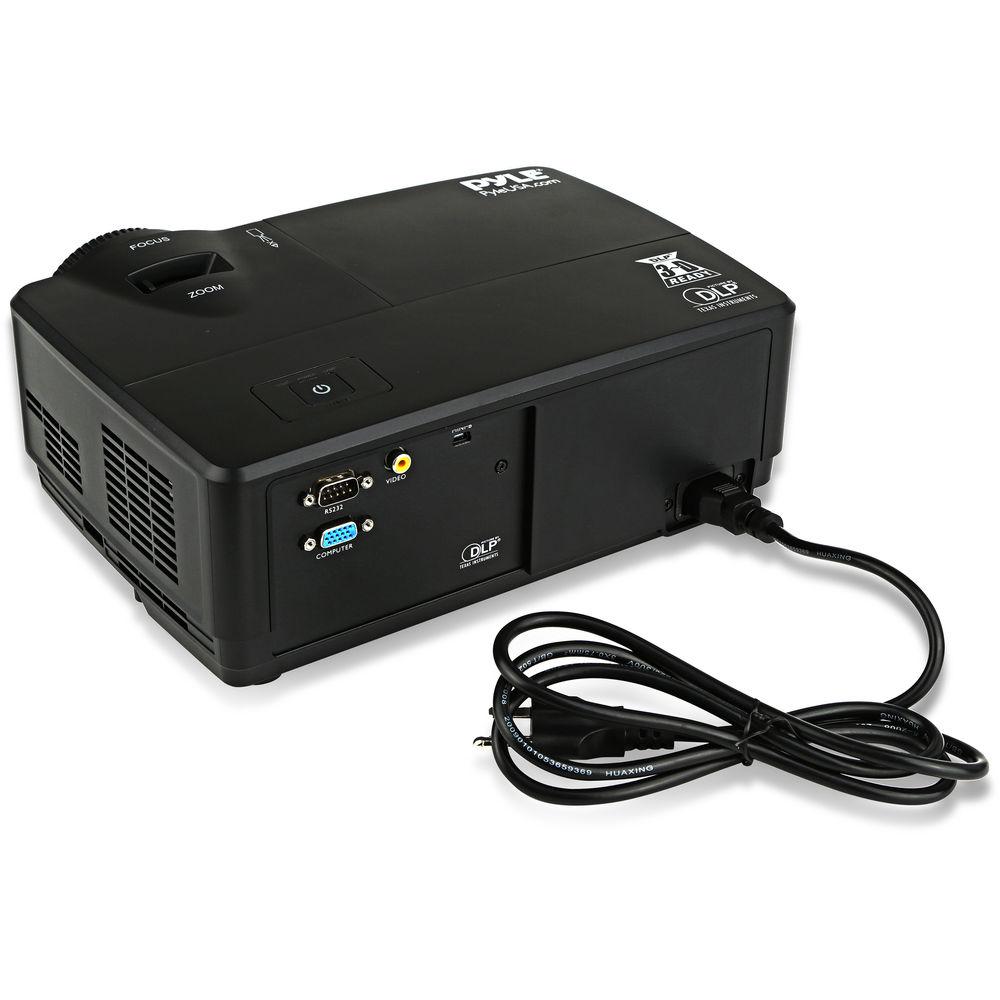

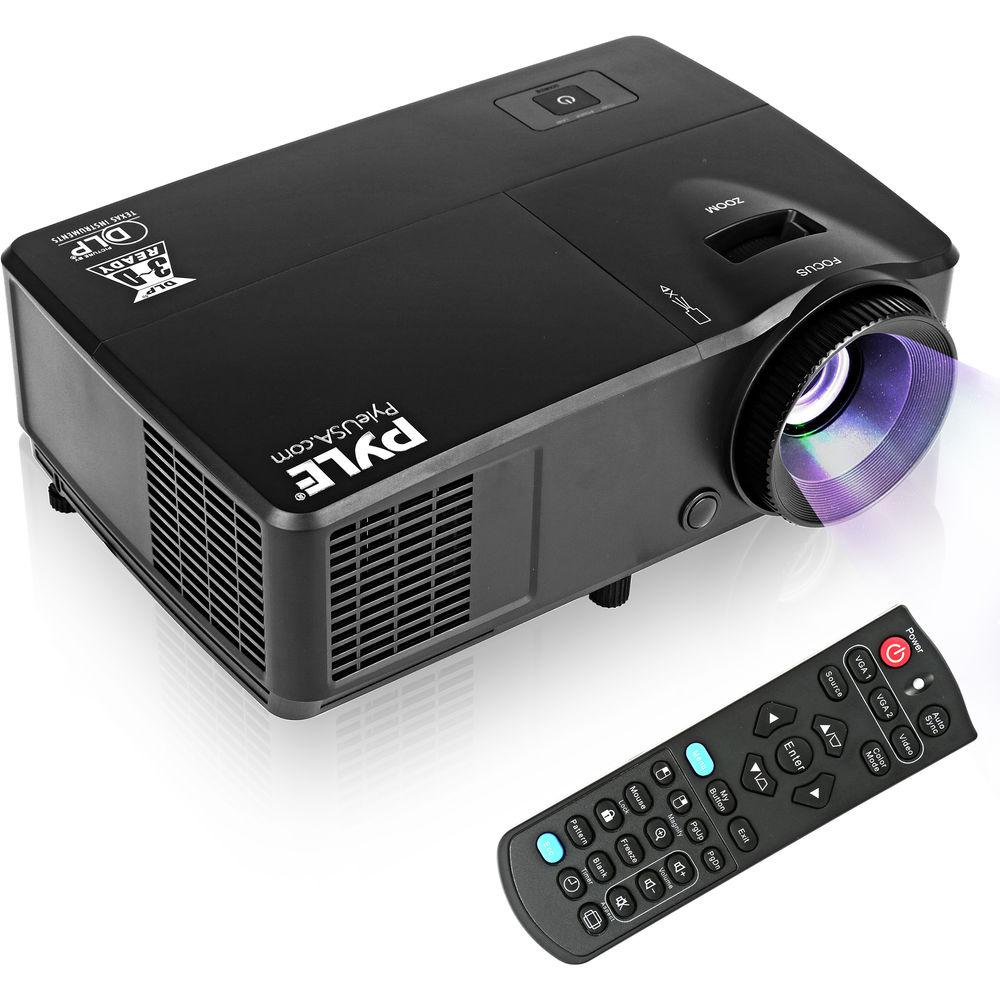

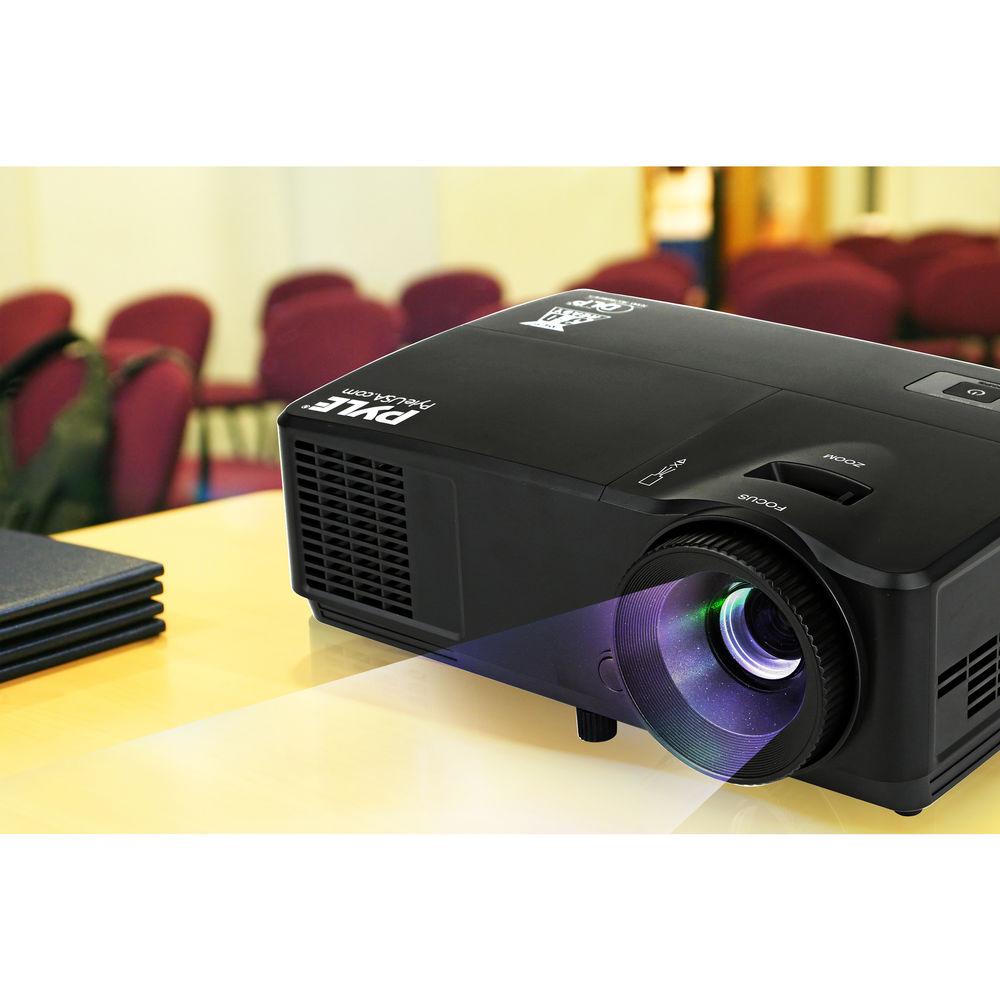

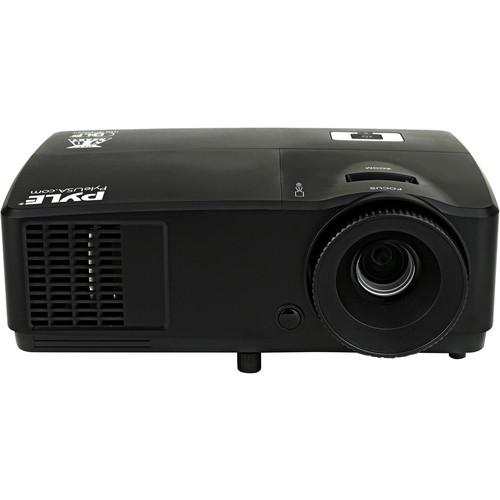

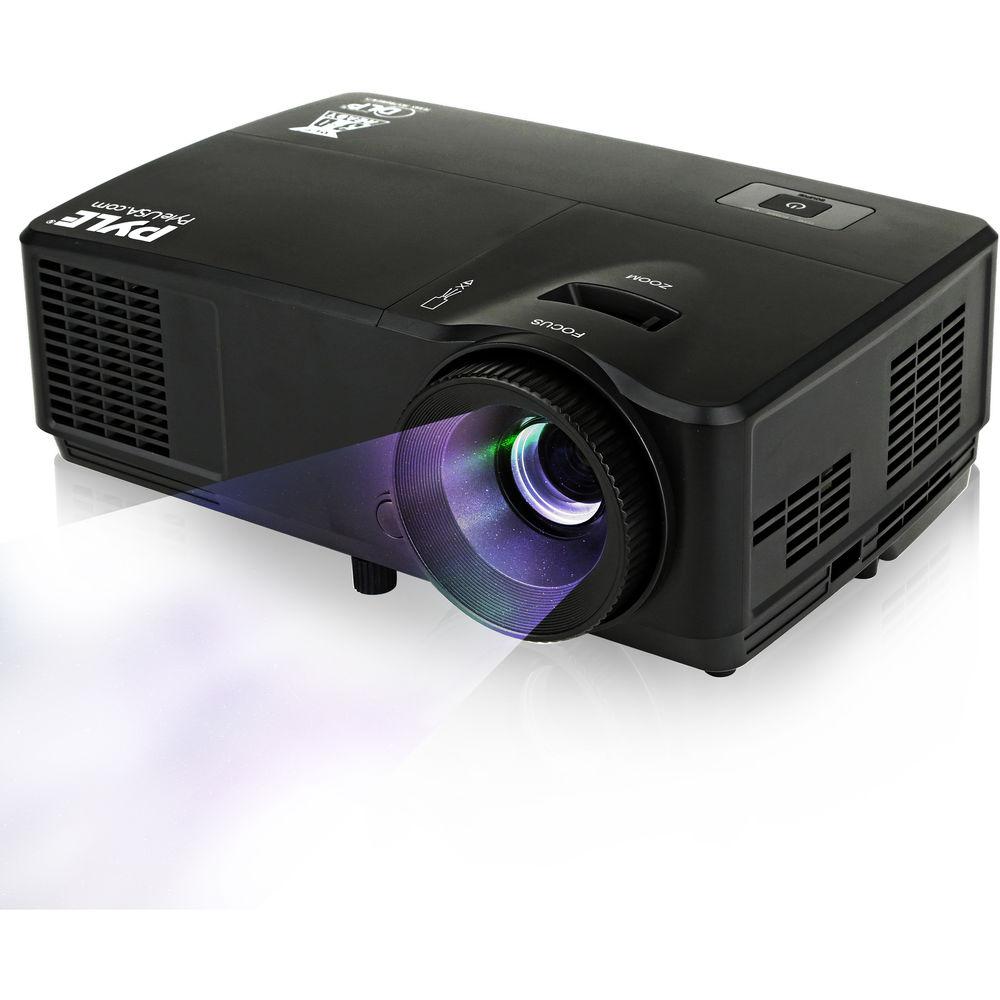

Product description Project up to 300" images with the Pyle Pro PRJLEDLP205 3000-Lumen XGA DLP Projector. It features an RCA composite video input and a VGA input for computer connectivity. The computer can also control the projector via its RS-232 port. The projector's native XGA resolution makes it well-suited for data presentations. Its 3000 lumens of brightness can overcome some ambient light, while its 30,000:1 dynamic contrast ratio will help ensure detail is visible in dark areas of images. - Control interface designed to be user-friendly
- Multimedia digital file management
- Button-activated, self-adjusting digital zoom levels
- Picture adjustment and image configuration
- SmartEco Mode lowers the power consumption to extend lamp life

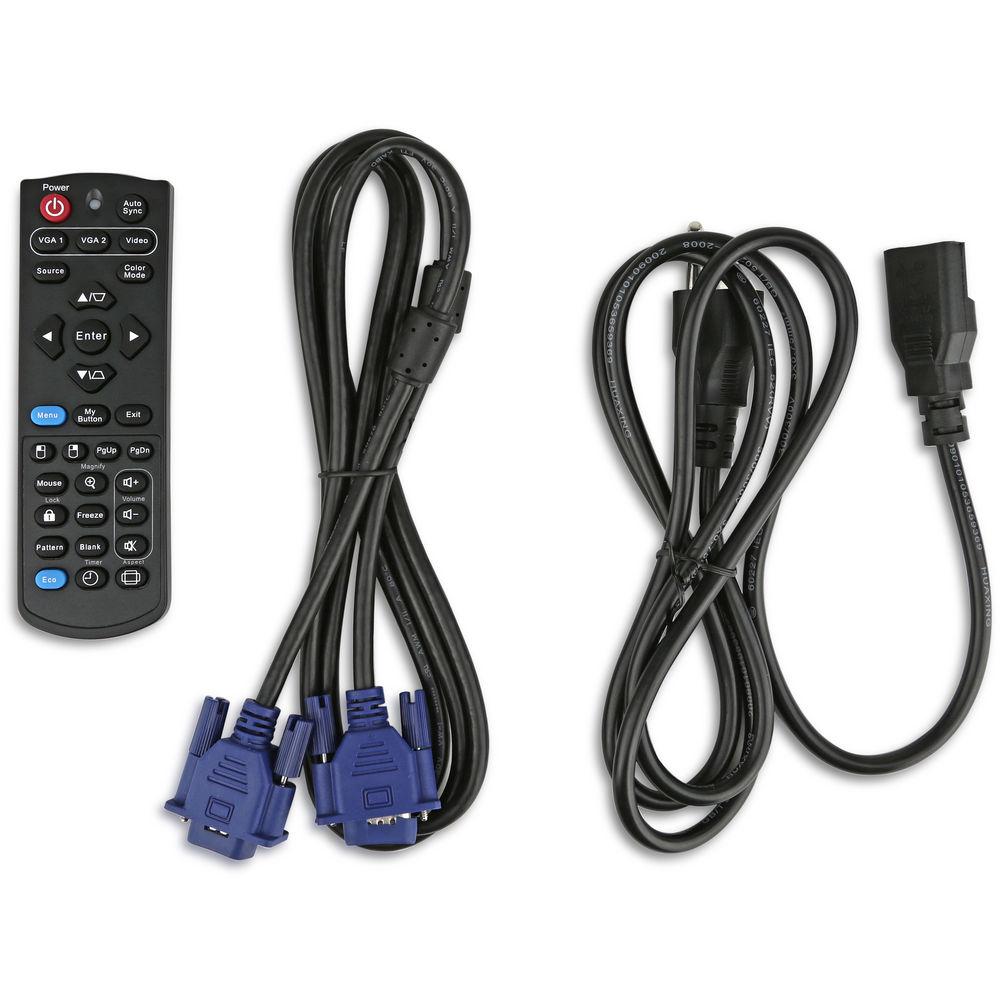

UPC: 068888770743 In the Box Pyle Pro PRJLEDLP205 3000-Lumen XGA DLP Projector Remote Control 15-Pin VGA Cable Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PRJLEDLP205 3000-Lumen XGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PRJLEDLP205 Specs | | | Display System | 1-Chip 0.55" DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Full HD 1080p - 1920 x 1080 | | Max Brightness | 3000 Lumens | | Aspect Ratio | Native: 4:3
Supported: 16:9
Supported: 16:10 | | Dynamic Contrast Ratio | 30,000:1 | | Scan | Horizontal: 31 to 100 kHz
Vertical: 50 to 120 Hz | | | | Focus | Manual | | Lens | f/2.5 - 2.7 (f = 22.08 - 24.28 mm) | | Optical Zoom | 1.1x | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | : ± 40° | | Ceiling Mountable | Yes | | | | Inputs/Outputs | 1 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x USB Service (Input) | | Internal Storage | None | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp (1 x UHP) | | Lamp Power | 190 W | | Expected Lamp Life | Medium Brightness: 5000 Hours | | Security | Password Protection
Security Bar | | Supported Languages | Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 265 W
Standby Mode (Lamp Off): <0.5 W | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 10 - 80%
Storage
-4 to 140°F (-20 to 60°C)
Humidity: 30 - 85% | | Dimensions (W x H x D) | 11.2 x 8.2 x 4.6" / 28.5 x 20.8 x 11.6 cm | | Weight | 4.25 lb / 1.93 kg | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 15.906 x 13.071 x 7.008" |
